Mustang Differential Fluid: The Complete Guide

The differential in your Mustang is a critical component, silently working to transfer power from the engine to the wheels, allowing them to spin at different speeds when cornering. This intricate piece of engineering relies heavily on its internal fluid to lubricate its gears, bearings, and clutches, dissipate heat, and prevent premature wear. Neglecting your differential fluid can lead to costly repairs, unpleasant noises, and a significant reduction in your Mustang's legendary performance. Whether you're a seasoned DIY enthusiast or new to automotive maintenance, understanding how to properly change and add fluid to your Mustang's differential is an essential skill for ensuring its longevity and smooth operation.

Why Differential Fluid is Crucial for Your Mustang

Often overlooked, differential fluid plays several vital roles within your Mustang's rear end. Firstly, it provides essential lubrication to the hypoid gears, which operate under extreme pressure and sliding forces. Without proper lubrication, these gears would quickly wear down, leading to grinding noises and eventual failure. Secondly, the fluid acts as a coolant, carrying away the immense heat generated by friction within the differential. Overheating can break down the fluid's protective properties, accelerating wear. Thirdly, the fluid helps to cushion the impact between gear teeth, reducing noise and vibration. For Mustangs equipped with limited-slip differentials (LSDs), the fluid also contains specific additives to ensure the smooth operation of the clutch packs, preventing chatter and ensuring efficient power transfer. In essence, clean, correct differential fluid is the lifeblood of your Mustang's rear axle, directly impacting its performance, reliability, and the overall driving experience.

When to Change Your Mustang's Differential Fluid

Knowing when to service your differential is just as important as knowing how. While your Mustang's owner's manual will provide the most accurate maintenance schedule for your specific model year, here are some general guidelines and indicators:

• Routine Maintenance: For most street-driven Mustangs, a differential fluid change is typically recommended every 30,000 to 50,000 miles (approximately 48,000 to 80,000 kilometres). However, this can vary significantly.
• After Gear Changes: If you've recently upgraded or changed your Mustang's rear end gears, it's highly recommended to change the differential fluid after the initial break-in period (usually 500-1000 miles or 800-1600 km). This removes any metal particles generated during the new gear set's seating process.
• Heavy Use Conditions: Mustangs that see frequent track days, drag racing, towing, or aggressive driving will put more stress on the differential. In these cases, more frequent fluid changes (e.g., every 15,000-20,000 miles or 24,000-32,000 km) are advisable.
• Unusual Noises: A whining, groaning, or clunking noise coming from the rear end, especially during acceleration or deceleration, can be a symptom of low or degraded differential fluid.
• Leaks: Any visible leaks around the differential cover or pinion seal indicate a problem. Even if the leak is minor, it can lead to low fluid levels over time.

Choosing the Right Differential Fluid for Your Mustang

Selecting the correct fluid is paramount for optimal differential health. Mustangs typically use a hypoid gear oil, usually rated GL-5. However, the specific viscosity and the requirement for limited-slip additives are crucial considerations.

Viscosity

The most common viscosities for Mustang differentials are 75W-90, 80W-90, or 75W-140. Your owner's manual will specify the exact recommendation for your model. Higher viscosity oils (like 75W-140) are often recommended for performance applications, heavy-duty use, or in hotter climates, as they maintain their film strength better under extreme conditions.

Synthetic vs. Conventional

While conventional gear oils are perfectly adequate, synthetic fluids offer superior performance and longevity. They maintain their viscosity better across a wider temperature range, offer enhanced protection against wear, and can sometimes extend change intervals. Many modern Mustangs are factory-filled with synthetic fluid.

Limited-Slip Additive (Friction Modifier)

This is perhaps the most critical consideration for Mustangs equipped with clutch-type limited-slip differentials. Without the correct friction modifier, the clutch packs inside the LSD will chatter, producing an unpleasant noise and potentially damaging the unit. Some gear oils come with the limited-slip additive already blended in, while others require it to be added separately. Always check the fluid's label carefully. If in doubt, add a separate bottle of friction modifier – it's better to have too much than not enough for an LSD.

Fluid Type Comparison

Tools and Materials Required

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.

• Floor Jack and Jack Stands (absolutely essential for safety)
• Wheel Chocks
• Drain Pan (large enough to hold approximately 2-3 litres of fluid)
• Socket Wrench Set (including a ratchet, extensions, and sockets for differential cover bolts and fill/drain plugs)
• Torque Wrench (for proper reassembly)
• Gasket Scraper or Razor Blade
• Wire Brush (optional, for cleaning mating surfaces)
• Brake Cleaner or Degreaser
• Clean Rags or Shop Towels
• New Differential Fluid (check your owner's manual for type and quantity)
• Limited-Slip Additive (if your fluid doesn't have it pre-mixed and your Mustang has a clutch-type LSD)
• New Differential Cover Gasket or RTV (Room Temperature Vulcanising) Sealant (specifically designed for automotive use)
• Fluid Transfer Pump or Squeeze Bottle (essential for filling)
• Safety Glasses and Gloves

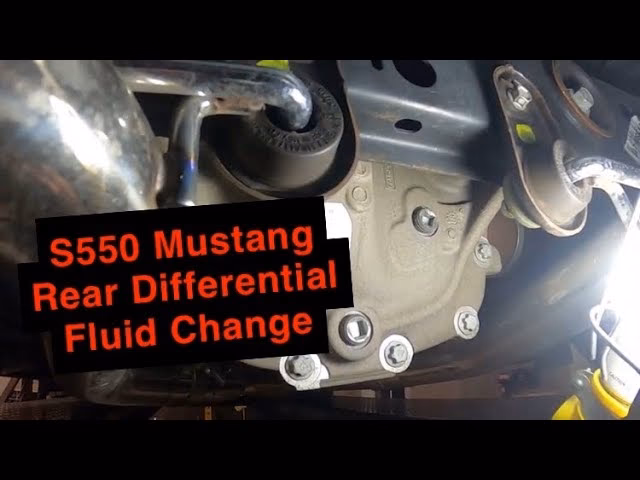

Step-by-Step Guide: Changing Your Mustang's Differential Fluid

This guide assumes you are performing a full fluid change, which involves draining the old fluid and refilling with new. If you are only topping up, skip to the 'Filling the Differential' section, but ensure you address the cause of the low fluid level.

1. Preparation and Safety First

Safety is paramount when working under a vehicle. Park your Mustang on a level, hard surface. Engage the parking brake and place wheel chocks behind the front wheels. Using a floor jack, carefully raise the rear of the vehicle. Once lifted, place sturdy jack stands under the frame rails or designated jacking points. Never rely solely on a jack. Give the car a gentle shake to ensure it's stable on the stands. This might be a good time to wear your safety glasses and gloves.

2. Locating and Loosening the Fill Plug

Before attempting to drain any fluid, locate and loosen the differential fill plug. This is crucial. If you drain the fluid and then discover you can't open the fill plug, you'll be stuck with a car that can't move. The fill plug is typically located on the side of the differential housing, usually towards the top. It might be a large hex plug or require a specific square drive. Loosen it a few turns, but don't remove it completely yet.

3. Draining the Old Fluid

Depending on your Mustang's differential, there might be a drain plug at the bottom of the housing, or you may need to remove the entire differential cover. Most older Mustangs (and some newer ones) require removing the cover. Position your large drain pan directly underneath the differential. If there's a drain plug, remove it and allow the fluid to drain completely. If removing the cover:

• Carefully loosen all the bolts around the differential cover. Leave a couple of bolts at the top slightly threaded to prevent the cover from falling off.
• Use a pry bar or a flat-blade screwdriver to gently break the seal on the bottom edge of the cover. Be prepared, as the fluid will start to drain out once the seal is broken.
• Once most of the fluid has drained, remove the remaining bolts and carefully pull the cover away. Be mindful of any residual fluid.

4. Cleaning and Inspection

With the cover removed (or after draining if you have a drain plug), take the opportunity to inspect the inside of the differential. Look for any excessive metal shavings or large chunks, which could indicate a more serious internal issue. A small amount of fine metallic paste on the drain plug's magnet (if equipped) is normal, but anything more should be a cause for concern.

Now, thoroughly clean the differential cover (if removed) and the mating surface on the differential housing. Use a gasket scraper or razor blade to remove all traces of the old gasket material or RTV sealant. It's vital that these surfaces are perfectly clean and dry for a good seal. You can use brake cleaner or degreaser on a rag to wipe down the surfaces.

5. Reinstalling the Cover/Drain Plug

If your differential has a drain plug, clean it, apply a thread sealant if recommended, and reinstall it, torquing it to the manufacturer's specification. If you removed the cover:

• Apply a new bead of RTV sealant to the differential cover, following the manufacturer's instructions for bead size and cure time. Alternatively, place a new gasket onto the cover.
• Carefully position the cover back onto the differential housing, aligning the bolt holes.
• Insert all the bolts and hand-tighten them.
• Using your torque wrench, tighten the bolts in a criss-cross or star pattern to the manufacturer's specified torque. This ensures even pressure and prevents leaks. Do not overtighten, as this can warp the cover or strip the threads.

6. Filling the Differential

This is where the fluid transfer pump becomes indispensable. Insert the pump's hose into the fill hole and the other end into your new differential fluid bottle. Begin pumping the fluid into the differential. If your Mustang has a limited-slip differential and your chosen gear oil doesn't have the additive pre-mixed, add the specified amount of friction modifier first, then continue filling with gear oil.

Continue adding fluid until it just begins to seep out of the bottom of the fill hole. This indicates the differential is at the correct level. For some differentials, particularly those with finned covers or aftermarket covers, the fill level might be slightly different. Always consult your Mustang's specific service manual or the aftermarket cover's instructions.

7. Final Checks

Once the fluid level is correct, reinstall the fill plug and torque it to the manufacturer's specification. Wipe down any spilled fluid with a clean rag. Carefully lower your Mustang off the jack stands. Before driving, double-check for any leaks around the differential cover or plugs. Take your Mustang for a short, gentle test drive, listening for any unusual noises. After the test drive, recheck for leaks, as the heat and movement can sometimes reveal a poor seal.

Common Mistakes to Avoid

• Not Loosening the Fill Plug First: This is a classic mistake. Always ensure you can open the fill plug before draining the fluid.
• Using the Wrong Fluid or No Limited-Slip Additive: This can lead to premature wear, noise (chatter), and poor performance. Always consult your owner's manual.
• Not Cleaning Mating Surfaces Properly: Leftover gasket material or RTV will lead to leaks.
• Over-tightening Bolts: Can warp the differential cover, strip threads, or crack the housing.
• Under-tightening Bolts: Will result in leaks.
• Overfilling the Differential: Can cause pressure buildup, leading to leaks, or in extreme cases, damage to seals.

Frequently Asked Questions (FAQs)

How much differential fluid does my Mustang typically hold?

The capacity varies significantly by Mustang model year, engine, and differential type. Most Mustang differentials hold between 1.5 to 2.5 litres (approximately 1.6 to 2.6 US quarts) of fluid. Always consult your owner's manual or a reliable service manual for your specific model for the exact capacity.

Do all Mustangs require limited-slip additive?

No. Only Mustangs equipped with a clutch-type limited-slip differential (LSD) require the friction modifier. Open differentials and Torsen-style LSDs (like those found in some performance package Mustangs) do not typically require a separate friction modifier, though it won't harm them if the fluid already contains it. Check your Mustang's specifications or consult your owner's manual to determine your differential type.

Can I mix different brands or types of gear oil?

While generally not recommended, some synthetic and conventional gear oils might be compatible. However, for optimal performance and protection, it's always best to stick with one brand and type of fluid. Mixing could dilute the additive packages or lead to unforeseen chemical reactions.

What are the signs of low or bad differential fluid?

The most common signs include a whining or howling noise from the rear end, especially during acceleration, deceleration, or when turning. Other indicators can be a clunking sound, excessive vibration, or visible leaks around the differential housing.

Is it normal for the differential fluid to smell bad?

Yes, gear oil naturally has a strong, often unpleasant odour, sometimes described as a 'rotten egg' smell due to sulphur compounds. This is normal. However, a burnt smell indicates overheating and degraded fluid.

How often should I check my differential fluid level?

It's a good practice to check your differential fluid level periodically, perhaps every 15,000-20,000 miles (24,000-32,000 km) or if you notice any unusual noises or leaks from the rear end. This is done by removing the fill plug and ensuring the fluid level is at the bottom of the fill hole.

By understanding the importance of differential fluid and following these steps, you can ensure your Mustang's rear end remains healthy, quiet, and ready to deliver the power you expect. Regular maintenance is key to the longevity of any vehicle, and the differential is no exception.
