Multiport Fuel Injection Explained

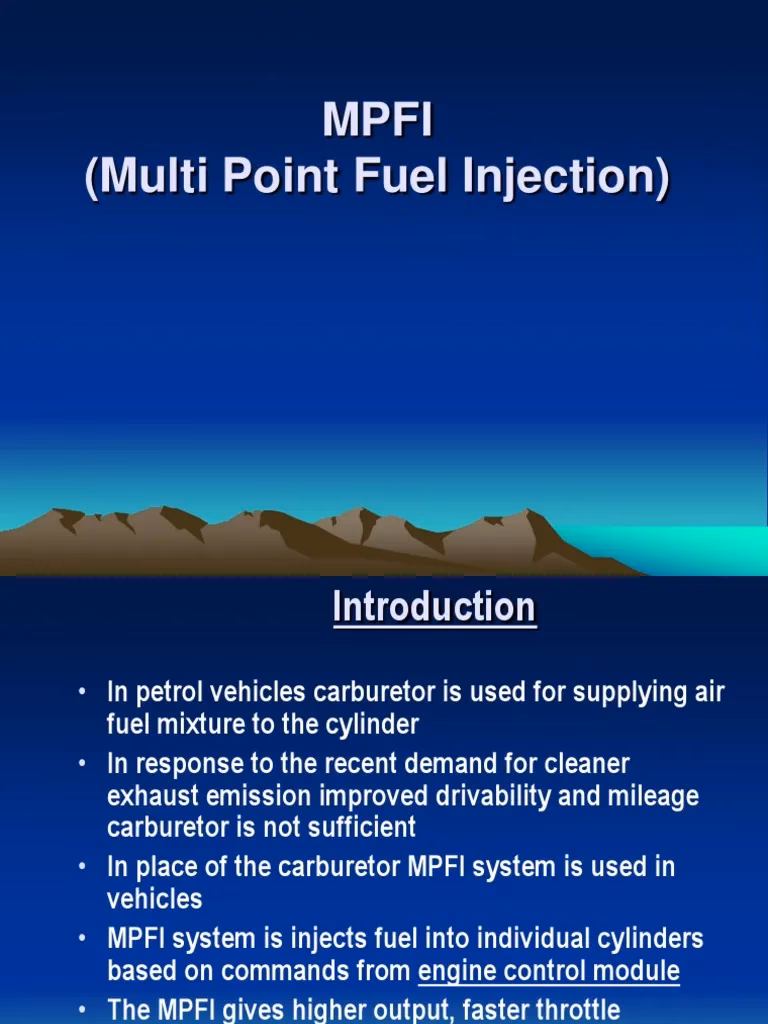

The evolution of the internal combustion engine has been a relentless pursuit of efficiency, power, and cleaner emissions. One of the most significant advancements in achieving these goals has been the transition from carburettors to fuel injection systems. Within the realm of fuel injection, multiport fuel injection (MPI), also known as indirect injection, stands out as a widely adopted and highly effective technology that has powered countless vehicles for decades. This system, while perhaps less sophisticated than its direct injection counterparts, offers a robust and reliable method for delivering fuel precisely where and when it's needed, ensuring a more controlled and efficient combustion process.

The Fundamentals of Multiport Fuel Injection

At its core, MPI is an electronic fuel delivery system designed to atomise fuel and inject it into the engine's intake manifold, just before the intake valve of each cylinder. Unlike older carburettor systems that relied on vacuum pressure to draw fuel into the airstream, MPI uses electronically controlled fuel injectors that are precisely metered by the engine control unit (ECU). This allows for a much finer degree of control over the air-fuel mixture, which is crucial for optimising performance, fuel economy, and emissions.

How MPI Works: A Step-by-Step Breakdown

The operation of an MPI system can be broken down into several key stages:

1. Fuel Delivery: The fuel pump, typically located in the fuel tank, draws fuel and pressurises it. This pressurised fuel is then sent through a fuel filter to remove any impurities, ensuring the injectors receive clean fuel.
2. Fuel Rail: The pressurised fuel is delivered to a fuel rail, which acts as a manifold, distributing the fuel to each individual injector. A fuel pressure regulator maintains a constant pressure within the fuel rail, ensuring consistent fuel delivery regardless of engine load.
3. Electronic Control Unit (ECU): The ECU, often referred to as the car's 'brain', receives data from various sensors around the engine. These sensors monitor parameters such as engine speed (RPM), throttle position, air temperature, coolant temperature, and oxygen levels in the exhaust.
4. Injector Activation: Based on the data from the sensors, the ECU calculates the precise amount of fuel required for optimal combustion. It then sends an electrical signal to each fuel injector, opening it for a specific duration (pulse width).
5. Fuel Atomisation and Injection: Each injector is a small, electronically controlled valve. When activated by the ECU, it sprays a fine mist of fuel into the intake manifold, just upstream of the intake valve. This atomised fuel mixes with the incoming air before being drawn into the combustion chamber when the intake valve opens.
6. Combustion: The precisely metered air-fuel mixture enters the cylinder, is compressed by the piston, and ignited by the spark plug, generating power.
7. Feedback Loop: An oxygen sensor (lambda sensor) in the exhaust system monitors the amount of unburned oxygen. This information is fed back to the ECU, which then adjusts the fuel injection pulse width to maintain the ideal air-fuel ratio (stoichiometric ratio) for efficient combustion and minimal emissions.

Components of an MPI System

A typical MPI system comprises several critical components:

• Fuel Pump: Responsible for delivering fuel from the tank to the fuel rail.
• Fuel Filter: Cleans the fuel before it reaches the injectors.
• Fuel Rail: A manifold that distributes fuel to each injector.
• Fuel Pressure Regulator: Maintains a consistent fuel pressure in the fuel rail.
• Fuel Injectors: Electronically controlled valves that spray fuel into the intake manifold.
• Engine Control Unit (ECU): The central computer that manages fuel injection based on sensor data.
• Sensors: Various sensors (e.g., MAF, MAP, TPS, O2) provide crucial data to the ECU.

Advantages of Multiport Fuel Injection

MPI systems offer several significant advantages over older carburettor technology and even some earlier fuel injection systems:

• Improved Fuel Economy: By precisely controlling the amount of fuel injected, MPI systems minimise fuel wastage, leading to better miles per gallon (MPG).
• Enhanced Performance: The ability to deliver the correct air-fuel mixture under all operating conditions results in smoother power delivery, better throttle response, and increased overall engine performance.
• Reduced Emissions: More precise fuel control allows for a more complete combustion process, significantly reducing harmful exhaust emissions such as hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx).
• Better Cold Start Performance: MPI systems can provide richer fuel mixtures during cold starts, ensuring easier and more reliable engine ignition in colder temperatures.
• Smoother Idle: The precise fuel delivery contributes to a more stable and smoother engine idle.
• Greater Adaptability: MPI systems are more adaptable to varying altitudes and atmospheric conditions, maintaining optimal performance.

MPI vs. Other Fuel Injection Systems

It's helpful to understand how MPI compares to other fuel injection technologies:

While Direct Injection (DI) systems offer superior atomisation and control, leading to even better efficiency and performance, MPI remains a highly effective and reliable technology that has served the automotive industry exceptionally well.

Common MPI System Issues and Troubleshooting

Despite their reliability, MPI systems can encounter issues over time. Here are some common problems and their potential causes:

• Clogged Fuel Injectors: Over time, deposits can build up inside the injector nozzles, restricting fuel flow and leading to poor atomisation. Symptoms include rough idling, misfires, reduced power, and poor fuel economy. This can often be addressed with fuel injector cleaner additives or professional cleaning.
• Leaking Fuel Injectors: A faulty injector seal or a stuck-open injector can lead to fuel leaks, causing a rich fuel mixture, poor performance, and potential safety hazards.
• Faulty Fuel Pump: A weak or failing fuel pump can result in insufficient fuel pressure, leading to hesitation, lack of power, and stalling.
• Blocked Fuel Filter: A clogged fuel filter restricts fuel flow, similar to a weak fuel pump, and can cause a range of performance issues.
• Malfunctioning Fuel Pressure Regulator: If the regulator fails, it can lead to either too high or too low fuel pressure, both of which will negatively impact engine performance.
• Sensor Failures: A faulty sensor (e.g., MAF, O2 sensor) can send incorrect data to the ECU, causing the system to deliver the wrong amount of fuel, leading to poor running conditions.
• Wiring Issues: Damaged or corroded wiring to the injectors or sensors can interrupt the electrical signals, preventing proper operation.

When to Seek Professional Help

If you experience any of the symptoms mentioned above, it's advisable to have your vehicle inspected by a qualified mechanic. They have the diagnostic tools and expertise to pinpoint the exact cause of the problem and perform the necessary repairs. Attempting complex fuel system repairs without the proper knowledge and equipment can be dangerous.

The Legacy and Future of MPI

While direct injection has become increasingly prevalent in modern vehicles, particularly for performance and efficiency gains, MPI systems continue to be used in many vehicles due to their proven reliability, lower manufacturing costs, and ability to meet current emissions standards. The durability and simplicity of MPI make it a favoured choice for many manufacturers. For many drivers, understanding how their MPI system works can lead to better maintenance practices and a more enjoyable driving experience.

Frequently Asked Questions (FAQs)

Q1: Is MPI better than a carburettor?
Yes, generally MPI offers significant improvements in fuel economy, performance, and emissions control compared to carburettor systems.

Q2: Can I upgrade my carburettor to MPI?
While technically possible, converting a carburetted vehicle to MPI is a complex and expensive undertaking, often requiring significant modifications to the engine management system and wiring harness. It's usually more practical to purchase a vehicle already equipped with MPI.

Q3: How often should fuel injectors be cleaned?
There's no strict schedule, but using high-quality fuel and occasionally adding a reputable fuel injector cleaner can help maintain their performance. Professional cleaning is typically recommended every 50,000-100,000 miles, depending on driving conditions and fuel quality.

Q4: What are the symptoms of a failing fuel injector?
Common symptoms include rough idling, misfires, decreased engine power, poor fuel economy, and a persistent check engine light.

Q5: How does MPI affect engine tuning?
MPI systems allow for precise tuning of the air-fuel ratio by adjusting the injector pulse width via the ECU. This enables tuners to optimise engine performance for specific applications.

In conclusion, multiport fuel injection represents a pivotal advancement in automotive engineering, offering a balanced blend of efficiency, performance, and reliability. Understanding its principles and components can empower vehicle owners to better appreciate and maintain this vital system, ensuring their vehicle runs smoothly and efficiently for years to come.
