Unravelling the Multi-Point Fuel Injection (MPFI) System

In the dynamic world of automotive engineering, the pursuit of greater efficiency, performance, and reduced emissions has driven continuous innovation. While carburetors once reigned supreme, offering a simple and cost-effective method for fuel delivery, the industry's relentless drive for precision has led to the widespread adoption of fuel injection systems. Among these, the Multi-Point Fuel Injection (MPFI) system stands out as a cornerstone of modern internal combustion engines, particularly in spark ignition (SI) vehicles. This advanced system represents a sophisticated blend of mechanical, electronic, and computer engineering, offering a level of control and efficiency that carburetors simply cannot match. Understanding the intricacies of MPFI is crucial for anyone keen on the mechanics of contemporary vehicles, from enthusiasts to students preparing for technical seminars.

What Exactly is Multi-Point Fuel Injection (MPFI)?

At its core, a Multi-Point Fuel Injection (MPFI) system is a method of fuel delivery where each engine cylinder is equipped with its own dedicated fuel injector. Unlike older single-point injection systems, which utilise a single, centrally located injector to supply fuel to all cylinders, MPFI ensures that fuel is precisely sprayed into the intake port of each individual cylinder, just before the intake valve. This design allows for a much more accurate and uniform distribution of the air-fuel mixture across all cylinders, leading to significant improvements in engine performance, fuel economy, and emission control. The "multi-point" aspect directly refers to the multiple points of fuel injection, one for each cylinder.

Why the Automotive Industry Prefers MPFI

The evolution from carburetors to fuel injection, and specifically to MPFI, was driven by several compelling advantages. Originally developed for the demanding environment of aeroplane engines, the MPFI system has since found its primary application in light commercial vehicles and passenger cars due to its inherent superiority. Carburetors, while simple and cheap, struggled to maintain an optimal air-fuel ratio across varying engine speeds and loads, leading to inefficiencies and higher emissions. MPFI, however, overcomes these limitations by integrating sophisticated electronics and computer control.

This system is far from a standalone mechanical apparatus; it's a perfect synthesis of diverse engineering disciplines. The seamless combination of mechanical components, advanced electronics, precise computer control, and electrical signalling makes MPFI the most advanced gasoline injection system widely available today. This integrated approach allows for dynamic adjustments to fuel delivery based on real-time engine conditions, something a purely mechanical system could never achieve. The result is an engine that runs cleaner, more powerfully, and with greater fuel efficiency.

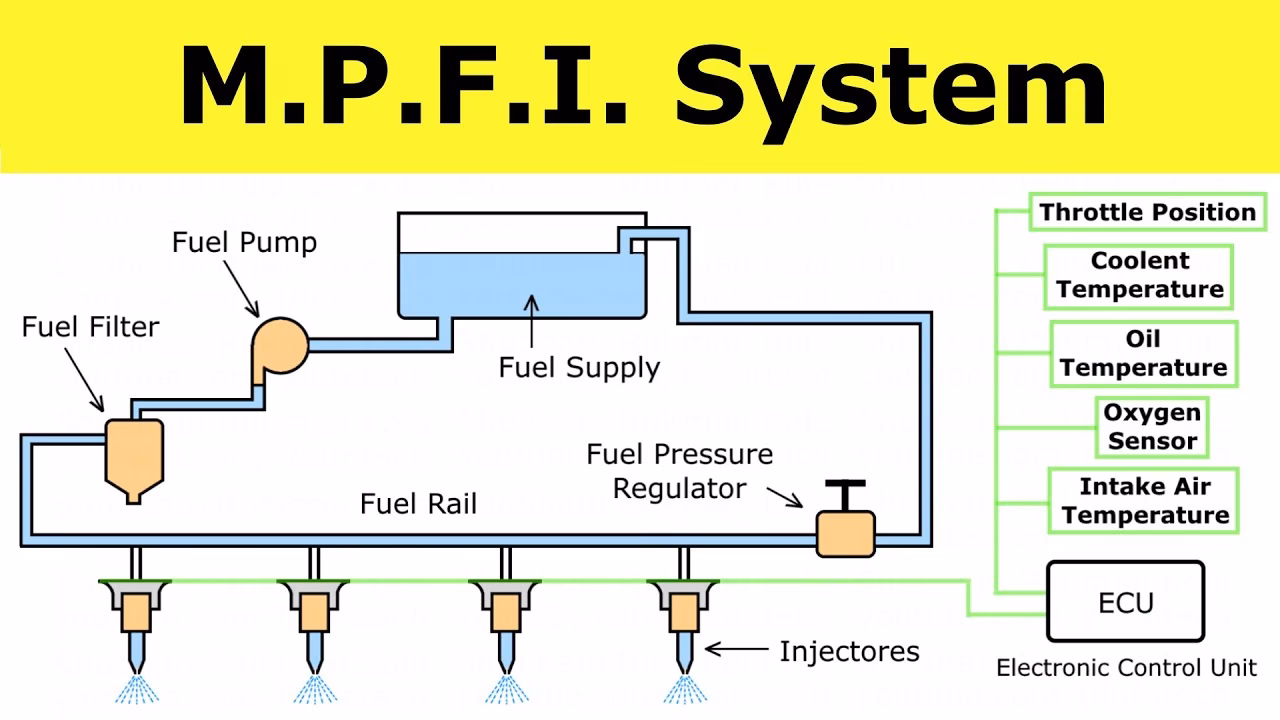

Key Components of an MPFI System

The precision and efficiency of an MPFI system are thanks to a sophisticated network of interconnected components, each playing a vital role in the fuel delivery process. Understanding these elements is fundamental to grasping the system's overall operation:

• Fuel Tank: The primary reservoir for storing the vehicle's petrol.
• Electric Fuel Pump: Driven by an electric motor, this pump draws fuel from the tank and delivers it under pressure to the rest of the system. It ensures a consistent supply of fuel to the injectors.
• Fuel Filter: Positioned between the fuel pump and the injectors, the fuel filter removes impurities and contaminants from the fuel, protecting the delicate injectors and ensuring clean combustion.
• Fuel Rail: A common manifold that distributes pressurised fuel evenly to all the individual fuel injectors.
• Fuel Pressure Regulator: This device maintains a constant fuel pressure within the fuel rail, ensuring that the injectors receive fuel at the precise pressure required for accurate spraying, regardless of engine load.
• Fuel Injectors: These are electronically controlled solenoid valves, one for each cylinder. When activated by the ECU, they open momentarily to spray a fine mist of fuel into the intake port. Their timing and duration of opening are crucial for accurate fuel delivery.
• Electronic Control Unit (ECU) / Engine Management System (EMS): Often referred to as the "brain" of the engine, the Electronic Control Unit (ECU) is a sophisticated computer that receives data from numerous sensors, processes this information, and then commands various engine functions, including fuel injection timing, fuel quantity (pulse width), and ignition timing. It constantly optimises engine operation.
• Electronic Sensors: A network of sensors provides real-time data to the ECU about the engine's operating conditions. Key sensors include:
  • Mass Air Flow (MAF) Sensor or Manifold Absolute Pressure (MAP) Sensor: Measures the volume or density of air entering the engine. This is crucial for calculating the correct amount of fuel needed.
  • Throttle Position Sensor (TPS): Detects the position of the throttle valve, indicating how much the driver is pressing the accelerator pedal.
  • Oxygen Sensor (O2 Sensor): Located in the exhaust system, it measures the oxygen content in the exhaust gases. This feedback allows the ECU to fine-tune the air-fuel mixture for optimal combustion and reduced emissions.
  • Coolant Temperature Sensor (CTS): Monitors the engine's operating temperature, influencing cold start enrichment and overall fuel strategy.
  • Crankshaft Position Sensor (CKP): Determines engine speed (RPM) and the exact position of the crankshaft, essential for injection and ignition timing.
  • Camshaft Position Sensor (CMP): Provides information about the camshaft's position, allowing the ECU to accurately time sequential fuel injection.
• Air Filter: Ensures that only clean, particulate-free air enters the engine, protecting internal components and ensuring accurate air mass measurement.

The Working Principle of an MPFI System

The operation of an MPFI system is a continuous, dynamic process orchestrated by the ECU. Here’s a step-by-step breakdown:

1. Fuel Delivery and Pressurisation: The electric fuel pump draws petrol from the fuel tank and pushes it through the fuel filter, which cleans it of any impurities. The now clean, pressurised fuel then travels to the fuel rail. The fuel pressure regulator ensures that the pressure within the rail remains constant, typically around 30-60 PSI (200-400 kPa), ensuring consistent fuel spray.
2. Air Intake and Measurement: As the engine operates, air is drawn in through the air filter and past the MAF or MAP sensor. These sensors measure the precise amount of air entering the engine and send this data to the ECU. The throttle position sensor also informs the ECU about the driver's demand for power.
3. Sensor Data Collection: Simultaneously, the ECU receives a continuous stream of data from all other sensors: engine speed (CKP), engine temperature (CTS), exhaust gas oxygen content (O2 sensor), and camshaft position (CMP).
4. ECU Calculation and Command: Based on all this real-time input, the ECU performs complex calculations to determine the optimal air-fuel ratio required for current operating conditions. It then calculates the exact amount of fuel each cylinder needs for its next power stroke. This calculation dictates the "pulse width" – the duration for which each fuel injector needs to be open.
5. Fuel Injection: The ECU sends precisely timed electrical signals to each individual fuel injector. When an injector receives its signal, its solenoid activates, opening a tiny valve and allowing the pressurised fuel to spray in a fine, atomised mist directly into the intake port of its respective cylinder. This spraying occurs just before the intake valve opens, ensuring the fuel mixes thoroughly with the incoming air.
6. Combustion and Feedback: The air-fuel mixture enters the cylinder, is compressed, and then ignited by the spark plug. The combustion by-products are then expelled into the exhaust system. The oxygen sensor in the exhaust provides feedback to the ECU, allowing it to make real-time adjustments to the fuel injection to maintain the ideal stoichiometric ratio (typically 14.7 parts air to 1 part fuel for petrol engines).

This intricate dance of sensors, the ECU, and injectors ensures that the engine always receives the optimal amount of fuel, leading to efficient combustion, lower emissions, and responsive performance. This is a stark contrast to carburetors, which rely on the engine's vacuum pressure to draw in and mix fuel, a method far less precise and adaptable.

Classification of MPFI Systems

While all MPFI systems share the fundamental principle of individual injectors per cylinder, they can be broadly classified based on their primary method of determining engine load and air intake:

• D-MPFI System (Density-based Multi-Point Fuel Injection): This type of system primarily uses a Manifold Absolute Pressure (MAP) sensor to measure the pressure within the intake manifold. Along with engine speed and air temperature (from an intake air temperature sensor), the ECU calculates the air mass entering the cylinders based on air density. It's often referred to as a "Speed-Density" system.
• L-MPFI System (Mass Air Flow-based Multi-Point Fuel Injection): This system uses a Mass Air Flow (MAF) sensor, typically located in the air intake tract, to directly measure the actual mass of air entering the engine. This direct measurement is generally considered more accurate than density-based calculations, especially under varying atmospheric conditions.

It's important to note that both D-MPFI and L-MPFI are forms of "port fuel injection" because the fuel is injected into the intake port, not directly into the combustion chamber (which would be direct injection).

Sequential Multi-Port Fuel Injection (SMPFI)

An advanced evolution within the MPFI family is the Sequential Multi-Port Fuel Injection (SMPFI) system. While standard MPFI systems might inject fuel to all cylinders simultaneously or in batches, SMPFI takes precision a step further. In an SMPFI system, each injector is timed to spray fuel individually, just before the intake valve of its corresponding cylinder opens. This ensures that each cylinder receives its precise fuel charge at the optimal moment, maximising efficiency and minimising fuel waste.

The key advantage of SMPFI is its ability to deliver fuel exactly when needed, rather than having fuel wait in the intake manifold for the valve to open. This leads to even better fuel economy, lower emissions due to more complete combustion, and a smoother, more stable engine idle.

Advantages of MPFI Systems

The widespread adoption of MPFI systems in modern vehicles is a testament to their numerous benefits:

• Increased Power Output: By providing a precisely metered and uniform fuel distribution to each cylinder, MPFI optimises combustion, leading to higher engine power compared to carburetted engines of similar displacement.
• Uniform Fuel Distribution: Each cylinder receives an accurate and consistent air-fuel ratio. This eliminates the variations in power output between cylinders often seen in carburetted engines, resulting in a smoother running engine.
• Reduced Engine Vibrations: The uniform power generation across all cylinders significantly reduces engine vibrations, contributing to a longer engine life and a more comfortable driving experience.
• Enhanced Responsiveness: MPFI systems are highly responsive to driver input. Whether it's sudden acceleration or deceleration, the ECU can instantly adjust fuel delivery, providing immediate and smooth power changes.
• Improved Fuel Economy (Better Mileage): The precise control over fuel delivery minimises fuel waste, ensuring that only the exact amount of fuel needed is injected. This leads to significantly better fuel consumption and lower running costs.
• Higher Volumetric Efficiency: By injecting fuel directly into the intake port, the MPFI system avoids the cooling effect of fuel vaporisation within the intake manifold (as seen in carburetors), allowing more air to enter the cylinders, thus increasing volumetric efficiency.
• Lower Emissions: The accurate air-fuel mixture ensures more complete combustion, leading to fewer unburnt hydrocarbons and lower emissions of harmful pollutants, helping vehicles meet stringent environmental regulations.
• Superior Cold Starting: The ECU can accurately enrich the fuel mixture during cold starts, ensuring reliable ignition and smoother operation even in low temperatures, without the need for a manual choke.

Disadvantages of MPFI Systems

Despite their many advantages, MPFI systems do come with certain drawbacks:

• Complexity: The integration of mechanical, electronic, and computer components makes MPFI systems inherently complex. This complexity can make diagnosis and repair more challenging.
• Higher Cost: The sophisticated design, numerous sensors, and the ECU itself contribute to a higher manufacturing cost compared to simpler carburettor systems.
• Requires More Space: While modern designs are compact, the overall system with its fuel rail, multiple injectors, and various sensors can require more dedicated space within the engine bay.
• Specialised Tools and Knowledge for Repair: Diagnosing and repairing issues in an MPFI system often requires specialised diagnostic equipment and highly trained technicians, which can lead to higher repair costs.
• Sensitivity to Fuel Quality: The fine nozzles of the fuel injectors can be susceptible to clogging if low-quality or contaminated fuel is used, potentially leading to misfires or reduced performance.

MPFI vs. Carburetor vs. Single-Point Injection: A Comparison

To fully appreciate the advancements of MPFI, it's helpful to compare it against its predecessors:

Frequently Asked Questions about MPFI Systems

Here are some common questions regarding Multi-Point Fuel Injection systems:

What is a multi-point fuel injection engine?
A multi-point fuel injection engine is an internal combustion engine, typically a petrol (gasoline) engine, that uses a Multi-Point Fuel Injection (MPFI) system. This means it has an individual fuel injector positioned at the intake port of each cylinder, allowing for precise and independent fuel delivery to every cylinder, rather than a single injector feeding all cylinders.

What is the role of the Engine Management System (EMS) or Electronic Control Unit (ECU) in MPFI?
The EMS or ECU is the central control unit for the MPFI system. It acts as the "brain," receiving data from various sensors (e.g., engine speed, air intake, temperature, throttle position, oxygen in exhaust). Based on this real-time information, the ECU calculates the optimal amount of fuel required and precisely controls the opening and closing of each fuel injector, as well as ignition timing, to ensure maximum efficiency, performance, and minimal emissions across all operating conditions.

What is sequential multi-port fuel injection (SMPFI)?
Sequential Multi-Port Fuel Injection (SMPFI) is an advanced form of MPFI. In SMPFI, the fuel injectors are individually timed to spray fuel just before the intake valve of each respective cylinder opens. This ensures that fuel is delivered precisely when needed for that specific cylinder's intake stroke, leading to highly optimised fuel delivery, even better fuel economy, and lower emissions compared to non-sequential MPFI systems.

Why is MPFI preferred over carburetors in modern vehicles?
MPFI offers vastly superior control over the air-fuel mixture compared to carburetors. This results in better fuel economy, higher engine power output, significantly reduced exhaust emissions, improved engine responsiveness, and more reliable cold starting. While more complex and costly, the performance and environmental benefits far outweigh the disadvantages, making MPFI the standard for contemporary petrol engines.

Can an MPFI system be retrofitted to an older carburetted engine?
In most cases, retrofitting an MPFI system to an older carburetted engine is not practical or cost-effective. It would require extensive modifications to the engine block, cylinder head, intake manifold, fuel system (including pump and lines), and the complete integration of an ECU with numerous sensors and wiring. It's generally more feasible to upgrade to a vehicle already equipped with an MPFI system.

What are some common issues with MPFI systems?
Common issues include clogged or faulty fuel injectors (often due to contaminated fuel), fuel pump failure (leading to insufficient pressure), sensor malfunctions (e.g., faulty O2 sensor or MAF sensor causing incorrect fuel metering), and issues with the ECU itself. Regular maintenance, including fuel filter replacement and using quality fuel, can help mitigate some of these problems.

Conclusion

The Multi-Point Fuel Injection system represents a pivotal advancement in automotive engineering. By providing precise, electronically controlled fuel delivery to each engine cylinder, MPFI has revolutionised engine performance, fuel efficiency, and environmental compliance. While more complex and costly than its predecessors, its benefits in terms of power, smoothness, economy, and reduced emissions have made it an indispensable technology in virtually all modern light vehicles. As the automotive industry continues to evolve, the foundational principles of MPFI, particularly in its sequential forms, will remain crucial, even as new technologies like direct injection push the boundaries further. Understanding this intricate system is key to appreciating the sophistication of today's vehicles and their ongoing journey towards cleaner, more powerful, and more efficient operation.
