Modern vehicles rely on sophisticated fuel injection systems to deliver optimal engine performance, fuel efficiency, and reduced emissions. Gone are the days of carburetors; today's engines utilise precise electronic control to manage the air-fuel mixture. This article delves into some of the key fuel injection technologies found in vehicles, focusing on the Multec Central Fuel Injection (CFI) system and various Bosch and Motronic systems, explaining their principles of operation and the components that make them work.

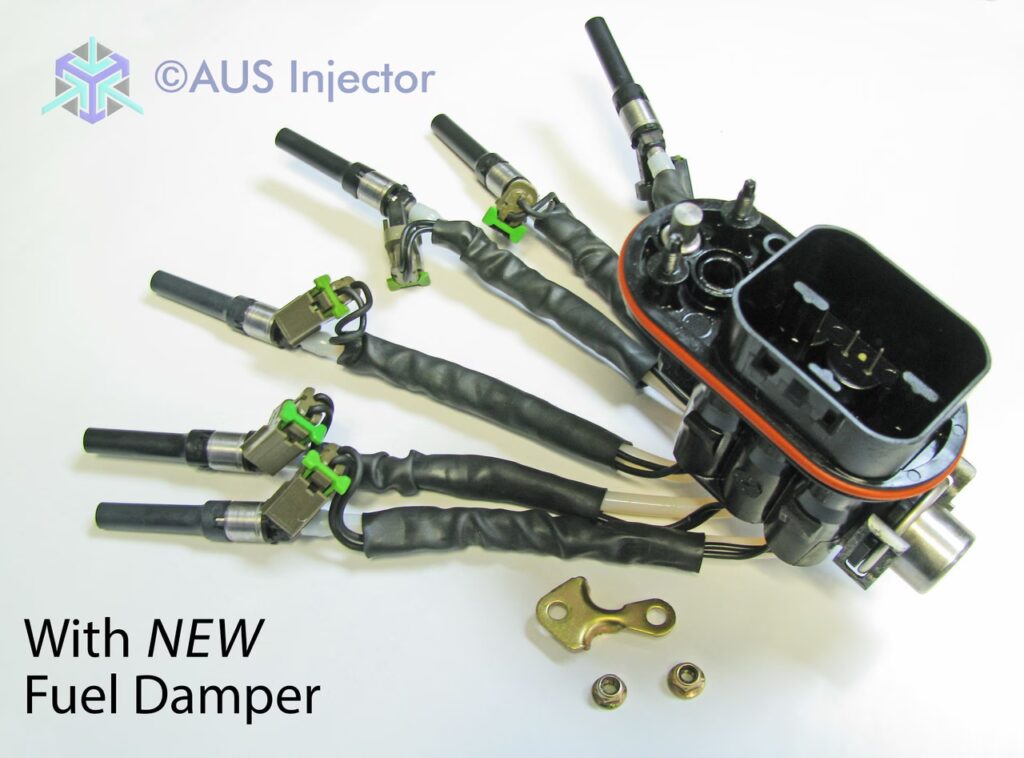

Multec Central Fuel Injection (CFI) System
The MULTEC Central Fuel Injection (CFI) system is a straightforward yet effective method of fuel delivery, commonly found in 1.4 litre (C14NZ) and 1.6 litre (C16NZ) engine models. Its core principle involves a single, electronically controlled solenoid fuel injector. This injector is strategically positioned in the centre of the throttle valve housing, which itself sits atop the inlet manifold. The quantity of fuel introduced into the cylinders for combustion is directly dictated by the duration for which this single injector remains open. The Electronic Control Unit (ECU) masterfully calculates this opening time by interpreting signals from a network of sensors.
The system employs mechanical regulation for fuel pressure. The ECU receives a wealth of information from various sensors to make informed decisions. These include:
- Manifold Absolute Pressure (MAP) sensor: Measures the vacuum within the inlet manifold.
- Distributor: Provides data on engine speed and crankshaft position.
- Road speed sensor: Located at the base of the speedometer cable, it reports the vehicle's speed.
- Throttle position sensor: Indicates the angle of the throttle valve plate.
- Engine coolant temperature sensor: Monitors the operating temperature of the engine.
- Exhaust gas oxygen sensor: Situated in the exhaust manifold, it measures the oxygen content in the exhaust gases, crucial for closed-loop fuel mixture control.
Battery voltage is also continuously monitored by the ECU to ensure stable operation. Based on the data from these sensors, the ECU orchestrates the system's actuators. These actuators include the fuel injector itself, the idle air control stepper motor (which manages idle speed), the fuel pump relay, and the ignition control unit. The system also integrates a three-way catalytic converter for reducing exhaust pollutants and utilises a closed-loop fuel mixture control system. This closed-loop operation, managed by the oxygen sensor, is active once the sensor reaches its optimal operating temperature. Prior to this, the system operates in an open-loop mode, relying on pre-programmed values stored within the ECU's memory.
Diagnostic capabilities are built into the ECU, allowing for fault diagnosis when used with specialised Vauxhall test equipment. However, for most diagnostic procedures, it is recommended to consult a Vauxhall dealer, with the exception of basic checks on wiring and hoses.
Bosch LE Jetronic Fuel Injection System
Early 1.8 litre models, specifically those equipped with the 18E engine, typically feature a Bosch LE Jetronic fuel injection system. This system leverages electronic control to deliver a precise amount of fuel, thereby optimising engine performance and minimising exhaust emissions. It achieves this by continuously monitoring the engine's operational parameters via a suite of sensors. The data gathered by these sensors is fed as electrical signals to an electronic control unit (ECU). Using this constantly changing data, the ECU calculates and delivers the exact fuel quantity required for all engine speed and load conditions. The fuel is injected directly into the inlet manifold.
Key Components of the Bosch LE Jetronic System:
| Component | Function |
|---|---|
| Control Unit | Processes sensor signals to generate control impulses for the fuel injectors. Also incorporates overrun fuel cut-off and cold start enrichment circuitry. |
| Control Relay | Includes electronic timing and a switch relay to cut off fuel supply when the engine stops. |
| Airflow Sensor | Measures the volume of air entering the engine using a flap valve and potentiometer to determine engine load. This is a primary variable for fuel quantity calculation. |
| Fuel Injectors | Solenoid-operated needle valves that open on command from the ECU, delivering fuel into the inlet manifold. All four injectors operate simultaneously, once per crankshaft revolution. The duration of opening is adjusted by the ECU to control mixture richness. |
| Fuel Pump | An electric, self-priming unit located at the rear of the vehicle, delivering fuel at a regulated pressure through a filter to the fuel distribution pipe. Excess fuel is returned to the tank via the pressure regulator. This ensures a cool fuel supply, reducing vapour lock and improving hot starting. |
| Fuel Pressure Regulator | Maintains consistent fuel pressure in the distribution pipe. It uses a diaphragm to control a return fuel port, influenced by fuel pressure and inlet manifold vacuum. Higher vacuum leads to lower regulated fuel pressure. |
| Throttle Valve Switch | Attached to the throttle spindle, it signals the ECU when the throttle is at idle or fully open. |
| Auxiliary Air Valve | Allows a bypass of air around the throttle valve, controlled by a bi-metal strip heated by current. This provides extra air for richer mixture during cold start and warm-up, ensuring smoother operation. |
| Temperature Sensors | Resistive sensors (coolant and intake air) that inform the ECU of temperature changes, allowing for adjustments to injector duration. |
Bosch L3 Jetronic Fuel Injection System
Introduced from 1987 onwards for later 1.8 litre models (18SE engine), the Bosch L3 Jetronic system builds upon the LE system. The primary distinction lies in its digital control system, replacing the analogue approach of the LE type. The L3 system's control unit is integrated directly into the airflow sensor assembly, and the associated wiring layout is adapted accordingly.
Motronic Systems (2.0 Litre Models)
Vehicles with 2.0 litre engines often feature Motronic systems, which represent an integrated approach to managing both fuel injection and ignition. This synergy offers significant advantages in terms of efficiency, performance, and the reduction of exhaust emissions. Idle speed is precisely controlled by an electrically operated valve that bypasses the throttle butterfly, eliminating the need for manual adjustment.
Ignition timing is dynamically adjusted (advanced and retarded) electronically in response to engine speed, load, coolant temperature, and intake air temperature. Engine speed is accurately determined by an inductive pulse sensor positioned near a toothed lockwasher on the crankshaft. Each tooth passing the sensor generates an electrical pulse, which is transmitted to the control unit.
Motronic ML4.1 (Pre-1990, 8-Valve)
This system, found in 8-valve models prior to 1990, is known as Motronic ML4.1. Its fuel injection component is quite similar to the LE/L3 Jetronic systems. The control unit for this system is typically located behind a trim panel in the driver's footwell.
Motronic M1.5 (1990, 8-Valve)
The 1990 8-valve models are equipped with the Motronic M1.5 system. The main evolution here is in the control unit, which now triggers the injectors in pairs rather than firing all simultaneously. Minor modifications are also present in the fixings for the fuel pressure regulator and fuel injector rail. A notable change is the relocation of the fuel pump to be immersed within the fuel tank, a departure from its previous side-mounting position.
Motronic M2.5 (16-Valve)
The 16-valve models feature the Motronic M2.5 system. A key differentiator is its method of measuring intake air. Unlike previous systems that used a flap to measure air volume, the M2.5 system employs a hot wire to measure air mass based on its cooling effect. This system also incorporates knock control, a vital feature that senses detonation (pre-ignition or 'pinking') and automatically retards ignition timing to prevent engine damage.
Injection on the M2.5 system is fully sequential, meaning each injector is individually controlled to deliver fuel at the precise moment in the induction cycle. A Hall Effect sensor in the ignition distributor provides the control unit with a cylinder recognition signal, enabling this precise timing.
Common Motronic Features and Diagnostics
Across all Motronic systems, the control unit incorporates self-testing and fault detection features. Diagnostic trouble codes (DTCs) are stored internally, but accessing these codes typically requires specialised test equipment available to Vauxhall dealers and other qualified specialists.
In the event of a detected fault, the system can engage a 'limp home' program. This program substitutes average values for the output of a defective or disconnected sensor, allowing the vehicle to remain driveable, albeit with reduced performance and efficiency. A warning light on the instrument panel, often depicted as an engine outline with a lightning symbol, alerts the driver to a detected fault.
Delphi Multec 20 GDi Fuel Injector
The Delphi Multec 20 GDi fuel injector is designed for Gasoline Direct Injection (GDi) systems. It offers a cost-effective alternative to piezo injector technology while still providing excellent spray and fuel injection performance. It is capable of operating at fuel pressures up to 200 bar. Its operational principle is based on an outwardly opening valve that generates a conical spray pattern, crucial for efficient combustion in GDi engines.
Multi-Port Fuel Injection (MPFI) Injector
Injectors designed for Multi-Port Fuel Injection (MPFI) systems are versatile, catering to a broad spectrum of customer needs. They can be specified to meet various requirements for spray pattern, linearity, working flow range, and operating voltage. These injectors are adaptable to different packaging constraints and are suitable for original equipment (OE) applications, the aftermarket, and performance engine builds.
Frequently Asked Questions
Q1: What is the primary function of the ECU in a Multec CFI system?
The ECU calculates the required fuel injection duration based on data from various sensors to ensure optimal air-fuel mixture for combustion.
Q2: How does the Bosch LE Jetronic system determine engine load?
Engine load is primarily determined by the airflow sensor, which measures the volume of air entering the engine using a flap valve and potentiometer.
Q3: What is the main difference between Bosch LE Jetronic and L3 Jetronic?
The L3 Jetronic system uses a digital control system, whereas the LE Jetronic system uses an analogue control system.
Q4: How does the Motronic M2.5 system measure intake air?
It measures air mass by its cooling effect on a hot wire, unlike older systems that measured air volume with a flap.
Q5: What happens if a sensor fails in a Motronic system?
A 'limp home' program is activated, substituting average sensor values to allow the vehicle to be driven, albeit with reduced performance.
Understanding these different fuel injection systems highlights the evolution of engine management technology and its impact on vehicle performance and environmental impact. Regular maintenance and timely diagnosis of any issues are crucial for ensuring these complex systems operate as intended.
