When it comes to maintaining your vehicle's braking system, precision and the right tools are paramount. One of the most frequently performed maintenance tasks is replacing worn brake pads. While this might seem straightforward, the process often requires retracting the brake caliper pistons to accommodate new, thicker pads. This is where a dedicated tool becomes indispensable, and for many, the PS-1 pad spreader is the go-to choice. It's a simple yet incredibly effective device designed to make this crucial step safe, easy, and efficient, preventing potential damage to your vehicle's vital braking components.

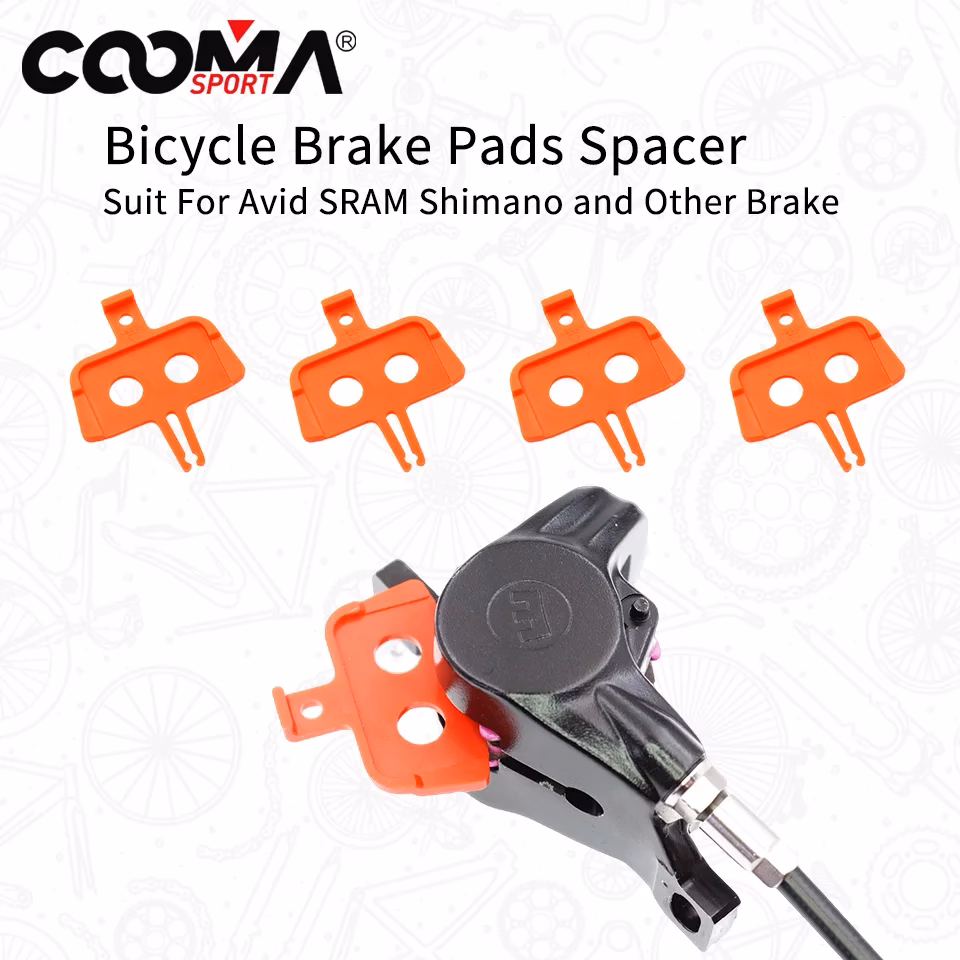

What Exactly is a PS-1 Pad Spreader?
A PS-1 pad spreader, often referred to simply as a disc brake pad spreader or piston spreader, is a specialised hand tool used primarily for servicing disc brake systems. Its core function is to gently push back the pistons within the brake caliper, creating the necessary space for new brake pads. Unlike some more complex or vehicle-specific tools, the PS-1 is typically characterised by its straightforward, often single-plate or dual-plate design, operated by a screw mechanism or a simple lever. The 'PS-1' designation usually refers to a common, universal style of this tool, known for its ease of use and broad applicability across a wide range of vehicles, from family cars to light commercial vans.
The design generally consists of a flat plate or two parallel plates that fit between the existing brake pads (or directly against the piston and caliper body once pads are removed). A threaded rod or lever mechanism then allows you to expand these plates, applying even pressure to retract the piston(s) back into the caliper bore. This controlled, perpendicular force is crucial, as it prevents tilting or binding of the piston, which can occur with less appropriate methods. It's a fundamental piece of kit for anyone undertaking brake maintenance, from the seasoned professional mechanic to the enthusiastic home DIYer in the UK.
Why is a Pad Spreader Essential for Brake Maintenance?
Replacing brake pads isn't just about swapping out the old for the new; it involves interacting with the hydraulic system that powers your brakes. As brake pads wear down, the caliper pistons extend further out to maintain contact with the disc. When you fit new, thicker pads, these pistons need to be pushed back into their original, retracted position. Attempting to force these pistons back without the correct tool can lead to several costly and dangerous issues:
- Damage to Brake Calipers: Using screwdrivers, pry bars, or even large wrenches to lever pistons back can scratch or deform the piston surface or the caliper bore. This damage can compromise the seal, leading to brake fluid leaks and, ultimately, brake failure.
- Uneven Piston Retraction: Multi-piston calipers, or even single-piston floating calipers, require even pressure to retract correctly. Uncontrolled force can push one side in while the other binds, potentially damaging the piston or its seals.
- Contamination of Brake Fluid: Forcing pistons back improperly can disturb sediment within the caliper, pushing it back into the brake lines and potentially contaminating the ABS modulator or master cylinder, leading to expensive repairs.
- Safety Risks: Compromised brake components are a significant safety hazard. A properly retracted piston ensures the brake system functions as intended, providing reliable stopping power.
The PS-1 pad spreader addresses these concerns by providing a controlled, even, and safe method for piston retraction. It applies pressure directly and uniformly, ensuring the pistons slide smoothly back into place without risk of damage or contamination.
How to Use a PS-1 Pad Spreader: A Step-by-Step Guide
Using a PS-1 pad spreader is relatively straightforward, but adherence to safety protocols is vital. Always ensure your vehicle is securely supported on axle stands and the handbrake is engaged, with the wheels chocked if necessary.
- Prepare the Vehicle: Loosen the wheel nuts, jack up the vehicle, and place it on sturdy axle stands. Remove the wheel.
- Access the Caliper: Depending on your vehicle, you may need to remove a retaining clip or two bolts to swing the caliper open or remove it entirely from the rotor. For many, you can retract the pistons with the caliper still mounted, but often removing the outer pad helps.
- Position the Pad Spreader: If the pads are still in place, insert the PS-1 between them, ensuring the plates are flat against the pads. If pads are removed, position one plate against the piston face and the other against the opposite side of the caliper body (or the other piston in a fixed caliper).
- Retract the Piston(s): Slowly turn the screw mechanism or operate the lever on the PS-1. You will feel the pistons retracting. Ensure they move back smoothly and evenly. Keep an eye on the brake fluid reservoir – as pistons retract, the fluid level will rise. Do not let it overflow; you may need to remove a small amount of fluid using a syringe or turkey baster if it's nearing the 'MAX' line.
- Remove the Tool: Once the pistons are fully retracted, loosen the PS-1 and remove it from the caliper.
- Install New Pads: Fit the new brake pads into the caliper.
- Reassemble and Test: Reassemble the caliper, refit the wheel, lower the vehicle, and then *pump the brake pedal several times* before driving to ensure the pads are seated against the discs and the brake pedal feels firm. Check the brake fluid level again.
Comparing the PS-1 with Other Brake Pad Spreaders
While the PS-1 represents a common and effective type of pad spreader, the market offers various tools. Understanding their differences can help you choose the right tool for specific jobs.
| Tool Type | Mechanism | Typical Use | Pros | Cons |
|---|---|---|---|---|
| PS-1 (Single/Dual Plate Screw) | Screw mechanism expands plates | Universal for standard floating calipers, some fixed calipers | Simple, affordable, durable, good for even piston retraction, widely available. | May not fit all multi-piston fixed calipers, can be slower than lever types. |
| Lever-Type Pad Spreader | Lever action pushes pads/pistons apart | Quick retraction for floating calipers | Fast operation, ergonomic handle. | Less precise control than screw-type, primarily for floating calipers. |
| Scissor-Type Pad Spreader | Scissor action with central screw | Multi-piston fixed calipers, larger truck calipers | Adapts to wider calipers, even pressure across multiple pistons. | Can be bulkier, more expensive. |
| Cube/Adapter Tool (Winding Tool) | Cube or specific adapter rotated with ratchet | Calipers with integrated electronic parking brakes (EPB) or mechanical parking brakes that require winding back | Essential for winding pistons, prevents damage to EPB motors. | Only for winding pistons, not spreading; often vehicle-specific adapters needed. |
| Air-Powered Piston Retractor | Pneumatic pressure to retract pistons | High-volume workshops, heavy-duty applications | Very fast, powerful, consistent pressure. | Requires air compressor, more expensive, less tactile feedback. |
The PS-1 stands out for its versatility and simplicity, making it a fantastic all-rounder for most everyday vehicles without complex electronic parking brake systems.
Benefits of Incorporating a PS-1 into Your Toolkit
Investing in a PS-1 pad spreader, or a similar quality screw-type spreader, brings significant advantages to your brake maintenance routine:
- Enhanced Safety: By ensuring pistons retract correctly and without damage, you maintain the integrity of your braking system, which is paramount for road safety.
- Prevents Costly Damage: Avoids accidental scoring of pistons, tearing of dust boots, or damaging caliper bores, saving you from expensive caliper replacement.
- Efficiency: Speeds up the brake pad replacement process significantly by providing a quick and effective way to create space for new pads. No more struggling with makeshift tools!
- Professional Results: Even for the home mechanic, using the correct tools ensures a professional-grade finish, giving you confidence in your work.
- Versatility: Its universal design means one PS-1 can often be used across multiple vehicles in your household or workshop.
- Longevity of Components: Proper piston retraction contributes to the overall health and longevity of your brake calipers and associated seals.
Common Mistakes to Avoid When Using a Pad Spreader
Even with the right tool, mistakes can happen. Be mindful of these common pitfalls:
- Forgetting the Brake Fluid Reservoir: Always check the brake fluid reservoir before retracting pistons. If it's full, fluid will overflow, potentially damaging paintwork or electrical components. Remove excess fluid if necessary.
- Applying Excessive Force: If a piston isn't retracting easily, do not force it. There might be corrosion, a seized piston, or a problem with the caliper itself. Forcing it will only cause damage.
- Not Cleaning the Caliper: Before retraction, clean any visible dirt or corrosion from the exposed piston area. Pushing dirt back into the caliper bore can damage seals.
- Using the Wrong Tool for EPB Calipers: As mentioned, many modern vehicles have electronic parking brakes that require a winding tool (or diagnostic software) to retract. A PS-1 will not work on these and can cause severe damage. Always confirm your caliper type.
- Failing to Pump the Brakes Afterwards: After installation, always pump the brake pedal until it feels firm before moving the vehicle. This brings the pads into contact with the rotors and restores full braking pressure.
Frequently Asked Questions About PS-1 Pad Spreaders and Brake Maintenance
Q: Can I use a G-clamp instead of a PS-1 pad spreader?
A: While a G-clamp might seem like a viable alternative, it's not recommended. G-clamps often apply uneven pressure, which can cock the piston in its bore, damaging the piston or the caliper's internal seals. A PS-1 pad spreader is designed to apply even, parallel force, minimising the risk of damage.
Q: Do I need to open the bleed nipple when retracting pistons?
A: Generally, no, not for standard piston retraction. However, if your brake fluid is very old or contaminated, or if you're dealing with a particularly stubborn piston, some mechanics prefer to slightly open the bleed nipple to allow old fluid to escape rather than forcing it back into the ABS unit. If you do this, ensure you bleed the brakes properly afterwards.
Q: How do I know if my caliper has an integrated electronic parking brake (EPB)?
A: Vehicles with EPB typically have a small electric motor attached directly to the rear brake caliper. When you look at the caliper, you'll see wiring going to this motor. If you're unsure, consult your vehicle's service manual or a reliable online resource specific to your car's make and model.
Q: What should I do if the piston won't retract with the PS-1?
A: If the piston is extremely difficult to retract, it could be seized due to corrosion or internal damage. Do not force it. At this point, the caliper may need to be rebuilt or replaced. It's best to consult a professional mechanic.
Q: How often should I check my brake pads?
A: It's advisable to check your brake pads during every service, typically once a year or every 10,000-12,000 miles, or sooner if you notice any signs of wear like squealing, grinding, or a spongy brake pedal. Regular visual inspections are also easy to do when your wheels are off.
Conclusion
The PS-1 pad spreader is far more than just another tool in your garage; it's a fundamental investment in the longevity and safety of your vehicle's braking system. Its straightforward design and effective operation make the often-daunting task of brake pad replacement significantly simpler and safer. By ensuring pistons are retracted smoothly and without damage, the PS-1 helps maintain the integrity of your brake calipers, preventing costly repairs and, most importantly, ensuring your vehicle stops reliably every time. For any UK mechanic, professional or amateur, who values precision, efficiency, and safety in their automotive work, the PS-1 pad spreader is an absolute essential.
