MSD Atomic EFI: The Ultimate Carburettor Upgrade

For many motoring enthusiasts, the classic carburettor holds a nostalgic charm, a mechanical heart that has powered countless vehicles for decades. However, the realities of modern driving often expose the limitations of these traditional fuel delivery systems. Issues like inconsistent cold starts, temperamental idling, and varying performance across different temperatures or altitudes can quickly dampen the driving experience. This is where modern fuel injection steps in, offering precision, reliability, and enhanced performance. And for those looking to seamlessly transition their beloved carburetted engine into the 21st century, the MSD Atomic EFI fuel injection system presents itself as an exceptional, direct bolt-on solution.

The MSD Atomic EFI system is meticulously engineered to simplify the conversion from a carburettor to a sophisticated electronic fuel injection setup. It's designed not just to replace your old carburettor, but to fundamentally upgrade your vehicle's fuel management, promising a transformation in how your engine starts, idles, and performs under all conditions. This comprehensive system arrives with all the critical components neatly integrated, making the upgrade process remarkably straightforward for the home mechanic or professional alike.

What Exactly is an MSD Atomic EFI System?

At its core, the MSD Atomic EFI is a complete, self-contained fuel injection solution tailored for engines currently running a carburettor. It's an intelligent system that bundles together the essential elements required for a high-performance EFI conversion:

• The Throttle Body: This is the central unit that bolts directly onto your existing intake manifold, mimicking the footprint of a standard square bore carburettor.

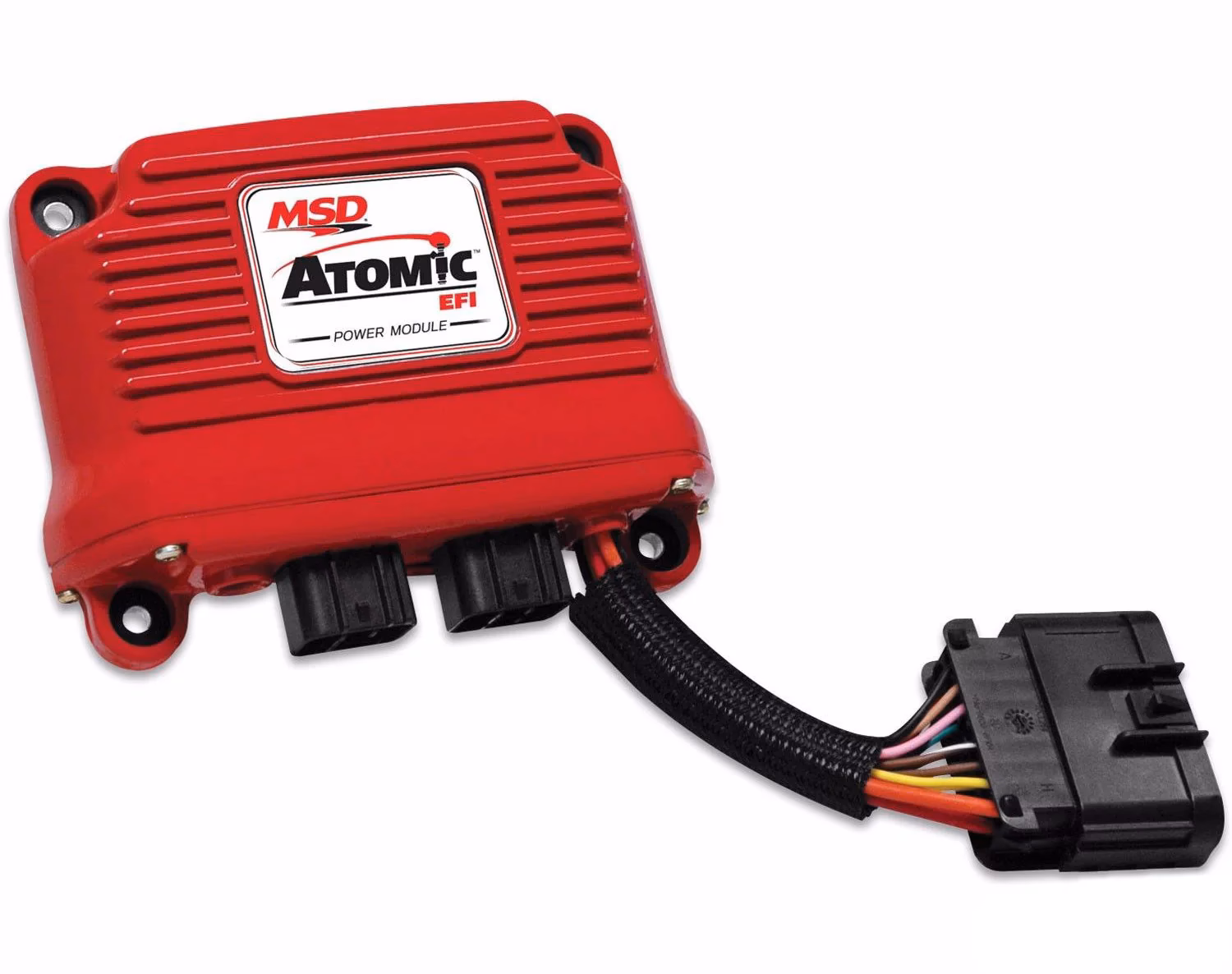

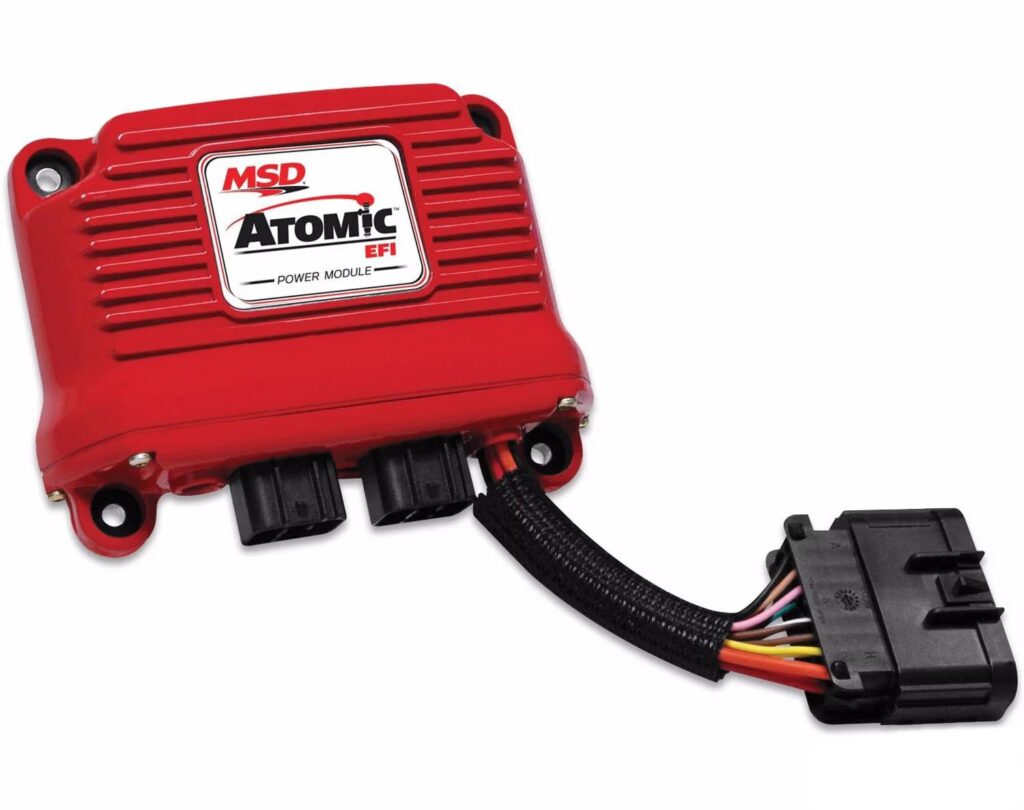

• The Power Module: A remote-mounted unit designed to handle all the high-current electrical loads, keeping the delicate electronics of the throttle body protected and streamlined.
• The Handheld Controller: Your intuitive interface for initial setup, system monitoring, and data logging, putting control directly into your hands.

Together, these components form a cohesive unit that dramatically improves fuel delivery, ensuring your engine receives the precise amount of fuel it needs, exactly when it needs it. The beauty of the Atomic EFI lies in its integration and simplicity, eliminating much of the complexity often associated with EFI conversions.

The Intelligent Throttle Body: A Closer Look

The throttle body is arguably the most impressive piece of the Atomic EFI puzzle, serving as the brain and brawn of the system. Its ingenious design incorporates several critical sensors and components directly within its structure, leading to a cleaner installation and fewer potential points of failure:

• Integral ECU: Built directly onto the side of the throttle body, this integrated Engine Control Unit houses the Throttle Position Sensor (TPS), Manifold Absolute Pressure (MAP) sensor, Intake Air Temperature (IAT) sensor, and fuel pressure sensors. This clever consolidation means there's no need for external wiring harnesses connecting multiple individual sensors, greatly simplifying the installation and reducing clutter in the engine bay.
• Precision Injectors: Fuel delivery is handled by four high-precision 80 psi injectors. These aren't just any injectors; they feature a stainless steel ball and seat metering method, renowned for its maximum internal sealing. This design ensures consistent fuel delivery and prevents leaks, contributing to the system's overall reliability and efficiency.
• Internal Fuel Rails: A notable design choice is the use of internal fuel rails. This not only contributes to a remarkably sleek and clean appearance but, more importantly, eliminates external fitting connections where leaks can develop. By reducing the number of exposed connections, the risk of fuel leaks is significantly minimised, enhancing safety and long-term durability.
• Annular Booster Rings: Perched atop the Atomic EFI throttle body are the innovative annular booster rings. This advanced design is key to the system's superior performance, as it delivers an exceptionally fine atomisation of the fuel mixture. Better atomisation means a more homogenous air/fuel charge, leading to more complete combustion, improved power output, and greater fuel efficiency. This ensures the best possible fuel delivery to your engine's cylinders.
• Smooth Throttle Operation: The 1.75 inch diameter throttle inlets are mounted on precision roller bearings. This attention to detail results in an incredibly smooth and linear pedal transition, giving you precise control over your engine's power delivery without any sticking or hesitation.
• Self-Calibrating TPS: One of the most user-friendly features is the unique TPS. It's a self-calibrating, non-contact sensor, which means you don't have to worry about configuring it during the setup process. This eliminates a common point of frustration during EFI installations, allowing for a quicker and more accurate initial setup.

Power and Control: The Remote Module and Handheld Device

While the throttle body handles the air and fuel delivery, the power module and handheld controller provide the essential electrical management and user interface:

• Remote Power Module: This unit is designed to be remotely mounted, handling all the high-current loads required by the system. By separating these loads from the throttle body, the overall system remains compact and thermally stable, ensuring longevity and consistent performance.
• CAN-Bus Technology: MSD's advanced CAN-Bus technology facilitates a single, clean connection between the power module and the throttle body-mounted ECU. This digital communication protocol ensures reliable data transfer with minimal wiring, further simplifying installation and enhancing system integrity.
• Handheld Controller: This intuitive device is your command centre for the MSD Atomic EFI system. It allows you to control all of the system's functions with ease. The initial setup is remarkably simple, taking approximately five minutes to complete. You'll be prompted to answer just six straightforward questions about your specific engine, and the system then configures itself automatically. Beyond the initial setup, the device serves as a vital diagnostic tool, providing real-time engine data to help you monitor and ensure your engine is working properly. It also features a removable micro-SD card, allowing you to record and store valuable data logs. This data can be reviewed later, providing insights into your engine's performance and aiding in fine-tuning or troubleshooting.

Why Choose MSD Annular Ring Injection? The Performance Advantage

The choice to 'Go Atomic' is a decision for superior engine performance and drivability. The core of this advantage lies in the MSD annular ring injection design. Unlike traditional carburettors or even some other EFI systems, this design produces an air/fuel charge with a significantly better mixture quality and, crucially, an even distribution among all cylinders. This level of precision is unmatched by many competitors.

The result of this superior fuel delivery is profound: better Air/Fuel Ratios (AFRs) translate directly into tangible improvements across the board. You'll experience:

• Better Idle Quality: A smoother, more consistent idle, eliminating the rough or erratic behaviour often associated with carburettors.
• Better Starting: Reliable and quick starts, whether the engine is cold or hot, removing the frustration of prolonged cranking.
• Better Overall Drivability: A noticeable improvement throughout the entire RPM range, with crisp throttle response, no flat spots, and consistent power delivery in all driving conditions.

Your engine will run more efficiently, deliver its power more smoothly, and respond more predictably, making every journey more enjoyable. The system is robust enough to support engines up to an impressive 525 horsepower, making it suitable for a wide range of performance applications.

Seamless Integration and Robust Support

One of the most appealing aspects of the MSD Atomic EFI is its seamless integration into existing setups. It bolts directly to any standard square bore carburetted intake manifold, meaning you don't need to change your manifold. Furthermore, it accepts the same linkage as most carburettors, simplifying the throttle cable connection and reducing the need for custom fabrication. This 'drop-in' compatibility makes the conversion process as straightforward as possible.

To ensure you have everything needed for a successful installation, the system also includes 15 feet of 3/8 inch diameter rubber fuel line and a fuel filter. While a high-pressure fuel pump (not included in the provided information) is typically required for EFI systems, the inclusion of these essential fuel components highlights MSD's commitment to providing a comprehensive package.

Carburettor vs. Atomic EFI: A Performance Comparison

To truly appreciate the advantages of the MSD Atomic EFI, it's helpful to compare its performance characteristics against those of a traditional carburettor:

Frequently Asked Questions (FAQs)

Q: What kind of engines can the MSD Atomic EFI system support?
A: The MSD Atomic EFI fuel injection systems are designed to support engines producing up to 525 horsepower, making them suitable for a wide range of performance and classic car applications.

Q: Is the installation process complicated?
A: One of the key benefits of the Atomic EFI is its ease of installation. It bolts directly onto any standard square bore carburetted intake manifold and accepts the same linkage as most carburettors. The initial setup with the handheld controller takes only about five minutes.

Q: How does the system handle different environmental conditions, like altitude or temperature changes?
A: The integral ECU and self-calibrating non-contact TPS allow the Atomic EFI to automatically adjust for varying environmental conditions. This means consistent performance and optimal air/fuel ratios whether you're driving in cold weather, hot weather, or at different altitudes, without requiring manual adjustments.

Q: Can I monitor my engine's performance with this system?
A: Absolutely. The included handheld controller not only facilitates the initial setup but also provides real-time engine data. Additionally, it features a removable micro-SD card that allows you to record and store data, giving you valuable insights into your engine's operation.

Q: What makes the MSD Annular Ring Injection superior to other systems?
A: The unique annular ring injection design produces an air/fuel charge with a significantly better mixture and an exceptionally even distribution among all cylinders. This leads to superior AFRs, which in turn results in better idle quality, easier starting, and vastly improved overall drivability throughout the RPM range compared to many other fuel delivery methods.

Conclusion

The MSD Atomic EFI fuel injection system offers a compelling argument for anyone considering the leap from a carburettor to modern electronic fuel injection. It's a system that marries the simplicity of installation with the sophistication of advanced fuel management. With its integrated ECU, precision injectors, leak-reducing internal fuel rails, and the game-changing annular booster rings, it delivers a level of performance, reliability, and ease of use that dramatically enhances your driving experience.

By choosing the Atomic EFI, you're not just replacing a component; you're upgrading your vehicle's very core, ensuring consistent starts, smooth idling, and responsive power delivery in all conditions. Say goodbye to the quirks of carburettors and embrace the precision and efficiency of modern EFI. For a truly transformed classic or performance vehicle, it's time to Go Atomic.
