Hydraulic vs Mechanical Disc Brakes: A Deep Dive

When it comes to bicycle braking systems, disc brakes have become the undisputed champion for many cyclists, offering superior stopping power and performance, especially in adverse weather conditions. However, within the realm of disc brakes, there lies a fundamental distinction: hydraulic versus mechanical. While both achieve the same end goal – clamping brake pads onto a rotor to slow your bike – the way they achieve this is quite different, leading to significant variations in performance, feel, and maintenance requirements. Understanding these differences is crucial for any cyclist looking to optimise their bike’s stopping power or undertaking their own maintenance.

Hydraulic vs. Mechanical Disc Brakes: The Core Differences

At their heart, both hydraulic and mechanical disc brake systems utilise a lever, a cable or hose, and a mechanism to push brake pads against a rotor. The critical divergence lies in the medium used to transmit the force from the lever to the caliper.

Mechanical Disc Brakes

Mechanical disc brakes operate much like traditional rim brakes. A steel cable, housed within a protective outer sheath, runs from the brake lever to the brake caliper. When you pull the lever, the cable is put under tension, pulling on a cam or lever arm within the caliper. This cam then pushes one or both of the brake pads towards the rotor.

Key Components of Mechanical Disc Brakes:

• Brake Lever: The primary interface for the rider, initiating the braking action.
• Brake Cable: A steel wire that transmits the pulling force.
• Outer Cable Casing: Protects the cable and provides a smooth surface for it to run through.
• Caliper: Houses the mechanism that actuates the brake pads. Typically, one pad is moved by the cable, which then pushes against the rotor, forcing the other pad into contact.
• Brake Pads: Made of friction material, they press against the rotor.
• Rotor: A metal disc attached to the wheel hub.

Pros of Mechanical Disc Brakes:

• Simplicity: They are mechanically straightforward and easier to understand.
• Cost-Effective: Generally less expensive to purchase and maintain.
• Ease of Repair: Cables can be replaced relatively easily, and they are less susceptible to fluid contamination issues.
• Compatibility: Often compatible with standard brake levers designed for rim brakes.

Cons of Mechanical Disc Brakes:

• Less Power: Generally offer less braking power and modulation compared to hydraulic systems.
• Cable Drag: Cables can stretch, corrode, and become contaminated, leading to increased friction and reduced performance over time.
• Requires More Force: Often requires more hand strength to achieve the same braking effect as hydraulics.
• Outer Casing Issues: Kinks or damage to the outer casing can significantly impair function.

Hydraulic Disc Brakes

Hydraulic disc brakes employ a sealed system filled with brake fluid. When the lever is squeezed, a piston within the master cylinder (at the lever) pushes the brake fluid through a hose. This pressurized fluid then travels to the caliper, where it acts on pistons within the caliper body. These caliper pistons, in turn, force the brake pads into contact with the rotor.

Key Components of Hydraulic Disc Brakes:

• Brake Lever: Contains a master cylinder and reservoir.
• Brake Hose: A fluid-filled line, typically made of reinforced rubber or braided steel.
• Brake Fluid: A non-compressible fluid (DOT or mineral oil) that transmits pressure.
• Caliper: Houses pistons that are pushed by the fluid pressure to actuate the brake pads. Most modern hydraulic systems are dual-piston, though some high-performance systems use four or even eight pistons for increased power and modulation.
• Brake Pads: Friction material that presses against the rotor.
• Rotor: The metal disc attached to the wheel hub.

Pros of Hydraulic Disc Brakes:

• Superior Power: Offer significantly more braking power, allowing for shorter stopping distances.
• Excellent Modulation: Provide finer control over braking force, allowing for precise adjustments.
• Consistent Performance: Less affected by dirt, water, and temperature changes.
• Less Hand Effort: Require less force at the lever for the same braking effect.
• Self-Adjusting: As pads wear, the pistons automatically advance, maintaining consistent lever feel.
• Reduced Drag: Less internal friction compared to cables, resulting in a crisper braking feel.

Cons of Hydraulic Disc Brakes:

• Complexity: More complex system, requiring specific tools and knowledge for maintenance (e.g., bleeding).
• Cost: Generally more expensive to purchase.
• Maintenance: Bleeding the system to remove air can be a fiddly process.
• Fluid Contamination: Leaks or contamination of the brake fluid can severely impact performance and require a full system flush or component replacement.

Servicing Your Hydraulic Disc Brakes: A Step-by-Step Guide

Regular maintenance is key to ensuring your hydraulic disc brakes perform optimally and reliably. The most common service required is bleeding the system to remove any air that may have entered, which can lead to a spongy lever feel and reduced braking power.

Tools and Supplies You'll Need:

Before you begin, gather all the necessary items:

• Bleed Kit: Specific to your brake manufacturer, usually includes hoses, fittings, and syringes/bottles.
• Fresh Brake Fluid: DOT 5.1 for Avid, Formula, Hayes, Hope; Mineral-based for Shimano/Magura. Never mix fluid types.
• Wrenches: 8mm for brake lines, 6mm or 8mm for bleed screws, Torx (T7, T8, T10) for lever bleed screws, T25 for rotors.
• Torque Wrench: Essential for ensuring components are tightened correctly.
• Allen Sockets: 4mm, 5mm, 6mm typically.
• Lint-Free Cloths: For cleaning.
• Isopropyl Alcohol: For cleaning rotors and spills.
• Pad Separator Tool: Or a wide, flat-bladed screwdriver.
• Pliers: For removing brake pads.
• Manufacturer's Instructions: Always refer to your specific brake model's manual.
• Bicycle Repair Stand: With a swivel function.
• Spare Parts: As needed (pads, hardware, etc.).

Step 1: Caliper Inspection

Start by removing the wheel and thoroughly cleaning the caliper with a brush to remove dirt and grime. Carefully remove the brake pads. Note how they are secured (spring, cotter pin, or bolt). If space is tight, use a pad separator tool or a flathead screwdriver to gently push the pistons back into the caliper body. Avoid getting oil on the rotor or pads, as it can permanently damage them. Once the pads are out, inspect the pistons for any signs of leaks around the seals. Squeeze the brake lever a few times to ensure the pistons move smoothly and retract fully. If a piston is stuck or leaking, it may require a rebuild kit or replacement caliper.

Step 2: Lever Inspection

Examine the brake lever and body for any cracks or damage, especially if you’ve been in a crash. Check for looseness at the pivot point, which might indicate worn pivot pins. Inspect the area where the push rod meets the piston assembly for any fluid leaks. Finally, use your torque wrench to ensure the bolts securing the lever to the handlebar are correctly tightened and check the handlebar itself for any stress marks.

Step 3: Brake Hose Inspection

Inspect the entire length of the brake hose for any bulges, wet spots, or abrasions. These are signs that the hose needs replacing. Check the connections at the lever and caliper for tightness, using an 8mm wrench if necessary. Pay close attention to areas where the hose might rub or flex excessively, particularly on full-suspension bikes.

Step 4: Bleeding the Hydraulic System

Air in the hydraulic system leads to a spongy lever. Bleeding removes this air.

The Bleeding Process (Hybrid Method):

1. Prepare the Caliper Syringe: Fill a syringe with fresh brake fluid, attach the correct hose and fittings for your caliper. Tap the syringe to dislodge air bubbles and slowly push the plunger to expel any trapped air.
2. Connect to Caliper: Attach the syringe to the caliper’s bleed screw. For Hayes, you might need to leave the bleed screw slightly open. For Avid, clamp the hose with the provided tool. Gently pull back the syringe plunger to create a slight vacuum and tap the syringe to help release dissolved air from the fluid.
3. Prepare the Lever Syringe/Bottle: Attach a syringe or bottle filled with fluid to the lever's bleed port. If you have Shimano or Magura brakes, open the reservoir cap. For optimal air removal, position the brake levers parallel to the ground (Shimano/Magura) or as per manufacturer's instructions.
4. Push Fluid Upwards: Place a pad separator or cardboard between the caliper pistons to prevent them from extending too far. Slowly push fluid from the caliper syringe upwards towards the lever. As fluid flows into the lever syringe/bottle, observe for air bubbles.
5. Agitate and Observe: Tap the brake hose, caliper, and lever to dislodge any stubborn air bubbles. Continue pushing fluid until the fluid entering the lever syringe/bottle is completely bubble-free.
6. Close and Test: Once the fluid is clear of air, close the caliper bleed screw. Then, carefully close the lever bleed port (or replace the reservoir cap). Squeeze the brake lever several times. It should feel firm and travel about halfway through its stroke.
7. Clean Up: Clean any spilled fluid with alcohol and a lint-free cloth.

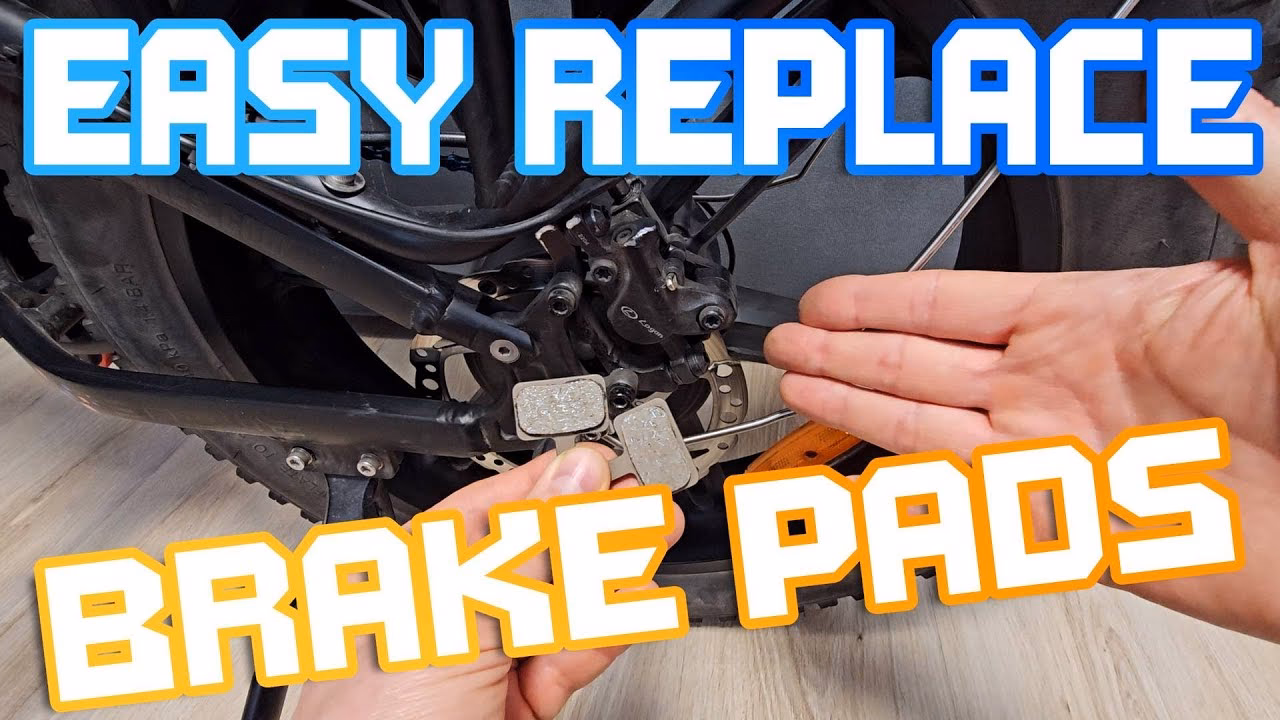

Step 5: Brake Pad Inspection

With the pads removed, check the thickness of the friction material. A minimum of 1mm of material is generally recommended, or a total pad thickness of around 3mm (check manufacturer specs). If the pads are worn but still have sufficient material, you can clean and deglaze them by gently rubbing them on a flat sheet of sandpaper until the surface is uniform. Ensure new pads are properly seated and that any return springs or clips are in place.

Step 6: Rotor Inspection and Cleaning

Inspect your rotors for any signs of glazing or contamination. You can clean them while still attached to the wheel or remove them if you have the necessary tools (T25 Torx or Centre Lock). Fold medium-grit sandpaper around a block and gently sand the braking surface of the rotor in a tangential motion. This removes glaze and creates a fresh surface for the pads. Clean the rotor thoroughly with alcohol and a lint-free cloth to remove any dust or residue. If you removed the rotor, reinstall it and torque the bolts to the manufacturer's specification (typically 55-60 inch-pounds), applying torque evenly.

Step 7: Final Torque Inspection

After completing all the maintenance steps, it's vital to ensure all fasteners are torqued correctly. This includes caliper mounting bolts, adapter bolts, and lever mounting bolts. Refer to your brake manufacturer's documentation for the precise torque values. This final check ensures the safety and reliability of your braking system.

Frequently Asked Questions

Q1: Can I use car brake fluid in my bicycle hydraulic brakes?

A1: Absolutely not. Bicycle hydraulic systems use specific brake fluids (DOT or mineral oil) that are compatible with the seals and materials used. Using the wrong fluid can cause significant damage and lead to brake failure.

Q2: My brake lever feels spongy. What should I do?

A2: A spongy lever is almost always an indication of air in the hydraulic system. The solution is to bleed your brakes following the steps outlined above.

Q3: How often should I bleed my hydraulic disc brakes?

A3: This depends on usage and conditions, but a good rule of thumb is every 6-12 months, or whenever you notice a decline in braking performance or a spongy lever feel.

Q4: What’s the difference between DOT fluid and Mineral oil?

A4: DOT fluids (like DOT 3, 4, 5.1) are hygroscopic (they absorb moisture), which can lead to corrosion over time and require more frequent bleeding. Mineral oil-based systems are generally less sensitive to moisture but require their specific fluid. Never mix DOT fluid with mineral oil.

Q5: My rear brake is much weaker than my front brake. Why?

A5: This could be due to several reasons: worn brake pads, air in the rear brake's hydraulic line, a contaminated rotor or pad on the rear wheel, or simply less hydraulic leverage applied to the rear caliper.

By understanding the fundamental differences between hydraulic and mechanical disc brakes and by performing regular maintenance, you can ensure your bicycle’s braking system is always in top condition, providing the confidence and control you need on any ride.
