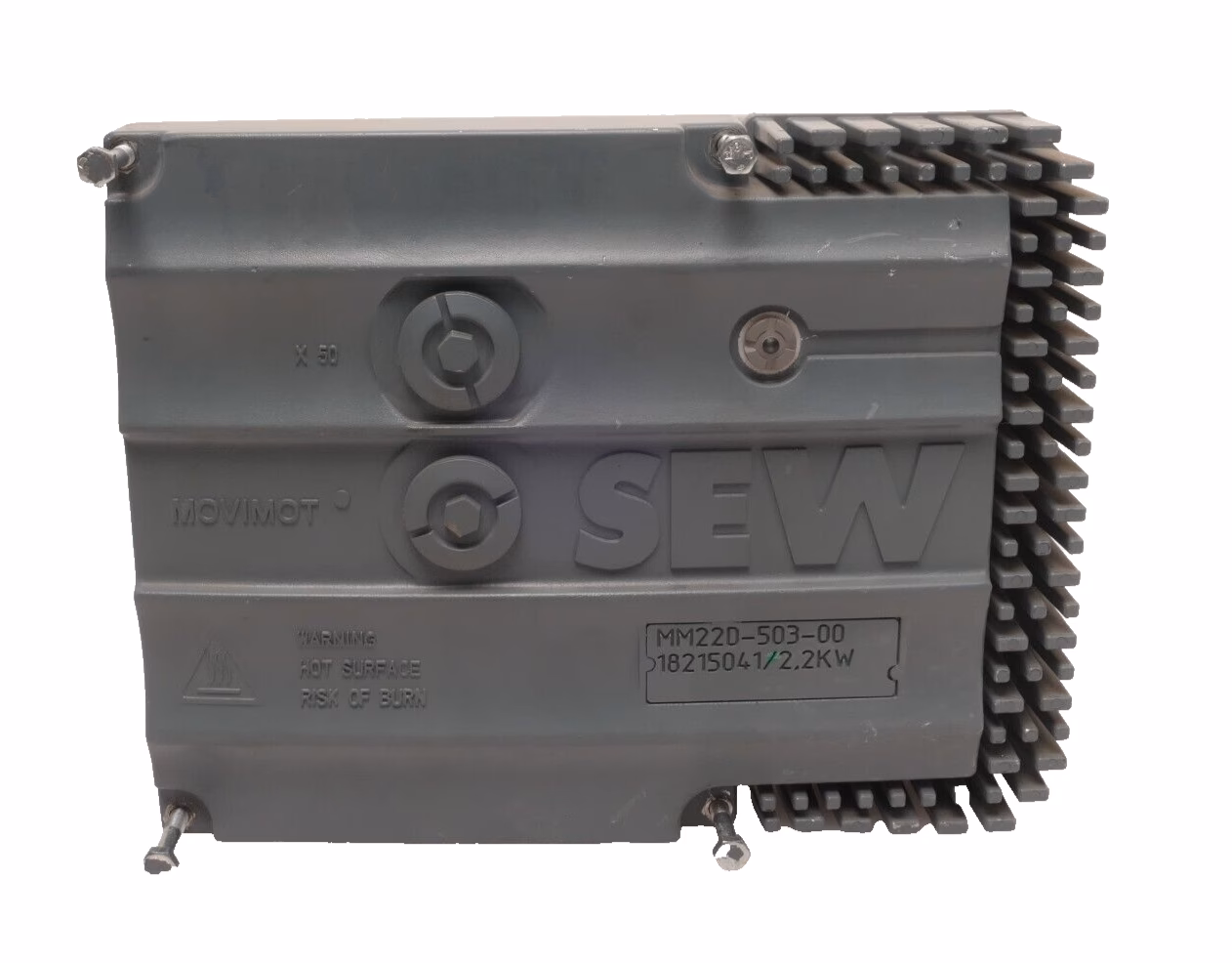

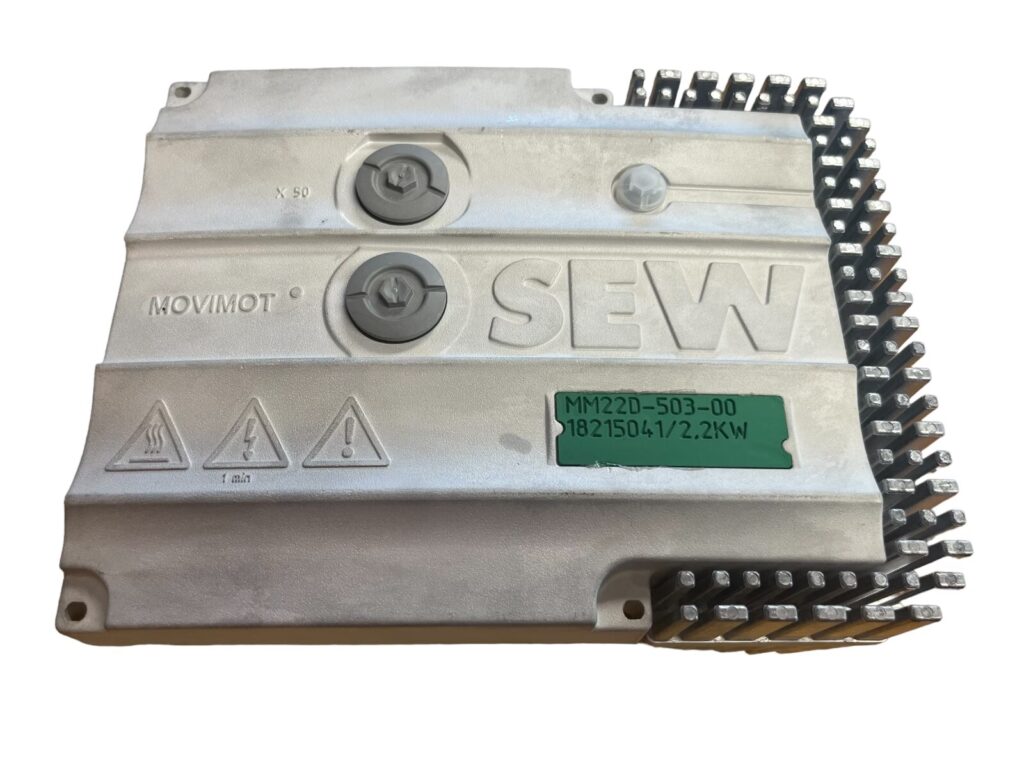

Unlocking the Power of SEW-Eurodrive Movimot MM22D

In the realm of industrial automation and drive technology, efficiency, reliability, and ease of integration are paramount. SEW-Eurodrive, a leading name in the field, addresses these critical needs with its innovative Movimot series. Among its notable offerings, the Movimot MM22D series stands out as a prime example of decentralised drive technology, meticulously engineered to streamline operations and enhance performance across a multitude of applications.

At its core, Movimot represents a sophisticated fusion of a gearmotor and a digital frequency inverter, creating a compact yet powerful drive solution. This integrated approach not only simplifies installation but also offers significant advantages in terms of control, flexibility, and overall system architecture. For engineers and maintenance professionals alike, understanding the nuances of the MM22D series, from its technical specifications to its comprehensive documentation, is crucial for optimising its deployment and maximising its operational lifespan.

The Essence of Movimot: Decentralised Drive Technology Redefined

The Movimot concept is fundamentally about bringing the intelligence of the inverter closer to the motor, resulting in a truly decentralised drive solution. This eliminates the need for extensive control cabinets and complex wiring, offering a cleaner, more modular system design. The MM22D series embodies this philosophy, providing a robust and compact unit that combines a high-quality gearmotor with a state-of-the-art digital frequency inverter.

This ingenious combination is available in all standard gearmotor designs and mounting positions, offering unparalleled adaptability to various machinery layouts. Whether your application requires a drive with or without a brake, the Movimot MM22D can be tailored to meet specific operational demands. It operates efficiently across a broad spectrum of connection voltages, accommodating systems from 380 V to 500 V, as well as 200 V to 240 V, making it suitable for global deployment.

Designed to handle applications in the power range from 0.37 kW to 4.0 kW, the Movimot MM22D series proves itself as a versatile 'power duo'. Despite integrating a frequency inverter, its footprint remains remarkably small, requiring only marginally more installation space than conventional gearmotors. This compact design is a significant advantage in environments where space is at a premium, allowing for more streamlined machine designs and easier retrofits.

Beyond its physical attributes, the Movimot MM22D boasts user-friendly basic functions that can be effortlessly scaled up with a wide array of additional functionalities. For on-site commissioning, a manual setpoint setting function facilitates easy startup, providing immediate control. For more intricate adjustments and fine-tuning, extended parameterisation is readily achievable using SEW-Eurodrive's MOVITOOLS® MotionStudio software, offering a comprehensive interface for drive management and optimisation.

Navigating the Documentation: SEW-Eurodrive Movimot MM22D Series Manuals

For any advanced industrial component, thorough documentation is indispensable. When it comes to the SEW-Eurodrive Movimot MM22D series, users are supported by essential guides designed to facilitate installation, operation, and maintenance. To answer the common query regarding the number of available manuals for this specific series, it's important to note that the database contains two key manuals for the Movimot MM22D series:

• Addendum to the Operating Instructions: This document provides supplementary information, updates, or specific details that expand upon the core operating instructions. It's vital for understanding specific features or modifications relevant to the MM22D.
• Compact Operating Instructions: This manual offers a concise yet comprehensive guide to the fundamental aspects of operating the Movimot MM22D. It covers essential setup procedures, basic functions, and troubleshooting tips, making it an excellent starting point for users.

Both of these manuals are readily accessible, available for free online viewing or downloading in PDF format. Consulting these documents is not merely a recommendation but a necessity to ensure the safe, efficient, and optimal performance of your Movimot MM22D drive. They serve as invaluable resources for technicians, engineers, and anyone involved in the lifecycle of these drives, providing clear instructions and technical specifications that prevent common errors and enhance operational reliability.

Performance and Efficiency: Motor Combinations and Power Duo

The Movimot MM22D series is engineered for superior performance, and a significant aspect of this is its compatibility with SEW-Eurodrive’s highly efficient DR.. series of motors. This allows users to select a motor that precisely matches their application's efficiency requirements, contributing to reduced energy consumption and lower operating costs. The D series Movimot gearmotors can be seamlessly combined with various DR.. series motors, each offering distinct efficiency levels:

Choosing the right efficiency class is more than just an environmental consideration; it directly impacts the long-term financial viability of an operation. IE4 Super Premium Efficiency motors, for instance, offer the highest energy savings, making them ideal for continuous operation or applications where energy costs are a major concern. The flexibility to combine the Movimot MM22D with these different motor series underscores SEW-Eurodrive's commitment to providing tailored, high-performance solutions.

Seamless Integration and Robust Connection Technology

One of the standout features of the Movimot MM22D series is its advanced connection technology, which ensures fast, error-free installation. This is crucial for minimising downtime during setup and maximising operational availability. An integrated T distributor within the unit handles the 400 V power supply, 24 V control signals, and other essential control signals, simplifying the wiring process significantly.

To further enhance installation efficiency and system reliability, SEW-Eurodrive offers a broad range of field distributors and prefabricated hybrid cables. These hybrid cables, developed in-house, are a testament to innovative design. They are combination cables that ingeniously carry the power supply, control voltage, and communication strands within a single cable sheath. This integrated design not only reduces the number of cables required but also guarantees optimum EMC shielding and impedance, crucial for maintaining signal integrity in electrically noisy industrial environments.

The advantages of this sophisticated connection system are manifold. Drives fitted with hybrid cables can be connected to a field distributor and made ready for operation in mere seconds, drastically cutting down installation time. Furthermore, the system is designed with maintenance and operational continuity in mind. In the event of servicing, the connector can be safely disconnected without any danger, even by personnel without extensive technical expertise. This ease of disconnection and reconnection means that a drive can be replaced and the new unit reconnected quickly, making the system ideal for all applications that demand high levels of operating availability and minimal interruption.

Advanced Functionality and Global Versatility

The Movimot MM22D series is not just about robust hardware; it also offers a sophisticated suite of functionalities. While it provides easy-to-use basic functions for straightforward operations, its true power lies in its scalability. Users can expand these basic capabilities with a wide range of additional functions, adapting the drive to complex automation tasks.

For local adjustments and quick commissioning, the manual setpoint setting function allows for easy startup of the drive directly on site, reducing reliance on external programming tools during initial setup. For more advanced configurations and diagnostics, the MOVITOOLS® MotionStudio software provides a comprehensive platform for extended parameterisation, giving engineers precise control over every aspect of the drive's operation.

The drive's flexibility extends to its connection options, with optional industrial plug connectors that enhance modularity and speed up component replacement. Moreover, the Movimot MM22D series is designed for global applicability, boasting country-specific approvals that ensure its compliance and reliable operation worldwide. This global readiness makes it an excellent choice for international manufacturers and systems integrators.

Understanding Plug Connectors for MOVIMOT® MM..C-503-00

A common point of inquiry concerns the inclusion of plug connectors with specific Movimot models. For the MOVIMOT® MM..C-503-00, it is important to note that the unit is typically supplied without a plug connector, unless otherwise specified in the order. This approach allows users to select the most appropriate plug connector for their specific application and existing infrastructure.

SEW-EURODRIVE makes a range of standard plug connectors available to meet various requirements. Should your application demand a type of connector not listed as standard, the company encourages direct contact with their support team. This ensures that you receive the correct components for seamless integration and optimal performance, avoiding potential compatibility issues.

Frequently Asked Questions (FAQs)

How many manuals are available for the Movimot MM22D series?

There are two main manuals available for the SEW-Eurodrive Movimot MM22D series: the 'Addendum to the operating instructions' and the 'Compact operating instructions'. Both are available for free online viewing or download in PDF format.

What is Movimot®?

Movimot® is SEW-Eurodrive's proven solution for decentralised drive technology. It combines a gearmotor and a digital frequency inverter into a single, compact unit, offering a flexible and efficient drive solution for various industrial applications.

Does the Movimot® MM..C-503-00 come with a plug connector?

No, the Movimot® MM..C-503-00 is typically supplied without a plug connector unless specifically requested in the order. Standard plug connectors are available separately, and SEW-EURODRIVE can provide options for other types upon contact.

What power range does the Movimot® operate within?

The Movimot® series is designed for applications within a power range of 0.37 kW to 4.0 kW.

What are the key benefits of Movimot's hybrid cables?

Movimot's in-house developed hybrid cables integrate power supply, control voltage, and communication strands into a single sheath. This design ensures fast, error-free installation, optimal EMC shielding, simplified wiring, and significantly reduced maintenance times, contributing to high system availability.

Can Movimot drives be combined with different efficiency class motors?

Yes, Movimot gearmotors of the D series can be combined with SEW-Eurodrive's DR.. series motors, which come in various efficiency levels including DRU.. (IE4 Super Premium Efficiency), DRP.. (IE3 Premium Efficiency), and DRE.. (IE2 High Efficiency), allowing for tailored energy efficiency.

Conclusion

The SEW-Eurodrive Movimot MM22D series represents a sophisticated and highly effective solution for decentralised drive technology. Its intelligent integration of gearmotor and digital frequency inverter, coupled with its compact design, flexible functionality, and robust connection technology, makes it an ideal choice for modern industrial applications seeking enhanced efficiency and reliability. With comprehensive documentation readily available and a design focused on ease of installation and maintenance, the Movimot MM22D series stands as a testament to SEW-Eurodrive's commitment to delivering high-performance, user-friendly drive solutions that truly empower industrial operations worldwide.
