The Shift from Carburetors to Fuel Injection
In the realm of powersports, particularly for motorcycles and ATVs, the evolution of engine management systems has seen a significant shift. For decades, the humble carburetor was the go-to method for delivering fuel to the engine. However, the advent and refinement of electronic fuel injection (EFI) have largely supplanted carburetors, offering a more precise, efficient, and adaptable solution. While the throttle body might be the most visible part of an EFI system, the real magic happens thanks to a sophisticated network of sensors, controllers, and the all-important Electronic Control Unit (ECU).

Why Fuel Injection is a Technician's Friend
For mechanics and technicians, the transition to fuel injection brings several notable advantages:
- No Separate Fuel Circuits to Evaluate: Unlike carbureted systems that often have multiple complex fuel circuits to diagnose, EFI systems consolidate this function, simplifying troubleshooting.
- Fewer Moving Parts: EFI systems generally boast fewer mechanical moving parts compared to carburetors, leading to increased reliability and less potential for wear-related issues.
- No Carburetor Cleaning: The tedious and often messy task of cleaning and rebuilding carburetors is eliminated with EFI.
- Self-Diagnostic Trouble Codes: Perhaps the most significant benefit is the built-in diagnostic capability. EFI systems can identify and report faults through trouble codes, guiding technicians directly to the problem area.
How Does Fuel Injection Actually Work?
The fundamental difference between carburetors and fuel injection lies in their operational approach. Carburetors rely on mechanical principles, using venturi effects and vacuum to draw fuel into the engine's air stream. In contrast, EFI systems employ a more intelligent, electronically controlled method. A central computer, known as the Electronic Control Module (ECM) or Electronic Control Unit (ECU), acts as the brain of the operation. This small computer meticulously collects data from a variety of sensors strategically placed throughout the engine and its environment.
Based on this real-time sensor data, the ECM calculates the precise amount of fuel required and the optimal timing for its delivery. It then sends electronic signals to the fuel injectors, dictating exactly when and for how long they should open, thereby atomising and spraying fuel directly into the intake manifold or cylinder. This continuous calculation and adjustment ensure the engine receives the correct air-fuel mixture for optimal performance, efficiency, and emissions control under all operating conditions.
The Sensor Network: Gathering Crucial Data
The ECM's ability to make accurate fuel and ignition decisions hinges on the quality and quantity of input it receives from various sensors. These sensors can be broadly categorised into three main groups:
1. Basic Input Sensors: The Foundation of Operation
These sensors provide the core information necessary for the ECM to establish a baseline for engine operation. Without these, the EFI system simply wouldn't function:
- Crank Position Sensor (CPS): This is arguably the most critical sensor. It tells the ECM the rotational speed and precise position of the crankshaft. This information is vital for timing both fuel injection and ignition spark. On some models, a Camshaft Position Sensor (CMP) may supplement or replace the CPS for even more precise timing.
- Manifold Absolute Pressure (MAP) Sensor: This sensor measures the pressure (or vacuum) within the intake manifold. This data helps the ECM determine engine load, which is a key factor in calculating how much fuel is needed.
- Throttle Position Sensor (TPS): Located on the throttle body, the TPS informs the ECM about how much the throttle is open, indicating the rider's throttle input and thus the demand for acceleration.
2. Correction Input Sensors: Fine-Tuning for Performance and Efficiency
These sensors provide additional data that allows the ECM to make sophisticated adjustments, optimising the air-fuel mixture for varying environmental and operating conditions. This leads to improved performance, better fuel economy, and reduced emissions:
- Engine Coolant Temperature (ECT) Sensor (also known as WTS - Water Temperature Sensor): This sensor monitors the engine's operating temperature. The ECM uses this to adjust fuel delivery for cold starts (enriching the mixture) and to ensure proper operation once the engine is warm.
- Intake Air Temperature (IAT) Sensor: Measures the temperature of the air entering the engine. Colder air is denser and requires more fuel, while warmer air is less dense and requires less fuel.
- Barometric Pressure (BARO) Sensor: Measures the ambient air pressure. This is important for compensating for altitude changes, as air pressure decreases at higher altitudes, affecting air density.
- Vehicle Speed Sensor: Provides information about how fast the vehicle is travelling.
- Gear Position Sensor: Informs the ECM which gear the transmission is in, allowing for specific fuelling strategies based on the gear.
3. Control Input Sensors: Ensuring Safe and Stable Operation
These sensors monitor the engine's running condition and alert the ECM to potentially problematic situations. They act as safety nets:
- Knock Sensor: Detects engine knock or pinging (detonation), which is an abnormal combustion event. If detected, the ECM can retard ignition timing to prevent engine damage.
- Oxygen Sensor (O2 Sensor): Found in the exhaust system, this sensor measures the amount of oxygen in the exhaust gases. This directly indicates how rich or lean the air-fuel mixture is, allowing the ECM to make precise adjustments for optimal combustion and emissions control. (Note: Many off-road motorcycles and ATVs do not use an O2 sensor).
- Bank Angle/Tip-Over Sensor: This safety feature detects if the motorcycle has fallen over. If it does, it will shut off the fuel supply to prevent potential fires or further damage.
The ECM's Decision-Making Process
With all this data flowing in, the ECM processes the information from the basic, corrective, and control sensors. It then executes complex algorithms to determine the precise fuel injection and ignition timing strategies. The ECM's control outputs directly manage:
- Fuel Injector Operation: Controlling the exact moment and duration (pulse width) the fuel injectors open.
- Ignition Coil Firing: Dictating when the ignition coil receives power to create the spark that ignites the fuel-air mixture.
- Fuel Pump Operation: Managing the fuel pump via a relay to ensure fuel is supplied to the injectors when needed.
Typical Fuel Injection System Components
A typical EFI system, especially on a motorcycle, comprises several key components working in harmony:
| Component | Description |
|---|---|
| (1) ECM | The main computer controlling the system. |
| (2) Bank Angle/Tip-over Sensor | Safety sensor to shut off fuel if the bike falls. |
| (3) Fuel Pump | Pressurises fuel and sends it to the injectors. |
| (4) Engine Coolant Temperature Sensor (ECT) | Monitors engine temperature. |
| (5) Crank Position Sensor (CPS) | Provides crucial crankshaft position and speed data. |
| (6) Oxygen Sensor (O2 Sensor) | Measures exhaust oxygen for air-fuel mixture feedback (often omitted on off-road models). |
| (7) Fuel Pump Relay | Controls the power supply to the fuel pump. |
| (8) Ignition Coil | Generates the high voltage for the spark plug. |
| (9) Fuel Injector | Sprays atomised fuel into the intake. |
| (10) Throttle Body | Houses the throttle plate, TPS, MAP sensor, and often an Idle Speed Control (ISC) motor. |
Troubleshooting EFI Systems: The Diagnostic Advantage
One of the significant advantages of EFI is its ability to self-diagnose. When a poorly running fuel-injected machine presents a problem, it often has the means to communicate what's wrong. While authorised dealerships typically use specialised diagnostic equipment to read trouble codes directly from the ECU, most motorcycle and ATV EFI systems also feature a simpler built-in readout system.

This often involves a dashboard indicator light, commonly labelled as 'FI' (Fuel Injection). When a fault is detected, this light will blink in a specific sequence of long and short flashes. Each sequence corresponds to a particular trouble code number. By observing and recording this blinking pattern, a mechanic can identify the area of the fault. For instance, a pattern of two short blinks followed by one long blink might indicate a specific sensor failure.
Once a trouble code is identified, the mechanic can then proceed to test the specific component or circuit indicated by the code. This targeted approach significantly speeds up the diagnostic process and allows for a quicker return to full running capability for the vehicle.
Understanding Trouble Codes
It's important to note that diagnostic trouble codes are not universally standardised across all manufacturers. What might trigger a specific code on one brand of motorcycle could be represented differently on another. Therefore, having access to model-specific information is crucial. Your best resource for understanding these codes and the corresponding diagnostic procedures is:
- Specialised Service Manuals: Manuals like Cyclepedia or the manufacturer's official factory service manual provide comprehensive listings of all possible trouble codes for your specific model, along with detailed step-by-step diagnostic procedures.
By leveraging this information, mechanics can effectively diagnose and resolve issues, ensuring the EFI system functions optimally.

The Evolution of Fuel Injection in Motorcycles
The widespread adoption of fuel injection in the automotive world happened relatively quickly, with most cars adopting the technology by the early 1990s. However, the motorcycle industry was a bit slower to make the transition. While cars were already benefiting from EFI's advantages, the majority of motorcycles were still relying on carburetors through the early to mid-1990s.
Harley-Davidson was one of the pioneers, beginning to integrate fuel injection into their touring models in the mid-1990s. By the early 2000s, the trend had accelerated, with performance-oriented sportbikes increasingly adopting EFI systems to meet stricter emissions regulations and to achieve higher levels of performance and efficiency.

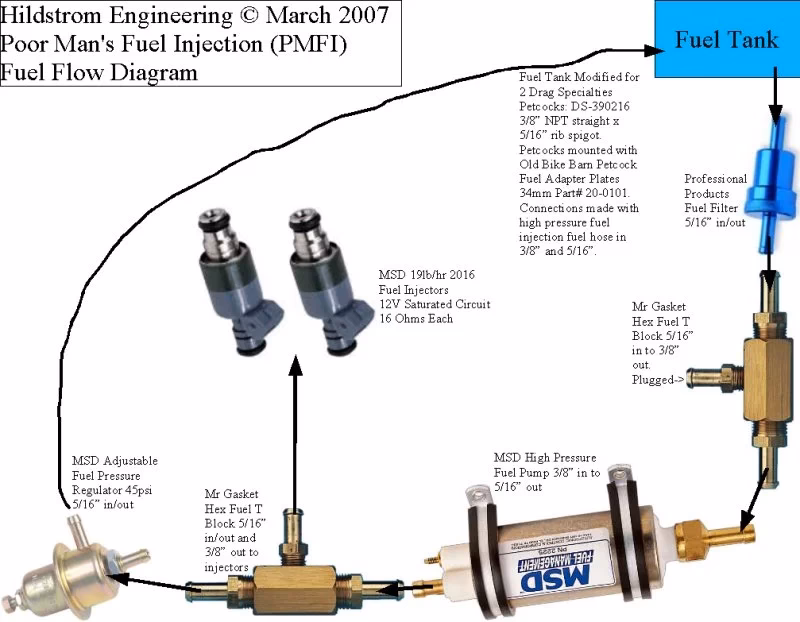

What are the Core Components of a Motorcycle Fuel System?
Regardless of whether a motorcycle uses fuel injection or carburetors, its fuel system fundamentally consists of several key parts:
- Fuel Tank: The storage vessel for the petrol, typically equipped with a secure cap for refuelling.
- Fuel Pump: Responsible for drawing fuel from the tank and delivering it under pressure to the engine's fuel delivery system (either the carburetor or the fuel injectors).
- Fuel Filter: A crucial component that removes contaminants from the fuel before it reaches the engine, protecting sensitive parts like injectors or carburetor jets.
- Fuel Delivery Device: This is either the carburetor or the fuel injector(s), responsible for mixing the fuel with air before it enters the combustion chamber.
- Fuel Lines: Hoses and pipes that carry the fuel from the tank, through the filter and pump, to the fuel delivery device.
In summary, electronic fuel injection represents a significant advancement in motorcycle engine technology, offering enhanced performance, efficiency, and diagnostic capabilities compared to older carburetor systems. Understanding its components and how they work together is key to maintaining and troubleshooting modern motorcycles.
