Motorcycle Brake Materials Explained

When you twist that lever or push that pedal, you're engaging a sophisticated system designed for one crucial purpose: bringing your motorcycle to a controlled halt. Modern motorcycle braking systems, predominantly disc brakes, are marvels of engineering, relying on a specific blend of materials to ensure reliable and powerful stopping performance. Understanding what these components are made of can not only demystify the technology but also empower you to make informed decisions about maintenance and upgrades. Let's delve into the heart of motorcycle braking systems and explore the materials that make them tick.

The Core Components of a Modern Disc Brake System

Unlike the older, less efficient drum brake systems, modern motorcycles overwhelmingly favour disc brakes. This preference stems from their superior heat dissipation, consistent performance, and better feel. A typical disc brake system is comprised of three primary elements:

• Brake Discs (Rotors): These are the large, circular metal plates that rotate with the wheel.
• Brake Calipers: These are the units that house the brake pads and apply pressure to the discs.
• Brake Pads: These are the friction materials that press against the discs to create the stopping force.

Each of these components is manufactured from carefully selected materials to optimise their function, durability, and safety. The interaction between these materials is what ultimately determines the braking system's effectiveness.

Materials for Brake Discs (Rotors)

The brake disc, often referred to as the rotor, is the component that directly interacts with the brake pads. Its primary role is to convert the kinetic energy of the moving motorcycle into heat through friction. Therefore, the materials used must be able to withstand extreme temperatures, resist wear, and maintain structural integrity under significant stress.

Stainless Steel: The Workhorse

For the vast majority of motorcycles, especially those on the road and for general sport riding, stainless steel is the material of choice for brake discs. Here's why:

• Corrosion Resistance: Stainless steel alloys, typically containing chromium, offer excellent resistance to rust and corrosion, which is vital for components exposed to the elements, water, and road salt.
• Heat Dissipation: While not the absolute best at dissipating heat, stainless steel offers a good balance. It can absorb and radiate a significant amount of heat before warping or failing.
• Durability: It's a strong and tough material that can withstand the constant friction and pressure without breaking down quickly.
• Cost-Effectiveness: Compared to more exotic materials, stainless steel provides a good performance-to-cost ratio, making it accessible for mass production.

The specific grade of stainless steel can vary, with common choices including 410 and 420 martensitic stainless steels, known for their hardness and wear resistance after heat treatment.

High-Performance and Racing Materials

For high-performance motorcycles, racing applications, and some premium touring bikes, more advanced materials might be employed to push the boundaries of braking performance:

• Carbon-Ceramic Composites: These are the pinnacle of brake disc technology. They are incredibly lightweight and offer exceptional heat resistance and fade-free performance, even under extreme conditions. However, they are significantly more expensive and can be more brittle than steel discs. Their use is typically confined to supercars and very high-end motorcycles.
• High-Carbon Steel: Some performance-oriented discs might use high-carbon steel alloys. These can offer improved thermal capacity and rigidity over standard stainless steel, but they may be more susceptible to corrosion if not properly treated or maintained.

Disc Design Considerations

Beyond the material itself, the design of the disc plays a crucial role. Many discs feature:

• Perforations or Slots: These help to vent heat and expel water and brake dust, improving consistent performance, especially in wet conditions or during hard braking.
• Floating Designs: High-performance discs often use a floating design, where the friction ring (the part the pads contact) is attached to a central hub via "buttons" or "straps." This allows the friction ring to expand and contract with heat independently of the hub, reducing the risk of warping and improving contact with the pads. The buttons themselves are typically made from stainless steel or a similar high-strength alloy.

Materials for Brake Calipers

The brake caliper is the mechanism that squeezes the brake pads onto the disc. It needs to be strong enough to withstand the forces generated during braking and rigid enough to maintain precise alignment.

Aluminium Alloys: The Standard

The overwhelming majority of motorcycle brake calipers are manufactured from aluminium alloys. This is due to several key advantages:

• Lightweight: Aluminium is significantly lighter than steel, which contributes to reducing the overall unsprung weight of the motorcycle. Lower unsprung weight generally leads to better suspension performance and handling.
• Good Thermal Conductivity: Aluminium can effectively conduct heat away from the brake pads and pistons, helping to prevent overheating.
• Machinability: Aluminium alloys are relatively easy to machine, allowing for complex caliper designs and precise manufacturing tolerances.
• Corrosion Resistance: While not as inherently corrosion-resistant as stainless steel, aluminium forms a protective oxide layer. Anodising or painting further enhances this resistance.

Common aluminium alloys used include those in the 6061-T6 series, known for their strength and machinability.

Monobloc vs. Two-Piece Calipers

Calipers can be constructed in different ways:

• Monobloc Calipers: These are machined from a single piece of aluminium alloy. This design offers superior rigidity and strength, reducing flex during braking and leading to a firmer, more responsive brake feel. They are generally found on higher-performance machines.
• Two-Piece (or Multi-Piece) Calipers: These are assembled from two or more pieces, usually bolted together. While often less rigid than monobloc designs, they can be more cost-effective to manufacture.

High-Performance Materials

In very high-end or racing applications, you might find calipers made from:

• Magnesium Alloys: These are even lighter than aluminium alloys and offer excellent stiffness, but they are more expensive and can be more susceptible to corrosion and damage.
• Titanium: Used in some high-performance brake components, particularly for its strength-to-weight ratio and excellent thermal properties, though its cost is prohibitive for widespread use.

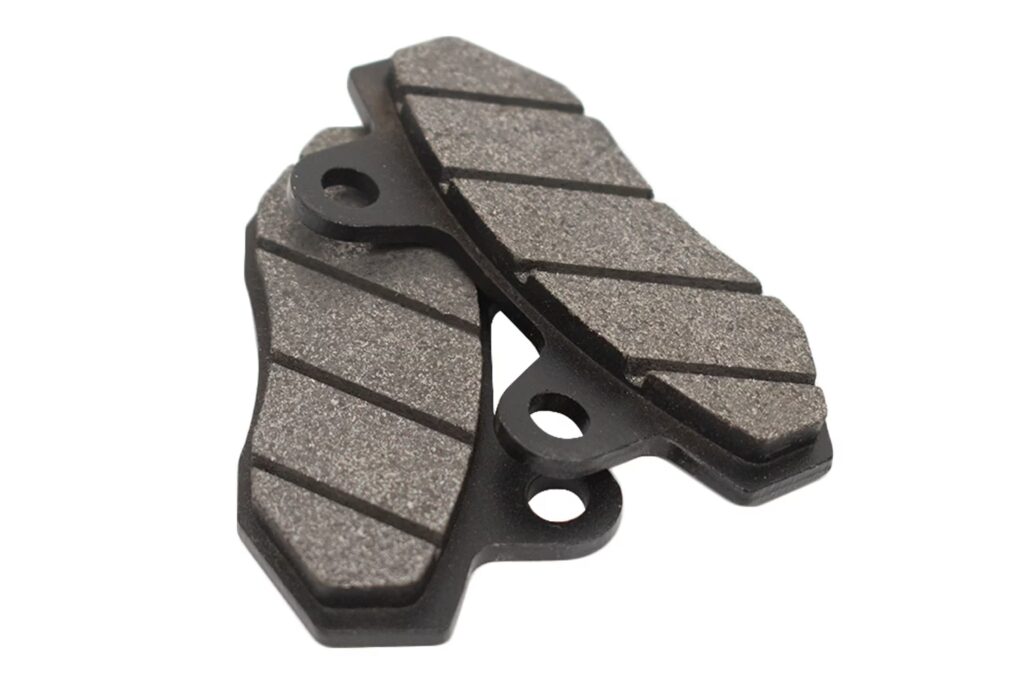

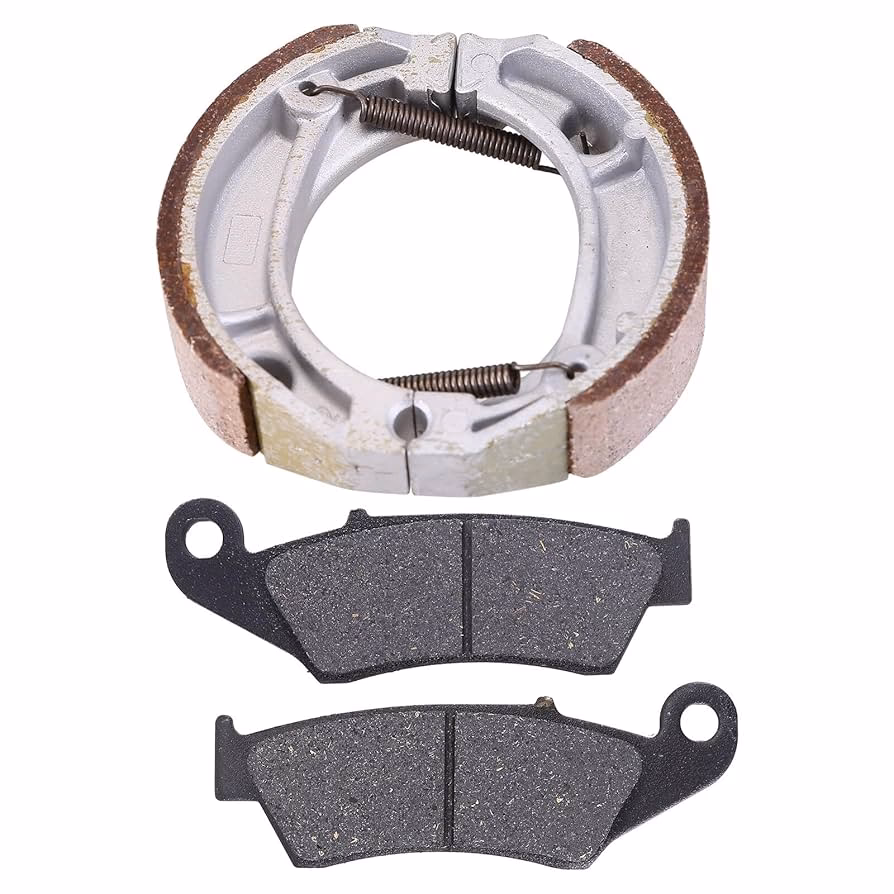

Materials for Brake Pads

Brake pads are the consumable component that directly interfaces with the brake disc. The material used here is critical, as it determines the friction coefficient, heat resistance, wear rate, and even the impact on the brake disc. There's a wide spectrum of brake pad materials, each with its own pros and cons.

Organic (Resin-Based) Pads

These are common on entry-level and mid-range motorcycles, as well as for general commuting. They consist of organic fibres (like aramid, carbon, or fibreglass) mixed with resins and fillers.

• Pros: Quiet operation, good initial bite (friction when cold), gentle on discs, relatively inexpensive.
• Cons: Lower heat resistance, meaning they can fade (lose effectiveness) under heavy or sustained braking. They also wear out faster than other types.

Sintered (Metallic) Pads

These pads are made by compressing powdered metals (like copper, iron, and bronze) and other friction modifiers together and then heating them to fuse them into a solid block. This process is called sintering.

• Pros: Excellent heat resistance, providing consistent performance even under heavy use. They offer good stopping power and longer lifespan than organic pads. They are also less affected by water.
• Cons: Can be noisier than organic pads, may wear discs faster, and generally have a higher initial cost. They often require a bit of heat to reach their optimal performance.

Semi-Metallic Pads

These are a hybrid, combining organic fibres with metallic components. They aim to offer a balance between the characteristics of organic and sintered pads.

• Pros: Good heat resistance, improved stopping power over organic, less disc wear than sintered, often quieter than sintered.
• Cons: Can still fade under extreme heat compared to sintered, and wear rate is a compromise.

Ceramic Pads

Less common on motorcycles compared to cars, ceramic pads use ceramic fibres and metallic elements bound by resin. They are often found on high-performance or premium models.

• Pros: Very quiet, produce very little dust, excellent heat resistance, and are gentle on discs.
• Cons: Can be expensive, may have a slightly lower initial bite when cold compared to some other compounds, and their effectiveness can vary greatly depending on the specific formulation.

Other Critical Braking System Materials

Beyond the core components, other materials are vital for the braking system's operation:

• Brake Fluid: Typically made from glycol ethers or silicone-based compounds, this hydraulic fluid transmits the pressure from the master cylinder to the calipers. Its boiling point is critical, as overheating can lead to vapour lock and brake failure.
• Brake Lines: These carry the brake fluid. While many bikes use rubber hoses (often reinforced with nylon or steel braiding internally), high-performance and racing bikes often use braided stainless steel lines. These lines are less susceptible to expansion under pressure, providing a firmer and more responsive brake lever feel. The outer sheath is usually made of PVC or similar material for protection.
• Master Cylinder and Reservoirs: Usually made from aluminium alloys, similar to the calipers, these house the brake fluid and the piston that initiates the hydraulic pressure.

A Comparative Look at Brake Pad Materials

To summarise the trade-offs:

Frequently Asked Questions

Q1: Why do my brake discs sometimes look rusty?

A1: Most motorcycle brake discs are made of stainless steel, which is highly resistant to rust but not entirely immune. Light surface rust can form after exposure to moisture or salt and is usually removed with the first few applications of the brakes. If you see significant pitting or deep rust, it might indicate a lower-grade steel or a need for replacement.

Q2: Can I mix different types of brake pads on my motorcycle?

A2: It is strongly advised not to mix different types of brake pads on the same axle (front or rear). For optimal performance and safety, always use the same type of pad on both sides of a single wheel. It's also best to stick to the manufacturer's recommended pad type or a reputable aftermarket equivalent for your specific motorcycle model.

Q3: How often should I replace my brake pads?

A3: The lifespan of brake pads varies greatly depending on the material, your riding style, and riding conditions. A general guideline is to inspect them regularly (e.g., every oil change). Pads are typically considered worn out when the friction material is down to about 1-2mm thickness or when you start to hear a squealing noise from the wear indicator (if fitted).

Q4: What is the advantage of braided stainless steel brake lines?

A4: Braided stainless steel brake lines offer improved rigidity and feel compared to standard rubber hoses. They expand much less under pressure, leading to a firmer brake lever and more consistent braking performance, especially during repeated hard braking or when the brake system heats up.

Understanding the materials that comprise your motorcycle's braking system is key to appreciating their function and maintaining their performance. From the robust stainless steel discs to the carefully formulated friction materials in the pads, each component plays a vital role in ensuring your safety on two wheels. Regular inspection and appropriate maintenance, using quality replacement parts, will keep your braking system in peak condition, ready to respond when you need it most.
