Guzzi Performance: Idle Woes & FI Fixes

It's a common lament among owners of certain classic Italian motorcycles, particularly those venturing into the realm of fuel injection for the first time: the elusive, inconsistent idle. While the allure of a perfectly tuned carburetted engine holds a certain nostalgic charm, modern fuel injection systems, while offering efficiency and cleaner emissions, can present their own unique set of diagnostic challenges. If your beloved Guzzi, like the '98 EV described, is exhibiting a personality disorder at low RPMs – one day purring contentedly, the next day sputtering or hunting – it's time to delve into the potential causes. This isn't about transforming your Guzzi into a high-revving race machine, but rather restoring that smooth, reliable operation that makes these bikes such a joy to ride.

Understanding the Guzzi Fuel Injection System

Before we can troubleshoot, it's helpful to understand the basic principles of the Guzzi's fuel injection system, as outlined by Mike Haven. At its core, this is an open-loop system, relying on a suite of sensors to feed information to the Electronic Control Unit (ECU), the bike's brain. Key players include:

• Air and Cylinder Head Temperature Sensors: These are Negative Temperature Coefficient (NTC) thermistors. As they heat up, their electrical resistance decreases, providing the ECU with vital information about the engine's operating temperature.
• Throttle Position Sensor (TPS): This sensor communicates the angle of the throttle to the ECU, indicating how much the rider is requesting power.
• Camshaft Position Sensor: This inductive sensor helps the ECU determine the position of the pistons within their strokes and the engine's rotational speed.

The ECU takes all this data – speed, load (inferred from throttle position and engine speed), and temperature – and in a fraction of a second, calculates the optimal amount of fuel to inject. This is achieved by controlling the 'pulsewidth,' the duration for which the fuel injectors remain open, measured in milliseconds. A typical idle pulsewidth might be around 3ms, increasing significantly under acceleration.

The system's limitation, as noted, is the absence of a direct air mass meter. Instead, it calculates air intake based on sensor inputs. This reliance on calculation, rather than direct measurement, makes the system sensitive to even minor discrepancies in air delivery to the cylinders. This is where the meticulous balancing of the throttle bodies becomes critically important.

The Usual Suspects: Throttle Body Seals and Injectors

The owner's experience with their '98 EV highlights two significant areas that often contribute to poor idle and low-speed performance: degraded throttle body seals and tired fuel injectors.

Throttle Body Seals: The Unsung Heroes (or Villains)

The original rubber seals used in many throttle bodies, particularly those from the late 90s and early 2000s, were not always designed to withstand the increased ethanol content found in modern fuels. Ethanol is a powerful solvent that can break down older rubber compounds, leading to hardening, cracking, and ultimately, leaks.

Even a small vacuum leak around the throttle body shaft or mounting points can drastically affect the air-fuel mixture, especially at idle when the butterfly valves are nearly closed. This disrupts the carefully calculated air intake, causing the ECU to struggle to maintain a stable mixture. The presence of fuel within the TPS, as experienced, is a strong indicator of a seal failure, potentially allowing fuel to ingress into the sensor housing.

The Solution: Replacing these seals with units made from more resilient materials, such as Viton, is a crucial step. Viton is known for its excellent resistance to fuels, heat, and chemicals, offering a much longer service life.

Fuel Injectors: The Precision Nozzles

Fuel injectors are sophisticated electro-mechanical devices responsible for atomizing fuel and delivering it into the combustion chamber. Over time, they can become clogged with deposits, reducing their spray pattern efficiency and flow rate. This inconsistency can lead to rough running, misfires, and poor performance across the rev range, but it's often most noticeable at idle where precise fuel delivery is paramount.

The Solution: Professional injector cleaning and reconditioning services are invaluable. These services not only clean the injectors but also test their flow rate, spray pattern, and resistance. Restoring injectors to their original specifications can make a dramatic difference in engine smoothness and responsiveness.

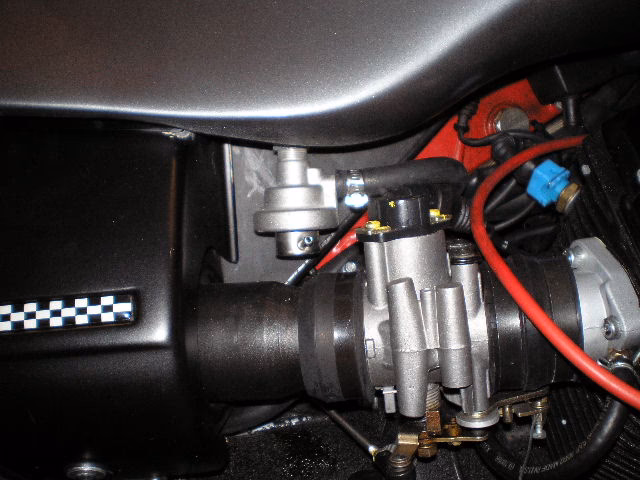

The Crucial Art of Throttle Body Synchronization

For any multi-cylinder engine, and particularly for the Guzzi's V-twin configuration, ensuring that both throttle bodies are perfectly synchronized is non-negotiable for smooth operation. The goal is to ensure that both cylinders receive precisely the same amount of air at any given throttle opening. Since the fuel injection system delivers the same amount of fuel to both injectors based on the ECU's calculations, any imbalance in airflow will directly translate into an imbalanced fuel-air mixture between the cylinders.

Methods for Balancing Throttle Bodies

Several tools and techniques can be employed for this critical task:

• Mercury Sticks: A traditional method using calibrated glass tubes filled with mercury. The difference in mercury levels between the two tubes indicates the vacuum difference between the throttle bodies.
• Electronic Balancers: Devices like the Twin Max offer a more modern and often more precise way to measure and adjust vacuum levels, typically using digital readouts.

The Balancing Process: A Step-by-Step Guide

The process, while detailed, is essential:

1. Initial Setup: Before connecting any balancing equipment, it's often recommended to close the brass bypass screws on the throttle bodies, counting the turns until seated, and noting this number. This provides a baseline.
2. Connect the Balancer: Attach your chosen balancing tool to the vacuum ports on each throttle body.
3. Start the Engine: Allow the engine to warm up. Don't be concerned if it runs worse initially; precision is key.
4. Balance at 3000 RPM: This is the critical step. With the engine running at a steady 3000 RPM, adjust the synchronization mechanism (often a thumbwheel or linkage adjustment) until the balancing tool indicates equal vacuum or airflow from both throttle bodies. Hold the throttle steady during this process.
5. Check Idle Balance: Once the 3000 RPM balance is achieved, you can check the balance at idle. For some models, it may be necessary to disconnect the throttle linkage to adjust the base plate position using stop screws, ensuring both butterflies are equally closed.
6. Fine-Tuning with Bypass Screws: If the balance at idle is still off, and after ensuring the base plate positions are correct, the brass air bypass screws can be used for fine-tuning. Refer to specific model specifications for their correct setting and adjustment.

Important Note: On four-valve models, the linkage between the throttle bodies will need to be disconnected for certain adjustments. Always consult your Guzzi's service manual for model-specific procedures.

Addressing the Quota ES Anomaly

The Quota ES, with its unique single-throttle body system, presents a slightly different challenge. While often maligned for running poorly out of the box, the issue is typically an air imbalance, not a lean condition. The system uses geared butterflies, with one butterfly's position being held relative to its shaft by a screw. This is the primary adjustment point.

The factory bypass screw on the right-side throttle body should ideally be closed and left untouched. The crucial adjustment is the screw on the front of the left-side gear. By connecting a balance meter and running the engine at 3000 RPM, this screw can be used to achieve a near-perfect synchronization, often transforming the bike's running characteristics.

The Role of the TPS and CO Adjustment

The Throttle Position Sensor (TPS) is another vital component. Misadjustments here can lead to incorrect fueling signals. Ensure the TPS is correctly set according to the manufacturer's specifications, often involving live running measurements at idle.

Finally, checking and adjusting the idle CO (Carbon Monoxide) levels, using an exhaust gas analyzer, can fine-tune the mixture at idle and just above. On later models (99 onwards), this adjustment is often electronic, requiring a PC and specific software. Remember, richening the mixture is rarely the solution for flat spots or running faults and primarily affects the idle circuit.

When to Seek Professional Help

While many of these tasks can be tackled by a diligent home mechanic, some aspects, like injector testing and balancing, benefit from specialized tools and expertise. If you're not comfortable with diagnostic procedures or lack the necessary equipment, don't hesitate to seek assistance from a Guzzi specialist. They can quickly identify issues that might otherwise lead to prolonged frustration.

Conclusion: The Rewards of Diligence

Owning a Guzzi, especially one of this era, is a rewarding experience. While fuel injection systems require a different approach to maintenance than their carburetted predecessors, understanding the key components and their interactions is the first step to resolving performance issues. By paying close attention to the integrity of throttle body seals, the condition of fuel injectors, and the precise synchronization of the throttle bodies, you can unlock the smooth, reliable performance your Guzzi is capable of, ensuring many miles of enjoyable riding.

Frequently Asked Questions:

Q1: My Guzzi's idle is rough. What are the most common causes?
The most common causes for a rough idle in fuel-injected Guzzis include vacuum leaks from degraded throttle body seals, clogged or faulty fuel injectors, and poorly synchronized throttle bodies. Incorrect TPS settings can also contribute.

Q2: How often should I replace my throttle body seals?
There's no fixed interval. Inspect them regularly, especially if you notice idle issues or signs of fuel leakage. Using Viton seals will significantly extend their lifespan compared to original rubber seals.

Q3: Is balancing the throttle bodies really that important?
Yes, it is absolutely critical. Since the fuel injection system delivers the same fuel pulse to both injectors, any imbalance in the air entering each cylinder will result in an imbalanced air-fuel mixture, leading to poor running, especially at low RPMs.

Q4: Can I clean my fuel injectors myself?
While some DIY injector cleaning kits exist, professional cleaning and testing services are highly recommended. They ensure proper flow rates and spray patterns, which are essential for optimal performance.

Q5: What is the 'pulsewidth' in a fuel injection system?
pulsewidth refers to the duration, measured in milliseconds, that the fuel injector remains open, thereby controlling the amount of fuel delivered to the engine. It's a primary factor the ECU uses to manage the air-fuel mixture.
