When embarking on any significant landscaping or construction project, be it a new driveway, a sturdy patio, or even the foundation for a garden shed, the quality of the groundwork is paramount. You might focus on the beautiful paving slabs or the immaculate tarmac, but beneath it all lies a crucial layer that dictates the project's longevity and stability: the subbase. In the United Kingdom, one particular subbase material stands out for its versatility and effectiveness in a wide range of applications: MOT Type 2 subbase. But what exactly is it, and why is it so vital?
This comprehensive guide will delve deep into the world of MOT Type 2 subbase, explaining its composition, its unique characteristics, and how it differs from other aggregates. We'll explore its numerous applications, guide you through the installation process, and answer some of the most frequently asked questions to ensure your next project is built on the most solid of foundations.
What Exactly is MOT Type 2 Subbase?
MOT Type 2 subbase is a crushed aggregate material primarily used as a foundational layer in various construction and landscaping projects. The 'MOT' in its name refers to the former Ministry of Transport (now part of the Department for Transport), indicating that the material meets specific standards for use in road construction and other civil engineering applications. This designation ensures a certain level of quality, consistency, and performance.
Unlike virgin aggregates that are freshly quarried, MOT Type 2 often incorporates a significant proportion of recycled aggregates. This can include crushed concrete, brick, asphalt, and other demolition waste, alongside natural quarried materials like limestone, granite, or basalt. The mix is then crushed and screened to a specific particle size distribution, typically ranging from 40mm down to 'dust' (fines). This 'down to dust' characteristic is crucial, as the smaller particles fill the voids between the larger ones, allowing for excellent compaction and creating a dense, stable layer.
The exact composition and grading of MOT Type 2 can vary slightly depending on the supplier and the source of the materials, but it must always adhere to the general specifications set out by the Department for Transport's Manual of Contract Documents for Highway Works (MCHW), Series 800, Clause 803 for granular sub-bases. This ensures it performs consistently in terms of load-bearing capacity and drainage.
Why is it Called "MOT"?
The term "MOT" might conjure images of vehicle inspections, but in the context of aggregates, it refers to the historical standards set by the Ministry of Transport. These standards were developed to ensure that materials used in the construction of roads and other infrastructure projects met stringent requirements for strength, durability, and performance. While the Ministry of Transport as a distinct entity has evolved, the specifications for these aggregates, now managed by the Department for Transport, are still widely known by their original "MOT" designation. This legacy nomenclature signifies a material that is fit for purpose in demanding environments, offering reliability and consistent quality.
Key Characteristics and Benefits of MOT Type 2
MOT Type 2 subbase boasts several properties that make it an ideal choice for a wide array of projects:
- Excellent Compaction: The mix of particle sizes, from large stones down to fine dust, allows the material to interlock tightly when compacted. This creates a dense, stable layer that can support significant weight without settling.
- Good Drainage: While it compacts well, MOT Type 2 also allows for reasonable water permeability, helping to prevent water from pooling beneath the surface layer. This is crucial for preventing frost heave and preserving the integrity of the overlying materials.
- Load-Bearing Capacity: Once properly compacted, MOT Type 2 provides a robust, load-distributing layer that can effectively transfer weight from the surface down to the natural ground beneath, preventing subsidence.
- Cost-Effectiveness: Due to its often high recycled content, MOT Type 2 is typically more economical than virgin aggregates like MOT Type 1, offering a cost-effective solution without compromising significantly on performance for many applications.
- Versatility: Its balanced properties of compaction, drainage, and load-bearing make it suitable for a broad spectrum of uses, from domestic driveways to light commercial car parks.
- Environmental Benefits: Utilising recycled materials reduces the demand for virgin quarrying, making MOT Type 2 a more sustainable choice for environmentally conscious projects.
MOT Type 1 vs. MOT Type 2: A Crucial Distinction
It's common for people to confuse MOT Type 1 and MOT Type 2 subbases, or to use the terms interchangeably. While both are granular subbase materials, there are important differences that dictate their suitability for specific applications. Understanding these distinctions is crucial for selecting the correct material for your project.
The primary difference lies in their composition, grading, and performance characteristics, particularly concerning load-bearing and drainage. MOT Type 1 is generally considered the premium subbase material, offering superior strength and stability, especially for heavy-duty applications. MOT Type 2, while still excellent, offers a more economical and versatile alternative, often with better inherent drainage properties due to its permissible composition.
| Feature | MOT Type 1 Subbase | MOT Type 2 Subbase |
|---|---|---|
| Composition | Typically 40mm down to dust. Must be 100% crushed rock (limestone, granite, basalt) or high-quality recycled concrete. Stringent quality control. | Typically 40mm down to dust. Can include a wider range of recycled materials (crushed concrete, brick, asphalt) alongside quarried aggregates. More flexible specifications. |
| Particle Size Distribution | Very specific and tightly controlled grading curve for optimal interlock and minimal voids. High fines content for excellent compaction. | Wider, more relaxed grading curve. Allows for a broader range of particle sizes and often a higher proportion of fines, which can contribute to better drainage in some cases. |
| Load-Bearing Strength | Superior. Designed for heavy-duty applications, high traffic volumes, and significant loads. Forms a highly dense, stable layer. | Excellent for most applications. Suitable for medium-duty loads and traffic. May not offer the same ultimate strength as Type 1 for extremely heavy or constant traffic. |
| Drainage | Good, but designed primarily for stability and load-bearing. The dense compaction can limit permeability compared to Type 2 in some scenarios. | Often better inherent drainage due to the wider range of particle sizes and potentially higher void content before compaction, especially when recycled materials are present. |
| Cost | Generally more expensive due to stricter material requirements and processing. | More cost-effective due to the allowance for a wider range of recycled materials. |
| Typical Applications | Highways, heavy-duty driveways, commercial car parks, industrial yards, foundations for large structures. | Residential driveways, paths, patios, sheds, light commercial car parks, garden buildings, general landscaping. |
In essence, if your project involves extremely heavy loads or high traffic volumes (e.g., a commercial lorry park), MOT Type 1 is typically the preferred choice. For most domestic and light commercial applications, where a stable, well-draining, and cost-effective base is required, MOT Type 2 is an excellent and often more practical solution.
Common Applications for MOT Type 2 Subbase
The versatility of MOT Type 2 subbase makes it suitable for a vast array of construction and landscaping projects. Its ability to provide a stable, well-draining, and load-bearing layer makes it indispensable for:
- Driveways: One of its most common uses. It provides a solid foundation for block paving, tarmac, gravel, or resin-bound surfaces, preventing subsidence and ensuring a long-lasting driveway.
- Patios and Paths: Essential for creating a level and stable base for paving slabs, natural stone, or decking frames, preventing movement and cracking over time.
- Car Parks: For light to medium-duty car parks, MOT Type 2 offers a durable and economical subbase solution.
- Shed Bases and Outbuildings: Provides a firm, level, and well-drained foundation for garden sheds, summerhouses, greenhouses, and other small structures, protecting them from moisture and movement.
- Roads and Access Tracks: While Type 1 is often preferred for major highways, Type 2 is perfectly adequate for private roads, farm tracks, and temporary access routes.
- General Hardstandings: Any area requiring a stable, compacted surface, such as storage areas, bin stores, or utility compounds.
- Ground Stabilisation: Can be used to improve the bearing capacity of soft or unstable ground before further construction.
The Installation Process: Laying Your MOT Type 2 Subbase
Proper installation of MOT Type 2 subbase is just as critical as selecting the right material. A poorly laid subbase will undermine the integrity of your entire project, regardless of the quality of the surface layer. Here's a general step-by-step guide:
1. Excavation and Preparation
Begin by excavating the area to the required depth. This depth will depend on the intended use and the total build-up of your project (e.g., for a driveway, you might need 150-200mm of subbase plus bedding and surface layers). Ensure the excavated area is level and firm. Remove any organic matter, large stones, or debris.
2. Geotextile Membrane (Optional but Recommended)
While not always mandatory, laying a geotextile membrane (also known as a weed membrane or ground stabilisation fabric) at the bottom of your excavated area is highly recommended. This permeable fabric serves two main purposes:
- Separation: It prevents the subbase material from mixing with the underlying soil, which can lead to contamination and reduced stability over time.
- Stabilisation: It helps to spread the load more evenly and provides an additional layer of stability, particularly on softer ground.
Overlap seams by at least 150mm if you need to use multiple pieces.
3. Laying the Subbase Material
Begin to spread the MOT Type 2 subbase material evenly across the prepared area. For deeper layers (e.g., more than 100mm), it's best to lay it in layers, or 'lifts', typically no more than 100-150mm thick at a time. This allows for more effective compaction.
4. Compaction
This is arguably the most crucial step. Using a suitable compaction tool, such as a plate compactor (whacker plate) for smaller areas or a roller for larger ones, compact each layer thoroughly. Pass over the entire area multiple times in different directions to ensure uniform compaction. You'll know it's well compacted when the material feels firm and stable, and the plate compactor starts to 'bounce' rather than sink in.
For a driveway, aim for a minimum compacted depth of 100-150mm. For patios and paths, 75-100mm is often sufficient, but always check project-specific recommendations.
5. Checking Levels and Falls
As you lay and compact each layer, continuously check your levels and ensure any required falls (slopes for drainage) are correctly incorporated. Use a spirit level and straight edge, or a laser level for larger areas. Accurate levels at this stage will save significant time and effort when laying the final surface.
6. Final Touches
Once the final layer of subbase is compacted and level, it's ready for the next stage of your project, whether that's a sharp sand bedding layer for paving, a lean concrete mix, or direct application of tarmac.
Frequently Asked Questions About MOT Type 2 Subbase
Understanding the nuances of MOT Type 2 can prevent costly mistakes and ensure a durable finish. Here are some common queries:
Q: Can I use MOT Type 2 for drainage?
A: While MOT Type 2 offers good permeability and allows water to drain through, it is not a dedicated drainage aggregate like clean gravel or pipe bedding stone. Its primary function is a load-bearing subbase. However, its composition does contribute to effective water management beneath paved surfaces, preventing saturation of the underlying soil.
Q: How deep should my MOT Type 2 subbase be?
A: The ideal depth depends entirely on the intended use and the anticipated load. For a standard domestic driveway, a compacted depth of 100-150mm (4-6 inches) is generally recommended. For patios and footpaths, 75-100mm (3-4 inches) is often sufficient. For heavier commercial traffic, greater depths may be required, sometimes up to 300mm or more, often in multiple compacted layers.
Q: Can I lay paving slabs directly on MOT Type 2?
A: No, you should not lay paving slabs directly onto MOT Type 2 subbase. While the subbase provides the structural support, you need a bedding layer on top of it. This is typically a 25-50mm layer of sharp sand or a sand/cement mix, which allows for fine adjustments to the level of each slab and provides a stable, non-moving bed for the paving.
Q: Is MOT Type 2 suitable for artificial grass?
A: Yes, MOT Type 2 can be an excellent base for artificial grass. It provides a firm, stable, and well-draining layer. On top of the Type 2, you would typically add a thin layer (e.g., 20-30mm) of fine aggregate like granite dust or sharp sand, which is then screeded perfectly level before laying the artificial turf.

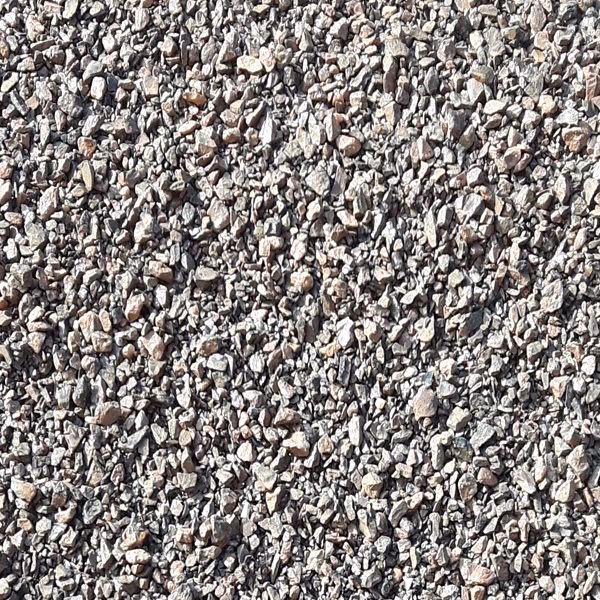

Q: What's the difference between MOT Type 2 and 'crushed concrete'?
A: 'Crushed concrete' is a generic term for aggregate made from recycled concrete. While crushed concrete is often a primary component of MOT Type 2, MOT Type 2 is a specific specification that ensures the material meets certain grading and performance standards. Simply buying 'crushed concrete' doesn't guarantee it meets the MOT Type 2 criteria for particle size distribution and suitability as a subbase.
Q: How do I calculate how much MOT Type 2 I need?
A: To calculate the volume, multiply the length (m) by the width (m) by the desired compacted depth (m). For example, a 5m x 3m driveway with a 0.15m (150mm) subbase depth needs 5 x 3 x 0.15 = 2.25 cubic metres. Remember that aggregates compact, so you might need to add an extra 20-30% to your calculated volume to account for compaction loss. Always check with your supplier for their specific yield recommendations.
Conclusion
MOT Type 2 subbase is more than just a pile of stones; it's the unsung hero of countless successful construction and landscaping projects across the UK. Its unique blend of load-bearing strength, excellent drainage, and versatility, coupled with its cost-effectiveness, makes it an indispensable material for anyone looking to create a durable and stable foundation. By understanding its properties, distinguishing it from other aggregates, and ensuring proper installation, you can lay the groundwork for a project that will stand the test of time, proving that a solid foundation is truly the key to lasting quality.
