Unveiling MOT Type 2 Subbase: Your Essential Guide

In the realm of construction, particularly across the United Kingdom, the integrity of any structure, be it a driveway, a road, or a building foundation, hinges significantly on the quality of its subbase. Among the various aggregates used for this crucial foundational layer, MOT Type 2 stands out as a highly versatile and widely specified material. But what exactly is MOT Type 2 subbase, what makes it unique, and why is it so indispensable for a broad spectrum of construction projects?

This comprehensive guide aims to demystify MOT Type 2, exploring its composition, distinguishing features, adherence to stringent UK standards, and its myriad applications. Whether you're a seasoned builder, a DIY enthusiast, or simply curious about the materials beneath our feet, understanding MOT Type 2 is key to appreciating the robust infrastructure that supports our daily lives.

What Exactly is MOT Type 2 Subbase?

At its core, MOT Type 2 subbase, often simply referred to as 'Type 2', is an unbound mixture of aggregates defined by Clause 804 of the UK's Standards for Highway Works. This specification is critical, as it ensures the material meets specific performance criteria for use in civil engineering and construction projects. Unlike bound materials like concrete, Type 2 is loose and relies on compaction and the interlocking of its particles to provide stability.

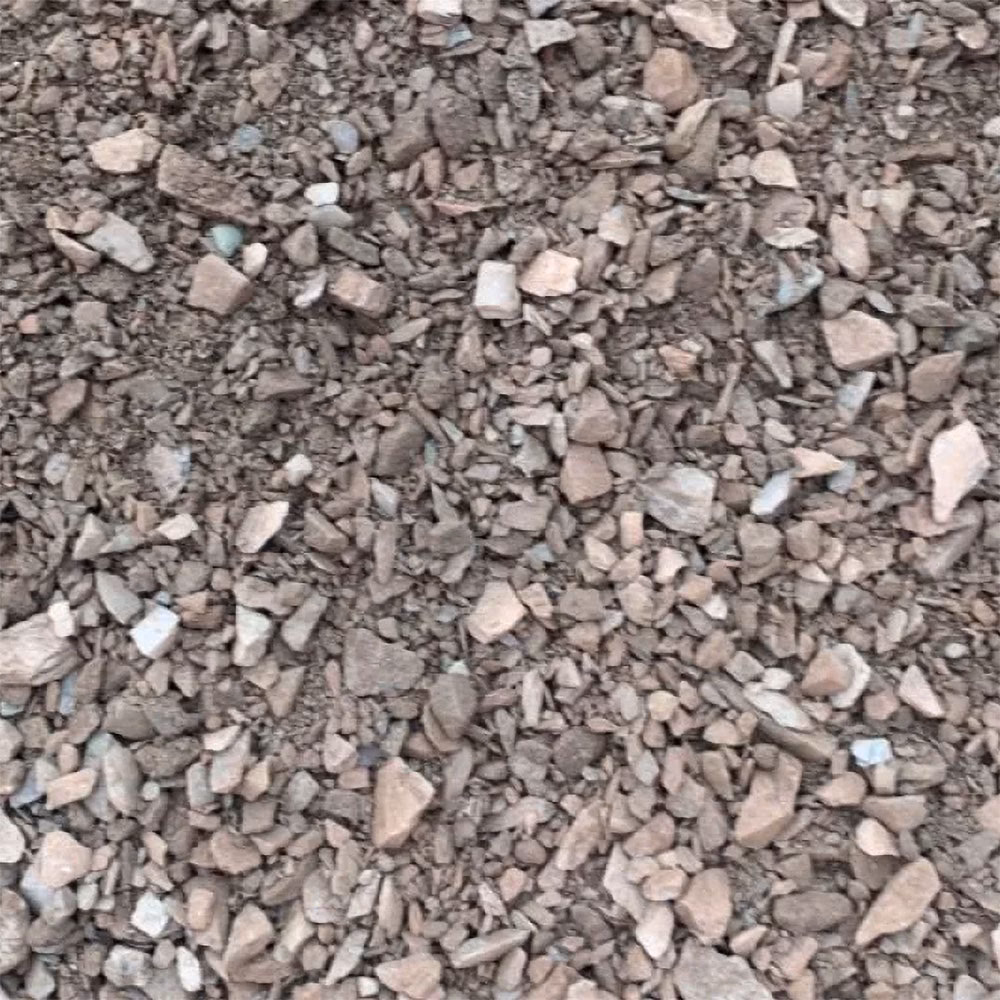

The material itself is produced by crushing various aggregates down to a maximum size of 63mm, extending all the way 'down to dust'. This means that the mixture contains a wide range of particle sizes, from larger chippings to very fine dust-like particles. This broad grading is a defining characteristic and plays a significant role in its performance, particularly its drainage capabilities and compaction properties.

A key differentiator between Type 2 and other subbase materials, such as MOT Type 1, lies in its fines content. Type 2 typically contains a higher percentage of fine materials that pass through smaller sieve sizes. This increased proportion of fines gives it distinct properties regarding permeability and load distribution. Furthermore, a notable aspect of Type 2 is that the supplier is not required to declare specific grading ranges for the material, offering a degree of flexibility in its production, provided it still meets the Clause 804 performance criteria.

Decoding the 'MOT' Designation

The 'MOT' in MOT Type 2 often leads to questions, with many associating it with the annual vehicle inspection. However, in the context of aggregates, 'MOT' stands for the Ministry of Transport. This designation signifies that the grading and performance requirements for this particular unbound mixture were originally set out by this government body in the UK. While the official name for the material is now more commonly referred to as 'Type 2 Unbound Mixture', the 'MOT' prefix has persisted in common parlance, serving as a testament to its long-standing and official standardisation within British construction.

The existence of such a standard is vital for ensuring consistency and reliability in construction materials across the country. It provides a benchmark that contractors, engineers, and suppliers can adhere to, guaranteeing that the subbase material used in projects, especially those involving public infrastructure like roads, meets the necessary quality and performance specifications. This standardisation helps prevent material failures, ensures structural longevity, and contributes to the overall safety and durability of our built environment.

The Building Blocks: Materials Used in MOT Type 2

The versatility of MOT Type 2 is partly due to the variety of materials that can be used in its production. It can be manufactured from both quarried (virgin) materials and recycled aggregates, making it an environmentally conscious choice in many scenarios. The blend of these materials contributes to its specific properties and performance characteristics.

Quarried Materials:

• Natural Sands: These fine particles play a crucial role in filling the voids between larger aggregates, contributing to the overall density and stability of the subbase. They also aid in compaction.
• Gravel: Providing bulk and strength, gravel particles contribute to the load-bearing capacity of the subbase. Their rounded or sub-angular shape helps in achieving good compaction.
• Crushed Rock: Often sourced from granite, limestone, or basalt, crushed rock provides excellent angularity, which promotes strong interlocking between particles. This interlocking is fundamental to the stability and shear strength of the subbase layer, making it highly effective at distributing loads.
• Crushed Slag: A by-product of steel manufacturing, crushed slag can also be used. It often possesses good drainage properties and can be a sustainable alternative to virgin aggregates.

Recycled Materials:

The increasing emphasis on sustainable construction practices has seen a rise in the use of recycled materials for MOT Type 2 production. These materials offer significant environmental benefits by reducing the need for virgin aggregate extraction and diverting waste from landfills.

• Crushed Concrete: This is one of the most common recycled materials used. Concrete, when crushed, produces angular particles similar to crushed rock, providing excellent interlocking and load-bearing capabilities. Its use significantly reduces construction waste.
• Recycled Aggregates (General): This broad category can include materials like crushed brick, asphalt planings, and other construction and demolition waste that has been processed and screened to meet the required specifications. The use of recycled aggregates not only benefits the environment but can also offer cost advantages, making MOT Type 2 an economically viable option for many projects.

The ability to produce Type 2 from a blend of these materials underscores its adaptability and its role in promoting sustainable practices within the construction industry, all while maintaining the high performance standards set by Clause 804.

MOT Type 1 vs. MOT Type 2: A Critical Comparison

While both MOT Type 1 and MOT Type 2 are essential unbound subbase materials, they possess distinct characteristics that dictate their suitability for different applications. Understanding these differences is crucial for selecting the correct material for your project's specific requirements.

The most significant difference lies in the fines content. MOT Type 2 contains a larger proportion of fine particles. This characteristic has direct implications for its performance. While Type 1's lower fines content makes it ideal for achieving a very dense, load-bearing layer suitable for heavy traffic, Type 2's higher fines content allows for better drainage. The fines in Type 2 can help to create a more permeable layer, allowing water to filter through more effectively, which is particularly advantageous in areas prone to water accumulation or where good drainage is a priority, such as in certain driveway or patio applications.

Moreover, the larger top size of 63mm for Type 2 compared to Type 1's typical 40mm means that Type 2 can incorporate larger aggregate pieces, which, combined with the fines, contributes to its bulk and stability while still maintaining its unique drainage properties. Choosing between Type 1 and Type 2 ultimately depends on the specific demands of your project, particularly the expected load, the need for drainage, and the sub-base conditions.

Adhering to the Standards: Clause 804 Specifications

For any construction project, particularly those involving public infrastructure, adherence to established standards is paramount. For MOT Type 2, this standard is Clause 804 within the Specification for Highway Works (SHW). The SHW is a comprehensive document that sets out the requirements for materials and workmanship used in highway construction in the UK. Clause 804 specifically details the properties and performance criteria that an 'Unbound Mixture' (i.e., MOT Type 2) must meet.

The importance of Clause 804 cannot be overstated. It ensures that the subbase material used is fit for purpose, capable of supporting the intended loads, and will perform reliably over its design life. This is critical for preventing issues such as settlement, cracking, and deformation in the layers above. For materials destined for use in highways, meeting these specifications is a legal and engineering necessity.

The details outlined in Clause 804 typically cover several key aspects:

• Summary Grading Requirements: While Type 2 has more flexible grading compared to Type 1, Clause 804 still specifies broad ranges for particle sizes to ensure adequate compaction and stability. It allows for a wider distribution of particle sizes, including the higher percentage of fines that characterise Type 2.
• Mixture and Grading Requirement Categories for Unbound Mixtures: This section defines the different types of unbound mixtures and their specific grading envelopes, ensuring consistency in material quality.
• Requirements for Aggregates Used in Unbound Mixtures: This dictates the quality of the raw materials (quarried or recycled) that go into producing Type 2. It covers aspects such as aggregate strength, durability, and cleanliness, ensuring that only suitable materials are incorporated into the subbase.
• Requirements for Recycled Coarse Aggregates and Recycled Concrete Aggregates: Given the increasing use of recycled materials, Clause 804 provides specific guidelines for their inclusion. This ensures that recycled aggregates perform to the same high standards as virgin materials, promoting sustainability without compromising structural integrity.

By complying with Clause 804, manufacturers and suppliers provide assurance that their MOT Type 2 product will contribute to a stable, durable, and long-lasting foundation, safeguarding the investment in the overlying structures.

Where is MOT Type 2 Put to Work? Common Applications

The unique properties of MOT Type 2, particularly its balanced blend of particle sizes and good drainage characteristics, make it suitable for a wide array of construction applications. Its versatility ensures it's a staple in many UK projects.

• Roads and Driveways: While MOT Type 1 is often preferred for heavy-duty main roads, Type 2 is frequently specified for lighter traffic roads, private driveways, and car parks. It forms a crucial subbase layer that provides a stable foundation for the asphalt or block paving above. Its drainage properties are particularly beneficial here, helping to prevent water accumulation that can lead to surface degradation over time.
• Pathways and Patios: For pedestrian areas like garden paths, public walkways, and patio bases, MOT Type 2 offers an excellent subbase solution. It provides a firm, level, and well-draining foundation, essential for the longevity and stability of paving slabs or block pavers.
• Building Foundations: In some building constructions, MOT Type 2 can be used as a subbase layer beneath concrete slabs or ground beams. It helps to distribute the structural load evenly over the ground and provides a capillary break, reducing the risk of moisture rising into the building.
• Drainage Layers: Due to its relatively high permeability compared to other subbases, MOT Type 2 is often utilised as a drainage layer in various contexts, such as behind retaining walls or within French drains, where it helps to collect and channel water away effectively.
• Temporary Hard Standings: For construction sites requiring temporary access roads or storage areas, MOT Type 2 can quickly create a stable and well-draining surface, capable of supporting plant machinery and material stockpiles.
• Sports Pitches and Landscaping: Its drainage capabilities also make it suitable for the base layers of certain sports pitches or for general landscaping projects where good water management is essential.

In all these applications, MOT Type 2 provides a crucial interface between the natural ground and the finished surface, ensuring stability, load distribution, and effective water management, which are all fundamental to the success and longevity of any construction project.

The Undeniable Benefits of Choosing MOT Type 2

Opting for MOT Type 2 subbase brings a multitude of advantages to a construction project, making it a preferred choice for many professionals and DIY enthusiasts alike.

• Excellent Drainage Properties: This is arguably one of its standout benefits. The varied particle sizes, including a higher proportion of fines, allows water to permeate through the subbase effectively. This prevents water from pooling beneath the surface, which can cause frost heave in winter or general degradation of the overlying layers, particularly asphalt or paving.
• Good Compaction Characteristics: The presence of fines means that when MOT Type 2 is compacted, these smaller particles fill the voids between the larger aggregates. This results in a dense, interlocked layer that provides exceptional stability and load-bearing capacity, crucial for preventing future settlement of the surface.
• Cost-Effectiveness: Especially when produced using recycled materials, MOT Type 2 can be a more economical option compared to virgin quarried aggregates. Its widespread availability across the UK also contributes to competitive pricing.
• Versatility: As highlighted in its applications, MOT Type 2 is incredibly adaptable. It performs well in various scenarios, from light-duty paths to driveways and building foundations, reducing the need for multiple aggregate types on a single site.
• Environmental Benefits: The ability to incorporate significant amounts of recycled content, such as crushed concrete and brick, makes MOT Type 2 an environmentally responsible choice. It reduces the demand for virgin aggregate extraction and helps divert construction and demolition waste from landfills, contributing to a circular economy.
• Ease of Use: Being an unbound material, MOT Type 2 is relatively easy to spread and compact using standard construction equipment, making the installation process efficient and straightforward.

These benefits collectively underscore why MOT Type 2 remains a cornerstone material in UK construction, delivering both performance and value.

Working with MOT Type 2: Installation Tips

While MOT Type 2 is a forgiving material, proper installation is key to maximising its benefits and ensuring the longevity of your project. Here are some essential tips for working with this versatile subbase:

• Site Preparation: Begin by excavating the area to the required depth, ensuring the ground below is firm and level. Remove any organic matter, roots, or large stones. For most applications, especially where the ground is soft or prone to movement, laying a geotextile membrane (also known as a weed membrane or ground stabilisation fabric) directly on the excavated earth is highly recommended. This membrane helps to prevent the subbase from mixing with the underlying soil, improving stability and drainage, and also acts as a weed barrier.
• Material Delivery and Storage: Have the MOT Type 2 delivered to a convenient location on site. If not using immediately, cover it to prevent contamination and keep it dry, especially if prolonged rain is expected.
• Spreading the Material: Spread the MOT Type 2 evenly across the prepared area using shovels, rakes, or machinery. Aim for a consistent depth across the entire area. It's often beneficial to lay the material in layers, especially for deeper subbases (e.g., 100-150mm layers), as this allows for more effective compaction.
• Compaction: This is the most crucial step. Use appropriate compaction equipment – a plate compactor (wacker plate) for smaller areas like paths and driveways, or a roller for larger areas like roads. Compact the material thoroughly until it is firm and stable. You'll notice the material 'locking' together as it compacts, with the fines filling the voids. For optimal compaction, lightly dampen the material before compacting; this helps the particles bind together, but avoid oversaturating it.
• Achieving Correct Levels: Continuously check your levels and falls during spreading and compaction to ensure water will drain away effectively from the finished surface. Use string lines, spirit levels, or laser levels to maintain accuracy.
• Allow for Settling: While well-compacted, it's good practice to allow the subbase a short period to settle before laying the final surface, especially for large areas.

Following these steps will ensure that your MOT Type 2 subbase provides a robust and reliable foundation for your construction project, contributing significantly to its overall success and durability.

Frequently Asked Questions (FAQs)

Q: Can I use MOT Type 2 for a driveway?

A: Yes, MOT Type 2 is an excellent choice for driveways, particularly those for domestic use or light commercial traffic. Its good drainage properties and ability to compact well make it a stable base for block paving, gravel, or asphalt surfaces.

Q: Is MOT Type 2 permeable?

A: Yes, MOT Type 2 is considered a permeable subbase material. Its specific grading, which includes a higher percentage of fines compared to Type 1, allows water to filter through it, aiding in drainage and reducing the risk of waterlogging beneath the surface.

Q: What does 'down to dust' mean in relation to MOT Type 2?

A: 'Down to dust' means that the material contains particles ranging from its maximum aggregate size (63mm for Type 2) all the way down to very fine, dust-like particles. This broad range of particle sizes, including the fines, is essential for the material's compaction properties, allowing the smaller particles to fill the voids between larger ones, creating a dense, stable layer.

Q: Do I need a geotextile membrane under MOT Type 2?

A: While not always strictly mandatory, using a geotextile membrane beneath MOT Type 2 is highly recommended. It prevents the subbase material from mixing with the underlying soil (sub-grade), which can lead to contamination and reduced stability. It also aids in drainage and can act as a weed barrier.

Q: How much MOT Type 2 do I need for my project?

A: The quantity required depends on the area you need to cover and the desired depth of the subbase. A common calculation is Length (m) x Width (m) x Depth (m) = Volume (m³). Then, multiply the volume by the density of MOT Type 2 (approximately 1.8 to 2.0 tonnes per cubic metre) to estimate the weight you'll need. Always order a small amount extra to account for compaction and wastage.

Q: Can MOT Type 2 be used as a finished surface?

A: No, MOT Type 2 is designed as a subbase material, meaning it's intended to be covered by a finishing layer such as asphalt, block paving, gravel, or concrete. It is not suitable as a standalone finished surface due to its unbound nature and particle size variation.

Conclusion

MOT Type 2 subbase is far more than just a pile of stones; it's a meticulously specified and highly functional aggregate that forms the backbone of countless construction projects across the UK. Its unique composition, characterised by a blend of particle sizes including a significant proportion of fines, grants it excellent drainage properties and robust compaction capabilities. Adhering to the stringent standards of Clause 804 of the Specification for Highway Works, MOT Type 2 ensures that foundations are not only stable and durable but also contribute to efficient water management.

From domestic driveways and garden patios to crucial sections of our road networks and building foundations, the versatility and performance of MOT Type 2 make it an indispensable material. Its ability to incorporate recycled content also positions it as a key player in sustainable construction practices, offering an environmentally conscious yet highly effective solution. Understanding and correctly utilising MOT Type 2 is fundamental for anyone involved in creating resilient and long-lasting infrastructure.
