In the world of construction and landscaping, aggregates are the unsung heroes, forming the backbone of almost every project. From the foundations of a new home to the smooth surface of a driveway, these granular materials are indispensable. For anyone undertaking a building or DIY endeavour in Swindon and Wiltshire, understanding the diverse range of aggregates available locally is crucial for project success, efficiency, and sustainability. This comprehensive guide will delve into the various types of aggregates you can find, their specific uses, and key considerations for sourcing the right materials for your needs.
Aggregates are broadly categorised into several types, each with distinct properties that make them suitable for different applications. Their availability often depends on local geology and recycling capabilities, making regional knowledge particularly valuable. In the Swindon and Wiltshire area, you'll find a robust supply chain offering both primary, virgin materials and increasingly popular recycled and secondary aggregates.
Primary Aggregates: The Foundation Stones
Primary aggregates are those extracted directly from the earth, typically from quarries. They form the traditional bedrock of construction and are valued for their consistent quality and strength. Here are the common types you'll encounter:
Sand
Sand is a fine aggregate, typically categorised by its grain size and composition. Its versatility makes it essential for a vast array of applications.
- Building Sand: Also known as soft sand or bricklaying sand, this fine-grained aggregate often contains clay particles, giving it a soft, workable texture. It's ideal for mortar mixes, rendering, and plastering due to its excellent binding properties and smooth finish. It’s not typically used for load-bearing applications.
- Sharp Sand: Sometimes called concreting sand or grit sand, this type has coarser, angular grains, which provide better interlock and drainage. Sharp sand is crucial for concrete mixes, screeding, paving, and block paving bedding layers, where good compaction and stability are paramount. Its coarser nature provides strength and reduces shrinkage in concrete.
- Washed Sand: This sand has been thoroughly washed to remove impurities like clay and silt, making it particularly clean. It's often used where high-quality, consistent material is required, such as in specialist concretes or for sports pitches.
Gravel and Ballast
Gravel refers to natural, rounded stones, while ballast is a mix of sand and gravel, often used for concrete. These come in various sizes and are fundamental for drainage and sub-bases.
- Pea Shingle (10mm): Small, rounded stones, ideal for decorative purposes, pipe bedding, drainage, and as an aggregate in concrete mixes where a smoother finish is desired.
- Shingle (20mm): A common size for driveways, paths, drainage, and as a component in concrete mixes. Its larger size offers good drainage and stability.
- Ballast: A pre-mixed blend of sharp sand and gravel (typically 20mm or 40mm). It's a convenient option for making concrete for foundations, footings, and other general building purposes, as it saves the need to mix sand and gravel separately.
Crushed Rock
These aggregates are produced by crushing quarried rock down to specific sizes. Their angular shape provides excellent interlocking properties, making them superior for sub-bases and load-bearing applications.

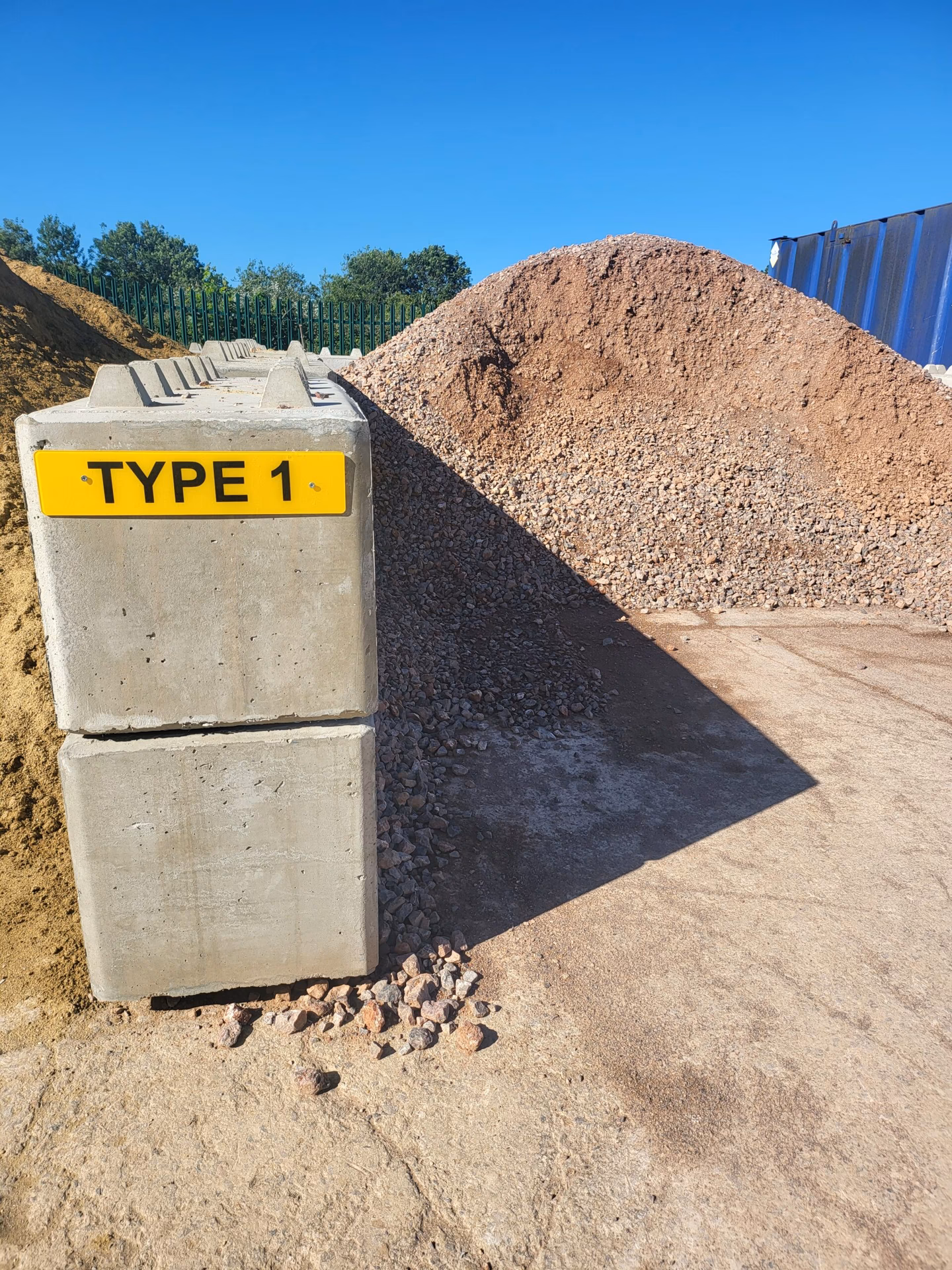

- MOT Type 1: This is arguably one of the most widely used crushed aggregates. It’s a granular sub-base material, typically limestone or granite, with a particle size distribution from 40mm down to dust. Its key characteristic is that it compacts extremely well, forming a very stable and load-bearing layer. It’s essential for roads, driveways, patios, and building foundations. The 'MOT' stands for Ministry of Transport, indicating it meets the Department of Transport's specification for highway works.
- Type 3: Similar to Type 1 but with a reduced fines content, meaning it has fewer small particles. This makes it more permeable, ideal for areas requiring good drainage, such as sports pitches or permeable paving systems.
- 6F5/6F2: These are general fill materials, typically a coarse crushed aggregate ranging from 75mm down to dust. They are used for bulk filling, capping layers, and as a general sub-base where less stringent compaction or drainage is required than for MOT Type 1.
- Clean Stone (e.g., 4/20mm, 20/40mm): These are crushed rocks that have been screened to remove fines, resulting in a consistent size of angular stones. They are excellent for drainage, pipe bedding, and as a decorative stone in certain applications.
Recycled and Secondary Aggregates: The Sustainable Choice
In an increasingly environmentally conscious world, the use of recycled and secondary aggregates is gaining significant traction. These materials are derived from construction and demolition waste or by-products of industrial processes, offering a sustainable alternative to virgin materials. Utilising them reduces the demand for new quarrying, minimises landfill waste, and often lowers transport costs due to local processing facilities.
Recycled Aggregates
- Crushed Concrete (Type 1, Type 2, 6F5 Equivalent): Concrete rubble from demolition sites is crushed and screened to produce various grades of recycled aggregate.
- Recycled MOT Type 1: Similar in specification to virgin MOT Type 1, this material offers excellent compaction and load-bearing properties. It’s a highly sustainable option for sub-bases in driveways, roads, and general construction.
- Recycled Crushed Concrete (6F2/6F5): This coarser material is widely used for bulk fill, piling mats, and as a general sub-base where a strong, stable layer is needed. It's often a more cost-effective choice.
- Recycled Asphalt Planings (RAP): Obtained from resurfacing roads, RAP is crushed asphalt that can be reused as a sub-base material or incorporated into new asphalt mixes. It offers good compaction and can be a very economical option.
- Recycled Brick Rubble: Crushed bricks can be used as a fill material or a sub-base, though they may have lower load-bearing capacity than crushed concrete.
Secondary Aggregates
These are by-products from other industrial processes.
- Blast Furnace Slag: A by-product of iron production, it can be crushed and used as an aggregate in concrete or for road construction.
- Pulverised Fuel Ash (PFA): A by-product of coal-fired power stations, PFA can be used as a lightweight fill material or in some concrete applications.
Choosing the Right Aggregate for Your Project
Selecting the appropriate aggregate depends on several critical factors:
- Project Type: Is it a load-bearing foundation, a decorative pathway, or a drainage system?
- Load Requirements: How much weight will the aggregate need to support?
- Drainage Needs: Does the area require good water percolation, or is a more impermeable layer acceptable?
- Aesthetics: For visible areas, the colour and texture of decorative aggregates might be important.
- Budget: Recycled aggregates are often more economical than primary ones.
- Environmental Impact: Opting for recycled materials reduces your project's carbon footprint.
It’s always advisable to consult with your builder or a qualified professional to ensure you select the correct aggregate type and quantity for your specific application. Local suppliers in Swindon and Wiltshire will be able to advise on availability and suitability for common regional projects.
Comparative Table: Common Aggregate Uses
| Aggregate Type | Primary Use | Key Characteristic | Typical Applications |
|---|---|---|---|
| MOT Type 1 | Sub-base | Excellent compaction, high load-bearing | Driveways, roads, patio bases, building foundations |
| Recycled Crushed Concrete (Type 1/6F2) | Sub-base, Fill | Good compaction, sustainable, cost-effective | Driveways, roads, general fill, piling mats |
| Sharp Sand | Concrete, Screed, Paving Bedding | Coarse, good interlock and drainage | Concrete mixes, patio screeds, block paving bedding |
| Building Sand | Mortar, Render | Fine, workable, good binding properties | Bricklaying mortar, wall rendering, plastering |
| 20mm Shingle | Drainage, Decorative, Concrete | Good drainage, rounded appearance | French drains, decorative paths, concrete mixes |
| Clean Stone (e.g., 20/40mm) | Drainage, Pipe Bedding | No fines, excellent permeability | Drainage systems, pipe surrounds, soakaways |
Sourcing Aggregates in Swindon & Wiltshire
Swindon and the wider Wiltshire area benefit from a network of aggregate suppliers, including quarries and recycling centres. When sourcing, consider the following:
- Local Suppliers: Opting for local suppliers reduces transport costs and your environmental impact. Many offer delivery services directly to your site.
- Quality and Standards: Ensure the aggregates meet relevant British Standards (e.g., BS EN 13242 for aggregates for unbound and hydraulically bound materials for civil engineering and road construction). Reputable suppliers will be able to provide this information.
- Quantity: Accurately calculating the quantity needed is crucial to avoid over-ordering or running short. Suppliers can often help with calculations based on area and depth.
Frequently Asked Questions About Aggregates
What is the difference between sharp sand and building sand?
Sharp sand has coarser, angular grains, making it ideal for concrete, screeding, and block paving bedding because it compacts well and allows for good drainage. Building sand (or soft sand) has finer, rounder grains and often contains clay, making it softer and more workable, perfect for mortar and rendering.
Can I use recycled aggregates for foundations?
Yes, recycled aggregates, particularly recycled MOT Type 1 crushed concrete, are widely accepted and suitable for foundations and sub-bases, provided they meet the required compaction and quality standards. Always check with your local building control or structural engineer for specific project requirements.
How much aggregate do I need?
The quantity of aggregate needed depends on the area (length x width) and the desired depth of the layer. A common calculation involves multiplying the length (m) by the width (m) by the depth (m) to get the cubic metres (m³) required. Most aggregates are sold by the tonne, with 1 cubic metre typically weighing between 1.5 to 2 tonnes, depending on the material. Always add a small percentage for wastage.
What does MOT Type 1 mean?
MOT Type 1 refers to a specific grade of sub-base material that meets the Department of Transport's specification for highway works. It's a high-quality, well-graded aggregate (usually 40mm down to dust) that compacts to form a very strong and stable base, suitable for heavily trafficked areas like roads and driveways.
Are recycled aggregates always cheaper?
Often, yes. Recycled aggregates can be more cost-effective than primary aggregates because they reduce quarrying costs and can be sourced more locally, leading to lower transportation expenses. However, prices can vary based on availability, processing costs, and the specific type of recycled material.
What is 'clean stone' used for?
Clean stone, such as 20mm or 40mm pipe bedding aggregate, is aggregate that has been washed or screened to remove fine particles (dust and silt). Its primary use is in drainage systems, around pipes, and as a soakaway material where excellent drainage and permeability are essential. It prevents clogging and allows water to flow freely.
Understanding the diverse world of aggregates is a vital step in ensuring the success and longevity of any construction or landscaping project in Swindon and Wiltshire. By making informed choices about the type of aggregate and considering sustainable options, you can contribute to both the durability of your build and the health of the environment.
