Raft Foundation Essentials for Structural Engineers

Raft foundations, often referred to as mat foundations, are a critical component in modern construction, particularly when dealing with challenging soil conditions or the need to distribute loads evenly across a large area. For structural engineers, understanding the nuances of designing and specifying these expansive concrete slabs is paramount to ensuring the stability and longevity of any building. This guide delves into the essential considerations, from material specifications and thermal performance to the indispensable role of surveyors in the process.

Understanding Raft Foundation Principles

A raft foundation essentially acts as a large, continuous concrete slab that covers the entire footprint of a building, or a significant portion of it. Unlike traditional strip or pad foundations that transfer loads to specific points in the ground, a raft foundation spreads the building's weight over a much wider area. This is particularly beneficial in situations where the soil bearing capacity is low or variable, as it helps to prevent excessive settlement and differential movement. The principle is akin to spreading a heavy load over a larger surface to reduce the pressure on any single point.

Key Material Considerations for Structural Integrity

The performance of a raft foundation hinges significantly on the quality and specification of its materials. Structural engineers must meticulously consider the concrete mix, reinforcement, and, crucially for modern builds, the thermal insulation incorporated within or beneath the raft.

Concrete Strength and Durability

The concrete used for raft foundations must possess adequate compressive strength and durability to withstand the imposed loads and environmental conditions. Engineers will specify the required concrete grade (e.g., C25/30, C30/37) based on structural calculations, considering factors like load intensity, exposure class, and expected service life. Durability is also a key concern, with engineers specifying appropriate cement types and admixtures to resist aggressive ground conditions, such as sulfates or chlorides.

Reinforcement Design

Steel reinforcement, typically in the form of rebar or mesh, is essential to provide tensile strength to the concrete slab. The amount, size, and placement of this reinforcement are determined by structural analysis, ensuring the raft can resist bending moments and shear forces. Engineers will design the reinforcement layout to effectively counteract stresses induced by the building's weight, as well as any potential ground movements or thermal expansion/contraction.

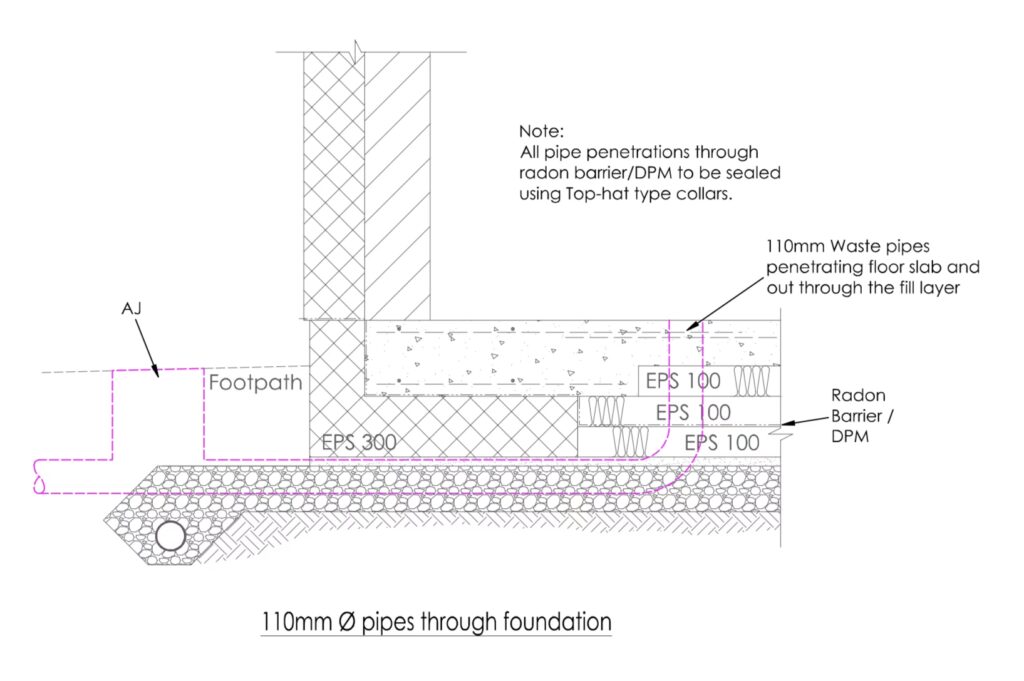

Thermal Performance: The Importance of Insulation

In contemporary building practices, particularly in the UK, thermal performance is a non-negotiable aspect of foundation design. Incorporating insulation within or beneath the raft foundation serves multiple purposes: it reduces heat loss to the ground, contributes to the overall energy efficiency of the building, and can help mitigate issues like cold bridging. For structural engineers, ensuring the correct specification and integration of thermal insulation is vital.

Meeting Thermal Insulation Standards

Structural engineers must ensure that the thermal insulation products used in conjunction with raft foundations meet relevant British Standards. Specifically:

• BS EN 1606: Thermal insulation products for building applications – Determination of the effects of changing temperature and humidity on the dimensional stability. This standard is crucial for understanding how insulation materials will perform over time under varying environmental conditions, ensuring their long-term effectiveness.
• BS EN 13163: Thermal insulation products for buildings – Factory made products of expanded polystyrene (EPS) – Specification. If Expanded Polystyrene (EPS) is specified for the insulation layer, it must comply with this standard, which dictates performance characteristics like compressive strength, thermal resistance, and water absorption.
• BS EN 13164: Thermal insulation products for buildings – Factory made products of extruded polystyrene foam (XPS) – Specification. Similarly, for Extruded Polystyrene (XPS) insulation, compliance with this standard is mandatory. It ensures the XPS meets required performance criteria relevant to foundation applications.

Managing Compressive Creep

A critical factor when specifying insulation for raft foundations is its potential for compressive creep. Creep is the tendency of a solid material to move slowly or deform permanently under the influence of persistent mechanical stresses. In the context of foundations, this means the insulation could compress over time under the weight of the building, potentially leading to a reduction in its insulating properties and, more critically, affecting the structural integrity of the raft. Structural engineers must ensure that the design limits compressive creep to a maximum of 2% reduction in thickness over the design life of the building. This often involves selecting insulation materials with proven low creep performance and ensuring they are correctly installed and protected.

The Indispensable Role of the Surveyor

The successful construction of a raft foundation is not solely the responsibility of the structural engineer; it also requires meticulous oversight from qualified surveyors. This is especially true when working with warranty providers like LABC Warranty.

Surveyor's Assessment of Structural Design and Construction

As highlighted by LABC Warranty's requirements, surveyors and engineers are tasked with assessing both the structural design and the actual construction of raft foundations. This audit process is performed on behalf of the underwriter to ensure that the foundation meets all regulatory and design specifications. The surveyor's role is to:

• Review the structural design drawings and calculations: Ensuring they are compliant with relevant codes and standards and adequately address the site-specific conditions.
• Inspect the construction process: This includes verifying the excavation, formwork, reinforcement placement, concrete pouring, and curing. Any deviation from the design must be identified and rectified.
• Check material quality: Confirming that the concrete, steel, and insulation materials used meet the specified standards.
• Monitor site conditions: Ensuring that the ground preparation is adequate and that environmental factors do not compromise the foundation's integrity during construction.

Why Raft Foundations Need a Surveyor

The complexity and critical nature of raft foundations necessitate the involvement of a surveyor for several reasons:

• Quality Assurance: A surveyor provides an independent check on the quality of work, acting as a safeguard against potential defects.
• Compliance Verification: They ensure that the construction adheres to the approved design, building regulations, and warranty requirements.
• Risk Mitigation: By identifying and addressing issues during construction, surveyors help mitigate risks of structural failure, costly rectifications, and warranty claims.
• Third-Party Oversight: For warranty providers, the surveyor's assessment offers crucial assurance that the foundation is built to a standard that warrants coverage.

Common Pitfalls and How to Avoid Them

Despite careful planning, several common issues can arise with raft foundations. Awareness and proactive measures are key:

• Inadequate Ground Preparation: Failing to properly compact or level the sub-base can lead to uneven load distribution and settlement.
• Incorrect Reinforcement Placement: Rebar or mesh not being positioned at the correct depths or with adequate cover can compromise the raft's structural capacity.
• Poor Concrete Curing: Insufficient curing can result in weaker, less durable concrete.
• Ignoring Thermal Bridging: Gaps or inadequate insulation at the edges of the raft can create thermal bridges, reducing energy efficiency and potentially causing condensation issues.
• Overlooking Compressive Creep: Using insulation not rated for the sustained loads of a foundation can lead to long-term performance issues.

Frequently Asked Questions

Q1: Are raft foundations always necessary?

No, raft foundations are typically used when soil conditions are poor (low bearing capacity, high water table) or when the building's load distribution requires it, such as for buildings with heavy, concentrated loads or on sites prone to differential settlement. Standard foundations may suffice in many cases.

Q2: What is the primary benefit of a raft foundation?

The primary benefit is its ability to distribute the building's load over a large area, minimising settlement and providing stability, especially on weak or variable soils.

Q3: How does thermal insulation affect a raft foundation's structural performance?

While insulation primarily addresses thermal performance, its structural properties, specifically compressive strength and creep resistance, are vital. Insulation must be strong enough to support the load without excessive deformation (creep), which could compromise the raft's integrity over time.

Q4: What is the role of a structural engineer in raft foundation design?

The structural engineer is responsible for calculating the loads, determining the required dimensions and reinforcement of the raft, specifying materials (including insulation), and ensuring the design complies with all relevant building codes and standards.

Q5: Why is surveyor involvement critical for raft foundations?

Surveyors ensure the design is correctly implemented during construction, verify material quality, and monitor site conditions, providing essential quality control and compliance checks, especially for warranty purposes.

In conclusion, the design and construction of raft foundations demand a rigorous, multi-faceted approach. Structural engineers must possess a deep understanding of material science, structural mechanics, and the critical requirements of thermal performance standards. Equally important is the collaborative effort with qualified surveyors to guarantee that the as-built foundation meets the exacting standards required for a safe, stable, and energy-efficient building. Adherence to standards like BS EN 1606, BS EN 13163, and BS EN 13164, alongside careful management of factors like compressive creep, will ensure the long-term success of any project employing this robust foundation technique.
