Mastering Your Foundation: MOT Type 1 & GSB Type 1

When embarking on any construction project, be it a new driveway, a garden path, or a major road, the foundation upon which everything rests is paramount. A strong, stable sub-base is the unsung hero, providing essential support and ensuring the longevity of the finished surface. In the world of aggregates, two terms frequently surface: MOT Type 1 and GSB Type 1. While often used interchangeably, understanding their specific characteristics, applications, and the subtle yet significant distinctions between them is crucial for achieving optimal results.

What is MOT Type 1 Stone?

MOT Type 1 stone is a highly versatile and widely used granular sub-base material in the United Kingdom. It’s a crushed aggregate, typically comprising a mixture of crushed rock, concrete, brick, and sometimes even recycled asphalt planings, though the specific composition can vary. Its appearance is generally a fairly light, neutral grey, making it adaptable for various aesthetic requirements before a final surface is laid. The defining characteristic of MOT Type 1 is its graded nature, meaning it contains a blend of different particle sizes, ranging from larger stones down to fine dust.

This careful grading is not arbitrary; it's fundamental to its performance. The mixture of solids and fines ensures that when the material is compacted, there are minimal voids within the sub-base layer. This interlocking of particles creates a dense, stable, and incredibly strong load-bearing layer. The result is a robust foundation capable of distributing weight evenly, preventing subsidence, and providing a suitably flat surface for subsequent layers, such as asphalt, concrete, block paving, or shingle. Whether you're constructing a domestic driveway, a patio, a pathway, or even a car park, MOT Type 1 offers excellent stability and drainage properties, making it a go-to choice for many general construction applications.

It’s important to note that MOT Type 1 can be produced from both primary (quarried) and recycled constituents. The use of recycled materials aligns with modern sustainable construction practices, reducing the demand for virgin resources while still delivering a high-performance sub-base, provided it meets the required specifications for grading and strength.

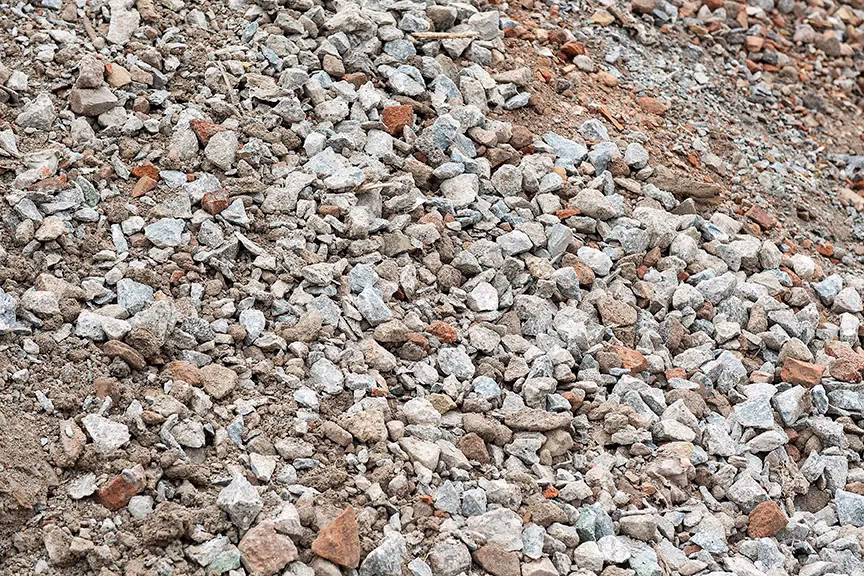

What is GSB Type 1 (Granular Sub-Base Type 1)?

GSB Type 1, or Granular Sub-Base Type 1, is another critical aggregate used for foundational layers, particularly in more demanding environments like public highways and major infrastructure projects. The key differentiator for GSB Type 1 lies in its adherence to a very specific and rigorous standard: The Highway Agency’s Specification for Highway Works, Clause 803 (SHW 803). This specification dictates precise requirements for the material's grading, strength, and durability, ensuring consistency and high performance for critical applications.

GSB Type 1 is a crushed granular material with a maximum permitted top size of 63mm, graded meticulously down to dust. This precise grading is paramount, as it guarantees a consistent particle size distribution that, much like MOT Type 1, minimises voids upon compaction. The result is an exceptionally stable and strong sub-base layer that can withstand significant traffic loads and environmental stresses. Its primary use is as a stable sub-base for road surfaces and pathways, forming the essential structural layer beneath the asphalt, concrete, or other surfacing materials.

One notable characteristic of GSB Type 1, as specified by SHW 803, is its non-frost susceptibility when used within 450mm of the finished surface. This is a critical factor in regions prone to freezing and thawing cycles, as it helps prevent frost heave – the upward movement of soil caused by the expansion of ice within the ground – which can severely damage road surfaces. The stringent testing and quality control associated with SHW 803 compliance mean that GSB Type 1 provides an assured level of performance and reliability, making it the preferred choice for projects where long-term durability and safety are paramount.

Key Differences and Similarities: MOT Type 1 vs. GSB Type 1

While both MOT Type 1 and GSB Type 1 serve the fundamental purpose of creating a stable, load-bearing sub-base, their distinctions often lie in the specifics of their application and the rigour of their specification.

Similarities:

• Function: Both materials are designed to create a strong, stable, and load-bearing sub-base layer for various construction projects.
• Grading: Both rely on a carefully graded mixture of particle sizes (from large to fine) to ensure minimal voids and excellent compaction.
• Compaction: Proper compaction is essential for both materials to achieve their optimal strength and stability.
• Constituents: Both can be produced from primary (virgin) aggregates or from recycled materials, provided the recycled product meets the necessary performance criteria.
• Drainage: When correctly laid and compacted, both offer good drainage properties, helping to prevent water accumulation beneath the surface.

Differences:

• Specification: This is the most significant difference. GSB Type 1 is explicitly specified and tested to meet the stringent requirements of The Highway Agency’s Specification for Highway Works, Clause 803 (SHW 803). While MOT Type 1 can often meet similar performance standards, it is not always *certified* to SHW 803. This means GSB Type 1 undergoes more rigorous testing and quality assurance processes, which is crucial for public infrastructure projects.
• Application Focus: GSB Type 1 is predominantly used for major civil engineering projects, such as highways, motorways, and heavy-duty industrial yards, where absolute compliance with national standards and long-term performance under heavy loads are non-negotiable. MOT Type 1 is more broadly applied across general construction, including residential driveways, paths, patios, and light commercial projects.
• Quality Assurance: Due to the SHW 803 requirement, GSB Type 1 typically comes with more extensive documentation and certification, guaranteeing its compliance with the specified standards. While reputable suppliers will also provide quality MOT Type 1, the level of formal certification may differ.
• Frost Susceptibility: GSB Type 1 specifically addresses non-frost susceptibility within certain depths, a critical factor for road longevity in colder climates. While good quality MOT Type 1 will also perform well, this specific guarantee is a hallmark of SHW 803.

Here’s a comparative table summarizing the key aspects:

Why is a Good Sub-Base Crucial?

The importance of a well-constructed sub-base cannot be overstated. It is the backbone of any paved surface, performing several critical functions:

• Load Distribution: The sub-base spreads the applied load (from vehicles, foot traffic, etc.) over a wider area, reducing stress on the underlying natural ground and preventing rutting or deformation of the surface layer. Without proper load distribution, the finished surface would quickly crack and fail.
• Drainage: A well-graded and compacted sub-base allows for effective water drainage, preventing water from pooling beneath the surface. This is vital for preventing issues like frost heave in colder climates and maintaining the structural integrity of the pavement. Effective drainage also helps in preserving the longevity of the top layers.
• Stability: It provides a stable, unyielding platform upon which the subsequent layers (binder course, wearing course, block paving, etc.) can be laid. This stability is key to achieving a level surface and preventing future settlement.
• Protection Against Frost Heave: As mentioned, materials like GSB Type 1 are specifically designed to be non-frost susceptible, mitigating the damaging effects of freezing water expanding within the ground.
• Working Platform: It offers a firm, clean, and level working platform for the installation of subsequent layers, making the construction process more efficient and accurate.

The Importance of Proper Compaction

Regardless of whether you choose MOT Type 1 or GSB Type 1, proper compaction is absolutely vital to unlock the full potential of these materials. Compaction increases the density of the aggregate, driving out air voids and forcing the particles to interlock more tightly. This process significantly enhances the material's strength, stability, and load-bearing capacity.

Typically, sub-base materials are laid in layers, often no more than 100-150mm thick, and each layer is compacted thoroughly before the next is applied. Equipment used for compaction can range from vibrating plate compactors (wacker plates) for smaller areas like driveways, to heavy-duty rollers for larger projects like roads. Insufficient compaction can lead to a host of problems, including:

• Settlement and Subsidence: The ground beneath the surface can settle unevenly, leading to dips and cracks in the finished pavement.
• Reduced Load-Bearing Capacity: A poorly compacted sub-base won't be able to distribute loads effectively, leading to premature failure of the surface.
• Poor Drainage: Uncompacted material can retain water, exacerbating issues like frost heave and weakening the overall structure.
• Uneven Surface: It becomes difficult to achieve a smooth and level finished surface if the sub-base is not uniformly dense.

Sourcing and Sustainability

Both MOT Type 1 and GSB Type 1 can be sourced as primary aggregates, meaning they are quarried directly from natural rock formations. However, there is an increasing emphasis on sustainability in construction, leading to the widespread use of recycled aggregates. Recycled Type 1 is typically produced from crushed demolition waste, such as concrete, brick, and asphalt. When sourced from reputable suppliers, recycled Type 1 can offer comparable performance to primary aggregates while reducing landfill waste and conserving natural resources.

When opting for recycled materials, always ensure that they meet the relevant quality and grading specifications for your project. Suppliers should be able to provide documentation or certification to confirm that their recycled Type 1 is suitable for its intended use, especially if it needs to comply with standards like SHW 803.

Frequently Asked Questions (FAQs)

Q1: Can I use MOT Type 1 for a domestic driveway?

Absolutely. MOT Type 1 is an excellent choice for domestic driveways, paths, and patios. Its good compaction properties and load-bearing capacity make it ideal for supporting vehicles and foot traffic in a residential setting.

Q2: Is GSB Type 1 always better than MOT Type 1?

Not necessarily 'better' in all contexts, but it is more stringently specified. GSB Type 1 is designed for high-performance, critical applications where adherence to SHW 803 is mandatory, such as public highways. For many general construction projects, a good quality MOT Type 1 will provide perfectly adequate performance and may be more cost-effective.

Q3: How thick should my sub-base be?

The required thickness of the sub-base depends on several factors, including the intended use (e.g., foot traffic vs. heavy vehicles), the load it will bear, and the nature of the underlying ground. For a typical domestic driveway, a compacted sub-base of 150-200mm is often recommended. For pathways, 100-150mm might suffice. Always consult project specifications or a professional for precise recommendations.

Q4: What happens if I don't compact the sub-base properly?

Insufficient compaction can lead to significant problems, including premature failure of the surface (e.g., cracks, dips, ruts), poor drainage, and instability. The surface will not be able to withstand the intended loads, leading to costly repairs down the line.

Q5: Is Type 1 permeable?

Yes, both MOT Type 1 and GSB Type 1 are permeable materials. Their graded nature allows water to drain through them, preventing water from being trapped beneath the surface. This permeability is a key benefit, contributing to the longevity and stability of the paved area.

Q6: Where can I buy MOT Type 1 or GSB Type 1?

These materials are widely available from aggregate suppliers, quarry operators, and builders' merchants across the UK. It's advisable to purchase from a reputable supplier who can provide information on the material's origin and compliance with relevant standards.

Conclusion

Understanding the distinctions between MOT Type 1 and GSB Type 1 is fundamental for anyone involved in construction. While both serve as vital sub-base materials, GSB Type 1 is the go-to for projects demanding the highest level of specification and performance, particularly within highway works, due to its strict adherence to SHW 803. MOT Type 1, on the other hand, offers a versatile and robust solution for a wide array of general construction applications, from driveways to patios. In either case, selecting the correct material, ensuring its quality, and executing proper compaction are the cornerstones of a durable, stable, and long-lasting paved surface. Investing in the right foundation today will prevent significant issues and costs tomorrow, ensuring your project stands the test of time.
