When embarking on any construction project, from a simple driveway to a complex road network, the foundation is paramount. A stable and durable base is the bedrock upon which everything else is built, and in the UK, one of the most commonly specified materials for this critical layer is MOT Type 1 sub-base. But what exactly is it, and why is it so widely used? This comprehensive guide will delve into the world of MOT Type 1, explaining its composition, applications, benefits, and the key considerations for its use.
Understanding MOT Type 1 Sub-Base

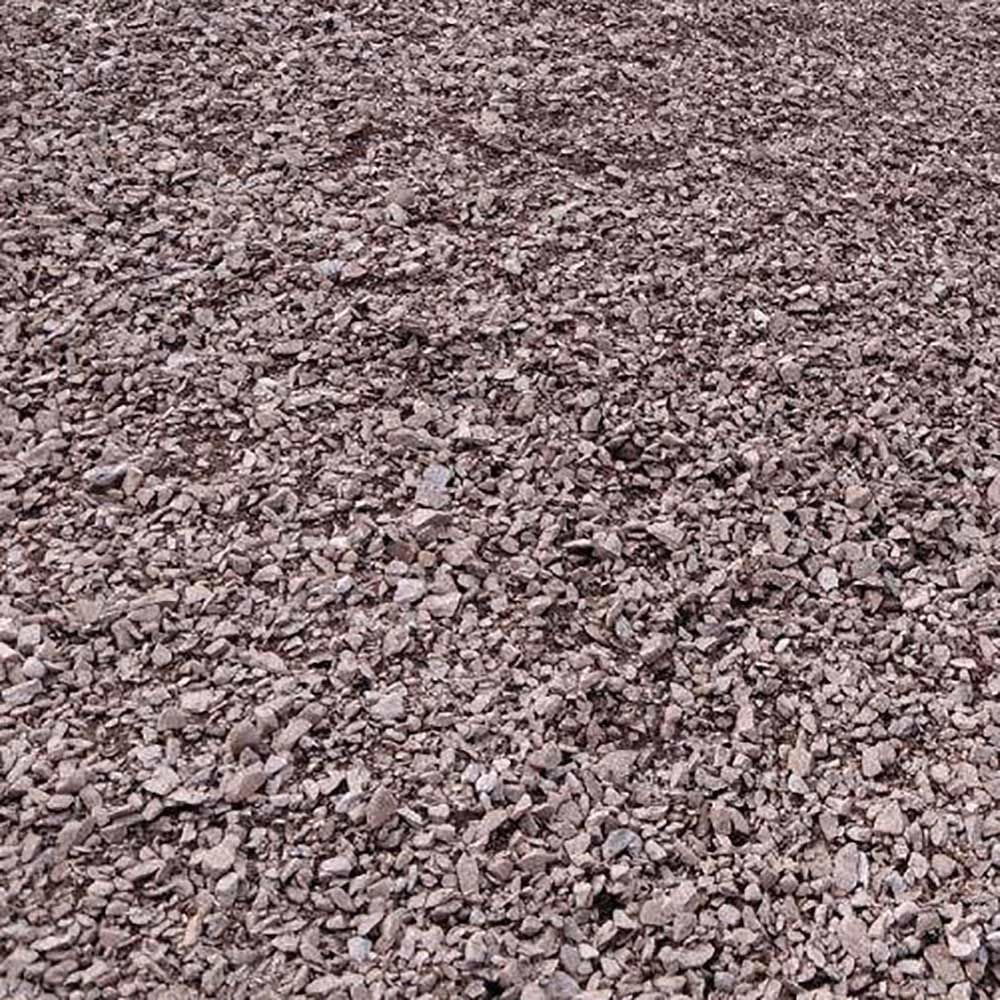

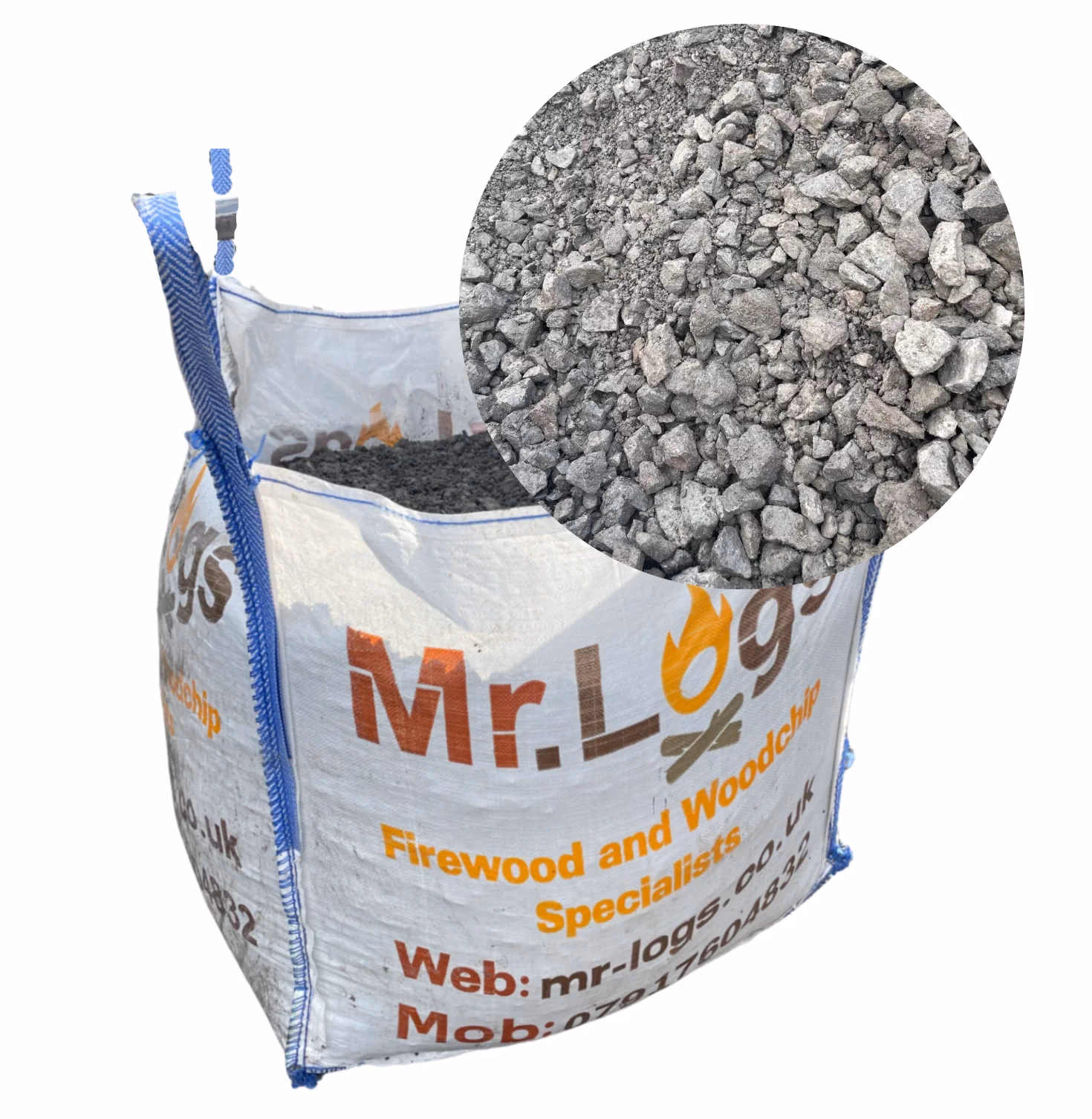

MOT Type 1 is a granular sub-base material, meaning it's a mixture of crushed aggregates of varying sizes. The 'MOT' in MOT Type 1 stands for Ministry of Transport, reflecting its origins and its adherence to specific standards set by the relevant government department for transport infrastructure. 'Type 1' designates a particular specification for this aggregate blend.
The primary characteristic of MOT Type 1 is its grading – the controlled distribution of particle sizes. It is typically a blend of crushed stone, often limestone or granite, with a maximum particle size of 37.5mm. Crucially, it contains a range of smaller particles, right down to dust. This carefully controlled mix is what gives MOT Type 1 its excellent load-bearing capabilities and its ability to compact effectively into a dense, stable layer.
Composition and Properties
The precise composition of MOT Type 1 can vary slightly depending on the source of the aggregate, but it must conform to the requirements of the Department for Transport's Specification for Highway Works (often referred to as 'The Specification' or 'SHW'). Key properties include:
- Aggregate Type: Typically crushed rock such as limestone, granite, or slag. Recycled aggregates can also be used, provided they meet the specified quality and grading requirements.
- Maximum Particle Size: 37.5mm. No particles larger than this are permitted.
- Grading: This is the most critical aspect. The material must pass through a 37.5mm sieve, with specific percentages required to pass through smaller sieves (e.g., 20mm, 14mm, 6.3mm, 2mm, 0.425mm, and 0.063mm). This ensures a good mix of sizes for compaction.
- Particle Shape: The aggregate particles should be angular rather than rounded. Angular particles interlock more effectively, leading to a stronger and more stable compacted layer.
- Cleanliness: The material must be free from excessive clay, silt, or organic matter, as these can compromise its strength and drainage properties.
- Plasticity: The material should have low plasticity, meaning it doesn't become overly sticky or deformable when wet.
When properly compacted, MOT Type 1 forms a strong, stable, and permeable layer that can effectively distribute loads from the surface course (like asphalt or block paving) down to the underlying subgrade. This load distribution is its primary function.
Applications of MOT Type 1
The versatility and performance of MOT Type 1 make it a popular choice for a wide range of civil engineering and construction applications:
- Sub-base for Roads and Highways: This is perhaps its most well-known application. It forms the crucial layer beneath the asphalt or concrete surface course, providing a stable platform and preventing the road from deforming under traffic loads.
- Driveways and Patios: For domestic projects, MOT Type 1 is an excellent choice for the base layer beneath block paving, tarmac, or concrete driveways and patios. It ensures the finished surface remains level and doesn't sink over time.
- Footpaths and Cycle Paths: Similar to roads, it provides a stable base for pedestrian and cycle routes, ensuring durability and preventing unevenness.
- Hardstanding Areas: For areas that will experience heavy foot traffic or parking, such as car parks or storage yards, MOT Type 1 provides the necessary structural integrity.
- Building Foundations: In some instances, MOT Type 1 can be used as a base layer for the foundations of buildings, particularly where the existing ground conditions are poor.
- Temporary Roadways: Its ease of compaction and stability make it suitable for temporary access roads on construction sites.
Why Choose MOT Type 1? The Benefits
The widespread use of MOT Type 1 is driven by several key advantages:
- Excellent Compaction: The carefully controlled grading allows it to compact down to a very dense and stable layer, minimising settlement.
- High Load-Bearing Capacity: Its interlocking particle structure provides significant strength, enabling it to support heavy loads and distribute them effectively.
- Versatility: Suitable for a wide array of applications, from major highways to domestic driveways.
- Cost-Effectiveness: Compared to some specialised aggregate bases, MOT Type 1 offers a good balance of performance and cost.
- Drainage: While dense when compacted, the granular nature allows for some degree of water percolation, which can be beneficial in preventing waterlogging.
- Compliance: Adherence to SHW standards ensures a predictable and reliable performance.
The ability to achieve a high degree of compaction is fundamental to its success. This is typically achieved using vibrating rollers or plate compactors.
Installation and Compaction
Proper installation is crucial for realising the full benefits of MOT Type 1. The process generally involves:
- Excavation: The subgrade (the natural ground) is excavated to the required depth, ensuring it is free from soft spots and organic material.
- Preparation of Subgrade: The exposed subgrade may need further preparation, such as compaction or the addition of a geotextile membrane for stabilisation and separation.
- Laying the MOT Type 1: The MOT Type 1 material is delivered and spread in layers, typically no more than 150mm thick at a time, to facilitate effective compaction.
- Compaction: Each layer is thoroughly compacted using appropriate plant, such as vibrating rollers or heavy-duty plate compactors. Compaction should continue until the material is firm and stable, with no visible movement under the roller. Achieving the required density is key.
- Subsequent Layers: If a thicker sub-base is required, additional layers of MOT Type 1 are laid and compacted sequentially.
- Surface Course: Once the MOT Type 1 sub-base has been laid and compacted to the required standard, the surface course (e.g., asphalt, concrete, or block paving) is then applied.
The compaction process is vital. Insufficient compaction will result in a weak, unstable base that is prone to settlement and failure, regardless of the quality of the aggregate itself.
Comparison with Other Sub-Bases
While MOT Type 1 is a popular choice, other sub-base materials are available, each with its own characteristics and best-suited applications. Here's a brief comparison:
| Sub-Base Type | Typical Composition | Key Characteristics | Common Applications |
|---|---|---|---|
| MOT Type 1 | Crushed aggregate, max 37.5mm, well-graded | Excellent compaction, high load-bearing, versatile | Roads, driveways, patios, hardstandings |
| MOT Type 2 (Clean) | Crushed aggregate, max 37.5mm, well-graded, but with a much lower fines content (less dust) | Good load-bearing, better drainage than Type 1, less prone to frost heave | Areas requiring good drainage, e.g., verge sub-bases, areas prone to frost |
| Crushed Concrete/Brick (Recycled) | Recycled concrete and/or brick, typically max 75mm or 50mm | Cost-effective, good load-bearing, can be less consistent in grading | Sub-bases for roads, foundations, bulk fill |
| Ballast (Ballast Aggregate) | Crushed aggregate, often granite or slag, typically 10mm to 20mm | Good drainage, used in specific applications like railway ballast | Railway track beds, some drainage layers |
It's important to note that MOT Type 2 (also known as MOT Type 2 Clean or Class 2) is similar to Type 1 but has a significantly reduced content of fine particles (dust). This makes it more permeable and less susceptible to frost damage, often making it a better choice for verge sub-bases or areas where good drainage is paramount.
Frequently Asked Questions (FAQs)
Q1: What is the difference between MOT Type 1 and MOT Type 2?
The primary difference lies in the fines content. MOT Type 1 has a controlled amount of fine particles (dust), which helps it compact into a very dense layer. MOT Type 2 (Clean) has a much lower fines content, making it more permeable and better for drainage and frost resistance.
Q2: Can I use MOT Type 1 for a garden path?
Yes, MOT Type 1 is an excellent sub-base for garden paths, especially if they are to be paved with block paving or slabs. It will provide a stable and long-lasting foundation.
Q3: How thick should an MOT Type 1 sub-base be?
The required thickness depends on the intended use and the expected loads. For domestic driveways, a thickness of 100mm to 150mm is common. For highways, it can be significantly thicker, often in conjunction with other base layers.
Q4: What happens if MOT Type 1 is not compacted properly?
If not compacted correctly, the sub-base will be weak and unstable. This will lead to premature failure of the surface course, such as cracking, rutting, or sinking of the driveway or road.
Q5: Where can I buy MOT Type 1?
MOT Type 1 is readily available from most reputable builders' merchants and aggregate suppliers across the UK.
Conclusion
MOT Type 1 sub-base is a fundamental component in modern construction, providing the essential stability and load-bearing capacity required for durable surfaces. Its carefully controlled aggregate grading, coupled with proper installation and compaction, ensures a robust foundation that can withstand significant stress. Whether you are a professional civil engineer or a DIY enthusiast planning a driveway, understanding the role and specifications of MOT Type 1 is crucial for achieving a successful and long-lasting result. Always ensure you source material that meets the relevant standards and follow best practices for laying and compaction to guarantee the integrity of your project.
