Unearthing Type 1 MOT Granite: Your Foundation

In the world of construction and landscaping, the strength and longevity of any structure, be it a vast motorway or a humble garden path, hinges on one critical element: its foundation. A robust, stable, and durable sub-base is not merely an optional extra; it is the fundamental cornerstone upon which everything else is built. Among the myriad of materials available for this crucial role, Type 1 MOT Granite stands out as a leading choice, widely trusted across the United Kingdom for its exceptional performance and official approval by the Ministry of Transport. It’s more than just a pile of stones; it’s the silent, unyielding guardian beneath your most important surfaces.

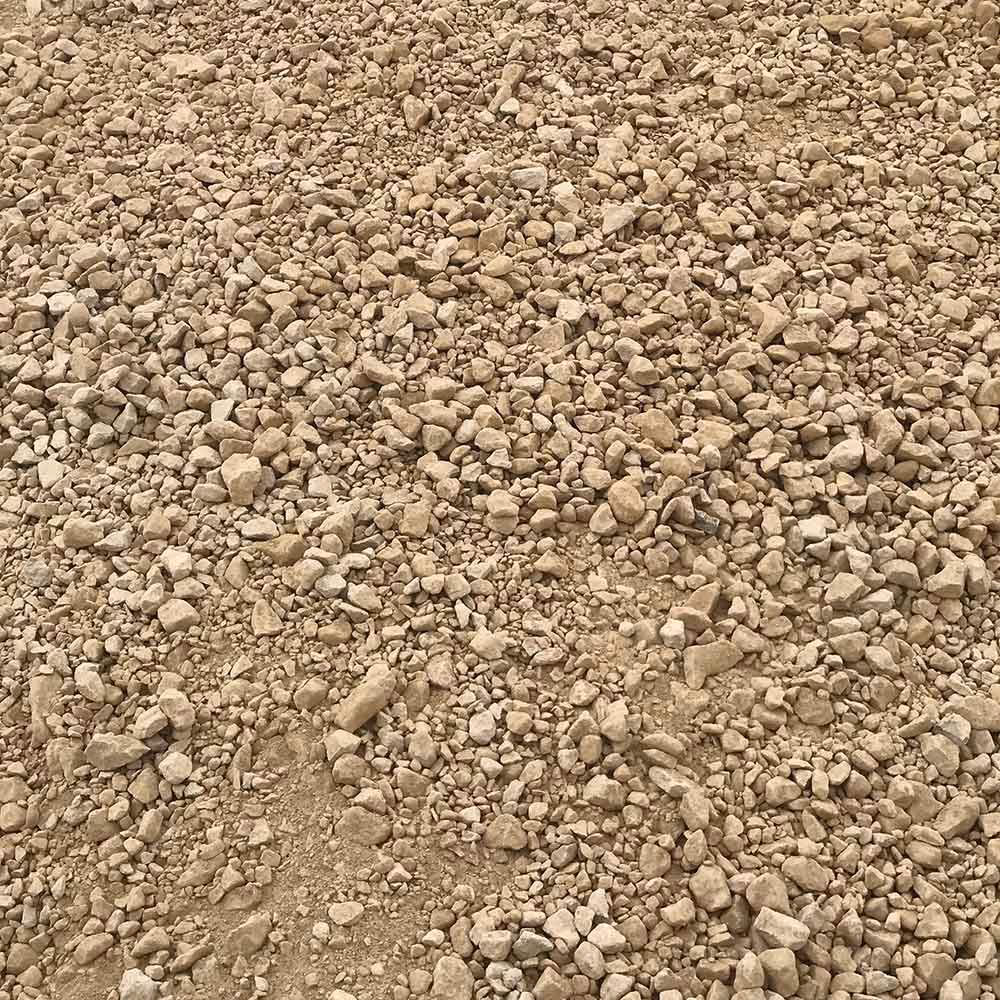

What Exactly is Type 1 MOT Granite?

At its core, Type 1 MOT Granite is a high-quality, crushed aggregate specifically engineered to provide a stable and durable sub-base for a wide array of construction projects. As its name suggests, the primary material is granite, a naturally occurring igneous rock renowned for its hardness, density, and resistance to weathering. This inherent strength of granite is a key factor in the superior performance of the aggregate.

What truly sets Type 1 MOT Granite apart is its precise particle size distribution. It is typically described as '63mm down to dust', meaning the aggregate contains a carefully controlled blend of particle sizes, ranging from larger stones (with the majority being around 40mm) down to very fine dust. This deliberate grading is not arbitrary; it's a scientific formulation designed to maximise performance:

• Interlocking Effect: The varying particle sizes ensure that when the material is compacted, the larger stones interlock with each other, while the smaller particles and fines fill the voids between them. This creates an incredibly dense, tightly knitted matrix.
• Exceptional Compaction: This interlocking action facilitates superb compaction, allowing the material to be pressed into a solid, flat, and extremely stable layer. A well-compacted Type 1 MOT Granite sub-base minimises the risk of future settlement, which is vital for maintaining the integrity and levelness of the overlying surface.
• Even Weight Distribution: The interlocked structure ensures that any weight applied to the surface above is distributed evenly across the entire sub-base. This significantly enhances the material's load-bearing capacity, making it capable of supporting substantial weights without deforming or failing.

In essence, Type 1 MOT Granite isn't just crushed rock; it's a purpose-engineered aggregate formulated for maximum stability and performance in demanding applications.

The "MOT Approved" Stamp: Why It Matters to Your Project

The term "MOT" in Type 1 MOT Granite holds significant weight and is a hallmark of quality and compliance within the UK construction industry. "MOT" stands for the Ministry of Transport, though it is also widely known as DOT (Department of Transport) Type 1 Granite. This designation is not merely a label; it signifies that the aggregate has been rigorously tested and approved to meet specific, stringent standards outlined in the Specification for Highway Works (SHW), particularly Clause 803.

Why is this approval so crucial? For any project, especially those involving public infrastructure or areas subjected to heavy traffic, adherence to these standards is paramount:

• Assurance of Quality: The MOT approval guarantees that the material meets strict criteria for particle size, strength, durability, and compactability. This provides immense peace of mind, knowing you are using a material that has been validated for demanding applications.
• Compliance for Public Works: For roads, motorways, and other public highways, using MOT-approved materials is a mandatory requirement. This ensures consistency and reliability across the national infrastructure network.
• Professional Preference: Civil engineers and construction professionals consistently favour Type 1 MOT Granite precisely because of this certification. It streamlines material selection, knowing that the aggregate will perform as expected under specified conditions.

Choosing Type 1 MOT Granite means opting for a material that has been given the official seal of approval for its ability to create a safe, stable, and long-lasting foundation, even under the most challenging conditions.

The Unrivalled Benefits of Type 1 MOT Granite

Beyond its official approval, Type 1 MOT Granite offers a suite of practical benefits that make it an indispensable material for a vast range of projects:

• Exceptional Compaction Capabilities: As highlighted, the varied particle sizes allow for outstanding compaction. When properly laid and compacted, it forms an incredibly dense and stable layer that resists movement and settlement. This is crucial for preventing cracks and dips in the final surface, ensuring a smooth and even finish for years to come.
• Superior Load-Bearing Capacity: Thanks to its granite composition and optimal grading, Type 1 MOT Granite boasts excellent load-bearing capacity. The interlocked aggregate distributes weight efficiently, making it perfectly suited for supporting heavy loads from vehicles, buildings, or large structures. This ensures the longevity of driveways, car parks, and even building foundations.
• Outstanding Durability and Longevity: Granite is an inherently tough and hard-wearing material. When used as a compacted sub-base, it provides a highly durable foundation that can withstand the rigours of heavy traffic, adverse weather conditions, and general wear and tear without degrading. This long-term stability translates into fewer repairs and replacements for the overlying surface.
• Reduced Fines Content: A notable advantage of Type 1 MOT Granite, as stated in industry specifications, is that it "produces less fines" compared to some other Type 1 aggregates like recycled crushed concrete or limestone. This translates to several benefits: a cleaner material to work with, potentially better internal drainage within the sub-base (though the overall system's drainage needs to be designed), and a more consistent, stable mix that engineers often prefer.
• Cost-Effectiveness: While it is a premium material, Type 1 MOT Granite is considered highly cost-effective in the long run. Its ease of manufacture compared to some other aggregates contributes to its competitive pricing, and its superior performance means less money spent on future repairs or replacements due to foundation failure. Investing in a high-quality sub-base upfront saves significant costs down the line.

Applications: Where Does Type 1 MOT Granite Shine?

The versatility and robust nature of Type 1 MOT Granite mean it is suitable for an extensive range of applications, from small domestic projects to large-scale civil engineering feats:

Domestic Projects:

• Patios and Garden Paths: For homeowners looking to create a stable and long-lasting patio or garden path, Type 1 MOT Granite provides an ideal sub-base for paving slabs, block paving, or even decorative shingle. It ensures your outdoor living spaces remain level and beautiful for many years.
• Driveways: A driveway takes a considerable amount of punishment from vehicles. Whether you plan to lay tarmac, concrete, or block paving, a foundation of Type 1 MOT Granite is crucial to prevent sinking, cracking, and rutting, ensuring your driveway remains functional and aesthetically pleasing.

Commercial and Civil Engineering Applications:

• Roads and Motorways: This is arguably its most critical application. Given its Ministry of Transport approval and exceptional load-bearing capacity, Type 1 MOT Granite is the go-to material for the robust sub-bases required for public roads, motorways, and highways, designed to withstand constant heavy traffic.
• Car Parks: Commercial and public car parks endure continuous heavy vehicle traffic and static loads. A Type 1 MOT Granite sub-base provides the necessary strength and stability to prevent surface deterioration and maintain a safe, even parking area.
• Building Bases: For various structures, from small outbuildings to larger commercial properties, Type 1 MOT Granite forms a reliable and stable foundational layer, ensuring the structural integrity of the building above.
• Footpaths and Public Walkways: While not subjected to vehicle traffic, public footpaths still require a durable base to prevent cracking, maintain an even surface, and ensure accessibility for pedestrians. Type 1 MOT Granite provides this essential stability.

Type 1 MOT Granite vs. Other Sub-Bases: A Comparative Look

While Type 1 MOT Granite is a top-tier choice, it's helpful to understand how it compares to other common Type 1 aggregates. The term "Type 1" itself denotes that the material meets the SHW Clause 803 specification for granular sub-bases, meaning all Type 1 materials offer excellent load-bearing and compaction properties. However, their base materials can differ, leading to subtle distinctions:

While all Type 1 aggregates are designed to create a solid foundation, Type 1 MOT Granite's specific characteristics, particularly its lower fines content and the inherent hardness of granite, often make it the preferred choice for projects where maximum consistency, durability, and performance are paramount, especially those under the strict regulations of the Ministry of Transport.

Procuring Your Type 1 MOT Granite

Acquiring Type 1 MOT Granite for your project is straightforward, with options to suit various scales:

• Bagged Options: For smaller domestic projects, or where access might be limited, Type 1 MOT Granite is readily available in bulk bags. A common size is 90 x 90 x 90cm, containing approximately one tonne of material. These are convenient for precise placement and minimise waste.
• Loose Loads: For larger commercial and civil engineering projects, or extensive domestic works, Type 1 MOT Granite is available in loose loads, typically ranging from 3 to 10 tonnes or more. For these bulk orders, it's usually recommended to contact suppliers directly for specific pricing and delivery arrangements, as costs can vary based on quantity and location.

Given its widespread use and popularity, Type 1 MOT Granite is generally available from aggregate suppliers across the UK, ensuring consistent supply for projects of all sizes.

Ensuring Success: Tips for Working with Type 1 MOT Granite

To fully leverage the benefits of Type 1 MOT Granite, proper installation is key:

• Ground Preparation: Before laying the sub-base, ensure the existing ground is properly excavated, cleared of debris, and relatively level. Good preparation of the natural ground is fundamental to the overall stability of your project.
• Layering and Compaction: Type 1 MOT Granite should be laid in layers, typically 100-150mm (4-6 inches) thick, and each layer must be thoroughly compacted. For smaller areas, a vibrating plate compactor is suitable. For larger areas, a roller is essential. Proper compaction is non-negotiable; it's what transforms the loose aggregate into a dense, interlocking, load-bearing foundation.
• Moisture Content: A slight amount of moisture can aid in compaction, helping the particles bind together. However, avoid excessively wet conditions, which can hinder proper compaction.
• Drainage Considerations: While Type 1 MOT Granite itself offers good stability, the overall drainage of the area should be considered. Ensure that water can drain away from the finished surface effectively to prevent saturation of the sub-base and potential long-term issues.

Frequently Asked Questions (FAQs)

Here are some common questions regarding Type 1 MOT Granite:

What does "MOT" stand for in Type 1 MOT Granite?

In this context, "MOT" stands for the Ministry of Transport (or Department of Transport, DOT). It signifies that the aggregate meets the stringent quality and performance standards required for use in public highway and road construction in the UK.

What is the typical size of the aggregate in Type 1 MOT Granite?

Type 1 MOT Granite is graded as "63mm down to dust." This means it contains a mixture of particle sizes ranging from 63mm down to very fine dust, with the majority of the material being 40mm and smaller. This specific grading is crucial for achieving excellent compaction and load-bearing capabilities.

Can Type 1 MOT Granite be used as a finished surface?

No, Type 1 MOT Granite is primarily designed as a sub-base material. It provides the strong, stable foundation underneath a top coat. It is not intended to be a decorative or wear-resistant finished surface itself. You would typically lay concrete, asphalt, block paving, or shingle over it.

Is Type 1 MOT Granite suitable for heavy vehicle traffic?

Absolutely. Its exceptional load-bearing capacity, combined with its Ministry of Transport approval, makes it ideal for areas subjected to heavy vehicle traffic, such as roads, motorways, car parks, and busy driveways.

How does Type 1 MOT Granite differ from other Type 1 aggregates like limestone or recycled concrete?

While all Type 1 aggregates meet the same foundational performance standards, Type 1 MOT Granite is specifically made from crushed granite, a very hard and durable stone. A key differentiator is that it produces "less fines" compared to Type 1 Limestone or Type 1 Recycled Crushed Concrete, which often makes it a preferred choice for engineers due to its consistent quality and stability.

Conclusion

Type 1 MOT Granite is undeniably a powerhouse in the realm of construction materials. Its approval by the Ministry of Transport, coupled with its inherent durability, superior compaction properties, and impressive load-bearing capacity, makes it the go-to choice for creating robust and long-lasting foundations. Whether you're embarking on a major civil engineering project or a domestic landscaping endeavour, selecting Type 1 MOT Granite for your sub-base is an investment in reliability, stability, and the enduring quality of your finished surface. Choose this trusted aggregate, and build with the confidence that your foundation is truly rock-solid.
