Calculating Your MOT Type 1 Aggregate Needs

Embarking on a construction project, whether it's a new driveway, patio, or shed base, often requires a robust and stable foundation. This is where MOT Type 1 aggregate comes into its own, providing an essential sub-base that ensures longevity and performance. However, one of the most common hurdles project managers and DIY enthusiasts face is accurately determining how much of this vital material they actually need. Ordering too little can lead to costly delays and multiple deliveries, while ordering too much results in wasted material and disposal headaches. This comprehensive guide will demystify the process, equipping you with the knowledge and tools to calculate your MOT Type 1 requirements with precision, ensuring your project starts on solid ground.

What Exactly is MOT Type 1 Aggregate?

Before delving into calculations, it's crucial to understand what MOT Type 1 is. Contrary to a common misconception, 'MOT Type 1' does not refer to the annual vehicle safety test. Instead, it designates a specific type of granular sub-base material that complies with the Department of Transport's Specification for Highway Works, Clause 803. This specification ensures the material meets strict quality and performance standards for use in roads, driveways, and other construction projects.

MOT Type 1 is a crushed aggregate, typically made from limestone, granite, or gritstone, which contains a mix of particle sizes ranging from 40mm down to dust. This varied particle size distribution is key to its effectiveness. The larger stones provide strength and stability, while the smaller particles and fines fill the voids, allowing for excellent compaction. When compacted correctly, it interlocks to form an incredibly stable and permeable base, crucial for load distribution and drainage. Its robust nature makes it ideal for areas that will experience heavy loads, such as driveways and car parks, or as a foundational layer for concrete slabs, block paving, and artificial grass.

Why Accurate Calculation Matters for Your Project

The importance of precise aggregate calculation cannot be overstated. It directly impacts your project's budget, timeline, and overall success. Underestimating your needs can lead to:

• Project Delays: Waiting for additional deliveries can halt work, costing time and potentially labour fees.
• Increased Costs: Multiple smaller deliveries are often more expensive per tonne than a single large one due to delivery charges.
• Stress and Frustration: Unforeseen material shortages can be a significant source of project stress.

Conversely, overestimating can result in:

• Wasted Material: Unused aggregate takes up space and represents wasted money.
• Disposal Costs: You may incur charges for removing excess material from your site.
• Environmental Impact: Unnecessary transportation and material production contribute to a larger carbon footprint.

Accurate calculation ensures efficiency, cost-effectiveness, and a smoother project flow.

Key Metrics for Your Calculation

To calculate your MOT Type 1 requirements, you'll need to gather a few essential measurements and understand some critical factors:

1. Length (L): The total length of the area you intend to cover (in metres).
2. Width (W): The total width of the area (in metres).
3. Desired Depth (D): The intended thickness of the compacted MOT Type 1 layer (in metres).
4. Material Density: The weight per unit volume of MOT Type 1. This is fairly consistent for Type 1.
5. Compaction Factor: An allowance for the material compressing once laid and compacted, plus a little extra for wastage.

The Fundamental Formulae Explained

The calculation process involves two primary steps: determining the volume of material needed and then converting that volume into weight (tonnes), which is how MOT Type 1 is typically sold.

Step 1: Calculate the Volume (m³)

The volume of any rectangular or square area is calculated by multiplying its length by its width by its depth.

Volume (m³) = Length (m) × Width (m) × Desired Depth (m)

Remember that all measurements must be in metres for the calculation to be accurate. If you measure in centimetres or millimetres, convert them to metres before you begin (e.g., 100mm = 0.1m, 15cm = 0.15m).

Step 2: Convert Volume to Weight (Tonnes)

Once you have the volume in cubic metres, you need to convert it to tonnes. This is done by multiplying the volume by the density of the MOT Type 1 aggregate.

The typical bulk density of compacted MOT Type 1 is approximately 2 tonnes per cubic metre (or 2000 kg/m³). This figure can vary slightly depending on the specific quarry and material composition, but 2 tonnes/m³ is a widely accepted average for estimation purposes.

Weight (tonnes) = Volume (m³) × Material Density (tonnes/m³)

So, combining these, your basic formula will look like this:

Weight (tonnes) = Length (m) × Width (m) × Desired Depth (m) × 2 (tonnes/m³)

Step-by-Step Guide to Calculating MOT Type 1

1. Measuring Your Area Accurately

Use a tape measure to determine the length and width of the area. For rectangular or square areas, this is straightforward. For irregular shapes, you'll need to break the area down into smaller, measurable rectangles or squares, calculate the volume for each, and then sum them up. For circular areas, measure the radius (r) and use the formula: Area = πr² (where π ≈ 3.14159).

Tip: Measure twice, cut once! Or, in this case, measure twice, order once. Small inaccuracies in measurement can lead to significant differences in material quantity.

2. Determining the Right Depth

The required depth of your MOT Type 1 layer depends entirely on the application and the anticipated load. Here are some common guidelines:

• Light Foot Traffic (e.g., garden path, shed base): 50mm - 100mm (0.05m - 0.1m)
• Residential Driveway (cars only): 100mm - 150mm (0.1m - 0.15m)
• Heavy Duty Driveway (vans, occasional heavy vehicles): 150mm - 200mm (0.15m - 0.2m)
• Roads/Heavy Traffic Areas: 200mm+ (0.2m+)

Always consider the existing ground conditions. If the sub-grade is particularly soft or prone to waterlogging, you might need a deeper sub-base or additional drainage measures.

3. Factoring in Compaction and Wastage

MOT Type 1, by its nature, needs to be compacted to achieve its stability. During compaction, the material will reduce in volume. Additionally, there's always some degree of wastage due to spillage, uneven ground, or slight miscalculations. To account for this, it's standard practice to add an extra percentage to your calculated weight.

A typical compaction and wastage factor is between 10% and 20%. For most DIY projects, adding 15% is a safe bet. For large, professional projects, a more precise compaction test might be carried out, but for general purposes, a percentage addition works well.

Final Weight (tonnes) = Calculated Weight (tonnes) × 1.15 (for 15% extra)

4. Putting It All Together: An Example Calculation

Let's walk through a practical example:

You want to lay a new driveway that is 10 metres long by 4 metres wide, and you've determined you need a compacted MOT Type 1 depth of 150mm.

1. Convert Depth to Metres: 150mm = 0.15 metres
2. Calculate Volume:
   Volume = 10m (Length) × 4m (Width) × 0.15m (Depth)
   Volume = 6 m³
3. Convert Volume to Weight (using 2 tonnes/m³ density):
   Weight = 6 m³ × 2 tonnes/m³
   Weight = 12 tonnes
4. Add Compaction and Wastage (let's use 15%):
   Final Weight = 12 tonnes × 1.15
   Final Weight = 13.8 tonnes

Therefore, for this project, you would need to order approximately 14 tonnes of MOT Type 1 aggregate (rounding up to the nearest tonne or half-tonne is common practice when ordering).

Beyond the Basics: Considerations for Complex Projects

For areas that aren't simple rectangles, or for projects with specific demands, you might need to adjust your approach:

• Irregular Shapes: Break the area into multiple simple shapes (rectangles, triangles, circles) and calculate the volume for each, then sum them up.
• Varying Depths: If your sub-base needs to be deeper in some areas (e.g., for drainage or load-bearing), calculate those sections separately and add them to your total.
• Existing Ground: If the ground is uneven, consider how much material will be needed to level it before achieving your desired uniform depth. A laser level or string line can help identify high and low spots.

Tools of the Trade: What You'll Need for Precise Measurement

To ensure your measurements are as accurate as possible, gather the right tools:

• Long Tape Measure: Essential for measuring length and width. A professional-grade, long tape (e.g., 30m or 50m) will be invaluable.
• Spirit Level: For checking the evenness of your ground and ensuring your depth markers are level.
• String Line and Stakes: To mark out your area clearly and establish level reference points for depth.
• Marking Paint or Chalk: For visual demarcation of your project area.
• Calculator: For crunching the numbers!

Comparing Aggregates: Why Choose MOT Type 1?

While various aggregates are available for sub-bases, MOT Type 1 stands out for specific reasons. Understanding its properties compared to others helps cement its position as a superior choice for many applications.

As the table illustrates, MOT Type 1 is the go-to choice for projects requiring a robust, stable, and well-draining sub-base that can withstand significant loads and provide a solid foundation for further layers.

Common Mistakes and How to Avoid Them

Even with the right formulas, common errors can derail your calculations. Be mindful of these pitfalls:

• Incorrect Unit Conversion: Always ensure all measurements are in metres before calculation.
• Forgetting Compaction: This is perhaps the most common mistake. Without adding that extra 10-20%, you will inevitably run short.
• Ignoring Uneven Ground: If your starting surface isn't level, a uniform depth calculation won't be accurate. Account for filling low spots.
• Rounding Down: When you get to your final tonnage, always round up to the nearest whole or half tonne when ordering. It's better to have a little extra than to be short.
• Neglecting Wastage: Even careful work results in some material loss. A small percentage for wastage is always wise.

Ordering and Delivery: What to Expect

MOT Type 1 is typically sold by the tonne. Most suppliers offer delivery in various quantities, from small bags to bulk bags (often around 850kg-1000kg) or loose loads delivered by tipper lorries (from 1 tonne up to 20+ tonnes). For larger projects, ordering in loose loads is usually more cost-effective.

When ordering, be sure to:

• Specify 'MOT Type 1' clearly to avoid confusion with other aggregates.
• Confirm the delivery access for the lorry.
• Arrange a suitable drop-off point, ideally close to your project area but ensuring public access isn't blocked.
• Ask about minimum order quantities and delivery charges.

Laying the Foundation: A Quick Guide to Installing MOT Type 1

While this article focuses on calculation, a brief overview of the installation process for MOT Type 1 can be helpful. Correct installation is as crucial as correct calculation for the material's performance.

1. Prepare the Area: Clear any vegetation, topsoil, or debris. Dig down to the required depth, accounting for the MOT Type 1 layer and any subsequent layers (e.g., paving, concrete).
2. Lay a Geotextile Membrane (Optional but Recommended): A weed membrane or geotextile fabric laid at the bottom of your excavated area can prevent the MOT Type 1 from mixing with the underlying soil and inhibit weed growth.
3. Spread the MOT Type 1: Tip the aggregate into the excavated area. Spread it evenly using a rake or shovel, aiming for a consistent depth.

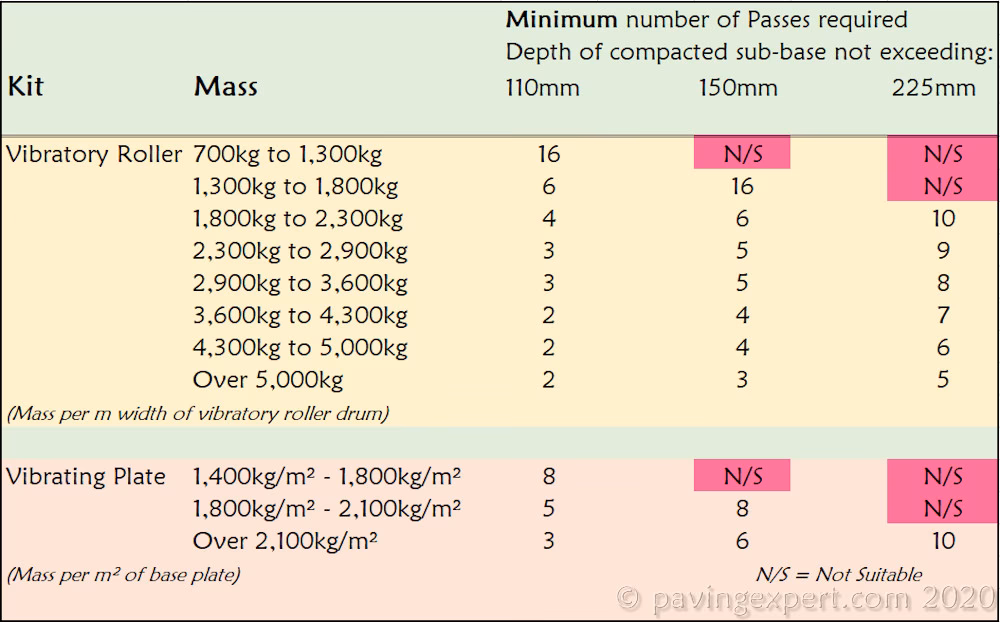

4. Compact in Layers: For depths over 100mm, it's best to compact the MOT Type 1 in layers (lifts) of no more than 100mm. Use a vibrating plate compactor (often called a 'wacker plate') for effective compaction. Pass over the area multiple times until the surface is firm and no longer significantly settling.
5. Check Levels: Regularly check your levels with a spirit level and a straight edge to ensure an even surface.

Proper compaction is vital for the stability and load-bearing capacity of your sub-base. Do not skip this step!

Frequently Asked Questions (FAQs)

What is the typical density of MOT Type 1?

The typical bulk density of compacted MOT Type 1 aggregate is approximately 2 tonnes per cubic metre (2 t/m³). This is the figure you should use for most standard calculations.

How much does a tonne of MOT Type 1 cover?

A single tonne of MOT Type 1 will cover approximately 0.5 cubic metres (since 1 tonne ÷ 2 tonnes/m³ = 0.5 m³). To put this into practical terms:

• At a depth of 50mm (0.05m), 1 tonne will cover 10 square metres (0.5 m³ ÷ 0.05m = 10 m²).
• At a depth of 100mm (0.1m), 1 tonne will cover 5 square metres (0.5 m³ ÷ 0.1m = 5 m²).
• At a depth of 150mm (0.15m), 1 tonne will cover approximately 3.3 square metres (0.5 m³ ÷ 0.15m ≈ 3.33 m²).

Is MOT Type 1 the same as hardcore?

The term 'hardcore' is a generic term for any inert, hard material used as a sub-base or infill. While MOT Type 1 is a type of hardcore, not all hardcore is MOT Type 1. MOT Type 1 is a specific, graded aggregate that meets strict quality standards (Clause 803) for compaction and load-bearing, making it superior to general hardcore for most construction projects, especially those requiring a certified sub-base.

Do I need to compact MOT Type 1?

Yes, absolutely. Compaction is crucial for MOT Type 1 to achieve its intended stability, load-bearing capacity, and drainage properties. Without proper compaction, the material will settle unevenly over time, leading to subsidence, cracking, and failure of the surface built upon it. A vibrating plate compactor is the recommended tool for this task.

Can I use MOT Type 1 for a driveway?

Yes, MOT Type 1 is highly recommended for driveways. Its excellent compaction properties and load-bearing capabilities make it an ideal sub-base material for driveways, whether they are paved with block paving, tarmac, or concrete. It provides a stable, durable foundation that can withstand the weight of vehicles for many years.

By following these guidelines and double-checking your measurements, you can confidently calculate your MOT Type 1 requirements, ensuring your project proceeds smoothly, efficiently, and with a robust foundation.
