Subframe Repair & MOT: Is a Weld Enough?

The subframe is a critical structural component of your vehicle, providing mounting points for the engine, transmission, suspension, and steering systems. It's essentially the backbone for many of your car's most vital parts. Given its crucial role, any issues, particularly corrosion or damage, can have significant implications for your vehicle's safety, handling, and ultimately, its ability to pass the UK's annual MOT test. One common question that arises when subframe issues are identified is whether a welded repair is considered sufficient for an MOT pass. It’s a nuanced area, and understanding the specifics can save you both time and money.

Understanding what constitutes an MOT pass for a subframe, especially concerning repairs, is vital. The MOT test is designed to ensure vehicles meet minimum road safety and environmental standards. When it comes to structural components like the subframe, the inspection is rigorous, focusing on integrity, corrosion, and any signs of weakening. While the MOT manual provides clear guidelines, the application of these can sometimes feel subjective, particularly when repairs are involved. Let's delve into the intricacies of subframe issues, repairs, and their standing with the MOT.

The Subframe: Your Car's Unsung Hero

Often out of sight and out of mind, the subframe plays a pivotal role in your car's dynamics and safety. It acts as a bridge, isolating vibrations and noise from the chassis, while also providing a rigid structure for suspension components to work effectively. Without a sound subframe, your car's handling would be compromised, and the risk of catastrophic failure in the event of an impact would increase significantly. This is why any form of degradation, especially rust, is a serious concern.

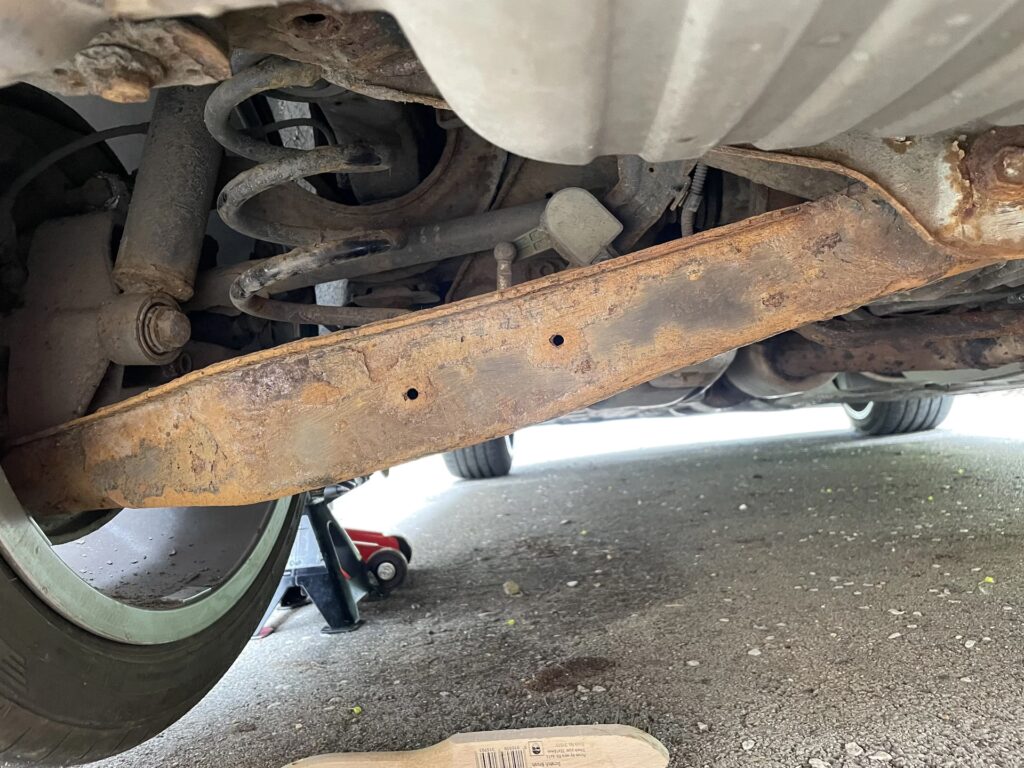

Subframe Corrosion: An MOT Advisory or a Failure?

It's a common scenario: your trusty motor sails through its MOT, only for the report to show an advisory note about subframe corrosion. The specific wording, often seen as 'Sub-frame corroded but not seriously weakened [5.3.3 (b)(i)]', indicates that while corrosion is present, it hasn't yet compromised the structural integrity to a point of failure. This is an important distinction. An advisory means the vehicle is safe to drive for now, but the issue needs monitoring as it's likely to worsen.

However, this advisory is a warning sign. Mechanics often advise that such corrosion, if left untreated, will likely progress to a point where it *does* seriously weaken the subframe, leading to an MOT failure within a year or two. For older vehicles, like a 2003 Ford Focus, this can quickly lead to a situation of 'beyond economic repair' (BER), where the cost of a new subframe or extensive repair outweighs the car's market value.

Is a Welded Subframe Repair Good Enough for an MOT?

This is the crux of the matter for many car owners. The short answer is: potentially, yes, but with significant caveats. The MOT test scrutinises the structural integrity of the subframe. If a welded repair is carried out to a professional standard, restoring the subframe to its original strength and safety specifications, it *should* theoretically pass the MOT. However, the quality of the weld and the overall integrity of the repaired area are paramount.

MOT testers are trained to identify poor quality repairs. A weld that is not structurally sound, shows signs of cracking, insufficient penetration, or has been applied to an area that is already significantly weakened by corrosion, will not pass. Furthermore, if the repair itself introduces new weak points or alters the original structural characteristics of the subframe, it could be deemed unsafe. It is crucial that any welding work on a structural component like a subframe is performed by a qualified and experienced welder, ideally one with automotive structural repair expertise, using appropriate materials and techniques. Some testers may also be inherently cautious about welded repairs on primary structural components, preferring replacement where possible. Always ensure you have documentation of professional repairs.

Preventing and Treating Subframe Corrosion

Once you've identified subframe corrosion, even if it's just an advisory, proactive measures can significantly extend the life of the component and potentially prevent an MOT failure. As the saying goes, prevention is better than cure, and this certainly applies to rust.

Cleaning and Protecting

• Wire Brushing: For light, superficial corrosion, a thorough cleaning with a wire brush or wheel can remove loose rust and prepare the surface.
• Waxoyl: A popular choice for rust prevention, Waxoyl is a waxy, flexible coating that penetrates rust and forms a protective barrier against moisture and oxygen. It's effective but often requires reapplication every year or two for optimal protection, especially in areas exposed to road spray and grit. It can be sprayed or painted on.
• POR-15: For more aggressive rust treatment, products like POR-15 (Paint Over Rust) are highly effective. These are typically moisture-cured urethane coatings that bond to rusted metal to form a hard, non-porous, and chip-resistant finish. They are a more permanent solution than Waxoyl but require meticulous surface preparation to work effectively.
• Hammerite: While Hammerite is a durable direct-to-rust paint, it's generally better suited for visible, less critical components. For subframes, which endure significant flexing and impact, specialist rust converters and chassis paints (like those mentioned above) are usually more appropriate due to their flexibility and penetration properties.

While some of these treatments can be DIY, accessing the subframe effectively for proper cleaning and application can be challenging without a ramp or suitable lifting equipment. For a thorough job, especially for products like POR-15 which require specific preparation, paying a mechanic might be a worthwhile investment, even if it seems close to the car's value. A good mechanic will be able to assess the severity accurately and recommend the most cost-effective solution.

DIY Subframe Replacement: A Brave Endeavour?

If your subframe is beyond repair, or if you simply prefer replacement, it is a job that can be tackled by a competent DIY mechanic, though it requires patience, the right tools, and an understanding of safety protocols. It's certainly easier with two people, but can be done solo if you're resourceful.

Tools You'll Need:

• Socket set (comprehensive)
• Trolley jack
• Two axle stands (essential for safety!)
• 10mm spanner
• Possibly a breaker bar for stubborn bolts
• Lubricant (WD-40 or similar)
• Grease or washing-up liquid

Step-by-Step Guide (General):

1. Safety First: Park the car on a flat, level surface. Engage the handbrake. Loosen wheel nuts on the front wheels (if removing them for access).
2. Lift and Secure: Using the trolley jack, carefully lift the front of the car. Place the axle stands securely under the vehicle's designated jacking points. Never work under a car supported only by a jack.
3. Prepare for Access: The hardest part is often gaining access. This typically involves:
   • Removing the under shield (belly pan).
   • Taking off plastic shields under the inner wings.
   • Removing the front bumper. This can be fiddly, but patience is key.
4. Disconnect Components: The subframe holds various components. Before unbolting the subframe itself, you'll need to disconnect anything attached to it. This includes:
   • Undo bolts holding the subframe to the chassis.
   • Undo bolts holding side plates up (if fitted). Note: new subframes are often *not* drilled for these plates, and they are generally *not required for an MOT*.
   • Carefully disconnect any wiring, hoses, or pipes that pass over or through the subframe.
5. Support and Lower: Place the trolley jack securely under the subframe. This is your "buddy" if working alone. With the jack supporting the weight, carefully remove all the main subframe mounting bolts. Slowly lower the jack, allowing the old subframe to come down.
6. Transfer Components: Crucially, don't forget the rubber bungs from the old subframe. These are vital for correctly locating the washer bottle and radiator. Carefully remove them from the old subframe and fit them into the new one.
7. Lubricate Bungs: Smear some grease or even washing-up liquid where the bungs fit. This makes it significantly easier to locate and fit the radiator and washer bottle onto the new subframe.
8. Install New Subframe: Place the new subframe onto the trolley jack. Slowly raise the jack, carefully aligning the subframe with the chassis mounting points. Once aligned, insert and hand-tighten the main bolts.
9. Reattach Components: Ensure the washer bottle and radiator are correctly located on their bungs. Reconnect any wiring, hoses, or pipes.
10. Tighten and Reassemble: Once everything is aligned and connected, tighten all subframe bolts to the manufacturer's specified torque settings. Reinstall the bumper, inner wing shields, and under shield.
11. Final Checks: Lower the car. Check all connections and ensure no tools have been left behind. Take a short, careful test drive to check for any unusual noises or handling characteristics.

When to Replace vs. Repair: The Economic Dilemma

For an older car with a relatively low market value, the decision between repairing significant subframe corrosion (especially if it requires welding) or replacing the entire subframe can be challenging. A new subframe, plus labour, can easily exceed the car's worth. This is where the initial assessment from your MOT garage, and a second opinion from a trusted local mechanic, becomes invaluable.

If the corrosion is truly superficial, as was the case with the Ford Focus mentioned in the provided information, a relatively inexpensive clean-up and application of a rust inhibitor like Waxoyl might buy you several more years. However, if the corrosion is advanced and deep, compromising the metal's thickness, then repair or replacement is the only safe option. Always consider the car's overall condition, its reliability, and how much longer you realistically intend to keep it when making this financial decision.

Seeking Professional Advice

If your MOT report flags subframe corrosion, or if you suspect an issue, don't hesitate to seek professional advice. As the anecdote about the Ford Focus shows, one garage might present a dire prognosis, while another, more independent mechanic might offer a far less alarming and more cost-effective solution. Always get a second opinion if you're unsure, especially if the initial quote for repair seems exorbitant or if you're told the car is beyond economic repair. A reputable mechanic will provide an honest assessment and explain your options clearly.

Frequently Asked Questions About Subframes and MOTs

What does "sub-frame corroded but not seriously weakened" mean?

This is an MOT advisory (defect code 5.3.3 (b)(i)). It means that while rust is present on the subframe, it hasn't yet eaten through the metal to a point where it compromises the subframe's structural integrity or safety. It's a warning that attention is needed soon, as it's likely to worsen and could lead to an MOT failure in the future.

Can I drive with a corroded subframe?

If the MOT report states "corroded but not seriously weakened," then legally, yes, you can continue to drive the car. However, it's highly advisable to address the issue promptly, as the corrosion will continue to spread and weaken the component over time, eventually leading to a failure and potentially unsafe driving conditions.

How long does subframe corrosion take to become serious?

This varies greatly depending on the severity of the initial corrosion, environmental factors (e.g., road salt, humidity), and whether any preventative measures are taken. It could be anywhere from a few months to several years. An advisory suggests it could become serious within 1-2 years if left untreated.

Is subframe replacement a DIY job?

For someone with good mechanical aptitude, the right tools (including safety equipment like axle stands and a trolley jack), and a good amount of patience, yes, it can be a DIY job. However, it's quite involved, requires lifting the car safely, disconnecting various components, and can be challenging if working alone. If you're unsure, it's always best to consult a professional mechanic.

What's the typical cost of subframe repair or replacement in the UK?

Costs vary significantly based on the car make/model, the severity of the damage, the type of repair (e.g., rust treatment vs. welding vs. full replacement), and labour rates in your area. Rust treatment might be a few hundred pounds, while a full subframe replacement (parts and labour) could range from £500 to over £1500, making it a significant investment, especially for older, lower-value cars.

Ultimately, keeping an eye on your subframe and addressing corrosion early can save you a significant headache and expense down the line. Whether it's a simple clean-up and rust proofing, or a more involved repair or replacement, ensuring the structural integrity of this vital component is paramount for your safety and your car's longevity on UK roads.
