Understanding MOT Type 1: Your Sub-Base Guide

When embarking on any significant construction project in the United Kingdom, whether it’s laying a new driveway, building a patio, or preparing a foundation for a new extension, you’ll inevitably encounter the term MOT Type 1. This isn't just another pile of stones; it’s a meticulously engineered, highly specified aggregate that forms the crucial bedrock of countless durable surfaces. Without a proper understanding and correct application of MOT Type 1, your ambitious project could literally crumble before your eyes. This comprehensive guide will demystify this fundamental material, explaining what it is, why it’s so vital, and how to use it effectively to ensure the longevity and stability of your construction.

MOT Type 1 is, at its core, a high-quality granular material used as a sub-base in construction. The 'MOT' in its name stands for the 'Ministry of Transport' (now the Department for Transport), signifying that the material meets the strict standards and specifications outlined in the 'Specification for Highway Works'. These standards dictate the aggregate's composition, particle size distribution, and strength, ensuring it's suitable for supporting significant loads and providing long-term stability for roads, paths, and other paved areas. It's often referred to as 'DOT Type 1' in some older specifications, but the principle remains the same.

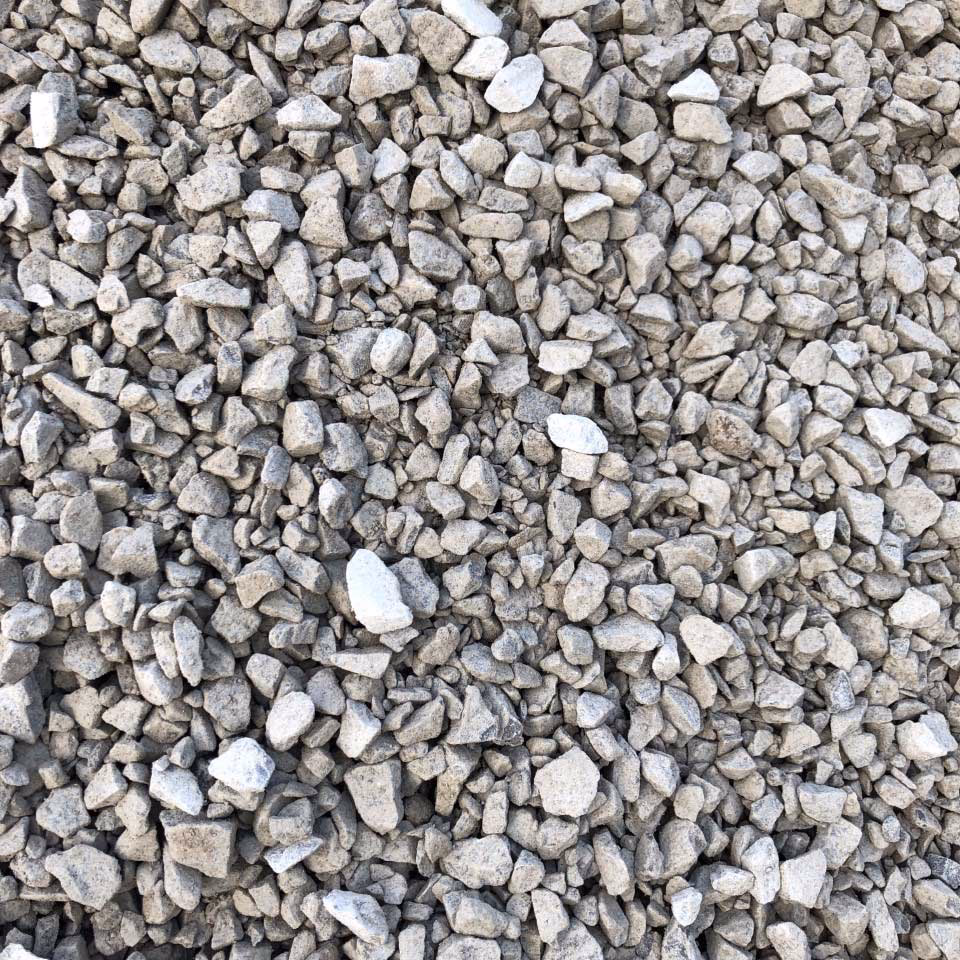

What Exactly is MOT Type 1 Aggregate?

MOT Type 1 is typically made from crushed granite, limestone, basalt, or even recycled concrete, though virgin aggregates are generally preferred for their consistent quality. What sets it apart from ordinary hardcore or rubble is its precise grading. It’s an 'all-in' aggregate, meaning it contains a carefully controlled mix of particle sizes, ranging from fine dust (0mm) up to 40mm. This specific blend of particle sizes is paramount to its performance. The smaller particles fill the voids between the larger stones, allowing the material to interlock tightly when compacted. This interlocking action creates a dense, stable, and incredibly strong layer that can effectively distribute loads and resist movement.

Unlike loose gravel or unsorted hardcore, the controlled grading of MOT Type 1 ensures that it compacts exceptionally well, achieving a high-density, load-bearing platform. This density is crucial for preventing subsidence, cracking, and general degradation of the overlying surface, be it tarmac, concrete, block paving, or paving slabs. It also offers reasonable drainage properties, allowing some water to percolate through, which helps prevent water build-up beneath the surface, mitigating issues like frost heave in colder months.

The Indispensable Role of a Sub-Base

Every successful construction project involving a paved surface or foundation relies heavily on a robust sub-base. The sub-base acts as a critical intermediary layer between the unstable natural ground (the sub-grade) and the final surface layer. Its primary functions include:

• Load Distribution: It spreads the weight from the surface (e.g., vehicles on a driveway) evenly over a larger area of the sub-grade, preventing localised pressure points that could lead to sinking or cracking.
• Stability: It provides a firm, unyielding platform for the subsequent layers, ensuring the entire structure remains stable and level over time.
• Drainage: While not a primary drainage solution, it allows for some water movement, preventing saturation of the sub-grade and protecting the upper layers from water damage and frost heave.
• Protection: It acts as a barrier, preventing the finer particles of the sub-grade from migrating up into the surface layers, which could compromise stability and drainage.

MOT Type 1 excels in all these areas, making it the material of choice for professional contractors and DIY enthusiasts alike.

Key Benefits of Using MOT Type 1

The widespread adoption of MOT Type 1 in UK construction is a testament to its numerous advantages:

• Superior Compaction: Its unique particle size distribution allows for outstanding compaction, creating an incredibly dense and stable layer. This is arguably its most significant benefit, as poor compaction is a leading cause of failure in paved surfaces.
• High Load-Bearing Capacity: Once compacted, it forms a strong, rigid platform capable of supporting heavy loads, making it ideal for driveways, roads, and other trafficked areas.
• Excellent Stability: The interlocking nature of the particles ensures that the sub-base remains stable and resistant to shifting, preventing cracks and unevenness in the finished surface.
• Good Drainage Properties: While dense, it still allows water to filter through, reducing the risk of waterlogging and frost damage.
• Versatility: Suitable for a vast range of applications, from domestic patios to major highways.
• Cost-Effectiveness: While not the cheapest aggregate, its performance and longevity often make it the most economical choice in the long run, saving on future repair costs.
• Meets UK Standards: Being an MOT-specified material, it guarantees a certain level of quality and performance, giving peace of mind to project managers and homeowners.

Common Applications of MOT Type 1

You’ll find MOT Type 1 being used in a multitude of construction scenarios across the UK:

• Driveways and Car Parks: Essential for creating a robust base that can withstand the weight and movement of vehicles without sinking or cracking.
• Roads and Highways: Forms the primary sub-base layer for most public and private roads, ensuring their durability and structural integrity.
• Patios and Paving: Provides a stable and level foundation for paving slabs, preventing movement and ensuring a long-lasting, even surface.
• Building Foundations: Used as a sub-base layer beneath concrete slabs for sheds, garages, and even some residential extensions.
• Pathways and Footpaths: Ensures durable and level pedestrian routes.
• Artificial Grass Bases: Can be used as a firm, well-draining base for artificial turf installations.
• Shed Bases: Provides a solid, level platform for garden sheds and outbuildings.

Working with MOT Type 1: Best Practices for Success

Achieving a high-quality sub-base with MOT Type 1 isn't just about dumping it down; proper technique is vital. Here’s how to do it right:

1. Excavation: Dig out the area to the required depth, accounting for the MOT Type 1 layer, bedding layer (e.g., sharp sand), and the final surface material. Ensure the sub-grade (the natural ground beneath) is firm and level.
2. Geotextile Membrane (Optional but Recommended): For added longevity, consider laying a geotextile membrane (also known as a weed membrane or ground stabilisation fabric) over the excavated sub-grade. This prevents the MOT Type 1 from sinking into soft ground and stops sub-grade fines from contaminating the aggregate, while still allowing water to drain.
3. Laying the MOT Type 1: Spread the MOT Type 1 evenly across the prepared area. Crucially, lay it in layers, or 'lifts', typically no thicker than 100-150mm at a time. Trying to compact a thicker layer at once will result in insufficient compaction at the bottom.
4. Moisture Content: The material should be slightly damp, but not saturated. A small amount of moisture aids the compaction process, helping the particles to bind together.
5. Compaction: This is the most critical step. Use a heavy-duty plate compactor (whacker plate) for smaller areas or a roller for larger projects. Pass over each section multiple times in different directions until the aggregate is thoroughly compacted and feels solid, with no discernible movement. You should hear a distinct 'ringing' sound as the compactor works, indicating good compaction.
6. Leveling: Regularly check the level of your sub-base using a long straight edge and spirit level. Adjust as needed before final compaction.
7. Achieving Required Thickness: The thickness of your MOT Type 1 sub-base will depend on the intended use. For patios and light pedestrian traffic, 100-150mm might suffice. For driveways and areas with vehicle traffic, 150-300mm is more appropriate, potentially laid in multiple lifts.

MOT Type 1 vs. Other Aggregates: A Comparison

While MOT Type 1 is a versatile champion, other aggregates exist for different purposes. Understanding their differences is key to choosing the right material for your project.

As you can see, each material has its specific strengths and weaknesses. For a reliably strong and stable sub-base for most paving and foundation projects, MOT Type 1 remains the gold standard.

Common Pitfalls to Avoid

Even with the right material, mistakes can happen. Be aware of these common pitfalls:

• Insufficient Compaction: This is the number one cause of failure. If the MOT Type 1 isn't compacted properly, it will settle unevenly over time, leading to cracks and dips in your finished surface. Do not rush this step.
• Laying Too Thick Lifts: Trying to compact a layer thicker than 150mm at once will mean the bottom of the layer won't be adequately compacted. Always work in manageable lifts.
• Ignoring Drainage: While MOT Type 1 drains, if your site has significant water issues, you may need additional drainage solutions or consider MOT Type 3 for specific SUDS (Sustainable Urban Drainage Systems) requirements.
• Contamination: Allowing soil or other debris to mix with the MOT Type 1 will compromise its compaction and drainage properties. Keep the area clean.
• Incorrect Depth: Under-specifying the depth of your sub-base for the intended load will lead to premature failure. Always follow recommended depths for your specific application.

Frequently Asked Questions (FAQs)

How much MOT Type 1 do I need?

To calculate the amount you need, you'll first determine the volume. Measure the length, width, and desired depth of your area in metres. Multiply these together to get the volume in cubic metres (m³). For example, a 5m x 4m driveway with a 0.2m (200mm) sub-base depth would be 5 x 4 x 0.2 = 4m³. MOT Type 1 typically weighs between 1.8 to 2.0 tonnes per cubic metre. So, for 4m³, you'd need roughly 4 x 1.8 = 7.2 tonnes to 4 x 2.0 = 8 tonnes. Always order slightly more than you calculate (e.g., 5-10% extra) to account for wastage, settlement, and unforeseen requirements.

Can I use MOT Type 1 for drainage?

MOT Type 1 does allow for water percolation and contributes to drainage, but it is not primarily a drainage aggregate. Its dense compaction means water passes through relatively slowly. For dedicated drainage layers or SUDS-compliant systems where high permeability is crucial, MOT Type 3 (also known as permeable MOT) is a more suitable choice as it contains fewer fines, allowing water to pass through much more freely.

Is MOT Type 1 permeable?

It is 'partially' permeable. Water will eventually drain through it, but not as quickly as through aggregates with larger, more uniform particle sizes (like clean gravel or MOT Type 3). It’s designed for strength and compaction first, with drainage as a secondary benefit.

What's the difference between MOT Type 1 and 'hardcore'?

'Hardcore' is a very general term that refers to any hard, inert material used as a bulk fill or base. This could include broken bricks, concrete rubble, or mixed construction waste. While some hardcore might be suitable for very light-duty applications, it lacks the precise grading and consistent quality of MOT Type 1. MOT Type 1 is a specific, high-quality type of graded hardcore that meets stringent government standards for use in roads and other load-bearing applications. Always specify 'MOT Type 1' if you need a reliable sub-base, rather than just 'hardcore'.

Do I need to compact MOT Type 1?

Absolutely, compaction is non-negotiable. Without proper compaction, the material will not interlock effectively, leading to an unstable base that will settle unevenly over time. This will result in cracks, dips, and ultimately failure of your paving or surface. A vibrating plate compactor or roller is essential for this step.

How deep should my MOT Type 1 sub-base be?

The required depth depends on the intended use and anticipated loads:

• Light pedestrian traffic (e.g., garden paths, patios): 100-150mm (4-6 inches)
• Domestic driveways (cars, light vans): 150-200mm (6-8 inches)
• Heavy vehicle traffic (e.g., commercial car parks, roads): 200-300mm (8-12 inches) or more, often specified by an engineer.

Always consult local building regulations or a professional if you are unsure about the required depth for your specific project.

Conclusion

MOT Type 1 is far more than just a pile of stones; it is the unsung hero of countless durable construction projects across the UK. Its precise grading, excellent compaction properties, and high load-bearing capacity make it the definitive choice for creating stable, long-lasting sub-bases for everything from garden patios to major highways. By understanding its properties and applying best practices for laying and compaction, you can ensure that your next construction endeavour stands the test of time, providing a solid foundation for years to come. Investing in quality MOT Type 1 and taking the time to install it correctly is an investment in the longevity and success of your project.
