Your Guide to NOx Sensors: Emissions Control

In the ever-evolving landscape of automotive technology and environmental responsibility, certain components play an unsung hero role in keeping our air cleaner. Among these, the NOx sensor stands out as a critical device, silently working to ensure your vehicle complies with stringent emission standards. If you own a modern car, particularly a diesel or a direct petrol injection model, understanding what a NOx sensor is and how it functions is not just for mechanics; it's essential knowledge for every driver concerned with their vehicle's performance and environmental impact.

What Exactly is a NOx Sensor?

At its core, a NOx sensor is a highly sophisticated electronic device designed to measure the concentration of nitrogen oxides (NOx) in a vehicle's exhaust gas. These harmful gases, primarily nitric oxide (NO) and nitrogen dioxide (NO2), are by-products of the combustion process in internal combustion engines. Due to their detrimental effects on human health and the environment, leading to respiratory issues and contributing to smog and acid rain, governments worldwide have imposed strict regulations on their emission.

Since the introduction of Euro 5 and Euro 6 emission standards, the NOx sensor has become an indispensable component in both petrol and diesel vehicles. Its data is crucial for the engine management system to precisely calculate various parameters, including the exhaust gas recirculation (EGR) rate, the air-fuel mixture, and, significantly for diesel vehicles, the quantity of urea (AdBlue®) injection. Without accurate NOx readings, modern vehicles simply cannot meet the tight emission limits.

How Does the NOx Sensor Work Its Magic?

The operation of a NOx sensor is a marvel of electrochemical engineering. It detects nitrogen oxides through an electro-catalytic mechanism, typically involving two ceramic cells. The first cell, often referred to as a Nernst cell, works to remove oxygen from the exhaust gas, ensuring that the air/fuel ratio is corrected to lambda (λ) = 1. This initial step is vital because the presence of excess oxygen could interfere with the accurate measurement of NOx.

Once oxygen levels are controlled, the second cell, usually made of ceramic with a special layer of rhodium, comes into play. This cell has the remarkable ability to break down the nitrogen oxides (NOx) into harmless nitrogen (N2) and oxygen (O2). As this breakdown occurs, a voltage is passed through an electrolyte, and the resulting current or voltage signal directly correlates to the amount of NOx present in the exhaust gas. The higher the level of NOx, the stronger the electrical signal generated.

The NOx sensor unit itself often includes an integrated control unit that processes these raw values. This processed data is then transmitted via the CAN data bus to higher-level control units, such as the engine control unit (ECU) or the SCR (Selective Catalytic Reduction) control unit. These sophisticated systems use the real-time NOx data to make precise adjustments, ensuring optimal engine operation and emissions reduction.

Furthermore, a heating element is integrated directly into the sensor probe. This is crucial because the sensor requires a specific operating temperature, typically around 300°C, to function accurately. The heating element ensures this temperature is reached quickly and maintained consistently, regardless of ambient conditions or engine load.

NOx Sensors in Petrol Vehicles

While often associated more with diesel engines, NOx sensors are also vital in modern petrol vehicles, especially those equipped with direct petrol injection. These engines, due to their stratified charging operation, tend to produce a larger quantity of nitrogen oxides compared to traditional port-injected petrol engines. To combat this, such vehicles are often fitted with a NOx storage catalytic converter. The NOx sensor plays a critical role in monitoring the efficiency of this converter and ensuring that emissions remain within legal limits.

NOx Sensors in Diesel Vehicles: The SCR System & AdBlue®

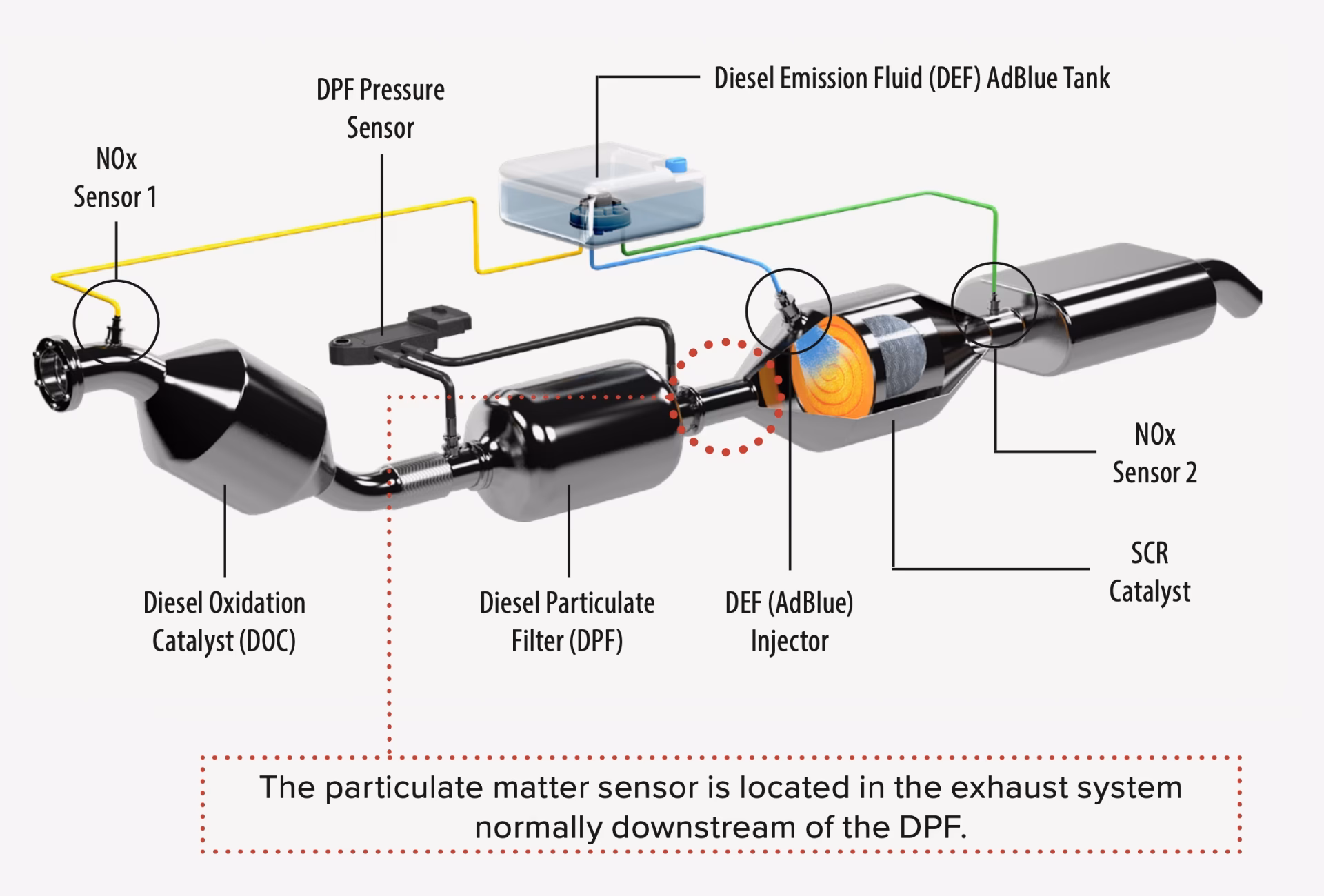

In diesel vehicles, the NOx sensor works hand-in-hand with the Selective Catalytic Reduction (SCR) system, a cornerstone of modern diesel emissions control. The SCR system involves injecting a liquid reducing agent, commonly known as AdBlue® (a high-purity aqueous urea solution), into the exhaust gas flow upstream of a special SCR catalytic converter.

When AdBlue® is introduced, it undergoes a chemical reaction within the SCR catalyst, converting the harmful nitrogen oxides into harmless nitrogen (N2) and water (H2O). The NOx sensor's role here is paramount: it continuously measures the nitrogen oxide content in the exhaust gas, both before and sometimes after the SCR catalytic converter. If two sensors are used, one is typically located upstream to measure the incoming NOx levels, and the other downstream to monitor the effectiveness of the SCR catalytic converter. This downstream sensor is particularly important for ensuring system function and precise control of the exhaust gas purification.

Based on the real-time data from the NOx sensor, the engine management system calculates the optimal dosage of AdBlue® to be injected. This precise control ensures maximum NOx reduction while also optimising AdBlue® consumption, making the SCR system highly efficient in reducing harmful emissions and contributing to compliance with increasingly stringent emission limits like Euro 6.

The Indisputable Importance of NOx Sensors

The necessity of NOx sensors cannot be overstated in today's automotive landscape. With oxides of nitrogen posing significant threats to both human health and the environment, emissions controls have become incredibly tightly regulated. For a modern diesel vehicle to be Euro 6 compliant, it cannot emit more than 80mg/km of NOx gases, a target that would be impossible to meet without the accurate monitoring and control provided by a NOx sensor.

Beyond regulatory compliance, a functioning NOx sensor is critical for your vehicle's overall health and ability to pass its annual MOT. A faulty sensor can lead to increased emissions, which in turn can cause your vehicle to fail the emissions test, costing you time and money. It also ensures the longevity and proper operation of other expensive components within the exhaust aftertreatment system, such as the SCR catalyst and Diesel Particulate Filter (DPF).

Common NOx Sensor Faults and Symptoms

Like any precision component exposed to extreme conditions, NOx sensors have a finite lifespan and can develop faults. One of the most common causes of a NOx sensor malfunction is the buildup of soot from the combustion process. Soot is not only abrasive, potentially damaging the sensor's delicate components over time, but it can also coat the sensor's measuring elements, inhibiting its ability to accurately measure exhaust gases.

When a NOx sensor begins to fail, your vehicle may exhibit several noticeable symptoms. Recognising these can help you address the issue promptly:

Troubleshooting and Repairing Your NOx Sensor

If your vehicle exhibits any of the symptoms mentioned above, a diagnostic scan is the first step. Diagnostic tools can read error codes from your vehicle's ECU, often pointing directly to a NOx sensor fault. However, these codes may not always tell the full story, as other related issues could trigger them.

Can You Test a NOx Sensor?

Beyond reading fault codes, a more in-depth test can be performed on the sensors themselves using a multimeter to check their electrical operation. However, due to the complexity and specific operating conditions (like temperature requirements), this is often best left to experienced mechanics with specialised equipment.

Can You Clean a NOx Sensor?

While the idea of cleaning a sensor to save on replacement costs is tempting, it is generally not recommended for NOx sensors. These sensors are designed to be self-cleaning through their inherent heating cycles. If a sensor is displaying signs of malfunction, it's highly likely that internal damage or a permanent coating has occurred, rendering manual cleaning ineffective. Replacement is almost always the more reliable solution.

Can You Repair a NOx Sensor Controller?

A complete NOx sensor unit, which includes the probe and its integrated control unit, can be an expensive component to replace. While some might consider repairing the controller, it's often a complex task requiring specialised knowledge and equipment. For such a precise and critical component, a repair may only offer a short-term solution, potentially leading to repeat failures and more cost in the long run. The general recommendation is to replace the entire unit if the controller is deemed faulty.

Can You Replace a NOx Sensor?

Absolutely, a faulty NOx sensor can and should be replaced. When considering replacement, it is highly recommended to use brand new, quality components. While refurbished options might seem cost-effective, new parts offer the longest lifespan and guarantee accurate performance, which is paramount for emission compliance and vehicle health.

DIY Fix: Replacing a Faulty NOx Sensor Probe

Interestingly, while the entire NOx sensor unit can be quite expensive, often the actual problem lies not with the complex control unit, but with the sensor probe itself. Many people are unaware that it's often possible to simply and inexpensively replace just the probe with a bit of DIY effort. This guide focuses on this specific repair, which can save you a significant amount of money.

Before you begin: Always run a diagnostic on your vehicle first. If the fault codes specifically point to the NOx sensor, proceed with caution and consider that the probe might be the culprit. You may want to contact a specialist supplier for advice and to order the correct spare probe.

Tools You Will Need:

• Soldering iron
• Electrical tape
• Cutter/knife (sharp)
• Scissors
• Heat shrink tubes (optional, but highly recommended for durability)

Step-by-Step Guide:

1. Remove the NOx Sensor Unit:

   Carefully locate and remove the faulty NOx sensor unit from your vehicle. Its location can vary, but it's typically found in the exhaust system, often after the SCR catalyst. Consult your vehicle's service manual or an online resource for the exact procedure for your specific make and model. Disconnect the electrical connector and unscrew the sensor from the exhaust pipe.

2. Prepare the Unit:

   Once the sensor unit is out, you'll need to expose the wiring. Carefully pull back the protective rubber sheathing that covers the sensor's cables where they connect to the control unit. This will give you access to the internal wires. Use electrical tape to secure the rubber back firmly, ensuring it doesn't obstruct your working area.

3. Split the Cables:

   Using your knife and scissors, carefully split the individual cables that run from the probe into the control unit. This is a crucial step: DO NOT cut all wires at the same location. Instead, cut them at different, staggered lengths. This staggering prevents a bulky connection point and reduces the risk of short circuits after soldering.



4. Connect Your New Probe:

   Take your new NOx sensor probe. It will have colour-coded cables. Match these cables to the corresponding colour-coded wires protruding from your existing NOx emission control unit sensor. For each pair of matching wires (one from the old unit, one from the new probe), twist the bare ends together firmly. Ensure a good mechanical connection before soldering.

5. Solder the Connections:

   Now, carefully solder each twisted wire connection. Apply heat from your soldering iron to the twisted wires, then touch the solder to the heated wires, allowing it to flow smoothly and create a strong electrical bond. Once soldered, for added strength and insulation, slide heat shrink tubes over each individual soldered connection and apply heat (e.g., with a heat gun or lighter flame, carefully) to shrink them tightly around the joint. This will insulate and protect the connections.

6. Final Touches and Reinstallation:

   After all connections are soldered and insulated, allow the newly repaired device several minutes to cool down to a normal temperature. Once cool, ensure all connections are secure and tidy. You can then replace the protective rubber sheathing over the connections. Reinstall the NOx sensor unit back into your vehicle's exhaust system, ensuring it's tightened correctly and the electrical connector is firmly reattached.

7. Re-test Your Vehicle:

   After reinstallation, run another diagnostic test on your vehicle. This will confirm that the device has been correctly repaired and is in full working order. Clear any lingering fault codes and check if the engine warning light has extinguished.

This repair guide is applicable for a wide range of brands and part numbers, including popular ones like Audi, VW, Skoda, Seat, Mercedes-Benz (e.g., A0009053403, 5WK96681D), BMW, Volvo, DAF, SiemensVDO, Continental, Renault, Opel, GM, Vauxhall, Citroen, and Peugeot. If you encounter any further issues after this DIY repair, it's always best practice to contact a specialist for further advice, providing them with any new fault codes from your diagnostic test.

Frequently Asked Questions About NOx Sensors

Are NOx sensors only found in diesel engines?

No, while they are prominently featured in modern diesel vehicles due to higher NOx output, most modern petrol vehicles, especially those with direct injection, are also fitted with at least one NOx sensor to comply with Euro 6 emissions standards.

What is AdBlue® and how is it related to the NOx sensor?

AdBlue® is a non-toxic, high-purity urea solution used in Selective Catalytic Reduction (SCR) systems in diesel vehicles. The NOx sensor measures the levels of nitrogen oxides in the exhaust, and based on this data, the engine management system calculates and controls the precise amount of AdBlue® to be injected into the exhaust stream to neutralise NOx emissions.

What does it mean for a vehicle to be Euro 6 compliant?

Euro 6 is a set of European Union emission standards for new light-duty vehicles. For diesel cars, it specifies a maximum NOx emission limit of 80 mg/km, and for petrol cars, it's 60 mg/km. NOx sensors are crucial for vehicles to meet and maintain these strict limits.

Can I drive my car if the NOx sensor is faulty?

While your car might technically run, driving with a faulty NOx sensor is not advisable. It will likely cause your vehicle to exceed emission limits, illuminate the engine warning light, potentially put the car into 'limp mode' with reduced power, and ultimately lead to an MOT failure. Prolonged driving with a faulty sensor could also negatively impact other expensive exhaust system components.

How long do NOx sensors typically last?

The lifespan of a NOx sensor can vary significantly depending on driving conditions, maintenance, and vehicle age. Being precision components exposed to high temperatures and corrosive exhaust gases, they have a finite lifespan. Soot buildup is a primary cause of premature failure. There isn't a fixed interval for replacement, but they are considered wear-and-tear items that may need replacing at some point during a vehicle's life.

Understanding the NOx sensor is key to appreciating the complex engineering that goes into making modern vehicles cleaner and more efficient. By staying informed and addressing any issues promptly, you can ensure your vehicle remains compliant, performs optimally, and contributes positively to environmental protection.
