Brake Disc Thickness: The Crucial Factor

Understanding Brake Disc Thickness: A Matter of Safety

The performance and reliability of your vehicle's braking system are paramount to your safety on the road. While many components contribute to effective stopping power, the humble brake disc plays a central role. Its thickness, in particular, is not an arbitrary measurement but a precisely engineered specification designed to ensure optimal heat dissipation, structural integrity, and consistent braking performance. Driving with brake discs that have worn below their recommended minimum thickness is not just a minor inconvenience; it's a significant safety hazard that can lead to compromised braking, dangerous driving characteristics, and, in the worst-case scenarios, catastrophic brake failure.

Why Disc Thickness Matters: The Science Behind It

The specification for brake disc thickness is the result of extensive engineering calculations, taking into account several critical factors. Foremost among these is heat dissipation. When you brake, kinetic energy is converted into thermal energy. This heat needs to be effectively shed by the brake discs to prevent overheating, a phenomenon known as brake fade. A thicker disc has more mass, which means it can absorb and dissipate more heat before reaching critical temperatures. This is especially important during prolonged heavy braking, such as descending a long hill, or during emergency stops where the braking system is pushed to its limits.

Another crucial consideration is the caliper and pad retention. The brake caliper houses the brake pads and hydraulic pistons. As the brake pads wear down, the pistons extend further out of the caliper to maintain contact with the disc. If the brake disc is also significantly worn and thinner than specified, these pistons can extend beyond their optimal operating range. This overextension can lead to several problems:

• Uneven Pressure Application: The pistons may not be properly supported, leading to uneven pressure being applied to the brake pads. This can result in reduced braking efficiency and uneven wear on both the pads and the disc.
• Failure to Retract: In some cases, overextended pistons may not retract fully when the brake pedal is released. This 'brake drag' causes continuous friction, generating excess heat and further contributing to wear and potential damage.
• Seal Damage and Fluid Loss: The compromised position of the pistons can damage the seals within the caliper. This can lead to a gradual or rapid loss of brake fluid, which, if left unchecked, will result in a complete loss of braking power.

The Real Risk of Failure: More Than Just Squeaks

The consequences of exceeding the safe minimum disc thickness can be severe and far-reaching. When discs become too thin, they are more susceptible to extreme heat buildup. This heat can cause the metal of the disc to 'anneal,' a process that alters its metallurgical properties, making it softer and less resistant to wear and heat. Furthermore, the friction material of the brake pads can break down at excessively high temperatures, losing its effectiveness and significantly compromising braking performance. This leads to 'brake fade,' where the brake pedal feels spongy, and the car takes much longer to stop.

A more alarming risk is the potential for structural failure. In extreme situations, or with very aggressive braking on discs that are significantly below their minimum thickness, the friction ring (the outer part of the disc that contacts the pads) can actually shear away from the central hub. This catastrophic failure would result in an immediate and total loss of braking on that wheel, leading to a complete loss of vehicle control. The scenario where brake fluid evaporates due to excessive heat, leading to a complete failure of the hydraulic system, is also a very real and dangerous possibility.

The Driving Experience When Discs Are Worn

Beyond the critical safety concerns, driving with worn brake discs significantly degrades the driving experience. You might notice:

• Vibration and Shuddering: Uneven wear or warping of thin discs can cause noticeable vibration or shaking through the steering wheel, especially during braking.
• Increased Pedal Travel: You may find that the brake pedal needs to be pressed further down than usual to achieve the same braking effect. This is a direct indication that the hydraulic system is working harder due to worn components.
• Premature Brake Fade: As mentioned, brake fade will occur much more readily with thinner discs, making the brakes less effective when you need them most.

Checking Your Brake Disc Thickness: Simple and Essential

Fortunately, checking your brake disc thickness is a relatively straightforward process. Most modern brake discs will have the manufacturer's minimum thickness stamped directly onto the hub or the edge of the disc itself. This marking is usually presented as 'MIN TH' followed by a measurement in millimetres (e.g., MIN TH 22mm).

If the marking is not visible or you are unsure, you can easily find the correct specifications for your vehicle. Reputable automotive parts suppliers, such as Apec, often provide detailed product information, including the original manufacturer's recommended minimum thickness for specific vehicle models on their websites. A simple search for your car's make, model, and year on a supplier's database will usually yield this vital information.

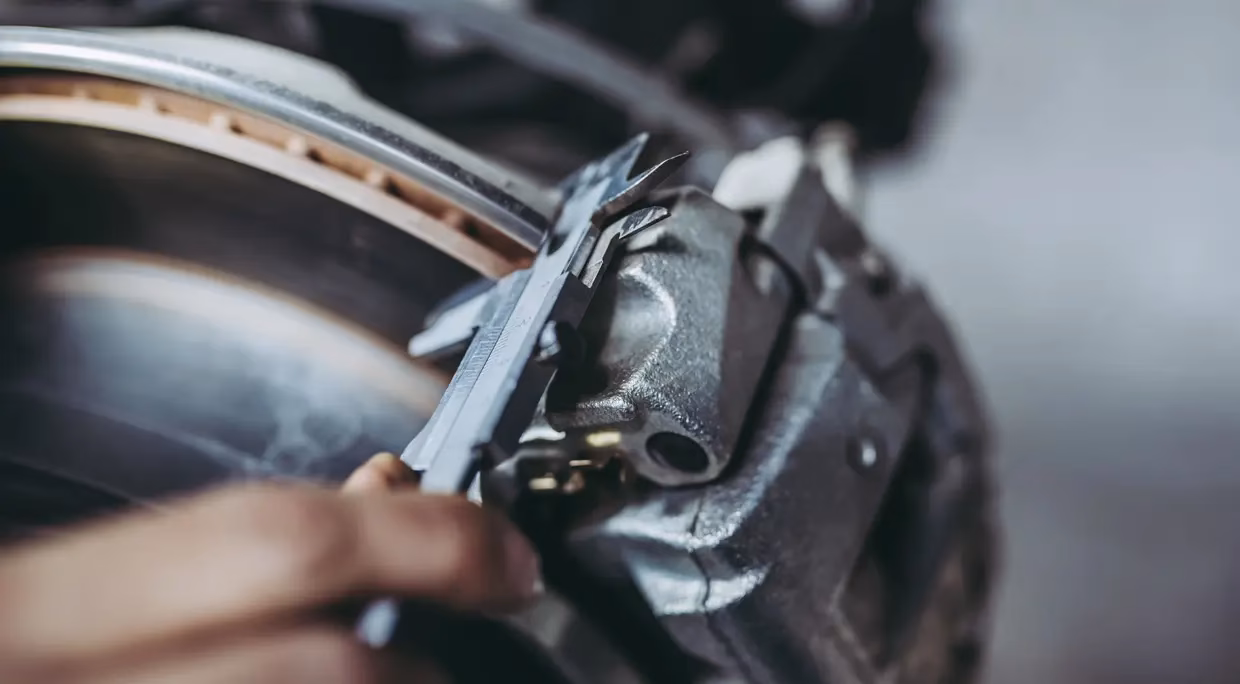

To accurately measure the disc thickness, you will need a vernier caliper or a micrometer. Measure the disc at several points around its circumference, away from any lip that may have formed at the outer edge due to wear. The thinnest measurement you obtain should be compared against the manufacturer's minimum specification. If any measurement is at or below the minimum, the disc must be replaced.

When in Doubt, Replace: The Cost of Prevention

Brake discs are a wear item, and while they can last for a considerable mileage, they will eventually need replacing. Considering the relatively low cost of new brake discs compared to the potential cost of an accident, the message is clear: if you have any doubt about the thickness or condition of your brake discs, the safest course of action is always to replace them. It is a small investment in preventive maintenance that can safeguard your life and the lives of others.

Frequently Asked Questions (FAQs)

Q1: How often should I check my brake disc thickness?
It's advisable to check your brake disc thickness during your regular vehicle servicing, typically every 6-12 months, or whenever you have new brake pads fitted. Visual inspections for scoring or glazing should be done more frequently.

Q2: Can I just replace the brake pads if the discs look okay?
While you can often replace pads without replacing discs, it's crucial that the discs are within their minimum thickness specification and are not excessively worn or damaged. Fitting new pads to very worn discs can lead to poor performance and premature wear of the new pads.

Q3: What happens if my brake discs are below the minimum thickness?
Brake discs below the minimum thickness are unsafe. They have reduced heat dissipation capacity, are more prone to warping and cracking, offer compromised braking performance (brake fade), and can lead to catastrophic failure of the braking system.

Q4: Can a mechanic tell if my discs are too thin?
Yes, a qualified mechanic has the tools and knowledge to accurately measure brake disc thickness and assess their condition against the manufacturer's specifications. They will advise you if replacement is necessary.

Q5: Is it safe to drive with slightly worn discs?
'Slightly worn' is subjective. If the discs are even marginally below the manufacturer's minimum thickness, they are considered unsafe and should be replaced. Always err on the side of caution when it comes to braking systems.

Conclusion: Prioritise Your Safety

The thickness of your brake discs is a critical safety feature. Never compromise on this vital component. Regular checks, understanding the manufacturer's specifications, and timely replacement are essential for maintaining a safe and reliable braking system. Don't gamble with your safety; ensure your brake discs are always within their recommended limits.
