MOT Headlamp Aim Changes Explained

The upcoming changes to the MOT test regarding headlamp aim are set to bring a significant shift in how vehicles are assessed for roadworthiness. Specifically, the Driver and Vehicle Standards Agency (DVSA) is refining the requirements for European 'E' type headlamps, with a particular focus on what is colloquially known as the 'white light' in a critical zone. This modification aims to enhance road safety by ensuring that headlamps do not excessively dazzle oncoming drivers. For many motorists, understanding these nuances can be a source of confusion, especially when it comes to identifying potential failure points. This article will delve into the specifics of these changes, explain the reasoning behind them, and provide clear guidance on what to look out for to ensure your vehicle passes its MOT.

Understanding Headlamp Aim and its Importance

Headlamp aim is a fundamental aspect of vehicle safety. Properly aimed headlights are crucial for illuminating the road ahead without causing undue glare to other road users, particularly those travelling in the opposite direction. Misaligned headlights can lead to several problems: they might not provide sufficient illumination of the road, increasing the risk of accidents in low-light conditions, or they could be aimed too high, blinding oncoming drivers and creating a hazardous situation. The MOT test, as a mandatory inspection of vehicle safety, performance, and roadworthiness, places considerable importance on correct headlamp functioning and alignment. In fact, headlamp aim consistently ranks high on the list of common reasons for MOT failure, indicating its significance in maintaining road safety standards.

The 'Image Break' Point and European 'E' Beams

The forthcoming DVSA changes specifically target European 'E' beam headlamps. These are headlamps that comply with European Union regulations and are commonly found on vehicles sold in the UK and across Europe. The key element being adjusted is the test for the 'image break' point. This refers to the sharp horizontal line or 'cut-off' within the projected beam pattern. This cut-off is designed to separate the illuminated area from the dark area, precisely controlling where the light is directed. For 'E' beams, there are established tolerances for the position of this cut-off line.

New Tolerances and the 'Dazzle Zone'

The DVSA is widening the tolerance band for European 'E' beams, particularly for those with headlamp centres up to 850mm from the ground. This adjustment acknowledges slight variations in manufacturing and vehicle suspension. However, the most significant change is the introduction of a stricter requirement for testing the 'image break' point. Previously, the focus might have been on the overall position of the beam. Now, the DVSA is introducing a more granular check for the presence of 'white light' in a specific area, which they have termed the 'dazzle zone'. This zone is defined by the intersection of the zero per cent vertical line and the 0.5 per cent horizontal line. If any white light is detected within this precisely defined area, the headlamp will be deemed to have failed the test. The rationale is clear: any light escaping into this zone is likely to directly strike the eyes of oncoming drivers, causing significant dazzle and compromising their ability to see the road.

The 'White Light' Rule Explained

The core of the new regulation revolves around the detection of 'white light' in the 'dazzle zone'. Traditionally, headlamp beams are designed to have a clear cut-off, with the upper portion being dark. However, due to various factors, including minor misalignments, wear and tear, or even incorrect bulb types, a small amount of light can sometimes scatter or escape above the intended cut-off. The DVSA's new rule specifically targets this 'white light' emission within the 'dazzle zone'. This means that even if the overall beam appears to be at a reasonable height, the presence of stray light in this critical area will result in a failure. Testers will be looking for a clean, sharp cut-off with no discernible light spilling into the specified zone.

Horizontal Cut-off Limits

To provide a more technical understanding, the MOT inspection manuals specify limits for the horizontal cut-off. For 'E' beams, a headlamp will fail if its horizontal cut-off is positioned either above the upper limit of 0.5 per cent or below the lower limit of 2.75 per cent. These percentages refer to deviations from a baseline measurement. The new rule complements these existing tolerances by focusing on the quality of the beam within a specific segment, rather than just its overall vertical position. The 0.5 per cent horizontal line is particularly important in this context, as it defines the upper boundary of the 'dazzle zone'.

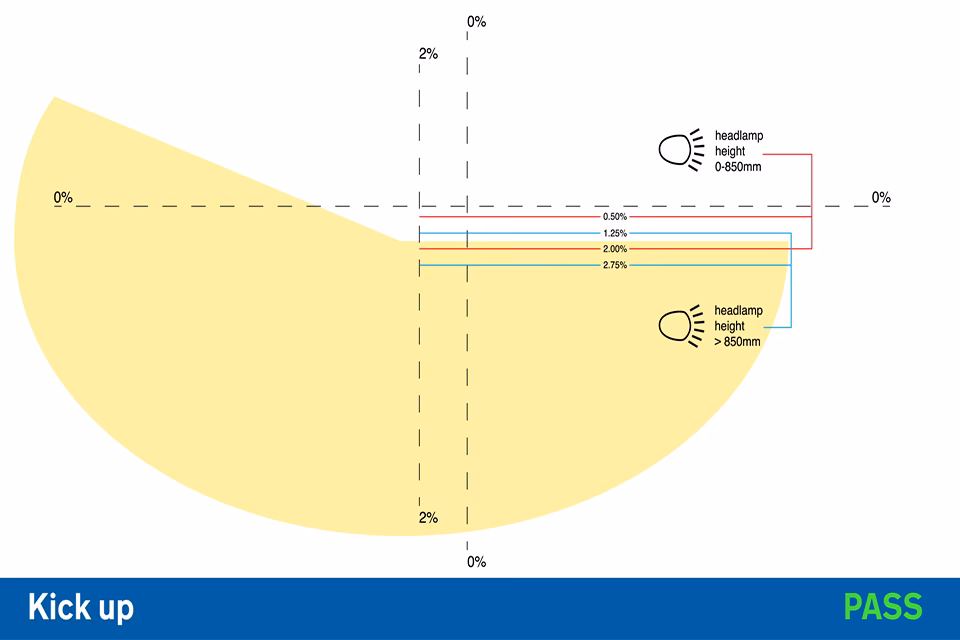

The 'Kick Up' Requirement

Beyond the 'white light' detection, the DVSA is also reinforcing the requirement for a visible 'kick up' on the screen if it is specified for the particular headlamp design. The 'kick up' is a small upward curve in the light pattern just to the left of the main beam (for left-hand drive) or right (for right-hand drive). This feature is designed to illuminate road signs and verges at a higher level. Its presence and correct formation are also part of the MOT inspection, ensuring the headlamp provides comprehensive illumination.

When Do These Changes Take Effect?

The updated MOT inspection manuals, incorporating these new standards for headlamp aim testing, are scheduled to be published and come into effect on March 24. This means that any vehicle undergoing an MOT test from this date onwards will be subject to these enhanced checks. It is advisable for vehicle owners to be aware of these changes and, if possible, have their headlamp alignment checked by a qualified mechanic before their MOT is due.

What This Means for Vehicle Owners

For the average car owner, these changes underscore the importance of maintaining properly functioning and aligned headlights. Several factors can affect headlamp aim over time:

• Vehicle Load: Carrying heavy loads, especially in the boot, can cause the rear of the vehicle to dip, consequently raising the front and potentially causing headlights to aim too high.
• Suspension Wear: Worn suspension components can alter the vehicle's ride height, impacting headlamp alignment.
• Impacts: Minor bumps or accidents can knock headlamps out of alignment even if there's no visible damage.
• Incorrect Bulb Replacement: Using the wrong type of bulb or fitting a bulb incorrectly can affect the beam pattern and potentially cause issues.

It is recommended to have your headlamp alignment checked periodically, especially if you notice any changes in how your headlights perform or if your vehicle has recently experienced any significant load changes or impacts. Many garages offer a headlamp alignment service, which is a relatively inexpensive way to ensure compliance and improve your night-time visibility.

Table: Key Changes to Headlamp Aim Testing

Frequently Asked Questions

Q1: Will my older car be affected by these changes?
These specific changes primarily target European 'E' type headlamps. While older vehicles might have different headlamp designs, the general principle of proper aim remains crucial. If your older vehicle has 'E' marked headlamps, then yes, it will be subject to these new checks.

Q2: What exactly is the 'dazzle zone'?
The 'dazzle zone' is a specific area defined by the DVSA for testing 'E' beam headlamps. It's formed by the intersection of the zero per cent vertical line and the 0.5 per cent horizontal line. The presence of white light in this zone indicates that the headlamp is likely to dazzle oncoming drivers.

Q3: How can I check if my headlamps are correctly aimed?
The best way is to visit a qualified mechanic or MOT testing station. They have specialised equipment to accurately measure headlamp aim and can adjust them if necessary. Visually, you can sometimes tell if your lights are too high or too low, but precise alignment requires professional equipment.

Q4: What if my headlamps have been modified?
Any modifications to headlamp units or the electrical system that affect the beam pattern could potentially lead to a failure if they do not meet the new standards. It's essential that any modifications are done correctly and comply with regulations.

Q5: Is this a new rule for all MOT tests?
This is a refinement of the existing headlamp aim test, specifically focusing on a more detailed aspect of the beam pattern for European 'E' type headlamps. The overall importance of headlamp aim remains, but the testing methodology for these specific headlamps is becoming more stringent.

Conclusion

The DVSA's updated approach to headlamp aim testing, particularly the introduction of the 'white light' check within the 'dazzle zone' for European 'E' beams, signifies a commitment to enhancing road safety. By focusing on the precise quality of the beam cut-off, the agency aims to reduce the incidence of dazzle for oncoming drivers. Vehicle owners should be aware of the March 24 effective date and consider having their headlamp alignment checked proactively. Proper headlamp aim is not just about passing the MOT; it's about ensuring visibility for yourself and safety for everyone else on the road. A well-aimed headlamp is a bright spot in road safety, ensuring that your journey is both visible and safe, especially during those crucial night-time drives.
