Ship Ladders: Critical Safety & Maintenance

On board any vessel, the humble ladder or gangway is far more than just a means of ascent or descent; it is a critical piece of safety equipment, a vital conduit for operations, and a primary access point to the ship. From facilitating embarkation and disembarkation to enabling a myriad of essential tasks, these structures are indispensable. Typically crafted from materials like wood or aluminium, their design prioritises both strength and lightness, making them robust yet manageable. However, their constant exposure to harsh marine environments and their pivotal role in personnel movement mean that their integrity is paramount. Neglecting their condition isn't merely a lapse in maintenance; it's an invitation to severe accidents, regulatory infringements, and potentially debilitating vessel detentions.

Understanding Accommodation Ladders and Gangways

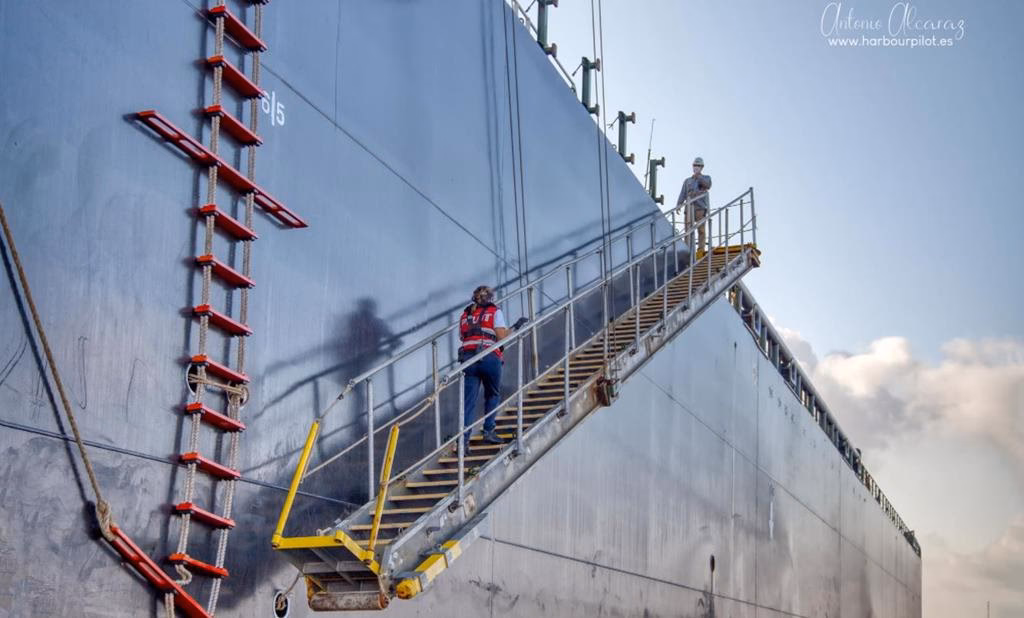

While often used interchangeably by the layperson, 'ladders' on a ship encompass a range of designs, with accommodation ladders and gangways being the most prominent when discussing embarkation and disembarkation. An accommodation ladder is a portable, self-contained stairway that typically extends from the ship's side to the quay or another vessel, providing a stable, inclined path. Gangways, on the other hand, are often lighter, more portable ramps or walkways, sometimes with steps, primarily used for short-term access or when the height difference is minimal. Both serve the fundamental purpose of safe access but differ in their structural complexity and typical deployment scenarios. Their construction, often involving robust aluminium alloys or treated hardwoods combined with steel fittings, demands a comprehensive understanding of material interaction, especially concerning corrosion.

The Regulatory Imperative: SOLAS and IMO Guidelines

The importance of these access means is underscored by stringent international regulations. The International Maritime Organization (IMO), through its Safety of Life at Sea (SOLAS) Convention, has established clear mandates to ensure the safety of embarkation and disembarkation. A key regulation in this regard is SOLAS regulation II-1/3-9, titled 'Means of embarkation on and disembarkation from ships', which came into force on 1st January 2010. While primarily aimed at newly constructed ships, a crucial final paragraph extends its reach to existing vessels, stipulating that all means of embarkation and disembarkation must be inspected and maintained at appropriate intervals.

This regulation is further detailed by MSC.1/Circ.1331, 'Guidelines for Construction, Installation, Maintenance and Inspection / Survey of Means of Embarkation and Disembarkation'. This circular provides the granular detail necessary for compliance, referencing SOLAS regulation III/20.7.2, which specifically mandates monthly inspection and maintenance. For ship owners and operators, this isn't just a recommendation; it's a legal requirement, compliance with which is a major focus during Port State Control (PSC) inspections. Non-compliance can lead to severe penalties, including the detention of the vessel, incurring significant operational costs and reputational damage.

The Cornerstone of Safety: Rigorous Inspection and Maintenance

Effective maintenance of accommodation ladders and gangways is not a discretionary task; it's a non-negotiable aspect of maritime safety. The monthly inspection requirement, as per SOLAS regulation III/20.7.2, refers to the instructions for onboard maintenance detailed in regulation III/36. This regulation dictates that maintenance instructions must be easily understood, ideally illustrated, and include vital components such as checklists, maintenance schedules, lubrication instructions, spare parts information, and detailed inspection and maintenance records. Integrating these into the vessel's Planned Maintenance System (PMS) is highly recommended, ensuring a systematic and documented approach to upkeep.

Key Elements of Inspection and Maintenance Checklists:

A comprehensive checklist is the backbone of effective maintenance. It ensures no critical component is overlooked and provides a clear audit trail. Here are the essential elements that should be included:

• Structural Integrity: Distortion and Cracks: Thoroughly inspect the entire structure for any signs of bending, twisting, or deformation (distortion). Pay particular attention to welds, joints, and high-stress areas for cracks. Even hairline cracks can propagate under stress, leading to catastrophic failure.
• Corrosion Assessment: Marine environments are inherently corrosive. Check for rust on steel components and pitting or oxidation on aluminium. A critical area is where dissimilar metals meet, such as mild steel fittings on aluminium ladders, which are highly susceptible to galvanic corrosion. Proper isolation and protective coatings are essential.
• Moving Parts Functionality: All moving components – turntables, sheaves, tracks, bearings, and rollers – must be free to turn without binding or excessive friction. These parts facilitate the deployment and retrieval of the ladder. Regular cleaning and lubrication with an appropriate marine-grade grease product are vital to prevent seizing and ensure smooth operation.
• Stanchions and Side Ropes: Bent stanchions compromise the safety barrier and should be replaced immediately. Side ropes, often made of natural or synthetic fibres, need careful inspection along their entire length for fraying, cuts, excessive wear, or degradation from UV exposure or chemical spills. Any damage necessitates immediate replacement.
• Underside Inspection: The underside of an accommodation ladder or gangway is often out of sight and therefore out of mind, but it is equally exposed to marine elements and mechanical stress. Inspect for distortion, cracks, and corrosion, particularly at attachment points and where components are joined.
• Supporting Structures: The integrity of the structure's supporting points on the ship's deck and the winch beds is paramount. These bear the load of the ladder and its users. Check for distortion, cracks, or corrosion at these critical interface points.
• Bulwark Ladders: If in use, bulwark ladders, which provide access over the ship's bulwark, require equally close inspection for any signs of damage, especially at their securing points and steps.
• Safety Nets Condition: Safety nets, when fitted, are a last line of defence against falls. Inspect them meticulously for wear, tears, holes, and any damage from actinic degradation (UV light exposure), as well as impregnation by chemicals, grease, or paint, which can weaken the material. Damaged nets must be replaced.
• Winch Brake System: The winch brake is a critical safety component, preventing uncontrolled deployment or retrieval. Inspect its condition thoroughly, ensuring it engages effectively and holds the load. Replace brake pads as necessary to maintain optimal braking performance.
• Power Supply and Control Systems: For powered ladders, verify the satisfactory operation of the entire power supply system, including cables, connections, and emergency stops. The control system (buttons, levers, remote controls) must function correctly and respond promptly.
• Limit Switches: These crucial safety devices prevent over-extension or over-retraction of the ladder, avoiding mechanical damage or unsafe angles. Test their satisfactory operation to ensure they trip at the correct limits.

The Lifeline: Fall Wires

The fall wires are arguably the most critical component of a deployable accommodation ladder or gangway, as they bear the entire load during lifting and lowering. SOLAS regulation II-1/3-9 explicitly states that all wires used to support these means of embarkation and disembarkation must be maintained as specified in SOLAS regulation III/20.4. This regulation, pertaining to falls used in life-saving appliances, mandates periodic inspection with special regard to areas passing through sheaves, in line with MSC.1/Circ.1206/(rev 1) 'Measures to Prevent Accidents with Lifeboats'.

Key requirements for fall wires include:

• Periodic Inspection: Wires must be regularly inspected for satisfactory condition, paying close attention to signs of corrosion, damage such as kinks, flattening, bird-caging, or broken wires.
• Lubrication: Wires should be kept properly greased with a suitable wire rope dressing to prevent corrosion and reduce internal friction.
• Renewal Intervals: Fall wires must be renewed when necessary due to deterioration or at intervals of not more than 5 years, whichever is earlier.
• Wire Discard Criteria: It is strongly recommended that the vessel's Safety Management System (SMS) includes a clear wire discard criterion. This ensures that fall wires are replaced proactively before they deteriorate to an unacceptable degree, rather than waiting for obvious failure signs.
• Record Keeping and Stencilling: The date of fall wire renewal should be prominently stencilled in the vicinity of the fall wire winch for easy reference and audit.

Meticulous Record Keeping: Your Proof of Compliance

Beyond the physical inspection and maintenance, diligent record keeping is paramount. These records serve as tangible proof of compliance for Port State Control, provide a historical log for future maintenance planning, and are invaluable in the event of an incident investigation. Recommended records include:

• Details of the dates of inspection and maintenance.
• A comprehensive description of the work undertaken.
• The name of the person or body undertaking the work.
• The due date for the next inspection.
• The date of the renewal of the fall wires.

These records should be readily available for inspection by authorities and should be integrated into the vessel's overall documentation system.

Visual Inspection Prior to Each Use

While periodic, detailed inspections are crucial, an immediate visual inspection of the accommodation ladder or gangway should be conducted each and every time it is rigged for use. This quick check can identify obvious damage or malfunctions that may have occurred since the last formal inspection, providing an immediate safety check before personnel are allowed to use the access equipment. This proactive approach significantly reduces the risk of accidents during routine operations.

Common Ladder/Gangway Issues and Their Risks

Understanding the potential pitfalls can help in proactive maintenance and risk mitigation.

Frequently Asked Questions (FAQs)

What is the primary purpose of an accommodation ladder?

The primary purpose of an accommodation ladder is to provide a safe and stable means for personnel to embark on or disembark from a ship, connecting the vessel to a quay, pier, or another vessel.

How often should ship ladders and gangways be inspected?

According to SOLAS regulation III/20.7.2, referencing MSC.1/Circ.1331, accommodation ladders and gangways must undergo a detailed inspection and maintenance at least monthly. Additionally, a visual inspection should be carried out each time the ladder is rigged for use.

What does SOLAS regulation II-1/3-9 cover?

SOLAS regulation II-1/3-9, 'Means of embarkation on and disembarkation from ships', sets out the construction, installation, maintenance, and testing requirements for equipment like accommodation ladders and gangways, applying to both new and existing ships.

Why are fall wires considered so critical, and what are their renewal requirements?

Fall wires are critical because they physically support the ladder and its users during deployment and retrieval. They are subject to immense stress. SOLAS regulation III/20.4 mandates their renewal every 5 years or sooner if deterioration is observed, whichever comes first, to prevent catastrophic failure.

What are the consequences if a vessel is found non-compliant with ladder maintenance during a Port State Control inspection?

Non-compliance can lead to severe sanctions, including the detention of the vessel until deficiencies are rectified, fines, and significant disruption to the ship's schedule and operations. It also negatively impacts the company's reputation and safety record.

Can any type of grease be used for lubricating moving parts on a ship ladder?

No, it's crucial to use an appropriate marine-grade grease product. Standard greases may not withstand the marine environment (saltwater, temperature fluctuations) and could lead to rapid degradation, corrosion, and ineffective lubrication, potentially seizing moving parts.

Conclusion

The safety of personnel embarking on or disembarking from a ship hinges significantly on the meticulous maintenance of accommodation ladders and gangways. These vital pieces of equipment, often taken for granted, are subject to rigorous international regulations, particularly under SOLAS and associated IMO circulars. Adhering to these mandates through a robust Planned Maintenance System, thorough monthly inspections, diligent record keeping, and immediate visual checks before each use is not merely a bureaucratic exercise. It is a fundamental commitment to safety, a safeguard against serious accidents, and a critical defence against costly vessel detentions by Port State Control. By prioritising the integrity of these access points, ship operators not only ensure compliance but, more importantly, uphold the highest standards of maritime safety, protecting their crew and reputation.
