Understanding Your Car's Suspension System

Every journey you take in your car, whether it's a short trip to the shops or a long cross-country drive, relies heavily on a complex system designed to keep your wheels firmly on the ground and your ride smooth: the suspension. Far more than just springs and shock absorbers, the suspension system is a sophisticated network of components working in harmony to absorb bumps, maintain tyre contact with the road, and allow for precise steering and handling. At the heart of this system are crucial parts like suspension arms and their integrated ball joints, which are fundamental to both your comfort and, more importantly, your safety.

Understanding these components isn't just for mechanics; it's vital for any car owner keen on maintaining their vehicle's integrity and ensuring a safe driving experience. Worn suspension parts can lead to a myriad of issues, from subtle noises to significant handling problems, and even MOT failures. This article will delve into what suspension arms and ball joints are, how they function, the common signs of wear, and what to do if you suspect an issue, including specific insights into worn suspension arm pins and bushes.

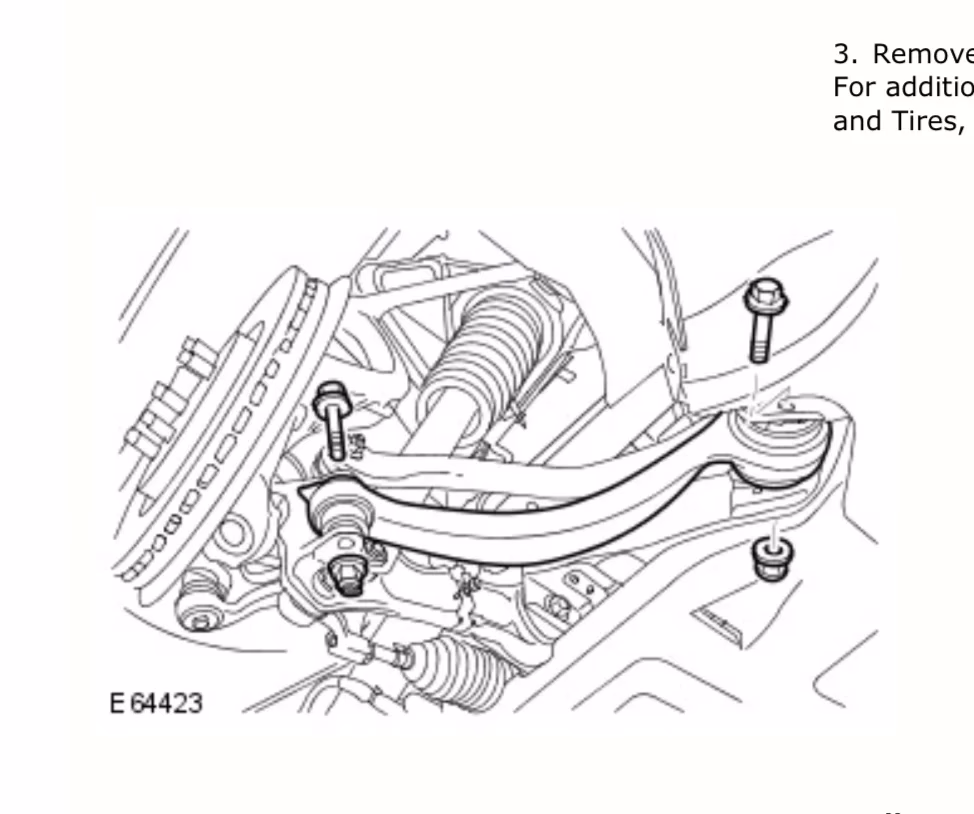

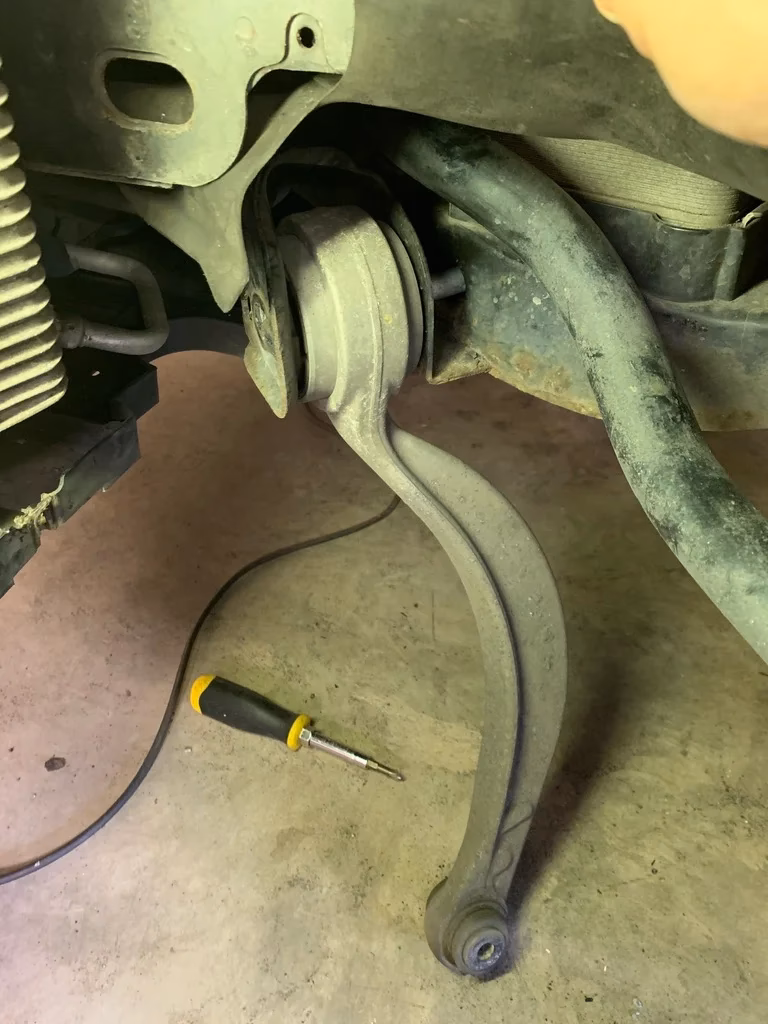

What is a Suspension Arm?

Often referred to as a 'control arm' or 'wishbone', a suspension arm is a pivotal link in your car's suspension system. Its primary role is to connect the vehicle's chassis to the wheel hub or steering knuckle. This connection allows the wheel to move vertically in response to road irregularities, while simultaneously controlling its lateral and longitudinal movement. Without suspension arms, your wheels would simply bounce uncontrolled, making driving impossible and incredibly dangerous.

Suspension arms are typically made from robust materials like steel or aluminium and come in various configurations, such as A-arms (or wishbones), L-arms, or trailing arms, depending on the specific suspension design (e.g., MacPherson strut, double wishbone). They are designed to withstand considerable forces, transmitting the load from the wheels to the chassis while allowing for precise control over the wheel's position and alignment.

The Critical Role of a Ball Joint

A ball joint is essentially a flexible, spherical bearing that acts as a pivot point, allowing rotational movement in multiple directions. Think of it like the ball-and-socket joint in your shoulder. In a car's suspension, ball joints connect the suspension arms to the steering knuckle, permitting the wheels to steer and articulate vertically as the suspension moves up and down. This multi-directional flexibility is absolutely crucial for proper steering and for ensuring the tyres maintain constant contact with the road surface, even when navigating bumps or turning corners.

Most vehicles have at least one upper and one lower ball joint per front wheel, although some designs may use more or fewer. They consist of a metal housing, a stud with a ball on one end, and a protective rubber boot filled with grease. The boot is vital as it keeps the lubricating grease in and prevents dirt, water, and debris from entering and causing premature wear. When a ball joint wears out, it develops play, leading to a host of problems.

Why Ball Joints are Crucial for Safety and Handling

The integrity of your ball joints directly impacts your vehicle's handling and safety. Worn ball joints can lead to:

• Loose Steering: Excessive play in the ball joint can make the steering feel vague or loose, reducing your control over the vehicle.
• Uneven Tyre Wear: Misalignment caused by worn ball joints can lead to accelerated and uneven wear on your tyres, costing you money and reducing grip.
• Noises: A common symptom is a clunking, popping, or squeaking noise, particularly when going over bumps or turning.
• Instability: In severe cases, a completely failed ball joint can cause the wheel to separate from the suspension, leading to a catastrophic loss of control. This is why regular inspection is paramount.

Understanding Suspension Arm Pins and Bushes

While ball joints provide rotational freedom, suspension arm pins and bushes facilitate the pivotal movement of the suspension arm itself where it connects to the vehicle's chassis or subframe. A 'pin' might refer to a bolt or shaft around which the arm pivots, while 'bushes' (or 'bushings') are flexible components, typically made of rubber or polyurethane, that are pressed into the ends of the suspension arm. They surround the pin or bolt, providing a cushion that absorbs vibrations, reduces noise, and allows for controlled movement without metal-on-metal contact.

Bushes are critical for isolating road noise and vibrations from the cabin, providing a smoother ride. They also play a significant role in maintaining proper wheel alignment and geometry under various driving conditions, ensuring precise steering and stable handling.

Signs of Worn Suspension Arm Pins or Bushes

Like ball joints, bushes and pins are subject to wear and tear over time due to constant movement, exposure to road contaminants, and the forces they endure. The symptoms of worn bushes or pins can often overlap with those of worn ball joints, making accurate diagnosis important. Common signs include:

• Clunking or Knocking Noises: Especially noticeable when accelerating, braking, or going over bumps. This is often due to excessive play in the worn bush allowing the metal components to knock against each other.
• Vague Steering: Similar to worn ball joints, worn bushes can lead to a less responsive steering feel, as the suspension arm isn't held as rigidly.
• Vehicle Pulling to One Side: Worn bushes can affect wheel alignment, causing the car to drift or pull.
• Uneven Tyre Wear: Again, misalignment caused by play in the bushes can lead to premature and uneven tyre wear.
• Excessive Body Roll: If bushes are too soft or worn, the vehicle might exhibit more body roll during cornering.

The MOT and 'Worn but Not Excessive Movement'

The information provided highlights a specific MOT test criterion: 'Front Lower Suspension arm pin or bush worn but not resulting in excessive movement both side (5.3.4 (a) (i))'. This is a fascinating and often frustrating point for car owners. It means that while the component is identified as worn, the degree of wear does not yet exceed the specific limits set by the MOT regulations for a 'fail'.

A service manager reassuring you that 'they do see it' and 'it is nothing to worry about' suggests that this is a common observation. However, it's crucial to understand the nuance. While it might not be an immediate MOT fail, 'worn' still means the component is no longer performing optimally. It's a precursor to a more significant issue. Even if it passes the MOT, the slight play could still:

• Accelerate Wear on Other Components: The added stress from a slightly loose component can prematurely wear out tyres, other suspension parts, or even steering components.
• Compromise Handling: While not 'excessive' enough for an MOT fail, even minor play can subtly impact the car's steering precision and stability, especially at higher speeds or during emergency manoeuvres.
• Lead to Future Failure: A 'worn' component will eventually become 'excessively worn' and lead to a definite MOT failure or, worse, a component failure on the road.

The service manager's comment about it not being covered by manufacturer's warranty, especially with only a month left, is also typical. Wear and tear items are generally excluded from warranties, as their degradation is expected over time and mileage. Manufacturers often argue that such wear is a result of normal use, not a manufacturing defect. This puts the onus on the owner to cover the cost of replacement, even if the wear started while the car was under warranty.

Therefore, while you might pass your MOT with this advisory, it should be taken seriously. It's a warning sign that attention is needed soon. It's akin to your car having slightly low tyre tread; it's legal now, but you know you'll need new tyres before long.

When to Replace Suspension Components

Replacing suspension components is often reactive, meaning it happens when a problem becomes obvious or an MOT failure occurs. However, proactive inspection can save you money and ensure continued safety.

Inspection and Diagnosis

A skilled mechanic can diagnose worn ball joints, pins, and bushes during a routine service or a specific suspension check. This usually involves:

• Visual Inspection: Checking for cracked or torn rubber boots on ball joints and bushes, which allow contaminants in and grease out.
• Leverage Test: Using a pry bar to check for excessive play or movement in the joints and bushes.
• Listening for Noises: Replicating conditions where noises occur (e.g., driving over speed bumps slowly).

If you receive an MOT advisory for 'worn but not excessive movement', it's wise to budget for replacement in the near future. Don't wait until it becomes a dangerous failure or a definite MOT fail. The cost of replacing these components can vary significantly depending on your vehicle model and whether you replace just the bush/pin or the entire suspension arm (as some bushes are not individually replaceable).

Comparison: Worn Ball Joint vs. Worn Bush

While symptoms can overlap, here's a general guide to help differentiate:

Frequently Asked Questions (FAQs)

Q: How often should ball joints and bushes be checked?

A: They should be inspected during every service, typically annually or every 10,000-12,000 miles, and certainly as part of your annual MOT test. Visually inspecting the rubber boots for cracks or tears is a good preventative measure.

Q: Is it safe to drive with a worn suspension arm pin or bush?

A: If the wear is minimal and only an advisory (like 5.3.4 (a) (i)), it might be safe for a limited time, but it's not ideal. Any 'worn' component means reduced performance and increased risk. If there's excessive movement, it's unsafe and could lead to a catastrophic failure, especially a ball joint separating, which would result in immediate loss of control. Always seek professional advice if you suspect significant wear.

Q: Will worn bushes affect my MOT?

A: Yes, if the wear is deemed 'excessive'. The MOT test specifically checks for play in suspension bushes and ball joints. If the movement exceeds the specified limits, it will result in a fail. An advisory, like the one mentioned, means it's worn but not yet a fail, indicating it needs attention soon.

Q: Why isn't wear covered by my manufacturer's warranty?

A: Manufacturer warranties typically cover defects in materials or workmanship, not normal wear and tear. Suspension components like ball joints, bushes, shock absorbers, and springs are designed to wear out over time due to the constant stress and movement they endure. Therefore, unless there's evidence of a manufacturing defect causing premature failure, their degradation is generally considered a maintenance item to be covered by the owner.

Q: Can I replace just the bush or pin, or do I need a whole new suspension arm?

A: This depends on the specific vehicle and suspension arm design. For many vehicles, bushes can be pressed out and replaced individually. However, some suspension arms are designed as a single unit, where the bushes (and sometimes the ball joint) are not available separately, meaning the entire arm needs replacing if one component fails. Always check with a reputable parts supplier or mechanic for your specific car model.

Conclusion

Your car's suspension system, with its intricate network of suspension arms, ball joints, and bushes, is fundamental to a safe, comfortable, and controlled driving experience. While components are designed for durability, they are subject to wear and tear. Understanding the signs of worn parts – from subtle noises to changes in handling – is crucial for timely intervention. Even an MOT advisory for 'worn but not excessive movement' should be taken as a clear signal for future maintenance. Prioritising the health of your suspension not only ensures your comfort but, more importantly, keeps you and your passengers safe on the road. Don't underestimate the quiet work of these vital components; regular checks and prompt repairs are key to your vehicle's longevity and your peace of mind.
