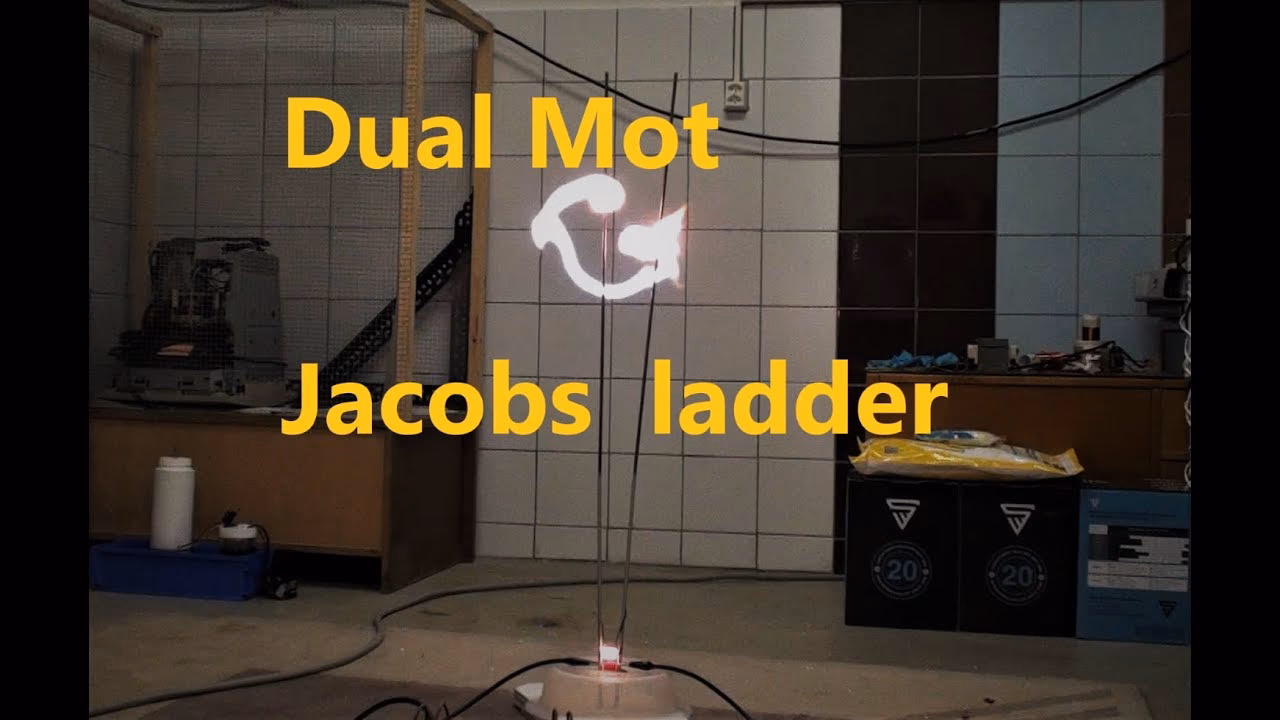

The Jacob's Ladder: A High-Voltage Marvel

The allure of high-voltage electricity has captivated imaginations for generations, none more so than in the realm of cinema. The original 1931 film *Frankenstein*, starring Boris Karloff, not only cemented horror tropes but also showcased a truly electrifying contraption: the Jacob's Ladder. This device, characterised by its two vertical conductors and a mesmerising electrical arc that dances upwards, is more than just a cinematic prop; it's a tangible demonstration of fundamental physics principles. From its iconic screen presence to the possibility of building one yourself, the Jacob's Ladder offers a unique window into the world of plasma and high-voltage phenomena.

The Science Behind the Spectacle

At its core, the Jacob's Ladder operates on a deceptively simple scientific premise. When a sufficiently high voltage is applied across two conductors separated by an insulating medium, such as air, the electrons within the air molecules are accelerated. These energetic electrons collide with other air molecules, knocking off more electrons in a cascade effect. This process, known as dielectric breakdown, ionises the air, transforming it into a plasma – an electrically conductive state of matter.

The visible manifestation of this is the bright, buzzing electrical arc. But what makes the arc travel upwards? This is where the principles of heat and density come into play. The intense heat generated by the electrical arc causes the air surrounding it to expand and become less dense than the cooler air above. Due to buoyancy, this less dense, hotter air rises. As the plasma is carried upwards by this rising column of hot air, it effectively pulls the electrical current along with it. The arc thus appears to 'climb' the conductors, reforming at the base as the process continuously repeats. This creates the signature upward-moving arc that makes the Jacob's Ladder so visually striking.

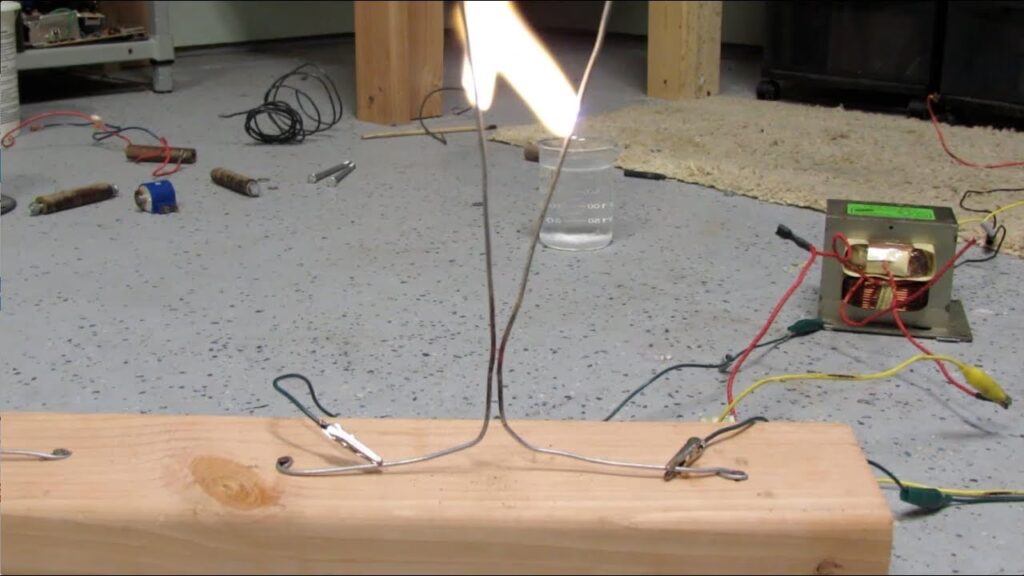

From Hollywood to the Workshop: Building Your Own Jacob's Ladder

The captivating visual of the Jacob's Ladder has inspired many to recreate this phenomenon outside the confines of a film studio. While the principles are straightforward, building a functional and safe Jacob's Ladder requires careful attention to detail and a respect for the high voltages involved. The original article from Popular Science outlines a project that can be undertaken with readily available components, though safety precautions are paramount. Let's break down the process:

Essential Components:

To construct a Jacob's Ladder, you will need a specific set of materials:

Step-by-Step Construction:

1. Preparation: Ensure the transformer is unplugged at all times during the construction process. This is a critical safety step.
2. Mounting the Terminal Strip: Secure the three-position terminal strip to the centre of the plywood board using the No. 10 screws.
3. Attaching the Electrodes: Connect the two 14-inch No. 10 bare copper wires to the terminal strip. Position them so there is one terminal space between them. These wires will be the vertical conductors.
4. Creating the Arc Initiator: Remove the screw from the terminal located between the two copper wire electrodes. Replace this screw with the headless No. 10 bolt.
5. Positioning the Electrodes: Carefully angle the copper wires. They should be approximately 1 centimetre apart at the top of the bolt and spread out to a maximum separation of 6 centimetres at their upper ends. This V-shape is essential for the arc to travel upwards.
6. Wiring the Resistors: Solder the two 1-megaohm resistors together in series. Attach one end of this resistor chain to one of the electrode terminals on the strip and the other end to the terminal where the headless bolt is located.
7. Connecting the Transformer: Use the 16-gauge insulated wire to connect the positive terminal of the neon-sign transformer to one of the electrode terminals on the strip. Connect the negative transformer terminal to the other electrode terminal.
8. Grounding the Transformer: It is vital to ground the transformer's casing. If your transformer has a dedicated grounding screw, connect it to the ground conductor of the electrical plug. This is a crucial safety feature to prevent electrical shock.
9. Enclosing for Safety: For essential protection, place the clear polycarbonate container over the electrodes and the base of the Jacob's Ladder. Ensure it is securely fitted.

Operating Your Jacob's Ladder Safely

Once construction is complete, operating the Jacob's Ladder requires strict adherence to safety protocols. The most important rule is to always stand well clear of the device when the transformer is plugged in. Never touch or even go within a foot of the electrodes when the unit is powered, as the high voltages can cause severe injury or even be fatal. Ensure the area is well-ventilated, as the arcing process can produce ozone, which in high concentrations can be harmful.

When you are certain that everyone is at a safe distance and the enclosure is in place, plug in the transformer. You should observe an electrical arc forming at the base of the electrodes (near the bolt), which will then ascend along the conductors before reappearing at the bottom, continuing the cycle. The visual effect is both mesmerising and a powerful demonstration of electrical principles.

Frequently Asked Questions

What is the primary function of the resistors?

The resistors, when wired in series, help to limit the current flowing through the Jacob's Ladder. This can add a layer of safety by preventing excessive current draw and can also help to stabilise the arc.

Why does the arc travel upwards?

The arc travels upwards because the intense heat of the plasma causes the surrounding air to expand and become less dense. This hot, less dense air rises due to buoyancy, carrying the electrical current with it.

Is it safe to build a Jacob's Ladder at home?

Building a Jacob's Ladder involves working with very high voltages, which are inherently dangerous. While the project is described as 'easy to medium' difficulty, it requires a thorough understanding of electrical safety and careful construction. Always prioritise safety, use appropriate enclosures, and never operate it without supervision or when too close.

What kind of transformer is needed?

A neon-sign transformer is typically used, providing the high voltage (in the range of 9,000 to 15,000 volts) necessary to ionise the air and create the electrical arc.

Can the Jacob's Ladder be used outdoors?

It is generally recommended to operate a Jacob's Ladder in a controlled indoor environment. Outdoor operation could expose the device to moisture and unpredictable atmospheric conditions, increasing safety risks and potentially damaging the equipment. Always ensure a dry, well-ventilated space.

The Enduring Appeal

The Jacob's Ladder, whether seen on screen or demonstrated in a workshop, remains a powerful symbol of scientific curiosity and the awe-inspiring nature of electricity. Its ability to transform seemingly empty air into a vibrant, moving column of plasma is a testament to the fundamental forces that govern our universe. While the 'mad scientist' trope associated with it is fictional, the underlying science is very real and accessible to those willing to learn and build with utmost caution.
