When an electric motor springs to life, it doesn't just smoothly transition to its operational state. Instead, it unleashes a momentary but powerful surge of electricity known as motor inrush current. This initial burst is significantly higher than the motor's normal running current and, if not properly managed, can lead to a host of electrical problems, from flickering lights to tripped circuit breakers and even damaged equipment. Understanding and accurately calculating this phenomenon is absolutely essential for anyone involved in designing, maintaining, or troubleshooting electrical systems in the UK and beyond.
This comprehensive guide delves into the intricacies of motor inrush current, explaining its causes, the problems it creates, and how to calculate it using industry-standard methods, including NEMA classifications. We'll explore practical examples, discuss effective mitigation strategies, and shed light on how accurate measurement can save you significant headaches and costs.
What Exactly is Motor Inrush Current?
At its core, motor inrush current is the initial, very high current drawn by an electric motor the moment it is energised. Think of it as the motor's 'sprint' before it settles into its 'marathon' pace. This surge is typically much greater than the motor's full-load current (FLC), often ranging from 6 to 10 times the FLC, though it can be even higher for certain types of loads like transformers, which might see surges up to 25 times their normal rated current.
The primary reasons for this initial current spike are:
- Overcoming Inertia: When a motor starts, it must overcome the inertia of its rotating components and any connected load from a complete standstill. This requires a substantial amount of torque, which in turn demands a high current.
- Absence of Back Electromotive Force (EMF): As a motor rotates, it generates a 'back EMF' that opposes the applied voltage, thereby limiting the current drawn. At the moment of startup, when the rotor is stationary, no back EMF is present. Consequently, the motor's winding impedance is the only significant factor limiting the current flow, leading to a large initial current. As the motor speeds up, back EMF increases, and the current gradually reduces to its steady-state full-load value.
The Problems Caused by Inrush Current
The transient nature of inrush current makes it a common culprit behind various electrical system woes. These problems can broadly be categorised into two areas:
1. Circuit Protection Equipment Tripping
Circuit breakers and fuses are designed to protect electrical installations by tripping or blowing when an overcurrent condition occurs. The challenge with inrush current is that it is a higher-than-normal current, albeit for a very short duration. This often makes it difficult to select protection devices that adequately safeguard the system against genuine faults without nuisance tripping every time a motor starts. An incorrectly sized or non-time-delay protective device will repeatedly trip, causing downtime and frustration.
2. Voltage Dips and Sags
When a large current is drawn from an electrical installation, the voltage supplied to all connected loads will inevitably drop. This phenomenon, known as a voltage dip or sag, is a direct consequence of Ohm's Law and the inherent impedance of cables, transformers, and other components within the electrical network. A significant inrush current causes a more pronounced voltage dip than under steady-state conditions.
These voltage dips can manifest in several disruptive ways:
- Flickering Lights: A common and noticeable symptom, which, while often just annoying, indicates a system under momentary stress.
- Malfunctioning IT and Electronic Equipment: More critically, sensitive electronic devices, such as computers, control systems, and LED lighting, can be highly susceptible to voltage fluctuations. Dips can cause data corruption, unexpected reboots, or erratic operation, leading to significant operational disruptions and potential equipment damage.
- Reduced Motor Torque: A severe voltage dip can reduce the motor's starting torque, potentially preventing it from reaching its operational speed, especially under heavy loads.
Understanding NEMA Motor Inrush Current Classification
To help engineers and electricians predict and manage inrush currents, the National Electrical Manufacturers Association (NEMA) has developed a system of locked rotor code letters. These codes classify motors based on their locked rotor kVA per horsepower (kVA/HP) ratio, providing a standardised way to estimate the inrush current at startup.
Different NEMA types (e.g., NEMA B, C, D) also provide general guidance on inrush factor, which is a multiplier for the full-load current:
- NEMA B: Approximately 6 times FLC
- NEMA C: Approximately 7 times FLC
- NEMA D: Approximately 8 times FLC
The NEMA code letter table below details the kVA/HP ranges and approximate mid-range values, which are crucial for more precise calculations:
| Code Letter | kVA/HP Range | Approximate Mid-Range Value (kVA/HP) |
|---|---|---|
| A | 0 – 3.14 | 1.6 |
| B | 3.15 – 3.55 | 3.3 |
| C | 3.56 – 3.99 | 3.8 |
| D | 4.00 – 4.49 | 4.3 |
| E | 4.50 – 4.99 | 4.7 |
| F | 5.00 – 5.59 | 5.3 |
| G | 5.60 – 6.29 | 5.9 |
| H | 6.30 – 7.09 | 6.7 |
| J | 7.10 – 7.99 | 7.5 |
| K | 8.00 – 8.99 | 8.5 |
| L | 9.00 – 9.99 | 9.5 |
| M | 10.00 – 11.19 | 10.6 |
| N | 11.20 – 12.49 | 11.8 |
| P | 12.50 – 13.99 | 13.2 |
| R | 14.00 – 15.99 | 15.0 |
| S | 16.00 – 17.99 | — |
| T | 18.00 – 19.99 | — |
| U | 20.00 – 22.39 | — |
| V | 22.40 and up | — |
Formulas for Calculating Motor Inrush Current
To accurately determine the inrush current, we often first need to calculate the Full Load Current (FLC). The formulas vary slightly depending on whether the motor is single-phase or three-phase.
Full Load Current (FLC) Calculation:
- For Three-Phase Motors:
FLC = (HP × 746) / (√3 × V × PF × Eff) - For Single-Phase Motors:
FLC = (HP × 746) / (V × PF × Eff)
Where:
HP= Motor Power in Horsepower746= Conversion factor from HP to Watts√3(approximately 1.732) = For three-phase systemsV= Rated Voltage in VoltsPF= Power Factor (a decimal between 0 and 1)Eff= Efficiency (a decimal between 0 and 1)
Inrush Current Calculation (using NEMA Inrush Factor):
Once FLC is known, a simpler estimation can be made using a general inrush factor:
Inrush Current = FLC × Inrush Factor
Where the Inrush Factor is typically 6-8 for common NEMA motors (B, C, D).
Inrush Current Calculation (using NEMA Code Letter kVA/HP):
For a more precise estimation, especially when the NEMA code letter is known, the following formula is used:
Inrush Current (Amps) = (Locked Rotor kVA/HP × HP × 1000) / Voltage
Where:
Locked Rotor kVA/HP: The value obtained from the NEMA code letter table (e.g., 8.5 for Code K).HP: The motor's rated horsepower.1000: Conversion factor from kVA to VA.Voltage: The rated voltage of the motor.
Example Calculation: NEMA Code Letter Method
Let's consider a practical example to illustrate the calculation:
For a 10 HP motor with a NEMA code letter “K” (referencing the table, Locked Rotor kVA/HP = 8.5) and a rated voltage of 460V:
Inrush Current = (8.5 × 10 HP × 1000) / 460VInrush Current = 85000 / 460Inrush Current = 184.78 Amps
Real-World Application Examples
Understanding these calculations is vital for real-world scenarios:
Case Study 1: Industrial Pump Motor
Scenario: An industrial facility operates a 50 HP pump motor with a NEMA code letter “G” (Locked Rotor kVA/HP = 5.9) and a rated voltage of 460V.
Calculation:
Inrush Current = (5.9 × 50 HP × 1000) / 460VInrush Current = 295000 / 460Inrush Current = 641.30 Amps
Analysis: This calculated inrush current of over 640 Amps is significantly higher than the motor’s full-load current. This necessitates the careful selection of appropriate protection devices such as time-delay fuses or circuit breakers. Without them, nuisance tripping would be a constant issue, causing operational delays. Furthermore, considering reduced voltage starting methods, like autotransformer starters or soft starters, could mitigate this high inrush, reducing stress on the electrical grid and extending the lifespan of components.
Case Study 2: HVAC System Motor
Scenario: A commercial HVAC system utilises a 30 HP motor with a NEMA code letter “H” (Locked Rotor kVA/HP = 6.7) and a rated voltage of 380V.
Calculation:
Inrush Current = (6.7 × 30 HP × 1000) / 380VInrush Current = 201000 / 380Inrush Current = 528.95 Amps
Analysis: An inrush current of nearly 530 Amps for an HVAC motor highlights the need for effective management. Implementing reduced voltage starting methods is crucial here, not just to prevent tripping, but also to minimise the voltage dips that could affect other sensitive equipment within the commercial building, such as office computers or lighting systems. Proper sizing of protection devices, along with consideration of soft starters or variable speed drives (VSDs), ensures system stability and longevity.
Additional Considerations for Inrush Current Management
Beyond calculations, several factors influence the practical management of inrush currents:
- Motor Design: Interestingly, some high-efficiency motors, while excellent for energy saving during continuous operation, can sometimes exhibit higher inrush currents due to their specific design characteristics. This needs to be factored into system design.
- Supply Voltage: Fluctuations in the incoming supply voltage can directly impact the magnitude and duration of inrush currents. A stable and correctly rated supply voltage is paramount to prevent excessive surges.
- Starting Method: The method used to start a motor plays a significant role in controlling inrush. Direct-on-line (DOL) starting results in the highest inrush. Alternatives include:
- Star-Delta (Wye-Delta) Starters: Reduce the starting voltage and current by initially connecting windings in a star configuration, then switching to delta.
- Autotransformer Starters: Use a transformer to reduce the initial voltage applied to the motor.
- Soft Starters: Electronic devices that gradually increase the voltage to the motor, providing a smooth start and significantly limiting inrush current.
- Variable Speed Drives (VSDs) / Variable Frequency Drives (VFDs): Offer the most sophisticated control, starting the motor at a very low frequency and gradually increasing it, effectively eliminating high inrush currents and providing precise speed control.
- Protection Devices: Selecting the correct type and rating of fuses or circuit breakers is critical. Time-delay fuses and circuit breakers are designed to tolerate the momentary inrush current without tripping, while still offering protection against sustained overloads or short circuits.

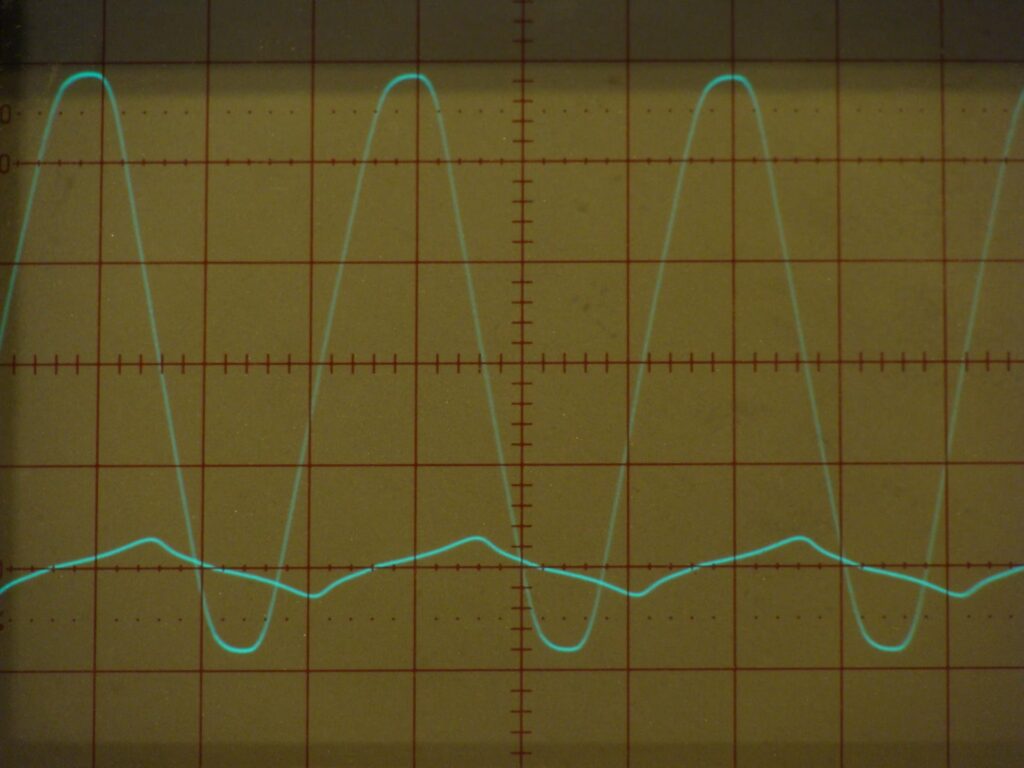

Measuring Inrush Current Accurately
Identifying and rectifying problems caused by inrush currents begins with accurate measurement. However, many standard instruments that claim to measure inrush often fall short. The primary issue is that they can only measure from a 'standing start'—meaning the system must be powered off before the measurement. This is often inconvenient and doesn't reflect real-world scenarios where loads are connected to an already live installation.
Advanced instruments, such as those with 'True InRush' capabilities, overcome this limitation. They can measure the initial inrush current when a specific load is connected to an installation, irrespective of whether the installation was already powered. They can also capture subsequent inrush events from additional loads.
These sophisticated devices employ novel measurement algorithms. Typically, they capture the steady-state current, filter out normal variations, and establish an RMS reference. They then monitor the current on a half-period basis. If this current exceeds a user-defined threshold, indicating an inrush event, the instrument begins taking rapid, millisecond-level measurements for a short duration (e.g., 100 ms). This raw data is then digitally processed to calculate the true inrush current for that period.
Having accurate, real-world inrush data is invaluable. It allows engineers to pinpoint problem areas in an installation, identify specific problematic loads, and then implement targeted remedial measures, such as installing soft starters or upgrading protection devices. Regular monitoring of inrush currents, alongside other power quality measurements, helps ensure optimal installation performance and provides early warnings of developing issues.
Frequently Asked Questions (FAQs)
Q1: Is inrush current always a problem?
Not necessarily. Inrush current is a normal and unavoidable part of an AC motor's startup cycle. It only becomes a problem when its magnitude or duration is excessive, leading to nuisance tripping, voltage sags, or damage to electrical components and other connected equipment.
Q2: What's the difference between full-load current (FLC) and inrush current?
Full-load current (FLC) is the steady-state current drawn by the motor when it is operating at its rated power and voltage. Inrush current, also known as starting current or locked rotor current, is the momentary, much higher current drawn by the motor during the initial seconds of startup.
Q3: Can inrush current damage my motor?
While motors are designed to withstand transient inrush currents, repeatedly high or prolonged inrush events can cause thermal stress, degrade insulation, and reduce the overall lifespan of the motor and its associated electrical components.
Q4: What are the most effective ways to reduce motor inrush current?
The most effective methods involve reducing the voltage applied to the motor during startup or gradually ramping up the voltage/frequency. Common solutions include star-delta starters, autotransformer starters, soft starters, and variable speed drives (VSDs).
Q5: How do I know if I have an inrush current problem?
Common signs include circuit breakers tripping randomly at motor startup, fuses blowing frequently, lights flickering noticeably when motors start, or sensitive electronic equipment malfunctioning or resetting during motor starts.
Conclusion
The phenomenon of motor inrush current is a critical aspect of electrical system design and maintenance. Its understanding is paramount for ensuring the reliability, efficiency, and longevity of motors and the broader electrical infrastructure. By accurately calculating inrush currents using established methods, such as those based on NEMA codes, and by implementing appropriate starting methods and carefully selected protection devices, engineers and technicians can effectively mitigate its potential negative impacts.
From preventing annoying voltage dips and nuisance tripping to safeguarding expensive equipment and extending motor lifespan, proactive management of inrush current is a cornerstone of robust electrical engineering. Investing in precise measurement tools and adopting intelligent control strategies will undoubtedly lead to more stable, reliable, and cost-effective operations across all industrial and commercial applications in the UK.
