In the world of automotive maintenance and industrial applications, electric motors are the unsung heroes, powering everything from vehicle components to factory machinery. However, not all motors are created equal, especially when it comes to energy consumption. Understanding motor efficiency is paramount for reducing operational costs and minimising environmental impact. This is where the International Electrotechnical Commission (IEC) steps in with its globally recognised IE (International Efficiency) ratings, providing a clear standard for distinguishing the energy performance of electric motors. These ratings, ranging from IE1 to IE4, signify a motor's ability to convert electrical energy into mechanical work with minimal loss, directly impacting your wallet and the planet.
What Exactly Are IE Motors?
The IEC has meticulously defined a series of motor efficiency classes, universally known as IE ratings. These classifications serve as a critical benchmark, enabling industries and consumers alike to accurately assess and compare the energy efficiency of various electric motors. By providing a standardised framework, the IE system facilitates informed decision-making, encouraging the adoption of more energy-efficient technologies. Each progressive step in the IE classification, from IE1 through to IE4, signifies a substantial leap in efficiency, directly translating into reduced energy consumption, lower operational costs, and a smaller carbon footprint.
The primary goal behind these ratings is to drive the industry towards more sustainable practices, ensuring that motors operate as efficiently as possible, thereby conserving valuable energy resources. For anyone involved in motor selection or maintenance, comprehending these ratings is not just beneficial, but essential for optimising performance and achieving long-term savings.

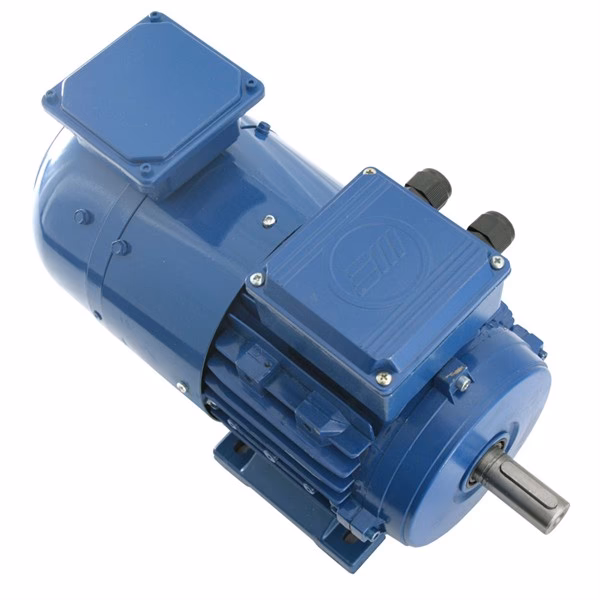

Delving into IE1: The Standard Efficiency Motor
At the foundational level of the IE efficiency spectrum lies the IE1 motor, often recognised as the initial generation of energy-efficient motor designs. Classified as 'Standard Efficiency', these motors represent the most basic tier of energy performance available on the market today. While they may not boast the cutting-edge efficiency of their higher-rated counterparts, IE1 motors still hold a place in specific applications, particularly where the motor's operational demands are relatively low, or where the initial purchase cost is a more pressing concern than long-term energy expenditure.
Historically, IE1 motors were the norm, widely adopted across various industries. However, with growing global emphasis on energy conservation and stricter environmental regulations, their use is gradually being phased out in many regions. Despite this trend, they remain a viable option for infrequent use or in scenarios where the motor runs for very short durations, mitigating the impact of their comparatively higher energy consumption.
Key characteristics of IE1 motors include:
- Output Range: Typically from 0.75kW to 355kW.
- Poles: Available with 2, 4, 6, 8, 10, or 12 poles, offering versatility for different speed requirements.
- Speed Range: Operates within a speed range of 500rpm to 3600rpm.
- RPM Frequency: Compatible with both 50Hz and 60Hz frequencies.
While IE1 motors serve as an entry point, their diminishing role highlights the industry's shift towards more energy-conscious solutions. Understanding their limitations and suitable applications is crucial for making an informed choice for your specific needs.
The Evolution of Efficiency: IE2, IE3, and IE4 Motors
As technology advanced and the imperative for energy conservation grew, the subsequent IE classes emerged, each offering a substantial improvement in efficiency over its predecessor. These advancements are not merely incremental; they represent significant engineering feats aimed at reducing energy waste and enhancing the overall performance of electric motors.
IE2 - High Efficiency
Stepping up from the standard efficiency of IE1, IE2 motors are classified as 'High Efficiency' and mark a considerable improvement in energy performance. These motors are designed to reduce energy losses more effectively than IE1 models, making them a more economically sound choice for applications where motors operate frequently. The enhanced design and improved materials, such as higher quality laminations in the stator and rotor, contribute to their superior efficiency, leading to tangible energy savings over their operational lifespan.
IE2 motors are a popular choice for a wide array of industrial applications where a balance between initial investment and long-term energy savings is sought. Their adoption has been widely encouraged as a direct replacement for less efficient motors, offering a practical pathway to reducing energy footprints without incurring the higher costs associated with premium efficiency models.
- Output Range: Similar to IE1, from 0.75kW to 355kW.
- Poles: Available with 2, 4, or 6 poles.
- Speed Range: Operates within a speed range of 1000rpm to 3600rpm.
- RPM Frequency: Compatible with both 50Hz and 60Hz frequencies.
IE3 motors represent a significant leap forward, classified as 'Premium Efficiency'. These motors are even more efficient than IE2 models and are increasingly becoming the standard, with regulations in various countries mandating their use due to their exceptional energy-saving capabilities. The enhanced motor design and superior quality materials used in IE3 motors dramatically reduce energy loss during operation, making them an ideal choice for continuous or near-continuous industrial operations where energy consumption is a major factor.
The substantial energy savings offered by IE3 motors translate directly into lower operational costs and a reduced environmental impact, aligning with global sustainability goals. For applications requiring reliable, high-performance motors that contribute positively to a company's bottom line and green credentials, IE3 motors are often the preferred option.
- Output Range: From 0.75kW to 355kW.
- Poles: Available with 2, 4, 6, or 8 poles.
- Speed Range: Operates within a speed range of 750rpm to 3600rpm.
- RPM Frequency: Compatible with both 50Hz and 60Hz frequencies.
At the pinnacle of current motor efficiency technology are IE4 motors, designated as 'Super Premium Efficiency'. These motors represent the highest efficiency class available, providing the greatest potential for energy savings. They are meticulously designed for the most demanding applications where motors run almost continuously, and where high energy costs necessitate the absolute best possible efficiency to achieve optimal return on investment.
The superior efficiency of IE4 motors is achieved through cutting-edge advancements in motor design, including highly optimised rotor and stator configurations, and the exclusive use of top-tier, high-quality materials. While the initial investment for IE4 motors might be higher, the profound energy savings and reduced operational costs over their lifespan make them an incredibly attractive and sustainable choice for energy-intensive operations.
- Output Range: Typically from 2.2kW to 230kW.
- Poles: Available with 2, 4, 6, or 8 poles.
- Speed Range: Operates within a speed range of 750rpm to 3600rpm.
- RPM Frequency: Compatible with both 50Hz and 60Hz frequencies.
Comparative Overview of IE Motor Classes
To provide a clearer understanding of the distinctions between the various IE motor classes, the following table summarises their key characteristics:
| IE Class | Efficiency Level | Output Range (kW) | Poles | Speed Range (rpm) | RPM Frequency (Hz) | Typical Applications |
|---|---|---|---|---|---|---|
| IE1 | Standard Efficiency | 0.75 - 355 | 2, 4, 6, 8, 10, 12 | 500 - 3600 | 50 - 60 | Less demanding, infrequent use where cost is primary. |
| IE2 | High Efficiency | 0.75 - 355 | 2, 4, 6 | 1000 - 3600 | 50 - 60 | Frequent operation where energy savings are beneficial. |
| IE3 | Premium Efficiency | 0.75 - 355 | 2, 4, 6, 8 | 750 - 3600 | 50 - 60 | Continuous or near-continuous operation, regulatory driven. |
| IE4 | Super Premium Efficiency | 2.2 - 230 | 2, 4, 6, 8 | 750 - 3600 | 50 - 60 | Almost continuous operation, high energy cost environments. |
Key Differences Between IE Motor Classes
While the table provides a concise overview, a deeper dive into the specific distinctions between adjacent IE classes reveals the engineering efforts and practical considerations behind each efficiency upgrade.
The fundamental difference between IE3 and IE4 motors lies in their energy efficiency levels, with IE4 motors being demonstrably superior. IE4 motors, classified as 'Super Premium Efficiency', consume less energy and consequently incur lower operational costs compared to IE3, which are 'Premium Efficiency' motors. This enhanced efficiency in IE4 models is not accidental; it is the result of sophisticated advancements in motor design, including significantly improved rotor and stator configurations, coupled with the meticulous selection and use of higher-quality materials that minimise energy losses.
Both motor types benefit from advanced cooling technologies, specifically IC411 and IC416, which are crucial for maintaining optimal operating temperatures and efficiency. However, there's a notable difference in their physical construction: IE3 motors can feature an aluminium frame size ranging from 80-160 or a cast iron frame size from 80-400, providing flexibility for various applications. In contrast, IE4 aluminium frames typically range from 100-160, and cast iron frames from 100-315, reflecting their more specialised and often compact, high-performance designs.
Both IE3 and IE4 motors are frequently integrated with Variable Frequency Drives (VFDs) and converters. This integration allows for improved control and significantly enhanced efficiency, particularly in applications with variable loads, where the motor's speed and torque need to be precisely adjusted. While both are highly suitable for a broad spectrum of industrial applications, IE4 motors are typically the preferred choice when energy costs are a major concern, or when seeking the maximum long-term sustainability benefits due to their unparalleled efficiency.
The progression from IE2 to IE3 motors represents a notable step up in efficiency. IE2 motors, categorised as 'High Efficiency', offer a commendable level of energy efficiency, suitable for many common applications. However, IE3 motors provide a distinctly higher level of efficiency, earning their 'Premium Efficiency' designation. This improvement is primarily attributed to enhanced motor designs and the utilisation of superior quality materials in IE3 models, which collectively work to significantly reduce energy loss during motor operation.
While both IE2 and IE3 motors share a similar output range (0.75kW to 355kW), IE2 motors are typically limited to 2, 4, and 6 poles, whereas IE3 motors offer additional flexibility with 8 poles. This distinction reflects the more refined engineering and broader applicability of IE3 motors. Consequently, IE3 motors are increasingly preferred in applications where achieving substantial energy savings and minimising environmental impact are paramount considerations, often driven by both economic incentives and regulatory mandates.
IE1 vs. IE2 Motors: Standard to High Efficiency Transition
The difference between IE1 and IE2 motors is primarily defined by their respective energy efficiency levels, with IE2 motors offering a clear advantage. IE1 motors, known as 'Standard Efficiency', represent the least efficient class and are steadily being phased out in numerous regions due to their comparatively higher energy consumption. This shift is a direct response to global efforts aimed at promoting energy conservation and reducing carbon emissions.
Despite the push towards higher efficiency, standard efficiency IE1 motors still find use in specific niches, particularly in applications where motor usage is infrequent or confined to shorter durations. In such scenarios, the financial impact of their lower efficiency is less pronounced. Conversely, IE2 motors deliver superior energy efficiency through improvements in design and the incorporation of better-quality materials, such as enhanced laminations in both the stator and rotor. These advancements make IE2 motors a more cost-effective and environmentally responsible choice for most modern applications, offering a compelling balance between performance and energy savings compared to their IE1 predecessors.
Why Motor Efficiency Matters for Your Operations
The choice of motor efficiency class has far-reaching implications beyond just the initial purchase price. For businesses and individuals operating machinery, the long-term operational costs, primarily driven by energy consumption, can vastly outweigh the upfront investment. Higher efficiency motors, such as IE3 and IE4, significantly reduce electricity consumption, leading to substantial savings on energy bills over the motor's lifespan. This financial benefit is particularly pronounced in applications where motors run continuously or for extended periods.
Furthermore, selecting higher IE-rated motors contributes positively to environmental sustainability. By consuming less energy, these motors reduce the demand for electricity generation, which in turn lowers greenhouse gas emissions and decreases the overall carbon footprint of your operations. Many countries and regions have also implemented regulations that mandate the use of higher efficiency motors, making compliance another crucial reason to understand and adopt these standards. Investing in more efficient motors is not just an expenditure; it's a strategic decision that offers economic returns, promotes environmental responsibility, and ensures regulatory compliance.
Frequently Asked Questions (FAQs)
What does IE stand for in relation to motors?
IE stands for International Efficiency. It is a rating system defined by the International Electrotechnical Commission (IEC) to classify the energy efficiency of electric motors.
Why are IE ratings important?
IE ratings are crucial because they provide a standardised way to compare the energy efficiency of different motors. Choosing a higher IE-rated motor can lead to significant energy savings, reduced operational costs, and a lower environmental impact due to decreased electricity consumption and greenhouse gas emissions.
Are IE1 motors still commonly used?
While IE1 motors are classified as 'Standard Efficiency' and are gradually being phased out in many regions due to stricter energy efficiency regulations, they are still used in less demanding applications, such as those with infrequent motor usage or for shorter durations, where the higher energy consumption is less impactful.
Can I replace an IE1 motor with an IE3 motor?
Yes, in most cases, you can replace an IE1 motor with an IE3 (or even IE2/IE4) motor. Upgrading to a higher efficiency class is often recommended as it will lead to substantial energy savings and reduced operating costs over time. However, it's always advisable to consult with a motor supplier or engineer to ensure compatibility with your existing system, considering factors like physical dimensions, mounting, and electrical supply.
What are IC411 and IC416 cooling technologies?
IC411 and IC416 refer to specific cooling methods for electric motors, defined by IEC standards. IC411 typically denotes a motor with a totally enclosed fan-cooled (TEFC) design, where an external fan blows air over the motor's frame. IC416, on the other hand, often refers to a motor that uses an external fan with an integral heat exchanger, providing more efficient cooling, particularly for larger motors or those operating in demanding environments. Both IE3 and IE4 motors commonly utilise these cooling technologies to maintain optimal operating temperatures and efficiency.
What are Variable Frequency Drives (VFDs) and how do they relate to IE motors?
Variable Frequency Drives (VFDs), also known as Variable Speed Drives (VSDs) or Adjustable Speed Drives (ASDs), are electronic devices that control the speed and torque of AC electric motors by varying the motor's input frequency and voltage. They are directly related to IE motors because integrating a VFD with an efficient IE motor (especially IE3 and IE4) can further enhance energy savings, particularly in applications with variable loads. By allowing the motor to run only at the speed required for the task, VFDs prevent unnecessary energy consumption, making the overall system even more efficient than the motor alone.
Understanding the nuances of IE motor efficiency classes is pivotal for making informed decisions that benefit both your operations and the environment. By choosing the right motor for the job, you can unlock significant long-term savings and contribute to a more sustainable future.
