When embarking on any construction project involving roads, driveways, or even substantial garden paths, the foundation upon which everything else is built is absolutely critical. This underlying layer, known as the sub-base, dictates the long-term stability, durability, and load-bearing capacity of the final surface. Among the various materials available, Type 1 Granite, specifically the Ministry of Transport (MOT) approved variant, stands out as a premier choice, particularly in the United Kingdom. Its engineered properties ensure a robust and reliable platform, capable of withstanding significant stress and environmental factors. Understanding what Type 1 Granite is, why it's so effective, and where it's best employed is paramount for achieving professional and lasting results.
What Exactly is Type 1 Granite (MOT)?

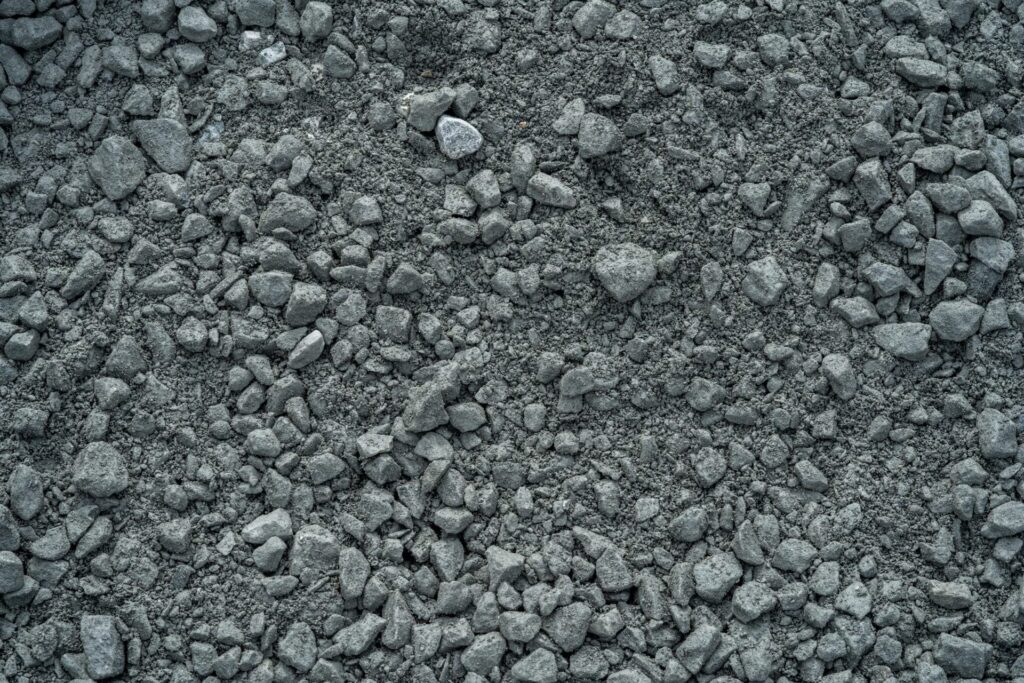

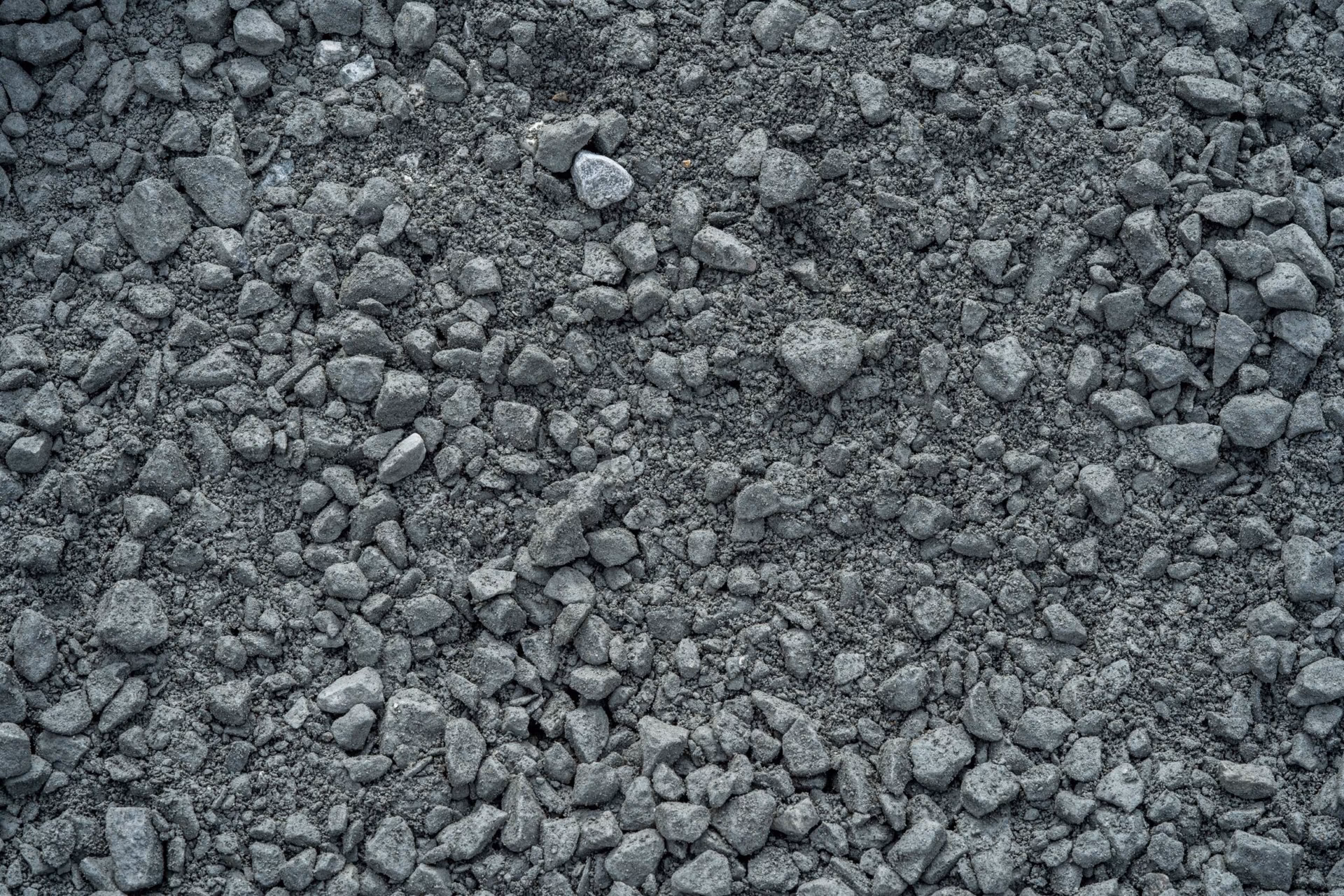

Type 1 Granite, often referred to as MOT Type 1 or simply 'sub-base', is a specifically graded aggregate produced from crushed granite. The 'MOT' designation signifies its approval by the Ministry of Transport, meaning it meets stringent standards for use in highway construction and maintenance. This isn't just any crushed rock; it's a carefully engineered blend of different particle sizes, ranging from larger stones down to fine dust. This precise gradation is what gives Type 1 Granite its exceptional compacting qualities and load-bearing capabilities.
The composition of Type 1 Granite is key to its performance. It typically consists of angular, crushed granite that has been processed to ensure a specific range of particle sizes. This angularity is crucial because it allows the aggregate particles to interlock effectively when compacted. Unlike rounded aggregates, which can shift and roll, angular pieces create a much more stable and rigid structure. The mix also includes a proportion of finer material, which acts as a filler, filling the voids between the larger stones. This comprehensive particle size distribution ensures that once compacted, the material forms a dense, impermeable, and highly stable layer.
The Crucial Role of the Sub-Base
Before delving deeper into the specifics of Type 1 Granite, it's important to appreciate the fundamental role of a sub-base in any construction project. The sub-base is the layer that lies directly beneath the wearing course (the surface you actually see and drive or walk on). Its primary functions include:
- Load Distribution: It spreads the weight of traffic or loads from the surface layer down to the subgrade (the natural ground beneath). Without an effective sub-base, concentrated loads could cause the surface to crack or deform.
- Drainage: A well-constructed sub-base can facilitate drainage, preventing water from accumulating beneath the surface, which can lead to frost heave and structural damage.
- Stability: It provides a firm and stable platform for the wearing course, preventing it from sinking or shifting.
- Frost Protection: Certain sub-base materials can offer a degree of protection against frost damage, particularly in colder climates.
The performance of the entire pavement structure is heavily reliant on the quality and proper installation of the sub-base. Using an inferior material or failing to compact it correctly will inevitably lead to premature failure of the road, path, or driveway.
Why is Type 1 Granite (MOT) So Highly Regarded?
The Ministry of Transport's approval is not given lightly. Type 1 Granite earns its reputation through a combination of inherent material properties and its engineered performance:
1. Excellent Load-Bearing Capacity
The angular nature of the crushed granite, coupled with its carefully controlled particle size distribution, allows it to achieve a very high level of compaction. When properly laid and compacted, Type 1 Granite forms a dense matrix that can support substantial loads without significant deformation. This makes it ideal for areas subject to heavy vehicular traffic, such as roads, car parks, and industrial sites.
2. Stability and Rigidity
The interlocking nature of the angular aggregate creates a rigid layer that resists movement. This stability is crucial for preventing the surface layer from cracking due to flexing under load. It provides a consistently flat and compact surface, which is essential for smooth traffic flow and longevity.
3. Durability
Granite itself is an igneous rock known for its hardness and resistance to weathering and abrasion. This inherent durability means that the sub-base will not break down easily under pressure or over time, contributing to the overall lifespan of the construction.
4. Good Drainage Properties
While dense when compacted, the aggregate still has void spaces that allow for a degree of water percolation. When laid on a properly prepared subgrade, it can assist in draining water away from the surface, reducing the risk of saturation and frost damage.
5. Versatility
Type 1 Granite is suitable for a wide range of applications, from major highway construction to smaller domestic projects like driveways and patios. Its consistent quality and performance make it a reliable choice across different scales of work.
Typical Applications for Type 1 Granite (MOT)
Given its superior properties, Type 1 Granite is the preferred sub-base material for numerous construction scenarios:
- Road Construction: This is its primary application, forming the foundation for both new roads and the repair of existing ones.
- Car Parks: The high load-bearing capacity is essential for areas that experience constant vehicle movement and parking.
- Driveways: For domestic driveways, especially those intended for frequent or heavy vehicle use, Type 1 Granite provides a stable and long-lasting base.
- Patios and Footpaths: While often overkill for simple garden paths, it's an excellent choice for patios or public walkways that will see significant foot traffic or need to withstand occasional heavier loads.
- Industrial Areas: Sites requiring robust foundations for heavy machinery or constant industrial vehicle movement benefit greatly from its strength.
- Building Foundations: In some cases, it can be used as a load-spreading layer beneath building foundations, particularly on less stable ground.
Laying and Compacting Type 1 Granite
The effectiveness of Type 1 Granite is not solely down to the material itself; proper installation is equally vital. The process typically involves:
- Excavation: The existing ground (subgrade) is excavated to the required depth, ensuring a stable and well-compacted base layer beneath the Type 1.
- Geotextile Membrane (Optional but Recommended): A permeable geotextile fabric is often laid over the subgrade. This acts as a separator, preventing the sub-base from mixing with the soil below, and also aids in filtration and preventing weed growth.
- Laying the Type 1 Granite: The Type 1 Granite is then spread evenly over the prepared area, typically in layers of around 100-150mm (4-6 inches).
- Compaction: This is the most critical step. Each layer of Type 1 Granite must be thoroughly compacted using a vibrating roller or a plate compactor. Compaction drives the aggregate particles together, increasing density and interlocking them. Multiple passes are usually required to achieve optimal compaction.
- Repeat Layers: If a greater depth of sub-base is required, the laying and compaction process is repeated for subsequent layers until the desired thickness is achieved.
It is crucial that the material is laid and compacted in layers to achieve the required density. Laying a thick, uncompacted layer of Type 1 Granite will result in a weak and unstable base.
Comparison with Other Sub-Base Materials
While Type 1 Granite is a top-tier option, it's useful to compare it with other commonly used sub-base materials:
| Material | Description | Pros | Cons | Typical Use |
|---|---|---|---|---|
| Type 1 Granite (MOT) | Crushed granite with specific grading, MOT approved. | Excellent load-bearing, stability, durability, good compaction. | Higher cost compared to some alternatives. | Roads, car parks, heavy-traffic driveways. |
| Crushed Concrete | Recycled concrete, crushed to various sizes. | Good load-bearing, cost-effective, environmentally friendly (recycled). | Can contain rebar fragments, potential for dust, less consistent grading than granite. | Driveways, foundations, general fill. |
| Ballast (Crushed Rock) | General crushed rock, often less strictly graded than Type 1. | Cost-effective, readily available. | Variable load-bearing capacity, less stable than Type 1 when not perfectly graded. | Temporary roads, general fill, lower-traffic areas. |
| Type 3 Sub-Base (MOT) | Larger aggregate size, less fines, MOT approved. | Excellent drainage, good stability. | Lower load-bearing capacity than Type 1 due to larger particles and more voids. | Areas requiring high drainage, top layers of some pavement designs. |
Frequently Asked Questions
Q1: How much Type 1 Granite do I need?
A1: Calculate the volume by multiplying the length, width, and desired depth of your area (ensure all measurements are in the same units, e.g., metres). For example, a 10m x 5m area needing a 150mm (0.15m) sub-base requires 10 x 5 x 0.15 = 7.5 cubic metres. It's always advisable to order slightly more (around 10%) to account for compaction and potential unevenness in the subgrade.
Q2: Can I use Type 1 Granite for a domestic patio?
A2: Yes, you can. While it might be considered more robust than strictly necessary for a low-traffic patio, it will provide an exceptionally stable and durable base, ensuring your patio remains level for years to come. For very light patios, other aggregates might suffice, but Type 1 offers superior longevity.
Q3: What is the difference between Type 1 Granite and general 'hardcore'?
A3: 'Hardcore' is a very broad term for crushed building rubble. While it can provide a base, its composition is highly variable, and it often contains a mix of materials, including bricks, mortar, and sometimes even contaminants. Type 1 Granite is a specifically engineered product with a consistent composition and grading, ensuring predictable performance and meeting stringent standards.
Q4: Do I need to compact Type 1 Granite?
A4: Absolutely. Compaction is essential to achieve the load-bearing capacity and stability that Type 1 Granite is known for. Uncompacted Type 1 will be soft and unstable, failing to provide adequate support for the surface layer.
Q5: Where can I buy MOT Type 1 Granite?
A5: MOT Type 1 Granite is available from most reputable builders' merchants and aggregate suppliers, often sold by the tonne or in bulk bags (also known as 'bulk bags' or 'tonne bags').
Conclusion
In the realm of construction, the unseen layers are often the most important. Type 1 Granite (MOT) exemplifies this principle. Its carefully engineered composition, derived from durable granite, provides an unparalleled foundation for surfaces that need to withstand significant wear and tear. From the stability it offers to its long-term durability, choosing MOT Type 1 Granite for your sub-base is an investment in the longevity and performance of your project. Whether you're constructing a highway or a sturdy driveway, understanding and utilising this high-quality aggregate will ensure a solid, reliable, and lasting outcome. Always ensure proper installation, particularly thorough compaction, to harness the full potential of this exceptional material.
