Fixing a Loose or Broken Gear Linkage

A malfunctioning gear linkage can be a frustrating and potentially immobilising problem for any vehicle owner. If you've found yourself unable to select gears, or the gear lever feels unusually loose and sloppy, the culprit is often a worn or disconnected gear linkage. This vital component connects your gear lever to the gearbox, translating your intended gear selection into the actual engagement of gears within the transmission. Fortunately, understanding the common failure points and knowing how to approach a repair can save you time and money. This article will delve into the intricacies of gear linkages, explore the reasons behind their failure, and provide practical advice on how to diagnose and even implement a temporary fix.

Understanding the Gear Linkage System

Modern vehicles typically employ one of two main types of gear linkage systems: rod-based or cable-based. Both systems serve the same purpose but achieve it through different mechanical means.

Rod-Type Linkages

Older vehicles, and some more basic modern designs, utilise a series of metal rods connected by pivot points and ball joints. These rods transmit the motion of the gear lever directly to the gearbox's selector forks. The ball joints are crucial for allowing the necessary articulation and flexibility in the system as the engine and gearbox move independently due to suspension and engine torque.

Cable-Type Linkages

The majority of modern cars, especially those with front-wheel drive and transverse engines, use a cable-operated gear linkage. This system consists of one or more flexible cables, often encased in a protective sheath, with ball joints or clevises at either end. One end connects to the gear lever assembly inside the cabin, and the other connects to the gearbox. This design offers advantages in terms of packaging flexibility and can sometimes contribute to a smoother gear change feel.

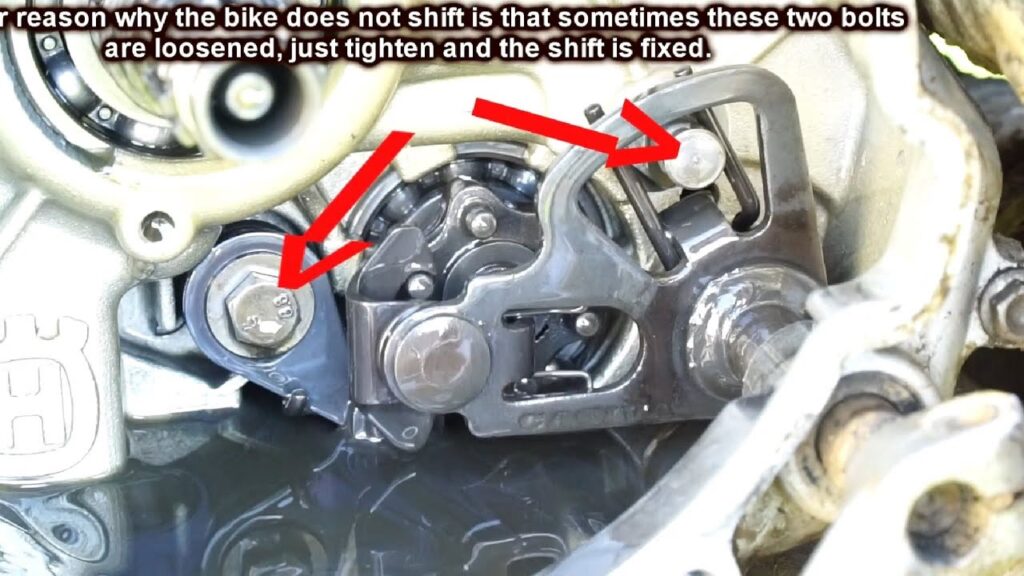

Common Causes of Gear Linkage Failure

Regardless of the type of system your car has, the most frequent cause of a loose or disconnected gear linkage is wear and tear on the ball joints and their associated securing clips or bushings. Over time, the constant movement and stress placed upon these components lead to degradation.

Worn Ball Joints

The ball joints are essentially small, spherical bearings that allow for rotational and angular movement between the connected components. The protective rubber boots that often cover these joints can split or perish, allowing dirt, water, and grit to enter. This ingress accelerates wear, causing the internal surfaces to grind against each other. As the metal-on-metal contact continues, the joint becomes looser, developing play. Eventually, the ball can completely pop out of its socket, leading to the symptoms you're experiencing.

Damaged Bushings

Many linkage points also incorporate rubber or polyurethane bushings to absorb vibration and provide a smooth connection. These bushings can degrade, crack, or become compressed over time, creating excessive play in the system.

Cable Wear or Damage

In cable-type systems, the cables themselves can stretch or fray internally, particularly if they have been subjected to extreme temperatures or constant high loads. Damage to the outer casing can also compromise the cable's integrity and smooth operation.

Corrosion

Exposure to road salt, moisture, and other environmental factors can lead to corrosion of metal components, including rods, pivot points, and securing clips. Corroded parts can become stiff, seize, or break entirely.

Diagnosing a Faulty Gear Linkage

Diagnosing a gear linkage issue usually involves a visual inspection and some gentle manipulation of the components.

What to look for:

• Loose Connections: With the engine off and the handbrake firmly applied, get under the vehicle and locate the gear linkage components. These are typically found running from the base of the gear lever towards the gearbox. Gently try to wiggle the rods, cables, and their connecting joints. Any significant play or movement that isn't a smooth pivot is a cause for concern.
• Disconnected Ball Joints: The most obvious sign is a ball joint that has popped out of its socket. You might see a dangling rod or cable end.
• Damaged Boots: Inspect the rubber boots covering the ball joints. If they are torn, split, or missing, it indicates that the joint has likely been exposed to the elements and is probably worn.
• Cable Condition: For cable linkages, check the cables for any signs of fraying, kinks, or damage to the outer sheath.
• Corrosion: Look for rust or corrosion on metal rods, brackets, and securing clips.

Temporary Fixes: The Cable Tie Solution

In situations where a ball joint has simply popped out of its socket, and the joint itself isn't excessively worn, a temporary repair using heavy-duty cable ties can sometimes be effective. This is a common DIY solution to get you mobile again until a proper repair can be carried out.

Important Note: This is a temporary solution and should not be considered a permanent repair. The integrity of a gear linkage is crucial for safe driving.

How to perform the temporary fix:

1. Locate the Disconnected Joint: Identify the specific ball joint that has come loose.
2. Re-seat the Ball Joint: Carefully push the ball end back into its socket. This may require some effort.
3. Secure with Cable Ties: Take two strong, UV-resistant cable ties. Thread one through the designated retaining hole (if present) on the socket or around the base of the ball joint, and then loop it through the other cable tie. Pull them tight to create a secure loop that holds the ball joint in place. Repeat with the second cable tie for added security. Ensure the cable ties are cinched down as tightly as possible.
4. Test Gently: Once secured, gently try to move the linkage by hand to ensure it's held firmly.

The image you provided illustrates this method, showing two cable ties used to secure a linkage. This method works by providing external pressure to keep the ball joint seated within its socket.

When a Temporary Fix Isn't Enough

While the cable tie trick can be a lifesaver, it's essential to recognise its limitations. If the ball joint itself is significantly worn, or if a component is broken rather than just disconnected, a temporary fix will likely fail quickly.

Permanent Repairs: What's Involved?

A permanent repair typically involves replacing the worn or damaged components. This can range from simply replacing a faulty ball joint or bushing to fitting an entirely new linkage rod or cable assembly.

Replacing Ball Joints and Bushings

Many ball joints and bushings are designed to be replaceable. This often involves carefully pressing out the old worn part and pressing in a new one. Specialist tools may be required for this task, especially for pressing out stubborn bushings.

Replacing Linkage Rods

If a linkage rod is bent, corroded, or has integral, non-replaceable ball joints, the entire rod will need to be replaced. This usually involves unbolting the old rod from its mounting points and fitting the new one.

Replacing Linkage Cables

For cable-operated systems, a stretched or damaged cable will need to be replaced. This can be a more involved process, as the cable often runs through various conduits and needs to be carefully routed and connected at both ends. Specific knowledge of the vehicle's routing is essential.

Specific Vehicle Examples

As mentioned, the Vauxhall Corsa and Vauxhall Vivaro are commonly cited examples where gear linkage issues can arise.

Vauxhall Corsa Gear Linkage

The Vauxhall Corsa, particularly certain generations, is known to suffer from wear in the ball joints of its gear linkage. The plastic bushings within these joints can become brittle and break, or the ball joints themselves can wear, leading to the gear lever becoming loose or difficult to engage gears. Replacement linkage repair kits are widely available for this model.

Vauxhall Vivaro Gear Linkage Cable

For the Vauxhall Vivaro, gear linkage cable issues are more common. The cables can stretch or the plastic components at the ends can degrade, resulting in sloppy gear changes or the inability to select certain gears. Replacing the affected cable is usually the required solution.

Table: Common Linkage Issues and Solutions

Frequently Asked Questions

Q1: Is it safe to drive with a loose gear linkage?
It is generally not advisable to drive with a compromised gear linkage. The inability to select gears reliably poses a significant safety risk, as you may not be able to engage the correct gear when needed, such as when pulling away or slowing down. Additionally, a severely loose linkage could disconnect entirely while driving, rendering the vehicle undrivable.

Q2: How much does it cost to fix a gear linkage?
The cost can vary significantly depending on the vehicle, the extent of the damage, and whether you undertake the repair yourself or have it done by a professional mechanic. Simple replacement of a ball joint or bushing might cost between £50-£150 in parts, with labour adding a further £100-£300. Replacing an entire linkage cable or rod assembly could cost upwards of £200-£500 in parts alone, with labour costs to match.

Q3: Can I replace the gear linkage myself?
For those with a reasonable level of mechanical aptitude and the correct tools, replacing some components like ball joints or rods can be a DIY job. However, replacing gear selector cables can be more complex and may require specific knowledge of the vehicle's routing. If you are unsure, it is always best to consult a qualified mechanic.

Q4: How long do gear linkages typically last?
Gear linkages are subjected to constant stress and environmental exposure, so their lifespan can vary. Generally, you might expect them to last anywhere from 60,000 to 100,000 miles, but this can be significantly reduced by poor road conditions, heavy use, or exposure to corrosive elements. Regular inspection can help catch problems early.

Conclusion

A faulty gear linkage can manifest as a loose gear lever or difficulty selecting gears. The primary cause is usually wear in the ball joints and bushings that connect the various rods or cables. While a temporary fix with cable ties can get you out of a bind, it's crucial to address the underlying issue with a permanent repair to ensure the safety and reliability of your vehicle. Understanding the components, diagnosing the problem correctly, and knowing when to seek professional help are key to resolving gear linkage issues effectively.
