Building Strong Foundations: MOT Type 1 for Gardens

Embarking on a garden transformation project, whether it’s a new driveway, a charming pathway, or a serene patio, requires a solid foundation to ensure longevity and stability. While often unseen, the material beneath your paving or surface is arguably the most crucial element. This is where MOT Type 1 comes into its own, providing an unyielding base that supports your outdoor aspirations. Understanding what MOT Type 1 is, why it's so highly regarded, and how to properly install it can make all the difference between a project that crumbles and one that stands the test of time.

MOT Type 1 isn't just any aggregate; it's a specific type of crushed material, rigorously approved for use in public highways across the UK. Its robust nature and excellent compaction properties make it the go-to choice for professional builders and DIY enthusiasts alike when constructing durable outdoor surfaces. Let's delve deeper into this essential material and uncover the best practices for its installation in your garden.

What Exactly is MOT Type 1? The Backbone of British Construction

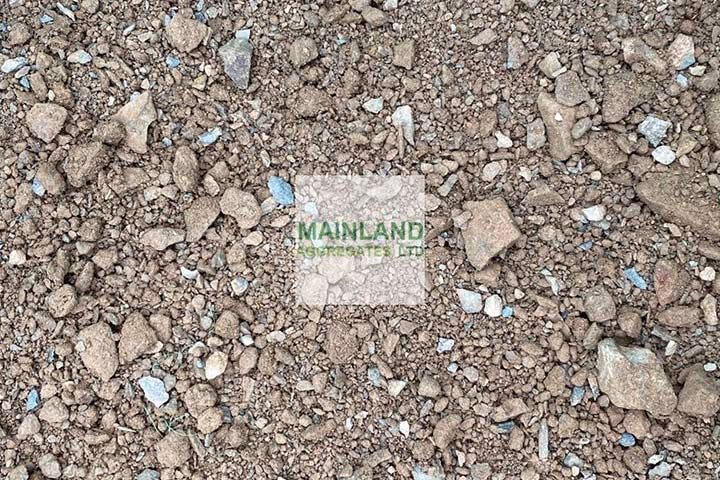

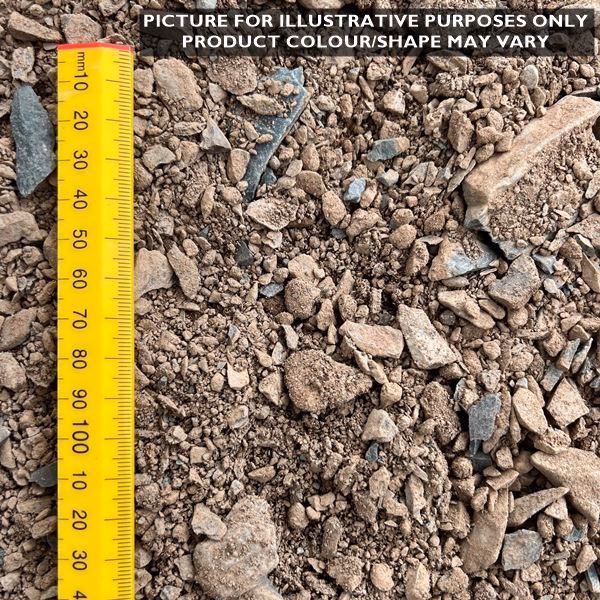

At its core, MOT Type 1 is a high-quality granular sub-base material, typically derived from crushed limestone or granite. What sets it apart is its unique composition: it’s a blend of varying aggregate sizes, ranging from larger stones (around 20-40mm) down to fine dust particles (6mm and below). This specific grading is not arbitrary; it's meticulously designed to meet the Department of Transport (DOT) specification for granular sub-base material.

The magic of MOT Type 1 lies in this mixed grading. When compacted, the smaller particles fill the voids between the larger stones, creating an incredibly dense, interlocked, and stable layer. This process, known as compaction, effectively removes air pockets, significantly increasing the material's strength and load-bearing capacity. This makes it an exceptionally firm hardcore base, capable of supporting substantial weight without settling or shifting over time.

Often referred to simply as 'hardcore stone' in the construction industry, its approval by the Ministry of Transport for public road construction is a testament to its superior quality and reliability. If it's robust enough for busy public roads and pavements, you can be absolutely certain it's ideal for your home's driveway, patio, or shed base.

Why Choose MOT Type 1 for Your Garden Projects?

The benefits of using MOT Type 1 are numerous, making it the preferred choice for a wide array of landscaping and construction applications:

• Exceptional Strength and Stability: Its ability to compact into a dense, unyielding layer provides unparalleled support for any surface laid on top, preventing sinking or movement.
• Versatility: Ideal for driveways, pathways, patios, shed bases, and even as a levelling material or for certain drainage applications (though not primary drainage).
• Cost-Effective: As a widely available and highly efficient material, it offers a cost-effective solution for creating robust foundations.
• Durability: Designed for long-term performance, it ensures your outdoor surfaces remain stable and functional for many years, even under heavy use.
• Ease of Installation: While requiring proper compaction, the material itself is straightforward to lay and work with.
• Large Area Coverage: Its density means a little goes a long way when compacted, offering excellent coverage for extensive projects.

MOT Type 1 vs. MOT Type 3: Making the Right Choice

While MOT Type 1 is the champion for strength and load-bearing, it's important to understand its counterpart, MOT Type 3. The choice between them hinges on the primary function of your sub-base:

For most garden projects requiring a solid, unyielding base – such as driveways that will bear vehicle weight, or patios that need to remain perfectly level – MOT Type 1 is your best bet. If, however, your project demands a specific focus on drainage, particularly in compliance with SuDS (Sustainable Drainage Systems) regulations, MOT Type 3 becomes the preferable option as it allows water to permeate through more easily.

The Installation Process: A Step-by-Step Guide to a Flawless Foundation

Installing MOT Type 1 effectively is crucial for the success of your project. Follow these steps for best results:

Step 1: Site Preparation and Excavation

Before any material is laid, thorough preparation is essential. Begin by clearly marking out the area for your pathway, patio, or driveway. You'll need to excavate the existing ground to the correct depth. The required depth depends on what you're building on top and the anticipated load:

• For light-use pathways and patios: typically 100-150mm (4-6 inches) of excavation for the MOT Type 1, plus space for your final surface material (e.g., paving slabs, block paving).
• For driveways: a more substantial depth of 150-200mm (6-8 inches) for the MOT Type 1 is recommended to handle vehicle weight, again, plus your surface layer.

Ensure the excavated area is level, or has a slight fall (gradient) to allow for adequate surface water drainage away from buildings or sensitive areas. Remove any loose soil, roots, or debris.

Step 2: Install Edge Restraints (Optional but Recommended)

For patios and driveways, installing sturdy edge restraints (such as timber, concrete kerbs, or block edgings) before laying your sub-base is highly recommended. These provide a perimeter that contains the MOT Type 1, preventing it from spreading outwards and helping to maintain the integrity of your finished surface.

Step 3: Lay a Ground Stabilisation Membrane

While not strictly part of the MOT Type 1 layer itself, a high-quality ground stabilisation membrane (also known as a geotextile membrane or weed membrane) is an invaluable addition. Lay this directly onto the excavated earth, ensuring it covers the entire area. Overlap any seams by at least 150mm (6 inches) to prevent weed growth and provide continuous protection. This membrane serves several vital purposes:

• Weed Suppression: It acts as a barrier, preventing weeds from growing up through your sub-base and surface.
• Separation: It separates the MOT Type 1 from the underlying soil, preventing the aggregates from sinking into soft ground over time, which can lead to instability.
• Added Strength: It provides an extra layer of structural integrity to your base.

Step 4: Spreading the MOT Type 1

Now it's time to bring in your MOT Type 1. Tip the material into the excavated area and use shovels and rakes to spread it out evenly. For deeper bases (e.g., 150mm+), it's best to lay the MOT Type 1 in layers, typically no thicker than 100-150mm (4-6 inches) at a time. This allows for more effective compaction of each layer.

Step 5: The Crucial Compaction Process

This is arguably the most critical step. Effective compaction transforms the loose aggregate into a solid, load-bearing sub-base. You will need to rent or acquire a suitable vibrating machine, such as a plate compactor (often called a 'wacker plate') or a vibrating roller for larger areas.

• Operating the Compactor: Start from the edges of your area and work your way inwards, making sure to overlap each pass slightly.
• Multiple Passes: Go over the entire area several times. For each layer of MOT Type 1, aim for at least 3-5 passes with the compactor.
• Dampening (Optional but Recommended): Lightly dampen the MOT Type 1 with water before compaction. This can help the fines bind together more effectively, leading to a denser result. Be careful not to over-saturate.
• Check for Compaction: The surface should feel incredibly firm and solid, with no visible movement or 'springiness' when you walk on it. You should also notice the surface becoming visibly denser and smoother.

Step 6: Achieving the Correct Depth and Level

As you compact, regularly check the depth and level of your MOT Type 1 layer. Use a long, straight edge (a timber batten or metal rule) and a spirit level across the compacted surface. For larger areas, string lines stretched taut across the area at the desired finished height can help guide you. Ensure the surface is even and consistent, with the planned gradient for drainage. If you've laid in layers, ensure each layer is compacted before adding the next.

Calculating Your Needs: How Much MOT Type 1 Do You Require?

Accurately calculating the amount of MOT Type 1 you need prevents costly over-ordering or frustrating delays due to under-ordering. As a general rule of thumb:

• 1 tonne (1000kg) of MOT Type 1 aggregate will cover approximately 10 square metres to a compacted depth of 2 inches (50mm).

However, it's important to note that many builders' yards and large DIY centres in the UK (such as Jewson, Travis Perkins, Wickes, and B&Q) sell 'jumbo' bulk bags that often contain 850kg of crushed stone, not a full tonne. Therefore, an 850kg bulk bag will cover approximately 8.5 square metres to a compacted depth of 2 inches (50mm).

Always measure your area (length x width = square metres) and decide on your desired compacted depth. It's always a good idea to add a little extra (e.g., 10-15%) to your calculation to account for unforeseen circumstances or slight variations in compaction, ensuring you don't run short mid-project.

Sourcing Your MOT Type 1

MOT Type 1 is the most widely used crushed stone in construction and civil engineering industries across the UK, making it readily available. You can purchase it from:

• Local builders' merchants and aggregate suppliers.
• Large DIY centres (as mentioned above).
• Specialist landscaping supply companies.

It's typically sold loose (for larger quantities) or in bulk bags, which are convenient for most domestic garden projects.

Alternatives to Stone Aggregates and What to Avoid

While various materials can be used for a sub-base, it's crucial to understand why MOT Type 1 is superior for most applications. You can find recycled aggregates, often made from crushed concrete, stone, bricks, and other hard materials. Once these are crushed and graded to the specific Ministry of Transport requirements, they can also be classified as MOT aggregates and offer an environmentally friendly alternative.

However, be wary of other crushed stones like single-sized ballast, flint, shingles, or general gravels unless they explicitly state they meet the MOT Type 1 specification. These 'clean' aggregates, which have a more uniform particle size, do not compact as effectively as MOT Type 1. They retain more air pockets, resulting in a less dense and less stable base. While some single-sized stones are ideal for permeable driveways and patios designed for water drainage, they are not a substitute for the firm, load-bearing qualities of MOT Type 1.

Frequently Asked Questions About MOT Type 1

Can I use MOT Type 1 for drainage?

While MOT Type 1 is permeable to some extent, allowing water to pass through, it is not designed as a primary drainage solution like MOT Type 3. Its dense compaction means water will drain more slowly compared to a 'clean' aggregate. For significant drainage requirements or SuDS compliance, MOT Type 3 is the more appropriate choice.

What equipment do I need for compaction?

For domestic projects, a plate compactor (often called a 'wacker plate') is essential. These can be easily hired from tool hire shops. For very large areas, a vibrating roller might be more efficient, but a plate compactor is sufficient for most garden applications.

How deep should the MOT Type 1 be?

The depth depends on the intended use and anticipated load. For patios and light-use pathways, a compacted depth of 100-150mm (4-6 inches) is generally sufficient. For driveways that will bear vehicle weight, a minimum compacted depth of 150-200mm (6-8 inches) is recommended.

Is a ground stabilisation sheet really necessary?

While not strictly mandatory for every single project, a ground stabilisation sheet is highly recommended. It prevents intermixing of the sub-base with the underlying soil, reduces settlement, and acts as an effective weed barrier, significantly extending the life and stability of your project.

Can I lay paving directly on MOT Type 1?

You can, theoretically, but it's not ideal for most paving types. For block paving or paving slabs, it's standard practice to lay a bedding layer (typically a sharp sand, or a sand/cement mix for slabs) on top of the compacted MOT Type 1. This bedding layer provides a perfectly level surface for laying your chosen paving material and helps with minor adjustments during installation.

How long does MOT Type 1 take to settle?

Once properly compacted with a vibrating plate compactor, MOT Type 1 is immediately stable and does not require a significant settling period. The stability is achieved through the mechanical interlocking of particles during compaction, not through natural settlement over time.

Conclusion

The foundation is the unsung hero of any successful garden landscaping project. By understanding and correctly utilising MOT Type 1, you're not just laying down aggregate; you're investing in the long-term stability, durability, and beauty of your outdoor space. From robust driveways capable of handling daily traffic to elegant patios perfect for entertaining, MOT Type 1 provides the unyielding sub-base that ensures your hard work stands strong for years to come. Take the time to prepare properly, compact thoroughly, and select the right materials, and you'll be rewarded with a finished project that truly lasts.
