It's a frustrating scenario many caravanners and trailer users have encountered: you connect your trailer to your vehicle, and the lights don't work, or worse, you get an error message on your dashboard indicating a fault with the trailer's electrical system. This often points to an issue with the trailer's electrical socket, either on the vehicle or the trailer itself. Understanding the common culprits behind a rejected trailer socket is crucial for diagnosing and rectifying the problem, ensuring your safety and compliance on the road.
Understanding Trailer Socket Systems
Modern vehicles are equipped with sophisticated systems that monitor the electrical load of connected trailers. When a trailer is attached, the vehicle's ECU (Engine Control Unit) expects to see a specific resistance and current draw from the trailer's lights. If this expected behaviour isn't detected, or if there's a short circuit or an open circuit, the system will flag a fault, often disabling certain vehicle functions and displaying a warning. The most common types of trailer sockets are the 7-pin and 13-pin connectors, each with a specific pin configuration for different functions like indicators, brake lights, and rear lights.
Common Causes for Trailer Socket Rejection
1. Corrosion and Contamination
Perhaps the most frequent offender is corrosion. Trailer sockets are exposed to the elements – rain, mud, salt from winter roads, and general road grime. Over time, this can lead to a build-up of oxidation on the pins of both the vehicle socket and the trailer plug. This oxidation creates a poor electrical connection, increasing resistance, or preventing the connection altogether. Similarly, dirt, grease, and moisture can contaminate the socket, creating a conductive path that might confuse the vehicle's monitoring system or simply block the electrical flow.
Symptoms: Intermittent light function, no lights at all, dashboard error messages.
Solution: Carefully inspect the pins in both the vehicle socket and the trailer plug. If corrosion is visible (a greenish or whitish powder), clean them thoroughly. For the vehicle socket, a cotton bud or a specialised electrical contact cleaner can be used. For the trailer plug, a wire brush or fine-grit sandpaper can help remove stubborn corrosion. Ensure all moisture is removed before reconnecting.
2. Damaged or Worn Pins
The pins within the trailer plug and socket are designed to be robust, but they can still suffer damage. Dropping the trailer plug, improper connection, or simply excessive wear and tear can lead to bent, broken, or significantly worn pins. A bent pin might not make proper contact with its corresponding socket terminal, while a worn pin might not have enough surface area to conduct electricity reliably.
Symptoms: Specific trailer lights not working (e.g., only one indicator), lights flickering.
Solution: Visually inspect all pins for any signs of damage or excessive wear. If a pin is bent, it might be possible to gently straighten it with pliers, but care must be taken not to break it. Severely worn or broken pins will require the replacement of the trailer plug or, in some cases, the vehicle socket assembly.
3. Loose Wiring Connections
The wiring that connects to the trailer socket can become loose over time due to vibration from driving. This can happen at the terminal block within the plug, at the connection point on the trailer's chassis, or even within the vehicle's wiring harness. A loose connection creates an open circuit, meaning the electrical signal cannot reach the trailer lights.
Symptoms: Complete failure of multiple trailer functions, intermittent operation.
Solution: Check all visible wiring connections. Ensure that the wires are securely fastened to their terminals. If you're comfortable with it, you can carefully open the trailer plug and vehicle socket (if accessible) to check the internal connections. Ensure the wires are crimped or soldered properly and that there's no strain on the connections.
4. Wiring Faults within the Trailer or Vehicle
Beyond the immediate socket connections, the wiring loom on the trailer or the vehicle's dedicated trailer wiring harness can develop faults. This could include a frayed wire, a short circuit where a live wire touches the chassis, or a break in the wire somewhere along its length. These faults can manifest as a rejection of the entire trailer system by the vehicle's electronics.
Symptoms: Dashboard warnings, specific trailer lights not working, blown fuses related to trailer electrics.
Solution: This often requires a more in-depth diagnostic process. Using a multimeter to test for continuity and voltage at various points in the trailer's wiring can help pinpoint the fault. If the trailer's wiring is suspected, it might be worth disconnecting it from the vehicle and testing it independently. If the vehicle's wiring harness is the issue, professional diagnosis by a mechanic or auto electrician is recommended.
5. Incorrect Trailer Plug Type
While less common, it's possible that the trailer is fitted with the wrong type of plug for the vehicle's socket, or vice versa. For instance, trying to connect a 7-pin plug to a 13-pin socket without an adapter will obviously not work. Similarly, some vehicles have specific wiring configurations for their trailer sockets that might not be universally compatible without an adapter.
Symptoms: The plug physically cannot be inserted into the socket, or it inserts but no functions work.
Solution: Verify that the trailer plug and vehicle socket are of the same type (e.g., both 7-pin or both 13-pin). If they are different, an appropriate adapter or conversion kit will be necessary.
6. Vehicle's Trailer Module Fault
In many modern vehicles, trailer electrics are managed by a dedicated trailer control module. This module can develop its own faults, independent of the physical socket or wiring. These faults can lead to the vehicle rejecting any connected trailer, even if the trailer's electrical system is perfectly fine.
Symptoms: All trailer functions fail, dashboard error messages related to the trailer module, sometimes other vehicle systems may also behave erratically.
Solution: Diagnosing a faulty trailer control module typically requires specialised diagnostic equipment and is best left to a qualified mechanic or dealership. They can read error codes from the module and determine if it needs repair or replacement.
7. Bulb Failure or Incorrect Bulb Type
While this might seem obvious, a blown bulb in the trailer can sometimes confuse the vehicle's monitoring system, especially on systems designed to detect bulb failures. If the resistance is too high (due to a blown bulb or an incorrect wattage bulb being fitted), the vehicle might interpret this as a fault.
Symptoms: A specific trailer light (e.g., brake light) not working, dashboard warning light for trailer fault.
Solution: Check all bulbs on the trailer to ensure they are working and are of the correct type and wattage as specified for that trailer. Replacing a blown bulb is a straightforward fix.
Troubleshooting Steps: A Practical Approach
When faced with a rejected trailer socket, a systematic approach is best:
- Visual Inspection: Start with a thorough visual check of the trailer plug and vehicle socket for any obvious signs of damage, corrosion, or foreign objects.
- Cleanliness: Ensure both the plug and socket are clean and dry.
- Bulb Check: Verify all trailer lights are functioning correctly and the bulbs are correct.
- Connection Integrity: Check for loose wires at the plug and on the trailer.
- Test with a Known Good Trailer: If possible, try connecting a different trailer that you know is working correctly. If this trailer functions, the problem lies with your original trailer. If the problem persists, it's more likely an issue with the vehicle's socket or wiring.

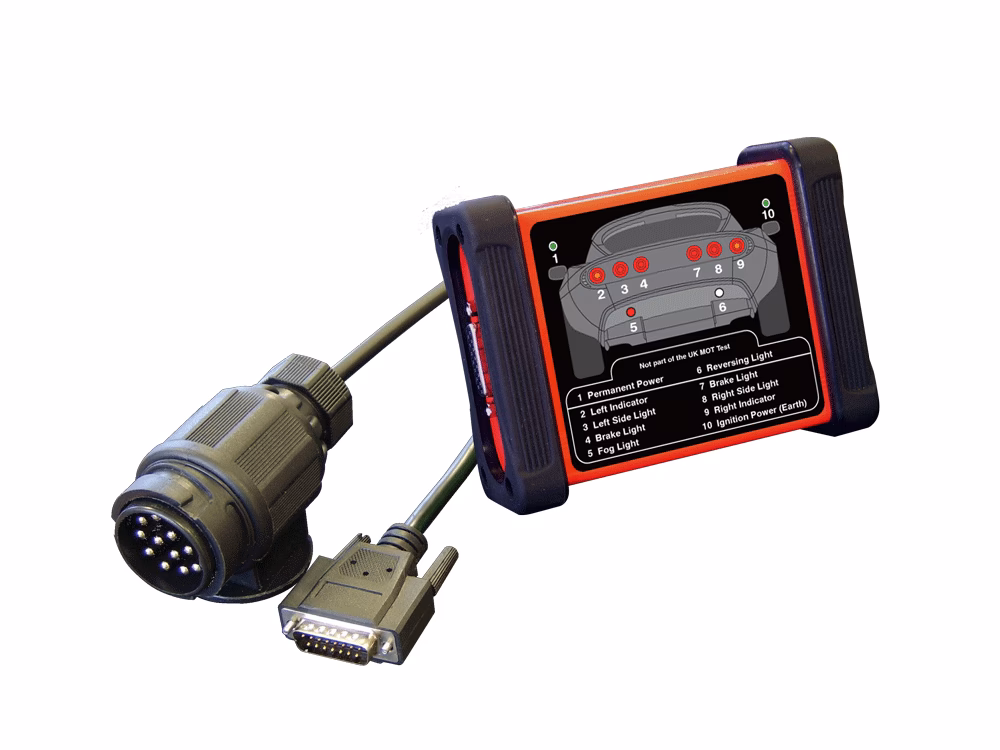

- Use a Trailer Light Tester: A dedicated trailer light tester can be plugged into the vehicle socket to simulate a trailer and check if all circuits are functioning correctly from the vehicle's perspective.
Preventative Maintenance
To avoid future problems, regular maintenance is key:
- Keep sockets clean and dry: Use a socket cover when the trailer is not attached.
- Regularly inspect connections: Check for corrosion and wear before long journeys.
- Avoid dragging the trailer plug: Store it securely when not in use.
Frequently Asked Questions
Q1: My car shows a trailer fault, but all my trailer lights work. Why?
A1: This is often due to a high-resistance connection, possibly from slight corrosion or a loose wire, which the vehicle's sensitive electronics can detect as a fault even if the lights are illuminated. Ensure all connections are clean and tight.
Q2: Can I bypass the vehicle's trailer monitoring system?
A2: While technically possible in some older vehicles, it is generally not recommended and can be illegal in many jurisdictions. The monitoring system is a safety feature.
Q3: How often should I clean my trailer socket?
A3: It's advisable to inspect and clean your trailer socket and plug at least annually, or more frequently if you regularly tow in harsh conditions (e.g., winter salt, off-road use).
Addressing trailer socket rejection issues promptly is vital for safe towing. By understanding these common causes and following a methodical troubleshooting process, you can identify and resolve the problem, ensuring your trailer's electrical system operates reliably and safely.
