Patio Depth: The Essential Guide

Embarking on a patio project is an exciting way to enhance your outdoor living space. However, before you even think about choosing paving slabs or decorative stones, a crucial, often overlooked, step is determining the correct excavation depth. Getting this right from the outset is fundamental to the longevity, stability, and functionality of your new patio. A poorly excavated base can lead to sinking, cracking, and drainage issues, turning your dream patio into a costly maintenance headache. This guide will delve into the essential considerations for patio excavation depth, ensuring your hard work pays off for years to come.

Understanding Excavation Depth: More Than Just Digging

The depth to which you excavate for your patio isn't arbitrary; it's a carefully calculated requirement dictated by the materials you'll be using and the need for a stable, well-draining foundation. The primary components contributing to this required depth are the sub-base and the paving layer itself. The sub-base, typically made of crushed aggregate like MOT Type 1, provides a robust foundation that distributes weight and prevents frost heave. The paving layer, whether it's slabs, block paving, or other materials, then sits on top of this sub-base.

Key Factors Influencing Excavation Depth

Several factors will influence the total depth you need to excavate. The most significant are:

• Type of Paving: Different materials have varying thicknesses. A thick natural stone slab will require a shallower excavation than a thin porcelain tile.
• Sub-base Thickness: This is a critical component. A standard recommendation for a domestic patio is a minimum of 100mm of compacted sub-base.
• Edging Materials: If you're using kerbs or edging stones, their height and how they are set will also need to be factored into the overall depth.
• Ground Conditions: In areas with poor soil or a high water table, you might need a thicker sub-base for added stability.
• Intended Use: A patio that will bear heavier loads, perhaps for a hot tub or a driveway extension, will necessitate a more substantial sub-base and potentially deeper excavation.

Calculating Your Excavation Depth: A Practical Approach

Let's break down how to calculate the required excavation depth for a typical domestic patio. We'll use the example provided, which focuses on the sub-base layer.

The Sub-Base: The Foundation of Your Patio

As highlighted, the sub-base is paramount. For most residential patios, a compacted sub-base of 100mm is considered the minimum. This layer is crucial for creating a stable and level platform for your paving.

Incorporating the Paving Layer

You then need to add the thickness of your chosen paving material. For instance, if you're using 50mm thick paving slabs, this needs to be added to the sub-base depth.

The Crucial Drainage Fall

A vital aspect of any patio is ensuring proper drainage to prevent waterlogging and surface ice. Building regulations and best practice dictate a 'fall' or gradient. The information states a fall of 25mm for every 1.5m of patio. This means that over a 1.5-meter run, the patio should slope downwards by 25mm. This fall should be incorporated into the excavation and sub-base levels.

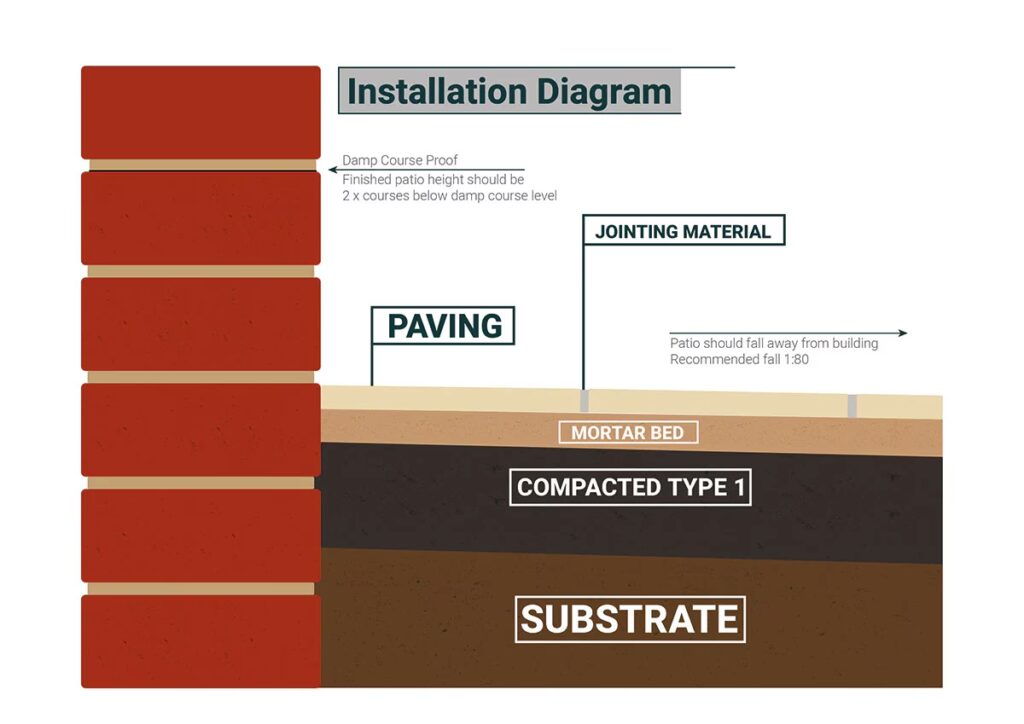

Putting It All Together: The Calculation

To determine your total excavation depth, you sum the required thickness of your sub-base and your paving material, whilst also accounting for the drainage fall. It's often easiest to set your finished patio level first and then work backwards.

Let's consider an example:

• Required compacted sub-base: 100mm
• Thickness of paving slabs: 50mm
• Total depth for paving and sub-base: 100mm + 50mm = 150mm

Now, you need to factor in the drainage fall. If your patio is 3 metres long, you'll need a total fall of 50mm (25mm per 1.5m x 2 = 50mm). This means the ground level at the edge furthest from the house will be 50mm lower than at the edge closest to the house, assuming the fall is consistent across the entire width.

Therefore, when marking your excavation depth, you need to account for this gradient. If the lowest point of your finished patio is to be flush with the damp proof course of your house (a common and recommended practice), then your excavation depth at the highest point (furthest from the house) will be 150mm (sub-base + paving) + 50mm (fall) = 200mm. At the lowest point (closest to the house), the excavation depth would be 150mm.

Important Note: Always check local building regulations and manufacturer guidelines for specific material requirements.

Marking Out the Excavation Depth

Once you've calculated the required depth, it's time to mark it out. The provided text offers an excellent method:

1. Start at the Highest Point: Identify the highest point of your patio area. This is often the point closest to your house.
2. Use Wood Stakes: Drive wooden stakes into the ground at regular intervals across the patio area.
3. Measure the Gap: Measure the gap from the top of the stake to the ground level. This gap should represent your required excavation depth at that specific point. Remember to account for the drainage fall as you do this. For instance, if your maximum excavation depth is 200mm, you'll drive a stake in so that 200mm of it is exposed at the highest point. As you move towards the lower end of the fall, you'll drive the stakes in slightly less deep, ensuring the top of the stake is still at the correct excavation depth for that section.
4. Use a String Line or Spirit Level: To ensure a consistent depth and gradient, you can use a string line stretched between stakes or a spirit level on a long straight edge to check your levels.

The Sub-Base Laying Process: A Closer Look

With the excavation complete and the depth marked, you can proceed to lay the sub-base. The process involves:

1. Transporting the Aggregate: Use a wheelbarrow to bring the crushed aggregate to the excavated area.
2. Spreading the Material: Spread the aggregate evenly across the base.
3. Compaction is Key: This is where the plate compactor comes into play. This heavy machine vibrates and compacts the aggregate, creating a solid and stable layer.
4. Achieving Level and Fall: Compact the sub-base until it is level with your marked pegs or string lines. You may need to add more aggregate as you compact to achieve the correct height and maintain the intended drainage fall.

Safety First: Essential PPE

Working with heavy machinery and materials requires proper safety precautions. The text rightly emphasizes the importance of wearing:

• Safety Boots: To protect your feet from falling objects and the ground.
• Safety Goggles: To shield your eyes from dust and debris.
• Ear Defenders: To protect your hearing from the noise of the plate compactor.

Always follow the manufacturer's instructions for operating machinery and be aware of your surroundings.

Table: Typical Excavation Depths for Patios

This table provides a general guideline. Always adapt to your specific project requirements.

Remember to add the required drainage fall to these depths when marking out your excavation.

Frequently Asked Questions

Q1: How deep should I excavate for a patio if I'm not using a sub-base?

A1: It is strongly advised not to skip the sub-base. It provides essential stability and drainage. Excavating only for the thickness of the paving will likely lead to premature failure of your patio.

Q2: What happens if I don't excavate deep enough?

A2: Insufficient excavation depth means your sub-base and paving layers will be too shallow. This can result in the patio becoming uneven, sinking, or cracking due to inadequate support and poor drainage. Frost heave in winter can also lift shallowly laid patios.

Q3: How do I account for the drainage fall when excavating?

A3: As described, you need to ensure that the ground slopes away from your house (or in the desired direction of drainage). If your finished patio needs to be 150mm thick and have a 50mm fall over 3 metres, your excavation depth at the highest point will be 200mm, and at the lowest point, it will be 150mm.

Q4: Can I use different types of aggregate for the sub-base?

A4: For optimal results, use a graded aggregate like MOT Type 1 (or similar crushed stone with a range of particle sizes). This compacts well and provides excellent load-bearing capacity. Avoid using single-size chippings or soil for your sub-base.

Q5: How do I ensure the sub-base is properly compacted?

A5: The most effective way is to use a vibrating plate compactor. Compact in layers of no more than 100mm at a time for best results. Ensure you pass over the entire area multiple times until the material is firm and stable.

By carefully considering and accurately calculating your excavation depth, you lay the groundwork for a durable, attractive, and functional patio that you can enjoy for many years. Always prioritise safety and follow best practices for a successful project.
