Identifying Haldex in Your VW or Audi
Many Volkswagen and Audi drivers appreciate the enhanced traction and dynamic handling that all-wheel drive (AWD) provides. For a significant number of these vehicles, particularly those with sporty aspirations or a need for sure-footedness in varied conditions, the underlying AWD technology is the sophisticated Haldex system. If you own a model like the Golf R, Tiguan, Passat, Audi A3 Quattro, or TT, chances are you're benefiting from Haldex. But how can you be absolutely sure, and more importantly, what does it mean for your vehicle's care?
The Haldex system is a clever piece of engineering that typically operates as a part-time AWD setup. This means it primarily drives the front wheels, but can seamlessly engage the rear wheels when traction is compromised or when performance demands it. This on-demand engagement contributes to better fuel efficiency compared to full-time AWD systems. At its core, the system uses an electronically controlled hydraulic pump to manage a multi-plate clutch, which is responsible for distributing torque between the front and rear axles. The efficiency and longevity of this system, however, are directly linked to regular and correct maintenance.
What is the Haldex System?
The Haldex system, developed by the Swedish company Haldex Traction (now part of BorgWarner), has been adopted by the Volkswagen Group (VAG) for many of its models. It's a compact and relatively lightweight system that offers a significant boost in driving dynamics. Unlike traditional mechanical AWD systems that use differentials, Haldex employs an electronically controlled clutch pack. This clutch pack is the heart of the system, allowing for variable torque distribution.
The system's operation is governed by a dedicated ECU (Electronic Control Unit). This ECU receives input from various vehicle sensors, including wheel speed sensors, steering angle sensors, and throttle position sensors. Based on this data, it precisely controls the hydraulic pump, which in turn regulates the pressure applied to the clutch pack. This allows for near-instantaneous engagement of the rear axle, providing a responsive and engaging driving experience.
There have been several generations of the Haldex system, with Generation 4 and Generation 5 being the most prevalent in modern VAG vehicles. While each generation brings improvements, they also share some common maintenance requirements and potential issues, particularly if neglected.
How to Tell if Your VW or Audi Uses Haldex
The most straightforward way to confirm if your Volkswagen or Audi is equipped with a Haldex AWD system is to consult your vehicle's owner's manual. It will typically specify the type of AWD system installed. Alternatively, you can check the vehicle's VIN (Vehicle Identification Number) or look for specific badging on the vehicle, though this is less common for the Haldex system itself. The most reliable method, especially if you're unsure, is to consult a trusted mechanic or dealership who can access your vehicle's specifications.
Another strong indicator is the model itself. Certain models are almost exclusively fitted with Haldex AWD. These include:
| Volkswagen Models | Audi Models |
|---|---|
| Golf R (all generations) | A3 Quattro (8P and 8V chassis, 2.0 TFSI models) |
| Tiguan (4MOTION models, particularly 2.0 TSI) | S3 (8P and 8V chassis) |
| Passat (4MOTION models, particularly 2.0 TSI) | TT Quattro (8J and 8S chassis, 2.0 TFSI models) |
| Arteon (4MOTION models) | Q3 Quattro (certain engine variants) |
| Golf Alltrack (4MOTION models) |
If your vehicle is listed above and features AWD, it's highly probable that it uses a Haldex system. The key is to remember that the Haldex system is designed for variable torque distribution, not permanent all-wheel drive in the traditional sense.
Common Haldex System Issues and Symptoms
While the Haldex system offers excellent performance, it requires diligent maintenance to prevent common problems. Neglecting these can lead to costly repairs and a loss of the AWD functionality you rely on.
Blocked Haldex Pump Filters (Gen 4 & Gen 5)
A significant design characteristic of Generation 4 and 5 Haldex units is the absence of a traditional external oil filter. Instead, they feature an internal mesh screen attached to the electric pump. Over time, microscopic metal particles from the clutch pack's wear and clutch dust can accumulate. This debris gradually clogs the mesh filter. When the filter becomes blocked, the hydraulic pump struggles to generate sufficient pressure. This leads to reduced or non-existent torque transfer to the rear wheels, effectively rendering your AWD system ineffective. Your vehicle might revert to front-wheel drive only, especially under load or in slippery conditions.
Symptoms of a Blocked Filter:
- No AWD functionality or a noticeable reduction in rear-wheel power.
- Dashboard warning lights related to the AWD system or traction control.
- Diagnostic trouble codes (DTCs) pointing to low pump pressure, pump failure, or ECU communication issues (e.g., 01155, 02248, 01324).
- Poor traction in wet, snowy, or icy conditions.
Failed Haldex Pumps
The constant strain of trying to pump fluid through a clogged filter, or the presence of contaminated oil, can cause the electric pump motor to overheat. Prolonged overheating can lead to premature wear and eventual failure of the pump motor. A completely failed pump means no hydraulic pressure can be generated, resulting in a complete loss of AWD functionality and often triggering warning lights.
Symptoms of a Failed Pump:
- AWD warning lights illuminated on the dashboard.
- Specific fault codes such as 01155 (Clutch Pressure) or 02248 (Pump Motor Electrical Malfunction).
- The rear wheels do not engage under acceleration or when traction is lost.
Haldex ECU (Control Module) Failure
The Haldex ECU is the brain of the operation, dictating when and how much torque is sent to the rear wheels. Like any electronic component, it can be susceptible to failure. Common causes include internal component breakdown, corrosion (especially if water ingress occurs), or electrical faults. A faulty ECU can lead to erratic AWD behaviour, intermittent engagement, or a complete inability for the system to communicate.
Symptoms of ECU Failure:
- Diagnostic fault code 01324 – Control Module for AWD (Immobilizer, No Communication).
- Inconsistent or unpredictable AWD operation.
- The diagnostic tool cannot establish communication with the Haldex control module.
Contaminated or Degraded Haldex Oil
The high-performance clutch pack within the Haldex unit relies on specific, high-quality hydraulic fluid. This fluid not only lubricates but also plays a crucial role in the hydraulic pressure system. Over time, this fluid can degrade, become contaminated with debris, or lose its lubricating properties. Skipping oil changes or using the incorrect fluid can accelerate clutch wear, put undue stress on the pump, and potentially cause internal damage to the entire unit. Regular fluid changes are absolutely essential.
Recommended Service Interval:
For most Haldex systems, a fluid and filter (mesh screen) service is recommended every 30,000 to 40,000 kilometres, or every 2 to 3 years, whichever comes first. This interval can vary slightly based on driving conditions and manufacturer recommendations.

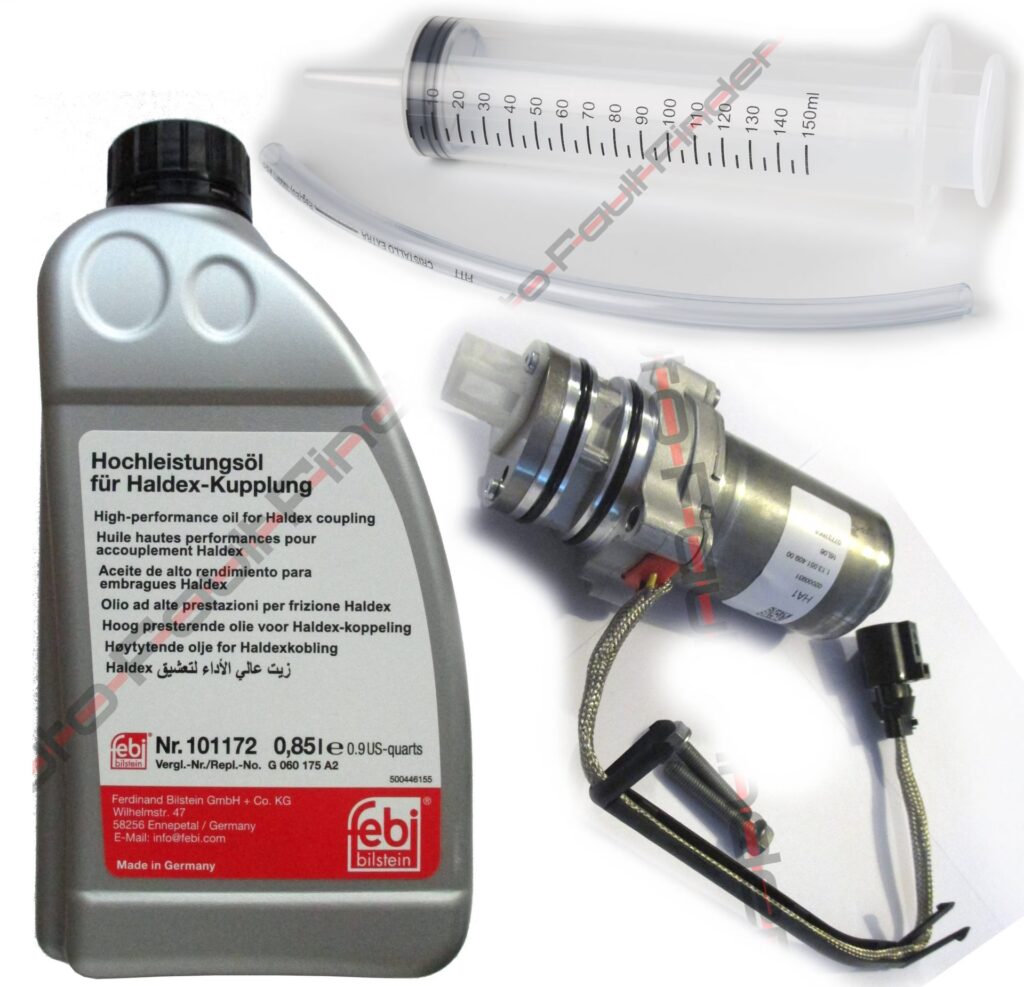

Haldex Oil and Filter Change - How To. Haldex Oil Change. Haldex Oil should be changed every 20K miles. You just need a tube of oil P/N G 052 175 A1, Tool VAG1628 (Silicone Gun, basically), and an allen key. So no special tools required really.
Why Haldex Maintenance is Crucial
A common misconception among owners is that the Haldex system is a 'sealed for life' unit, requiring no maintenance. This is a dangerous myth. The reality is that regular servicing, specifically involving the cleaning or replacement of the internal pump filter and changing the hydraulic fluid, is critical to prevent catastrophic failures and expensive component replacements. Ignoring these maintenance needs can snowball into:
- Total AWD Failure: The most obvious consequence, leaving you with only front-wheel drive.
- Costly Component Replacements: A failed pump, damaged clutch pack, or faulty ECU can run into thousands of pounds to repair or replace.
- Compromised Handling and Safety: Without the proper functioning of the AWD system, your vehicle's handling dynamics, especially in adverse conditions, can be significantly degraded, posing a safety risk.
Servicing Your Haldex System
Proper servicing of the Haldex system involves a few key steps:
1. Haldex Oil Change
This involves draining the old hydraulic fluid and refilling with the correct, manufacturer-approved fluid. Using the wrong type of fluid can cause damage.
2. Pump Filter Cleaning/Replacement
This is arguably the most critical part of the service. The technician will carefully remove the pump and clean the internal mesh filter screen to remove accumulated debris. In some cases, depending on the condition, replacement of the filter may be recommended.
3. Diagnostics and Live Data
Using specialized VAG-compliant diagnostic tools, a thorough check of the Haldex ECU and its functions should be performed. This includes reading any stored fault codes and analysing live data from the pump and pressure sensors to ensure everything is operating within specification.
4. Resetting Adaptations
After servicing, the Haldex system's adaptations may need to be reset using diagnostic equipment to ensure optimal performance.
When to Seek Professional Help
If you notice any of the symptoms mentioned above – warning lights, unusual noises, or a perceived loss of AWD performance – it's crucial to have your vehicle inspected by a specialist. Attempting complex repairs without the correct knowledge and tools can lead to further damage.
Specialist workshops, particularly those focusing on VAG vehicles like Volkswagen and Audi, will have the necessary diagnostic equipment and expertise to correctly service and repair your Haldex system. They can perform:
- Comprehensive Haldex pump and ECU diagnostics.
- Professional oil and filter cleaning/replacement.
- Live data testing to assess pump duty cycles and pressure readings.
- Repair or replacement of faulty Haldex pumps and ECUs.
- Accurate resetting and coding procedures using the appropriate software.
Frequently Asked Questions (FAQs)
Q1: Is the Haldex system really 'sealed for life'?
A1: No, this is a common misconception. The Haldex system requires regular fluid changes and filter cleaning to maintain its performance and prevent premature failure. Neglecting it will lead to expensive repairs.
Q2: How often should the Haldex fluid and filter be serviced?
A2: Generally, every 30,000-40,000 km or 2-3 years is recommended, but it's best to consult your vehicle's service schedule or a specialist for the precise interval for your model.
Q3: Can I service the Haldex system myself?
A3: While some basic maintenance might be possible, the specialized nature of the system, particularly the need for correct diagnostic tools for resets and adaptations, makes it a job best left to professionals. Improper servicing can cause significant damage.
Q4: What happens if the Haldex pump fails?
A4: If the Haldex pump fails, you will lose all power to the rear wheels, and your vehicle will operate in front-wheel drive mode only. Warning lights will typically illuminate on the dashboard.
Q5: Which VW and Audi models commonly use the Haldex system?
A5: Models like the Golf R, Tiguan 4MOTION, Passat 4MOTION, Audi A3 Quattro, S3, and TT Quattro are frequent users of the Haldex AWD system.
Conclusion
Understanding your VW or Audi's Haldex system is the first step towards ensuring its longevity and optimal performance. By recognizing the signs of potential issues and adhering to a regular maintenance schedule, you can avoid costly repairs and continue to enjoy the benefits of confident, all-wheel-drive handling. Don't underestimate the importance of a timely Haldex service; it's an investment in your vehicle's performance and your own safety.
