Understanding EOT Cranes: Your Essential Guide

In the bustling world of industrial operations, the ability to safely and efficiently move heavy materials is paramount. Electric Overhead Travelling (EOT) cranes stand as titans in this domain, facilitating the lifting and transportation of substantial loads across various sectors. These sophisticated machines are engineered with precision, incorporating advanced movement mechanisms that define their operational prowess. Understanding the core functions and components of an EOT crane is crucial for optimising workflow, ensuring safety, and maximising productivity. This comprehensive guide will delve into the essential aspects of EOT cranes, from their fundamental definition and key components to their primary motions, advantages, and widespread applications.

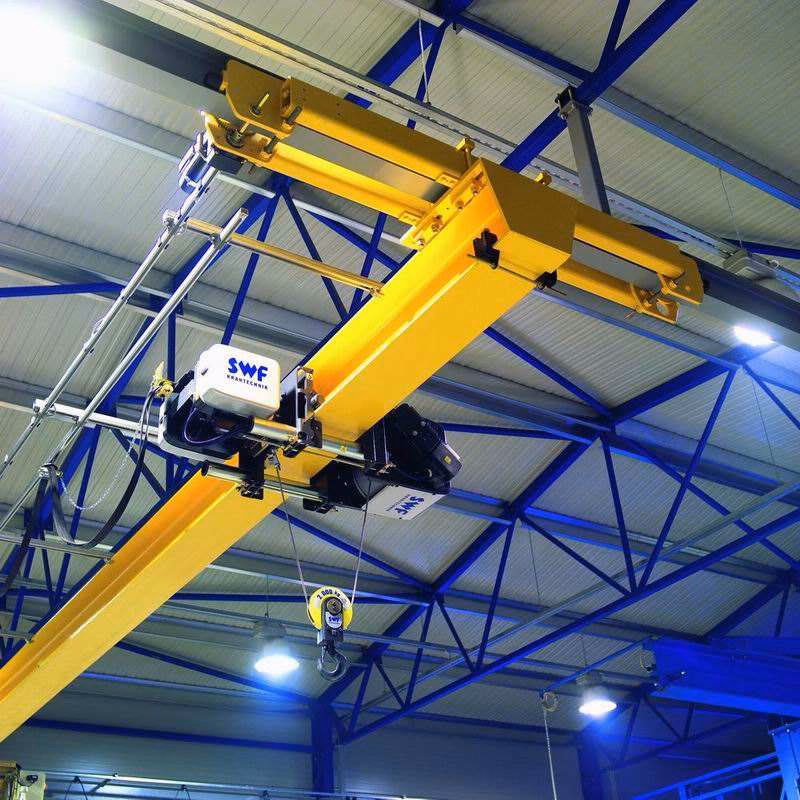

What Exactly is an EOT Crane?

An Electric Overhead Travelling (EOT) crane is a type of overhead crane that harnesses electric power to lift and transport heavy loads within a designated workspace. Its operational design allows for movement across three dimensions, facilitated by a system of rails or beams. The crane's movements are precisely controlled and categorised as Long Travel (LT), Cross Travel (CT), and Hoist Travel (HT). These movements, coupled with the interplay of various critical components, ensure accurate and safe load handling. The very name, EOT Crane, stands for Electric Overhead Travelling Crane, highlighting its power source, operating position, and motion capabilities.

Key Components of EOT Cranes: The Building Blocks of Efficiency

The robust performance of an EOT crane is a testament to the synergy of its various meticulously designed components. Each part plays a vital role in the crane's overall functionality and safety:

The Bridge and Girders: The Backbone of the Crane

The bridge is the main horizontal structure that spans the entire width of the work area, moving along the runway beams. It serves as the foundation for the trolley and hoist. The girder forms the primary load-bearing structure of the bridge. EOT cranes are typically classified by their girder configuration: single-girder (one main beam) and double-girder (two parallel beams). The girder's strength is crucial for supporting the trolley and hoist, and for distributing the load evenly across the crane structure.

Trolley and Hoist: The Heart of the Lifting Mechanism

Mounted on the bridge, the trolley facilitates lateral movement across the crane's width, known as Cross Travel (CT). It carries the hoist, allowing for precise positioning of the load. The hoist is the mechanism responsible for the vertical movement of the load – lifting and lowering. This is referred to as Hoist Travel (HT). It typically comprises a motor, a wire rope drum, and a pulley system for smooth operation.

Runway Beams and End Trucks: Enabling Long Travel

The runway beams are fixed horizontal rails installed along the length of the workspace. The crane's bridge moves along these beams, executing the Long Travel (LT) motion. End trucks are mounted on either side of the bridge and house the wheels and motors that drive the bridge along the runway beams, enabling the LT motion.

Wire Rope Drum: The Load's Vertical Conduit

The wire rope drum is a cylindrical component within the hoist mechanism. It winds and unwinds the wire rope used for lifting and lowering the load. Its design ensures the even distribution of the wire rope and provides the necessary torque for vertical lifting operations.

DSL (Down Shop Leads): The Lifeline of Power

The Down Shop Leads (DSL) system is critical for providing a continuous electrical supply to the crane as it moves. Composed of power-conducting lines or rails installed along the crane's path, the DSL ensures an uninterrupted flow of electricity to all the crane's motors and control systems, enabling seamless operation.

Brakes: The Guardians of Safety

Brakes are indispensable for controlling the crane's movement and ensuring safety, especially when handling heavy loads. They are integrated into the LT, CT, and HT motions to prevent unintended movement and to securely hold the load in position. Common types include disc brakes, drum brakes, hydraulic brakes, and electromagnetic brakes. Fail-safe brakes, which automatically engage upon power loss, are particularly crucial for emergency situations.

Understanding SIBRE Brakes: Precision Engineering for Heavy Loads

SIBRE brakes are renowned for their robust design and reliable performance in demanding industrial environments. They are engineered to provide precise stopping, secure holding, and essential safety control for heavy-duty applications like EOT cranes. SIBRE offers a range of braking solutions:

• Disc Brakes: Ideal for high-torque applications, these brakes use calipers to apply force to a rotating disc, offering excellent stopping power and heat dissipation.
• Drum Brakes: These brakes feature shoes pressing against the inner surface of a drum, creating friction to halt motion. They are known for their reliability and ease of maintenance.
• Hydraulic Brakes: Utilising hydraulic pressure, these brakes provide smooth, powerful, and controlled braking action, making them suitable for frequent starts and stops with heavy loads.
• Electromagnetic Brakes: Actuated by electric current, these brakes offer quick and precise stopping, often used for emergency stops or high-frequency operations.
• Fail-Safe Brakes: These spring-applied brakes are released by hydraulic or electromagnetic force. In the event of power loss, the spring mechanism automatically engages, ensuring the crane stops safely.

The Three Primary Motions of an EOT Crane

The versatility of EOT cranes stems from their ability to perform three distinct yet coordinated movements:

1. Long Travel (LT) Motion: This refers to the horizontal movement of the entire crane bridge along the runway beams, covering the full length of the workspace.
2. Cross Travel (CT) Motion: This is the lateral movement of the trolley across the bridge girder, allowing the hoist to be positioned precisely along the crane's width.
3. Hoist Travel (HT) Motion: This is the vertical movement of the hoist, responsible for lifting and lowering the load. It is powered by an electric motor driving the wire rope drum.

These three motions, working in tandem, enable EOT cranes to handle loads efficiently in all directions, ensuring precise material handling for a wide array of industrial tasks.

How EOT Cranes Work: A Symphony of Mechanics and Electricity

EOT cranes operate by converting electrical energy into mechanical motion. The process typically involves:

• Power Supply: Electrical power is drawn from the DSL system, providing a consistent energy source to the crane's various components.
• Movement Execution: Electric motors, controlled by the operator via a pendant, radio remote, or cabin, drive the LT, CT, and HT motions. Motors in the end trucks power the LT motion, the trolley's motor handles CT, and the hoist motor drives the wire rope drum for HT.
• Braking and Control: Brakes are applied automatically or manually to stop and hold loads securely. Safety features like overload protection prevent the crane from exceeding its rated capacity.

Advantages of EOT Cranes: Why They Reign Supreme

EOT cranes offer a compelling set of advantages that make them indispensable in modern industry:

• Flexibility in Load Movement: The LT, CT, and HT motions provide multi-directional control for precise load positioning.
• High Lifting Capacity: Especially with double-girder designs, EOT cranes can safely lift extremely heavy loads.
• Space Efficiency: Operating overhead frees up valuable floor space for other activities, optimising workspace utilisation.
• Enhanced Safety: Integrated brakes, overload protection, and emergency stops ensure safe operation, even in demanding environments.
• Durability and Reliability: Constructed with robust materials, EOT cranes are built for long-term performance and heavy-duty use.

Applications of EOT Cranes: Where They Make a Difference

The versatility of EOT cranes sees them deployed across a broad spectrum of industries:

• Manufacturing: Moving raw materials, components, and finished goods on production floors.
• Construction: Lifting building materials, heavy equipment, and structural elements.
• Warehousing: Handling large or heavy items to improve material flow and logistics.
• Steel Mills: Transporting molten metal, steel coils, and heavy beams.
• Automotive: Assisting in the assembly of vehicles and movement of heavy machinery.
• Power Plants: Used for maintenance and the transportation of heavy equipment.

Choosing the Right EOT Crane: Key Considerations

Selecting the appropriate EOT crane is critical for optimal performance. Key factors to consider include:

• Capacity: The maximum weight the crane needs to lift.
• Span: The horizontal distance the crane must cover.
• Lift Height: The required vertical reach of the hoist.
• Duty Cycle: The frequency and intensity of crane usage, determining the required duty class.
• Girder Configuration: Single-girder for lighter loads and cost-effectiveness, double-girder for higher capacities and stability.

Types of EOT Cranes: Single vs. Double Girder

The primary distinction in EOT crane design lies in their girder configuration:

Single Girder EOT Cranes

Characterised by a single main bridge girder, these cranes are typically lighter and more cost-effective. They are ideal for light to medium-duty applications, with lifting capacities generally ranging from 1 to 20 tons. They are often used for shorter periods or as standby cranes. Their construction is simpler, often leading to lower installation and maintenance costs.

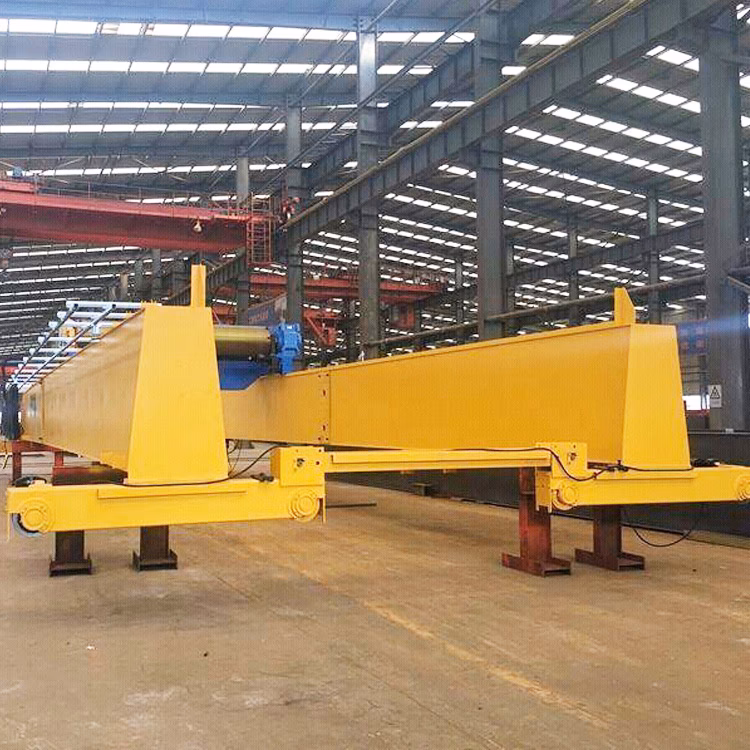

Double Girder EOT Cranes

Featuring two parallel bridge girders, these cranes offer superior stability and higher lifting capacities, often ranging from 2 to 50 MT and exceeding 100 tons for heavy-duty applications. The hoist travels on a rail mounted on top of the girders, allowing for a greater hook lift height. Double girder cranes are well-suited for heavy lifting tasks, large spans, and can accommodate additional equipment like walkways or cabs.

Comparison Table: Single vs. Double Girder EOT Cranes

Maintenance and Safety: Ensuring Longevity and Performance

Regular maintenance is not merely recommended; it is essential for the safe and efficient operation of EOT cranes. Key maintenance practices include:

• Routine Inspections: Regularly check wire ropes, brakes, motors, electrical systems, and structural integrity.
• Lubrication: Ensure all moving parts, such as gears, bearings, and pulleys, are properly lubricated to minimise wear and tear.
• Brake System Checks: Test brake functionality and adjust as needed to ensure they provide adequate stopping power.
• Electrical System Maintenance: Inspect the DSL system, motors, and control panels for any signs of damage or malfunction.
• Load Testing: Periodically conduct load tests to verify the crane's lifting capacity and structural soundness.
• Operator Training: Ensure all operators are thoroughly trained and certified, emphasising safe operating procedures and emergency protocols.

Adherence to these maintenance and safety protocols significantly reduces the risk of accidents and extends the operational lifespan of the EOT crane.

Frequently Asked Questions (FAQ) About EOT Cranes

1. What is an EOT Crane?
   An Electric Overhead Travelling (EOT) crane is an electrically powered crane that moves on overhead tracks to lift and transport heavy loads across a workspace. It features three primary motions: Long Travel (LT), Cross Travel (CT), and Hoist Travel (HT).
2. What are the main types of EOT Cranes?
   The two main types are single-girder EOT cranes (one main beam) and double-girder EOT cranes (two main beams). They can also be categorised as top-running or underhung.
3. What is the difference between single and double girder cranes?
   Double girder cranes have higher lifting capacities, greater stability, and allow for a higher hook lift compared to single girder cranes, which are generally more cost-effective and suited for lighter loads.
4. What are the three main movements of an EOT crane?
   Long Travel (LT) – movement along the runway; Cross Travel (CT) – movement of the trolley across the bridge; and Hoist Travel (HT) – vertical lifting and lowering of the load.
5. Why is a DSL system important?
   The DSL (Down Shop Leads) system provides a continuous and uninterrupted electrical power supply to the crane as it moves along its runway, ensuring all operations can function smoothly.
6. What safety features are common in EOT cranes?
   Key safety features include brakes (especially fail-safe brakes), overload protection, limit switches, emergency stop buttons, and robust construction.
7. What industries commonly use EOT cranes?
   EOT cranes are widely used in manufacturing, construction, warehousing, steel mills, automotive, and power generation industries.
8. How is the lifting capacity of an EOT crane determined?
   Lifting capacity is determined by the crane's design, including the strength of the girders, the hoist mechanism, and the overall structural integrity. It is specified by the manufacturer and should never be exceeded.
9. What is the typical lifespan of an EOT crane?
   With proper maintenance, an EOT crane can have a lifespan of 15 to 30 years or more, depending on its usage, operating environment, and the quality of maintenance received.
10. Can EOT cranes be customised?
    Yes, EOT cranes can be customised to meet specific operational requirements, including lifting capacity, span, hook height, speed, and the integration of special features or controls.

In conclusion, Electric Overhead Travelling (EOT) cranes are indispensable assets in modern industrial settings. Their ability to lift and transport heavy loads with precision, coupled with their efficient use of space and inherent safety features, makes them a cornerstone of productive operations. Understanding their components, motions, types, and maintenance requirements empowers businesses to select and operate these vital machines effectively, lifting their productivity to new heights.
