Patio Base Calculator: Your Project's Best Mate

Embarking on a patio project is an exciting venture, promising a beautiful outdoor space for relaxation and entertaining. However, before you can enjoy alfresco dining or sunbathing, there's a crucial, often underestimated, phase: establishing a solid, stable base. This foundation is paramount to your patio's longevity, preventing unsightly cracks, dips, and drainage issues. The challenge for many DIY enthusiasts and even seasoned builders lies in accurately estimating the materials needed. Too little, and you face costly delays; too much, and you're left with expensive waste. This is precisely where a modern patio base calculator becomes your indispensable tool.

No longer do you need to rely on guesswork or complex manual calculations. These digital aids are designed to streamline the planning process, providing precise quantities of aggregates, sand, cement, and paving slabs, tailored to your specific project dimensions. Let's delve into how this ingenious tool works and why it's a game-changer for anyone building a patio in the UK.

What Exactly is a Patio Base Calculator?

At its core, a patio base calculator is an online or software-based utility that takes your project's specific measurements and, using established construction principles and material densities, computes the exact quantities of materials required for your patio's sub-base and bedding layers. Think of it as your personal quantity surveyor, but without the hefty fee! It's designed to prevent the common pitfalls of over-ordering and under-estimating, which can significantly impact your budget and project timeline.

The beauty of these calculators lies in their simplicity and accuracy. They eliminate the need for complex mathematical equations, allowing you to focus on the enjoyable aspects of your build, rather than getting bogged down in calculations. From the initial excavation depth to the final bedding layer, every component of your patio's foundation is considered.

How Does a Patio Base Calculator Work Its Magic?

While different calculators may have slightly varying interfaces, the fundamental steps they follow are remarkably consistent, guiding you through an intuitive process:

1. Enter Your Measurements

This is the starting point. You'll need to input the dimensions of your patio area. Typically, this involves:

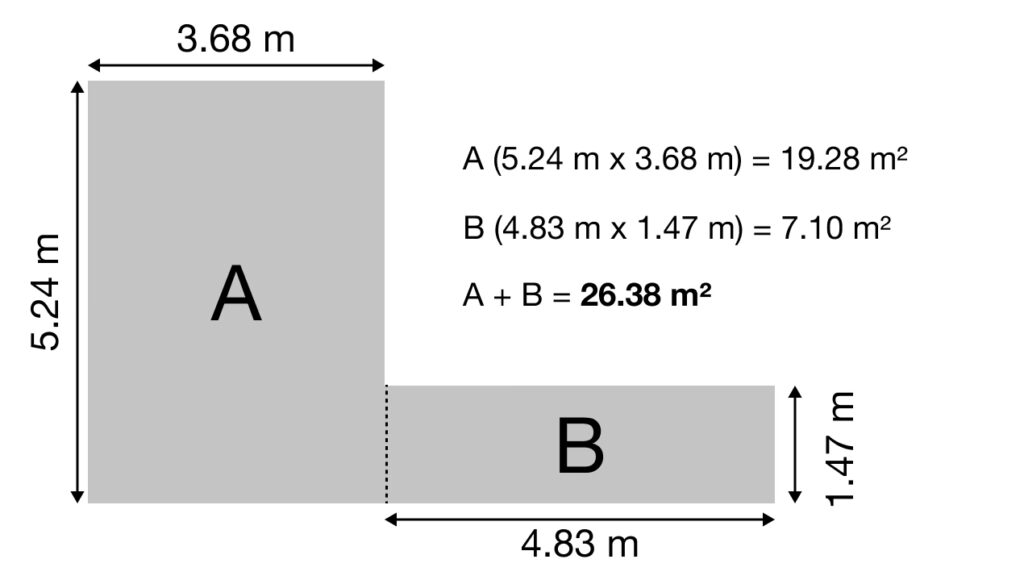

• Area Size: The length and width of your proposed patio in metres (e.g., 4.5m x 3.2m). Some calculators might allow you to input the total square metres directly if you've already calculated it.
• Slab Dimensions: If you're using paving slabs, you'll enter the length and width of the individual slabs (e.g., 600mm x 600mm or 900mm x 600mm). This helps the calculator determine the number of slabs required, accounting for jointing gaps.
• Material Depth: This is critical. You'll specify the desired depth for each layer of your base. For example, you might input 150mm for the MOT sub-base and 50mm for the sharp sand bedding layer. Understanding the recommended depths for different patio types (e.g., light foot traffic vs. heavy use) is essential here.

Accuracy in these measurements is paramount. A small error in your initial input can lead to significant discrepancies in the material estimates.

2. Select Your Ratio or Mix

For elements like mortar and concrete, you'll often be prompted to choose a specific mix ratio. This is crucial for ensuring the structural integrity and durability of your patio components:

• Mortar Mixes: Common ratios include 4:1 (four parts sand to one part cement) or 3:1. A 4:1 mix is generally suitable for bedding paving slabs, providing a strong yet workable base. A 3:1 mix is stronger and might be used for pointing or setting edges where greater rigidity is required. The choice depends on the specific application and the type of paving material.
• Concrete Mixes: While a patio base calculator primarily focuses on aggregate quantities, some might offer options for calculating concrete for edge restraints or specific foundations. These often relate to general purpose concrete mixes rather than specific strength grades like C20 or C25, which are more common for larger structural projects.
• Custom Mixes: Some advanced calculators allow for custom ratios, giving you flexibility if you have specific requirements or preferences based on professional advice.

The selected ratio directly influences the amount of sand and cement the calculator will recommend, ensuring you have the correct proportions for a robust mix.

3. Get Instant Results

Once you've entered all the necessary information, the calculator processes it instantly, providing you with a clear breakdown of the materials you'll need. This typically includes:

• MOT (Ministry of Transport) Type 1: Often measured in tonnes or cubic metres, this is the backbone of your sub-base.
• Sand: Quantities for sharp sand (for bedding) and potentially building sand (for mortar) will be provided, again in tonnes or cubic metres.
• Cement: Measured in 25kg bags, this is essential for mortar and concrete mixes.
• Pavers/Slabs: The exact number of individual paving slabs required, taking into account their dimensions and typical jointing gaps.

These instant results give you a comprehensive shopping list, ready to take to your local builder's merchant or aggregate supplier.

4. Adjust for Wastage

This is a small but incredibly important step that many DIYers overlook. No project is ever perfectly precise; there's always a degree of wastage due to:

• Cutting: Slabs often need cutting to fit edges or awkward shapes.
• Breakages: Accidents happen, and a slab might crack during handling or cutting.
• Compaction: Aggregates compact down, meaning you need more loose material than the final compacted volume.
• Uneven Ground: Despite your best efforts, slight variations in ground level can consume extra material.

Most calculators recommend adding an extra 5-10% to your material quantities to account for this. For paving slabs, it's often wise to add 10% to ensure you have enough for cuts and potential breakages. For aggregates like MOT or sand, 5% is usually sufficient for compaction and minor levelling adjustments. This small buffer can prevent frustrating delays and additional delivery costs if you run short mid-project.

Key Materials for Your Patio Base: A Closer Look

Understanding the materials the calculator specifies is just as important as knowing how to use the tool. Each plays a vital role in creating a durable patio.

MOT Type 1: The Foundation of Strength

MOT Type 1 is a granular sub-base material specified by the Ministry of Transport for use in roads, driveways, and, of course, patios. It's a crushed aggregate, typically limestone, granite, or basalt, ranging in size from dust up to 40mm. This wide range of particle sizes, known as a 'well-graded' material, is crucial because it allows the aggregate to interlock and compact extremely well, creating a very stable and load-bearing layer.

Its primary function is to provide a firm, stable, and free-draining base for your patio. When properly compacted with a plate compactor (wacker plate), it forms an incredibly strong layer that distributes the weight of your paving evenly, preventing subsidence and movement. For most domestic patios, a compacted depth of 100-150mm of MOT Type 1 is recommended.

What Kind of MOT for Decorative Aggregates?

While our focus is patio bases, the question of MOT for decorative aggregates is pertinent to broader landscaping. If decorative aggregates (like gravel for a pathway or driveway) are being laid over an area that will bear foot or vehicle traffic, a MOT Type 1 sub-base is still the go-to choice. It provides the essential stability and drainage beneath the decorative layer, preventing rutting and sinking. For permeable paving or areas requiring enhanced drainage, MOT Type 3 (a 'reduced fines' aggregate with less dust) might be preferred as it allows water to pass through more freely. However, for a standard patio base, Type 1 is the most common and robust option.

Sand: The Bedding and Bonding Agent

When it comes to patios, not all sand is created equal. You'll typically encounter two main types:

• Sharp Sand (or Grit Sand): This is the workhorse for your bedding layer. As its name suggests, the grains are angular and sharp, which helps them interlock and provide excellent drainage. A 50mm compacted layer of sharp sand is usually laid over the MOT Type 1 sub-base to create a perfectly level and permeable bed for your paving slabs. It's also used in concrete mixes.
• Building Sand (or Soft Sand): This sand has finer, more rounded grains and is ideal for mortar mixes due to its workability and ability to create a smooth, pliable mix. It's not suitable for bedding layers as it doesn't offer the same stability or drainage as sharp sand.

Cement: The Essential Binder

Ordinary Portland Cement (OPC), typically sold in 25kg bags, is the crucial ingredient that binds aggregates together to form concrete and mortar. When mixed with water, it undergoes a chemical reaction (hydration) that causes it to harden and gain strength. For a patio, cement is primarily used for:

• Mortar Bed: A semi-dry mix of sharp sand and cement (often 4:1) can be used as a bedding layer for paving slabs, particularly for natural stone, providing a strong, rigid bond.
• Pointing: A wetter mortar mix is used to fill the gaps between your laid paving slabs, providing a neat finish and preventing weed growth.
• Concrete Haunching: To provide extra stability to the edges of your patio, a concrete mix might be used to 'haunch' the outer slabs.

Paving Slabs/Pavers: The Visible Surface

While not strictly part of the 'base', the calculator will determine the number of paving slabs you need. These come in a vast array of materials, colours, and sizes, each with its own characteristics:

• Concrete Paving: Cost-effective, durable, and available in many styles and colours.
• Natural Stone: Sandstone, limestone, granite, and slate offer unique aesthetics, durability, and a premium feel.
• Porcelain Paving: Highly durable, low maintenance, and extremely resistant to staining and fading, mimicking the look of natural stone or wood.

The calculator's ability to factor in slab dimensions and jointing gaps ensures you order precisely what's needed, minimising waste from incorrect quantities.

The Unbeatable Benefits of Using a Patio Base Calculator

Beyond simply providing numbers, integrating a patio base calculator into your project planning offers a multitude of advantages:

Cost Savings: This is arguably the biggest benefit. By accurately estimating materials, you avoid over-ordering, which means less money spent on surplus materials that you then have to store or dispose of. You also avoid under-ordering, which can lead to emergency, often more expensive, small deliveries or trips to the merchant.

Time Savings: Manual calculations are time-consuming and prone to error. A calculator provides instant results, freeing up your valuable time for other aspects of the project. It also prevents delays caused by running out of materials mid-job.

Accuracy and Confidence: Eliminate guesswork. The calculator provides precise figures based on established construction standards, giving you the confidence that you're ordering the correct quantities for a structurally sound patio. This reduces project stress and improves overall project efficiency.

Reduced Waste: By ordering only what you need (plus a sensible wastage allowance), you contribute to less construction waste, which is better for the environment and reduces your disposal costs.

Professional Planning: Even for DIY projects, using professional tools like a calculator elevates your planning. It ensures you approach the build systematically, much like an experienced contractor would.

Beyond the Numbers: Essential Patio Base Construction Tips

While the calculator handles the quantities, the quality of your patio also depends on proper execution. Here are some vital tips:

1. Site Preparation is Key: Clear the area of all vegetation, debris, and topsoil. Ensure the ground is firm and stable.
2. Excavate to Depth: Dig out the area to the correct depth, accounting for the sub-base, bedding layer, and the thickness of your paving slabs, plus a slight fall for drainage (typically 1:80 to 1:100).
3. Ensure Adequate Drainage: Patios must have a slight fall (gradient) away from any buildings to allow surface water to run off. Without proper drainage, water can pool, leading to moss growth, staining, and even structural issues with your house.
4. Compaction is Crucial: Lay your MOT Type 1 in layers (no more than 100mm per layer) and compact each layer thoroughly with a plate compactor. This prevents future settlement and creates a truly stable base.
5. Edge Restraints: Consider installing concrete haunching or proprietary patio edging around the perimeter. This prevents your sub-base and bedding sand from spreading outwards, maintaining the integrity of your patio.
6. Weed Membrane: While not part of the structural base, laying a permeable weed membrane over the excavated ground before adding your MOT can help prevent weed growth from below.

Frequently Asked Questions (FAQs)

Q: How deep should my patio base be?

A: For a typical domestic patio with light foot traffic, a compacted MOT Type 1 sub-base of 100-150mm is generally recommended, followed by a 30-50mm sharp sand bedding layer. For heavier use or larger slabs, a deeper sub-base (up to 200mm) might be advisable. Always consult manufacturer guidelines for your specific paving.

Q: What's the best MOT for a patio?

A: MOT Type 1 is the standard and most recommended aggregate for a patio sub-base in the UK. Its well-graded nature ensures excellent compaction and stability. MOT Type 3 is used for permeable applications where maximum drainage is required.

Q: Can I lay a patio directly on soil?

A: Absolutely not. Laying paving directly on soil will inevitably lead to unevenness, cracking, and subsidence over time. A properly constructed sub-base and bedding layer are essential for longevity and stability.

Q: What's the difference between sharp sand and building sand for patios?

A: Sharp sand (or grit sand) has angular particles, making it ideal for the bedding layer beneath slabs as it interlocks well and provides good drainage. Building sand (or soft sand) has finer, rounded particles and is primarily used for mortar mixes due to its workability, but it's unsuitable for bedding as it doesn't compact as effectively or drain as well.

Q: How much does a 25kg bag of cement cover?

A: This depends heavily on the mix ratio and application. For a typical 4:1 sharp sand to cement bedding mix, one 25kg bag of cement mixed with 100kg of sharp sand would generally cover approximately 1-1.5 square metres at a 50mm depth. For pointing or smaller areas, it will go further. Always refer to specific mix instructions.

Q: Do I need a membrane under my patio?

A: A permeable geotextile membrane (weed membrane) is highly recommended. It's laid directly on the excavated soil before the MOT sub-base. It helps prevent weeds from growing up through your patio and also acts as a separator, preventing the sub-base materials from mixing with the underlying soil, which can compromise stability and drainage.

In conclusion, building a patio is a significant investment of time and effort. By leveraging the power of a patio base calculator, you're not just getting numbers; you're gaining precision, efficiency, and ultimately, the peace of mind that comes from knowing your project is built on a solid foundation. Embrace this modern tool, and your dream patio will be a reality, serving you well for many years to come.
