Precast Bridge Beams Explained

Precast bridge beams represent a cornerstone of modern infrastructure development, offering an efficient and economical solution for spanning distances across rivers, valleys, and roadways. These meticulously engineered structural components are manufactured off-site in controlled factory conditions, ensuring consistent quality and precision. This approach significantly streamlines the on-site construction process, leading to reduced project timelines and costs. The versatility of precast beams allows for their application in a wide array of bridge designs, catering to diverse span lengths and load requirements. In the United Kingdom, the standardisation of these beams has led to readily available options for various construction needs, although transportation logistics can sometimes dictate the maximum achievable length.

Understanding Precast Bridge Beams

At their core, precast bridge beams are large, load-bearing structural elements that form the primary support system for a bridge deck. They are typically made from reinforced or prestressed concrete, materials chosen for their inherent strength, durability, and cost-effectiveness. The manufacturing process involves pouring concrete into precisely shaped moulds, incorporating steel reinforcement (rebar) or prestressing tendons to enhance their load-carrying capacity and resistance to tensile forces. Once cured and hardened, these beams are transported to the construction site and lifted into place using heavy-duty cranes. Their pre-manufactured nature means that much of the complex structural work is completed before arriving at the site, allowing for rapid assembly.

Key Advantages of Precast Bridge Beams

The widespread adoption of precast bridge beams in civil engineering projects is driven by a multitude of benefits:

• Speed of Construction: Off-site manufacturing allows for parallel processing – the beams are produced while site preparation and foundation work are underway. This significantly reduces the overall construction schedule.
• Cost-Effectiveness: Mass production in a controlled environment often leads to economies of scale. Furthermore, the reduced on-site labour and shorter construction times contribute to lower project costs.
• Quality Control: Factory conditions permit stringent quality control measures. Factors like concrete mix, curing temperatures, and reinforcement placement can be meticulously monitored, resulting in a superior and more consistent product compared to on-site casting.
• Durability and Longevity: High-quality concrete and advanced manufacturing techniques result in beams that are highly resistant to environmental factors, wear, and tear, ensuring a long service life for the bridge.
• Reduced Site Disruption: The rapid assembly of precast elements minimises the time spent on-site, thereby reducing traffic disruption and environmental impact in the surrounding area.
• Design Flexibility: A variety of standard shapes and sizes are available, and custom designs can also be accommodated to meet specific project requirements.

Types of Standard Precast Bridge Beams in the UK

The UK market features several types of standard precast bridge beams, each suited to different span lengths and structural configurations. The choice of beam type often depends on the required load capacity, the span to be bridged, and the desired construction method.

Inverted Tee Beams

Inverted Tee beams, as the name suggests, have a cross-section resembling an upside-down 'T'. These beams are typically laid adjacent to each other, forming a continuous support system. Reinforcement is passed through pre-formed holes within the beams, and the gaps between them are filled with concrete to create a monolithic slab. This method provides a robust and stable deck structure. The typical spans achievable with inverted Tee beams range from approximately 6 metres to 18 metres, making them suitable for a variety of smaller to medium-span bridges.

Wide Box Beams

Similar in application to inverted Tee beams, wide box beams offer a more efficient use of materials. They are also placed side-by-side and benefit from in-situ concrete infill to form the deck. However, their box-like structure requires less infill concrete compared to inverted Tees, resulting in a lighter overall cross-section. This weight reduction can be advantageous in situations where foundation loads need to be minimised.

M, U, Y, and Super-Y Beams

These types of beams are designed for longer spans and are typically spaced further apart. They feature projecting reinforcement at their top flanges, which integrates with the cast-in-situ deck slab. This integration ensures that the beams and the slab act together as a composite structural unit, effectively distributing loads. Permanent formwork is often placed between the top flanges to support the in-situ concrete during casting. Special edge beams are used to provide the correct profile and support at the bridge's extremities.

The span capabilities of these beams vary significantly:

• M Beams: Suitable for spans generally between 16 and 25 metres.
• U Beams: Can accommodate spans from approximately 18 to 30 metres.
• Y Beams: Offer capabilities for spans ranging from 20 to 35 metres.
• Super-Y Beams: These are designed for the longest spans, often exceeding 35 metres and reaching up to 40 metres, providing solutions for more substantial bridging requirements.

The top surface of all these spaced beams is meticulously prepared, and the projecting reinforcement is crucial for achieving the composite action, which is fundamental to their performance under load.

Transportation and Limitations

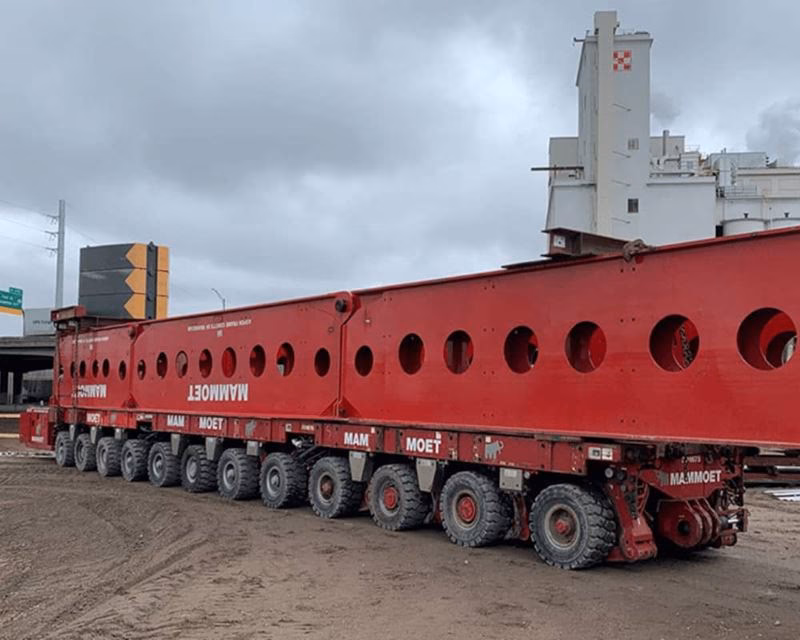

While precast bridge beams offer numerous advantages, their transportation presents a significant logistical challenge. The sheer size and weight of these components necessitate specialised transport vehicles and adherence to strict regulations. In the UK, the standard maximum length for transporting precast bridge beams is typically around 27.4 metres. For longer beams, exceeding this limit requires special permits and careful route planning, often involving overnight transport on motorways to minimise disruption. This transportation constraint can, therefore, influence the choice of beam type and the overall design for very long spans, sometimes necessitating alternative construction methods or the use of multiple, shorter beams joined together.

Applications Beyond Bridges

Although primarily designed and utilised for bridge construction, the robust nature and load-bearing capabilities of precast bridge beams make them suitable for a broader range of heavy-duty applications. These include:

• Docks and Quays: Providing strong foundations and deck structures for port facilities, capable of withstanding heavy loads from shipping, cargo handling equipment, and warehousing.
• Industrial Developments: Used in the construction of factories, warehouses, and other industrial buildings where heavy machinery and significant floor loads are anticipated.
• Viaducts and Elevated Roadways: Forming the primary structural elements for complex multi-level transport infrastructure.
• Footbridges and Pedestrian Walkways: Offering a swift and efficient solution for pedestrian overpasses.

Procuring Precast Bridge Beams

For specific project requirements, it is essential to obtain detailed information directly from manufacturers. They can provide comprehensive data on the properties of their standard bridge beams, including load capacities, dimensional tolerances, material specifications, and connection details. This ensures that the chosen beams are appropriate for the intended application and comply with all relevant engineering standards and building regulations.

Frequently Asked Questions

What is the main advantage of using precast concrete beams?

The primary advantages are the speed of construction due to off-site manufacturing and the consistent, high quality achieved through factory-controlled production, leading to cost savings and reduced site disruption.

Can precast bridge beams be used for very long spans?

Yes, types like Super-Y beams are specifically designed for longer spans, often up to 40 metres. For even longer spans, bridges might be constructed using a series of shorter precast beams or alternative structural systems.

What are the limitations of precast bridge beams?

The main limitation is the transportation of the beams due to their size and weight. Standard transport limits in the UK can restrict the maximum length of individual beams. Additionally, while versatile, they may not be suitable for all complex or highly bespoke bridge geometries.

How do precast beams connect to the bridge deck?

For spaced beams like M, U, and Y types, projecting reinforcement from the beam's top flange integrates with the cast-in-situ concrete deck slab, creating a composite structure. For inverted Tee and box beams, they are placed adjacent, and infill concrete forms the deck, often with reinforcement passed through them.

Are precast bridge beams more expensive than cast-in-situ?

Generally, while the unit cost of a precast beam might seem higher, the overall project cost is often lower due to reduced labour, faster construction times, and less need for on-site formwork and curing. The long-term durability also contributes to a lower lifecycle cost.

Conclusion

Precast bridge beams represent a sophisticated and highly effective solution in civil engineering, particularly for bridge construction. Their off-site manufacture ensures quality and speed, while their varied types cater to a wide range of span requirements. Despite transportation challenges for the longest units, their inherent advantages in terms of cost, durability, and efficiency make them a preferred choice for modern infrastructure projects across the UK and beyond. Understanding the different types and their specific applications is crucial for engineers and project managers aiming to deliver robust, economical, and timely construction solutions.
