The Quattro MOT Brake Test: What You Need to Know

For many Audi Quattro owners, the annual MOT can bring a unique sense of apprehension, especially when it comes to the brake test. Unlike standard two-wheel drive vehicles, a Quattro’s sophisticated four-wheel drive system presents specific challenges that, if misunderstood or mishandled by the MOT station, can lead to significant and expensive damage. It’s a common concern to see your prized Audi being hoisted onto conventional roller brake testers, often leaving you wondering if the procedure is truly safe for its complex drivetrain. This article aims to demystify the process, explain the risks involved, and empower you with the knowledge to ensure your Quattro receives the correct and safe brake assessment it deserves during its MOT.

The core of the issue lies in how a Quattro, or any permanent four-wheel drive vehicle, distributes power. Unlike part-time 4WD systems that can be disengaged, a Quattro system is constantly engaging all four wheels. At the heart of many Audi Quattro models, particularly older ones and those not using the latest Ultra technology, lies the Torsen differential. This ingenious mechanical device is designed to automatically distribute torque between the front and rear axles, ensuring optimal grip and performance in varying conditions. It's a purely mechanical system that reacts to traction differences, allowing for seamless power transfer without the need for electronic intervention in its primary function. While brilliant for driving dynamics, this constant connection across all four wheels is precisely what makes standard brake testing problematic.

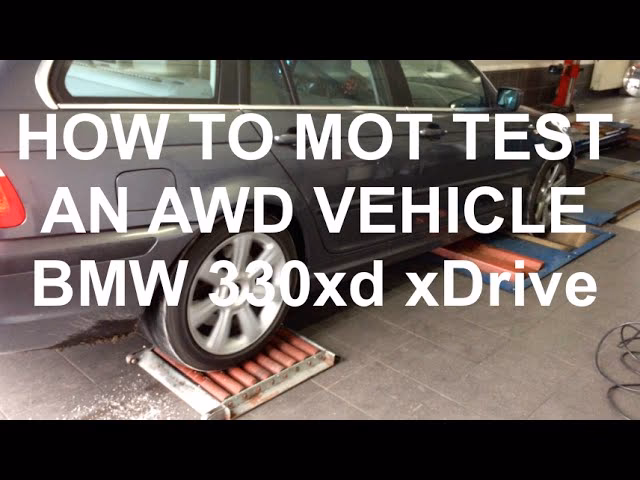

Traditional roller brake testers, commonly found in MOT stations across the UK, are designed to test the brakes on one axle at a time. For a two-wheel drive car, this is straightforward: one axle is on the rollers, the other is stationary on the floor. However, when a Quattro is placed on these rollers, the situation changes drastically. If only one axle is on the rollers, and those rollers begin to spin, the Torsen differential interprets the difference in wheel speed between the front and rear axles as a loss of traction. Its natural response is to send power to the wheels that *aren't* spinning – in this case, the ones on the floor. This creates immense strain within the differential, as it tries to drive stationary wheels, effectively 'winding up' the entire drivetrain. This 'wind-up' can lead to severe damage to the differential, driveshafts, and even the gearbox, resulting in repair bills running into thousands of pounds.

The guidance from manufacturers like Audi, as highlighted in the ELSA WIN quote, is very clear on this matter. It specifies procedures for vehicles with four-wheel drive systems, particularly when using a single-axle brake dynamometer. The key instruction is that “The rollers drive the wheels of one axle in opposite directions to avoid transmitting torque to the other axle.” This is a crucial detail that distinguishes a conventional roller tester from a 4WD-compatible one. A standard roller brake tester spins both rollers in the same direction, mimicking forward motion. A specialised 4WD roller tester, however, can spin the left and right rollers of the same axle in *opposite* directions. This counter-rotation effectively cancels out the torque that would otherwise be sent through the differential to the other axle, preventing the damaging 'wind-up' effect. Furthermore, the ELSA WIN quote explicitly states, “Test speed must not exceed 6 km/h. Otherwise the EDL control can activate the brakes if the rollers start at different points in time.” This speed limitation is critical, as exceeding it, even on an appropriate 4WD dyno, risks triggering the Electronic Differential Lock (EDL) system, which can apply the brakes on individual wheels, further complicating the test and potentially causing issues. The ultimate warning from Audi is stark: “WARNING: The Torsen differential will be seriously damaged if test speed exceeds 6 km/h.” This underscores the absolute necessity of adhering to manufacturer guidelines and using approved equipment.

So, what exactly does Audi consider "approved" equipment? The ELSA WIN quote states, “All brake test equipment approved by Audi meets these requirements.” This typically refers to specialised roller brake testers designed for 4WD vehicles that can perform the counter-rotation mentioned, or alternative testing methods that don't put the differential under stress. One such alternative, which many MOT stations prefer for Quattro vehicles, is the plate brake tester, often referred to as a 'floor gauge' by owners. Unlike rollers, a plate brake tester measures braking force by sensing the pressure exerted by the tyres onto a series of plates as the vehicle brakes from a low speed. Because all four wheels are on a flat surface and moving at the same speed during the test, there is no differential wind-up. This method is generally considered safe for all types of drivetrain, including permanent 4WD systems. Another acceptable method is a properly conducted road test, where braking efficiency is measured using a decelerometer. While less common for routine MOTs due to practicalities, it is a perfectly valid and safe method for 4WD vehicles.

Let's compare the different methods of brake testing relevant to your Quattro:

Given this information, what should your MOT station be doing? Ideally, for a Quattro, they should be using either a plate brake tester (floor gauge) or a 4WD-compatible roller brake tester that can operate in the specified counter-rotation mode and strictly adhere to the 6 km/h speed limit. The fact that your MOT station 'just puts it on the rollers and never use the floor gauge' is a red flag, unless their rollers are specifically designed for 4WD vehicles and they are aware of and follow the strict manufacturer guidelines. It is perfectly acceptable, and indeed recommended, for you to ask the MOT technician how they intend to test the brakes on your Quattro. Inquire about the type of equipment they use and their procedure for 4WD vehicles. A reputable MOT station will be knowledgeable about these requirements and happy to explain their methods. If they seem unaware or insist on using standard rollers without any special precautions, it might be wise to seek an alternative MOT centre that specialises in or has experience with 4WD vehicles.

While the immediate damage from an incorrect roller test might not always be instantly apparent, the cumulative stress can significantly shorten the lifespan of your drivetrain components. Over time, the repeated 'wind-up' can lead to premature wear of the Torsen differential gears, bearings, and seals. You might not hear a catastrophic bang, but rather notice new noises, vibrations, or a general degradation in the smoothness of the power delivery. These symptoms often signify internal damage that can be costly to diagnose and repair. Early signs might be subtle, such as a slight binding sensation when turning slowly, or a new whine from the drivetrain. If you suspect your Quattro has been subjected to an incorrect brake test, it's advisable to have a qualified Audi specialist inspect the drivetrain for any signs of stress or damage. Prevention is always better than cure when it comes to the complex and expensive components of your Quattro.

Beyond the specific challenges of the MOT brake test, general brake maintenance for your Quattro remains paramount. Regular inspection of brake pads, discs, calipers, and fluid is essential for safety and optimal performance. Due to the nature of Quattro's power delivery and often spirited driving, brake components can experience significant wear. Ensuring your brake fluid is fresh and that calipers are not seizing will not only improve braking efficiency but also prevent premature wear of other components. A well-maintained braking system will always perform better, whether it's on a test stand or during an emergency stop on the road, providing peace of mind and contributing to the longevity of your vehicle.

Frequently Asked Questions About Quattro MOT Brake Tests

Can my Quattro be safely tested on standard roller brake testers?

Generally, no. Standard roller brake testers spin both rollers in the same direction, which can cause severe 'wind-up' in the Torsen differential of a permanent four-wheel drive system, leading to significant damage. Only specialised 4WD-compatible roller testers that can operate in a counter-rotation mode (spinning rollers in opposite directions) and strictly adhere to a 6 km/h speed limit are safe for Quattro vehicles. Many MOT stations opt for plate brake testers or decelerometer road tests for Quattro vehicles to avoid this risk entirely.

What is a Torsen differential and why is it so important?

The Torsen differential (Torque Sensing) is a mechanical device used in many Audi Quattro models to distribute power between the front and rear axles. It reacts to differences in wheel speed and traction, automatically sending more torque to the axle with better grip. It's a purely mechanical system, meaning it doesn't rely on electronics to function. Its continuous connection across both axles is why it's vulnerable to damage from standard roller brake testers, as it tries to drive stationary wheels when one axle is on the rollers.

What is EDL control and how does it relate to the brake test?

EDL stands for Electronic Differential Lock. It's a function of the Electronic Stabilisation Program (ESP) that uses the ABS system to apply braking force to a wheel that is spinning excessively, thereby transferring power to the wheel with more traction. During a brake test, if the rollers start at different times or exceed the 6 km/h speed limit, the EDL system can activate. This activation can interfere with the brake test results and potentially cause issues, as the car's electronics are trying to correct what it perceives as wheel slip.

How can I tell if my MOT station is using the right equipment?

The best approach is to ask them directly before the test. Inquire about their procedure for testing 4WD vehicles. Look for MOT stations that specifically mention having a plate brake tester (floor gauge) or a 4WD-compatible roller dynamometer. If they plan to use rollers, ask if they can perform the counter-rotation test and if they are aware of the 6 km/h speed limit. A confident and knowledgeable response is a good sign.

What are the risks of incorrect brake testing on my Quattro?

The primary risk is severe damage to the drivetrain components, particularly the Torsen differential, driveshafts, and gearbox. This damage is caused by the extreme stress and 'wind-up' created when the differential tries to drive stationary wheels while one axle is spinning on standard rollers. Such damage can lead to very costly repairs, often running into thousands of pounds, and may not be immediately apparent, manifesting as new noises, vibrations, or reduced driving smoothness over time.

Is a road test with a decelerometer an acceptable alternative for MOT brake testing?

Yes, a road test using a calibrated decelerometer is a perfectly valid and safe method for assessing braking efficiency for MOT purposes, especially for 4WD vehicles. It avoids placing any stress on the drivetrain as the car is tested under normal driving conditions. While not all MOT stations offer this as their primary method, it is an approved alternative for vehicles where roller testing is unsuitable.

Understanding the unique requirements for brake testing your Audi Quattro during its MOT is crucial for protecting your vehicle's complex and expensive drivetrain. While many MOT stations are now well-versed in handling 4WD vehicles, it never hurts to be informed and to ask questions. By knowing the difference between standard roller testers and appropriate methods like plate brake testers or specialised 4WD rollers, you can ensure your Quattro receives a safe and accurate brake assessment, avoiding potentially devastating and costly damage to its sophisticated Torsen differential. Prioritise peace of mind and the longevity of your cherished Audi.
