Brake Servo Replacement: A Comprehensive Guide

The brake servo, also known as the brake booster, is a crucial component in your vehicle's braking system. Its primary function is to multiply the force you apply to the brake pedal, making it significantly easier to slow down or stop your car. Without a functioning servo, braking would require considerable effort, rendering your vehicle difficult and potentially dangerous to drive. When this vital part begins to fail, indicated by symptoms like a hard brake pedal, reduced braking efficiency, or a hissing noise from under the bonnet, replacement becomes necessary. This guide will walk you through the process, offering insights into common challenges and best practices, drawing upon experienced advice to help you navigate this often daunting task.

Understanding the Brake Servo and Its Function

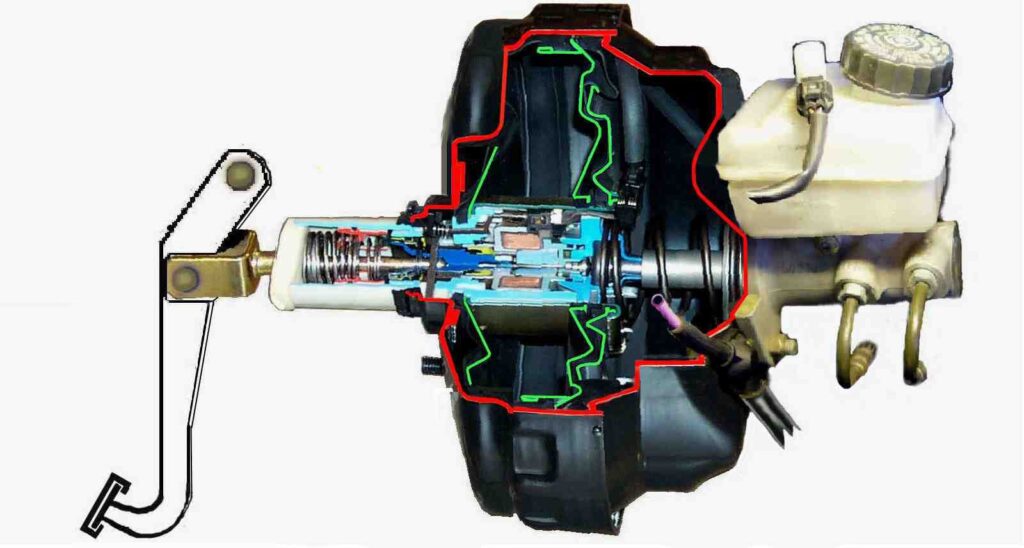

At its core, the brake servo operates using vacuum pressure generated by the engine. This vacuum is channelled through a specific vacuum hose to the servo unit. Inside the servo, a diaphragm separates two chambers. When you press the brake pedal, a valve opens, allowing engine vacuum into one of these chambers. This vacuum pressure acts on the diaphragm, which in turn moves a rod connected to the master cylinder. This mechanical advantage amplifies your foot's pressure, delivering the hydraulic force needed to activate your brakes effectively. The system also incorporates a check valve to maintain vacuum pressure, ensuring immediate assistance upon pedal application and preventing loss of assistance if the engine stalls.

Common Symptoms of a Failing Brake Servo

Recognising the signs of a failing brake servo is key to maintaining your vehicle's safety. The most common indicator is a hard brake pedal. If you find yourself having to press the brake pedal much harder than usual to achieve normal stopping power, the servo may be losing its effectiveness. Another sign is a hissing noise from the engine bay, particularly when the engine is running, which often points to a leak in the vacuum hose or the servo diaphragm itself. You might also notice that braking efficiency is reduced, requiring a longer stopping distance. In some cases, especially if the engine is turned off, the brake pedal might feel normal initially but then become very hard as the vacuum is depleted. A flashing 'glow plug' or 'engine check' light on the dashboard can also be an indirect symptom, as discussed later, often related to sensors associated with the brake pedal mechanism.

Can You Remove the Servo Without Removing the Master Cylinder?

This is a frequently asked question, and the answer can depend on the specific vehicle model. In many cases, particularly on vehicles like the VW Transporter T5 2.5TDi as referenced in user feedback, it is possible to remove and replace the brake servo without completely detaching the master cylinder. However, this often requires careful manoeuvring and potentially the removal of other obstructing components to gain sufficient access. It's not always a straightforward task, and patience is key. The critical connection between the servo and the master cylinder is a pushrod; ensuring this rod is correctly seated during re-installation is paramount for brake function. Some guides might suggest removing the master cylinder for easier access and to guarantee proper alignment, but it can be achieved without it if space allows.

Step-by-Step Guide to Brake Servo Replacement

Replacing a brake servo is an advanced DIY task that requires mechanical aptitude and adherence to safety procedures. If you are not confident, it is highly recommended to seek professional assistance.

1. Preparation and Safety

• Ensure the vehicle is parked on a level surface and the engine is cool.
• Disconnect the battery's negative terminal to prevent electrical shorts.
• Wear appropriate safety gear, including gloves and eye protection.
• Have a suitable container ready to catch any residual brake fluid.

2. Accessing the Brake Servo

This is often the most challenging part. As noted in user experiences, you may need to remove several components to create adequate working space. Common items to be removed include:

• Air filter box and associated hoses.
• Intercooler pipes (if applicable).
• Washer fluid reservoir filler tube.
• Dipstick and its securing bolt.
• Any other components obstructing direct access to the servo mounting and vacuum hose connections.

Carefully label and store all removed parts and fasteners to ensure correct reassembly.

3. Disconnecting the Vacuum Hose

The vacuum hose connects the engine's vacuum source to the brake servo. It's typically secured with a clip or a jubilee clip. To remove it:

• Locate the vacuum hose connected to the rear of the brake servo.
• Carefully slide back any spring clip or loosen the jubilee clip using a screwdriver or pliers.
• Gently twist and pull the hose off the servo's connection nipple. Be cautious not to damage the nipple or the hose itself. If the hose is brittle or shows signs of degradation, it's advisable to replace it while you're working on the system. A compromised vacuum hose will prevent the servo from functioning correctly, even if the servo unit itself is sound.

4. Detaching the Servo from the Master Cylinder

The servo and master cylinder are typically joined by a pushrod extending from the servo into the master cylinder. There might be a retaining clip or pin holding them together. Consult your vehicle's specific service manual for the exact procedure. In many designs, a lock pin or clip needs to be removed, allowing the servo to be pulled away from the master cylinder. Ensure you support the master cylinder if it's not fully removed, to avoid undue stress on the brake lines.

5. Removing the Servo Mounting Bolts

The brake servo is usually secured to the vehicle's bulkhead (firewall) with several nuts or bolts. These are typically accessed from within the engine bay. Loosen and remove these fasteners. Once all connections and fasteners are undone, the old servo should be free to be removed.

6. Installing the New Brake Servo

Installation is the reverse of removal, but with critical attention to detail:

• Align the new servo with the bulkhead mounting points and secure it with the nuts or bolts.
• Crucially, ensure the pushrod from the new servo is correctly inserted into the master cylinder. This is a common point of error. If it's not seated properly, your brakes will not work.
• Reconnect the servo to the master cylinder, ensuring any retaining clip or pin is secured.
• Attach the vacuum hose to the new servo's connection nipple, ensuring the clip or jubilee clip is firmly in place.
• Reinstall all the components that were removed to gain access.

7. Resetting Brake Pedal Sensors (If Applicable)

Vehicles, especially those with electronic stability control or cruise control, often have sensors on the brake pedal mechanism. These sensors monitor pedal position and application. If these have been disturbed during the servo replacement, they may need resetting. Failure to do so can result in warning lights on the dashboard, such as the 'glow plug' or engine check light, and potentially fault codes like 'Brake Pedal Monitoring - Implausible Signal'.

The reset procedure typically involves:

• Locating the small, ratcheted switches with plastic plungers on the brake pedal bracket.
• Removing these switches by twisting them (counter-clockwise for one, clockwise for the other).
• Pulling the plunger out to its maximum extension.
• WHILE PRESSING THE BRAKE PEDAL FIRMLY, refitting the switches to the bracket.
• Allow the brake pedal to slowly return, which should cause the plungers to retract with audible 'clicks'.

Once reset, reconnect the battery's negative terminal.

8. Testing the Brakes

Before driving, it is absolutely essential to test the brakes thoroughly in a safe, open area. Start the engine and press the brake pedal. It should feel firm and provide strong braking assistance. Check for any unusual noises or warning lights on the dashboard. Drive slowly at first, testing the brakes gently and progressively to ensure they are functioning correctly before undertaking normal driving.

Troubleshooting Common Issues

Hard Pedal After Installation: This almost invariably means the pushrod from the servo is not correctly seated in the master cylinder. You will need to re-check this connection.

Hissing Noise: Check the vacuum hose connection at the servo and any other vacuum lines in the vicinity. Ensure the hose is not split or cracked and that the connection is secure.

Warning Lights (Glow Plug/Engine Check): As detailed above, this is likely due to the brake pedal position sensors needing a reset.

No Brake Assist: This could be a faulty new servo, a leak in the vacuum hose, a faulty check valve in the vacuum line, or, most commonly, the unseated pushrod.

Comparison of Symptoms: Servo vs. Master Cylinder Issues

It's important to distinguish between brake servo problems and master cylinder issues, as both can lead to braking difficulties.

Frequently Asked Questions

Q1: How often should a brake servo be replaced?
Brake servos are generally very durable and do not have a fixed replacement interval. They should be replaced when they show signs of failure, such as a hard brake pedal or audible leaks.

Q2: Can I drive with a faulty brake servo?
While it is technically possible to drive with a failed brake servo, it is highly inadvisable. Braking will require significantly more force, drastically reducing your ability to stop the vehicle safely. This poses a serious risk to yourself and others.

Q3: Is it safe to remove the vacuum hose myself?
Yes, removing the vacuum hose is a standard part of the servo replacement process. However, ensure you do so carefully to avoid damaging the hose or the servo's connection nipple. It's a good opportunity to inspect the hose for cracks or wear.

Q4: What happens if the servo pushrod isn't connected properly?
If the pushrod is not correctly seated within the master cylinder, the brake system will not receive any hydraulic assistance from the servo. This will result in a very hard brake pedal and drastically reduced braking ability, making the vehicle unsafe to drive.

Q5: Do I need to bleed the brakes after replacing the servo?
Generally, if the master cylinder and brake lines remain undisturbed, bleeding the brakes is not required. However, if the master cylinder was removed or if any brake lines were disconnected, then bleeding the system will be necessary to remove any air introduced.

Replacing a brake servo is a significant undertaking that directly impacts your vehicle's safety. By understanding the process, preparing adequately, and paying close attention to critical steps like pushrod alignment and sensor resetting, you can successfully replace this vital component and restore your vehicle's braking performance. Always prioritise safety and consult a professional if you have any doubts.
