BMW Swirl Flaps: To Keep or To Delete?

If you're a proud owner of a BMW diesel, or perhaps considering joining the club, chances are you've stumbled upon the term 'swirl flaps'. Other manufacturers might call them 'tumble flaps' or similar, but the underlying concept and potential issues remain strikingly similar. These unassuming components, nestled within your engine's inlet manifold, have become a significant point of discussion and concern within the BMW community. The question isn't just what they are, but whether they genuinely belong in your engine in the long run.

So, what exactly are these much-debated swirl flaps? At their core, swirl flaps are small, butterfly-style valves integrated into the inlet manifold of many diesel vehicles, including a vast range of BMW models. Their primary purpose is twofold: to significantly reduce harmful emissions and to enhance engine power, particularly at lower RPMs. The name 'swirl' perfectly describes their action; they create a swirling motion in the incoming air. This controlled turbulence ensures that the air and fuel mix together more efficiently, leading to a more complete and cleaner combustion process. This, in turn, helps the diesel fuel to be utilised in the most economical and environmentally friendly manner possible.

Typically, there's one swirl flap for each cylinder within the inlet manifold. For instance, a four-cylinder M47 diesel engine will feature four individual swirl flaps, while a six-cylinder M57 diesel engine will house six. These flaps are precisely controlled by the engine's Electronic Control Unit (ECU). When the engine is idling, the flaps are designed to be fully closed, maximising the swirl effect. As the engine RPM increases, they gradually open, allowing for greater airflow and adapting to the engine's demands. This intricate dance of opening and closing is crucial for their intended function.

The Evolution of BMW Swirl Flap Design

BMW first introduced swirl flaps into their diesel engines around the year 2000. The initial design featured 22mm steel flaps. However, this design was not without its flaws, leading to a significant revision in 2004. The updated flaps were increased in size to 32mm, and the diameter of the retaining screws was also enlarged, presumably to improve their durability and reduce the likelihood of failure. Despite these modifications, the issues persisted. Interestingly, from 2007 onwards, some M57 engines in production began to be manufactured without swirl flaps altogether, signalling a potential shift in BMW's approach. By 2008, this design was largely phased out. Yet, the story doesn't end there. From approximately 2010, the design of the inlet manifolds changed once more, and BMW has continued to adapt and modify the swirl flap design since then. Unfortunately, even the most recent iterations of BMW swirl flaps have not been immune to the well-documented problems of failure. This persistent issue has led many owners to question the necessity and reliability of these components.

Does My Engine Have Swirl Flaps?

This is a question that frequently arises among BMW diesel owners. It's not always straightforward, as some models, such as the 318d M47 engine, were never fitted with swirl flaps from the factory. This particular engine, for example, might have had its emissions adequately reduced through other means or inherent design restrictions, unlike its more powerful counterpart, the 320d 163bhp version, which typically did. While specialists like Absolute BM can often check whether your specific BMW model left the factory with swirl flaps installed, this information alone isn't always definitive. If you haven't owned the vehicle from new, there's always the possibility that a previous owner may have already removed them. Therefore, the only truly certain method to determine if your inlet manifold currently has swirl flaps fitted is a thorough physical inspection of the manifold itself. This usually involves removing some components to gain visual access.

The Unfortunate Truth: Why Swirl Flaps Fail

Given their stated benefits of reduced emissions and improved fuel delivery, one might wonder why swirl flaps are such a contentious topic. The core issue lies in their inherent design flaw and susceptibility to failure throughout the entire range of BMW models that incorporate them, despite BMW's repeated attempts to modify and improve the design. Failure of swirl flaps typically occurs gradually, manifesting in several ways: a fracture of the spindle, the retaining screws becoming loose, or the plastic material of the flap itself breaking down. Another significant contributing factor to their demise is the inevitable build-up of carbon deposits within the inlet manifold. Over time, these carbon deposits can severely restrict the movement of the swirl flaps, increasing the likelihood of failure or, as some would argue, making it an imminent certainty.

The consequences of a swirl flap component breakdown can be nothing short of catastrophic. Even at low RPMs, pieces of a failed swirl flap can break off and be ingested directly into the engine's combustion chamber. This debris can cause extensive and often irreversible damage. Pistons can strike and damage valves, leading to severe internal engine damage. If pieces of the flap make their way further into the engine, they can also cause significant damage to critical and expensive components such as the turbocharger and the catalytic converter. In many cases, such an event can render your engine uneconomical to repair, forcing you into the costly decision of an engine replacement or even scrapping the vehicle. This risk of catastrophic failure is precisely why many BMW owners choose to address this potential vulnerability proactively.

Common Swirl Flap Failure Modes & Potential Consequences

Addressing the Problem: Replacement vs. Removal

When faced with the potential peril of swirl flap failure, you essentially have two main options. The first is to replace your existing engine swirl flaps with new ones. However, considering the documented history of these components, with no known design improvements that completely eradicate the risk of future failure, why would one choose to take that risk again? Investing in new swirl flaps means you're essentially installing a ticking time bomb back into your engine, knowing that one day, those very parts may fail and inflict irreversible engine damage. For most discerning BMW owners, this option is simply not viable.

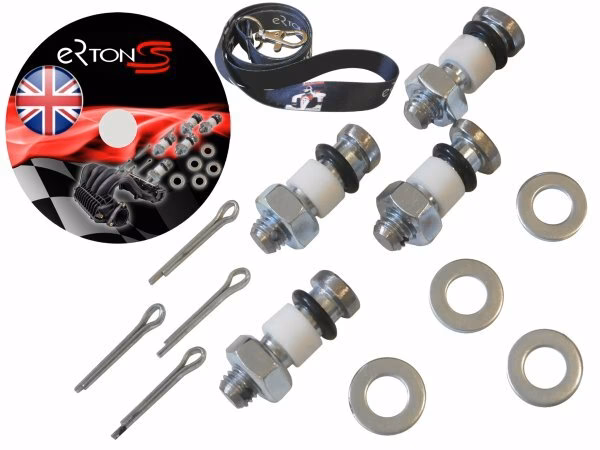

This leads to the more popular and widely accepted solution: the swirl flap delete. This procedure involves the complete removal of the swirl flaps from the inlet manifold and then fitting blanking plates in their place to seal the holes. For BMW diesel owners, this offers unparalleled peace of mind, knowing that nothing can go wrong in this respect because the problematic components are simply no longer there. A common misconception is that removing swirl flaps will cause your vehicle to fail its mandatory MOT test or affect emissions. This is generally not the case. Your BMW will still comfortably pass its MOT, including the emissions test, and you should not experience any noticeable difference in performance or fuel economy. Many owners even report a slight improvement in throttle response due to unrestricted airflow.

Furthermore, the swirl flap delete procedure offers an excellent opportunity for additional maintenance. During the removal process, the mechanic gains direct access to the inlet manifold and often parts of the EGR (Exhaust Gas Recirculation) system. This is an ideal time to thoroughly clean out any accumulated carbon deposits from these areas. Carbon build-up is a common issue in diesel engines and can restrict airflow, reduce efficiency, and contribute to other problems. Having this cleaning done whilst the mechanic already has access to the area can save you significant labour time and money in the future, as your BMW would otherwise require new gaskets and bolts just for this area to be inspected and cleaned separately.

It's important to note that BMW models featuring the newer swirl flap designs, typically from approximately 2013 onwards, will usually require a vehicle remap to successfully complete the delete and ensure your BMW diesel engine runs smoothly without any error codes or performance issues. This remap adjusts the engine's ECU to account for the absence of the flaps. Many customers also choose to have a power map (or performance tune) applied at the same time. This can often be done at no additional cost when combined with the swirl flap removal remap, offering a convenient way to unlock more power and torque from your engine while simultaneously enhancing its reliability.

Important Considerations Before a Swirl Flap Delete

While the swirl flap delete is a highly recommended procedure for many BMW diesel owners, there are a few important considerations. As mentioned earlier, while specialists can advise whether your inlet manifold should have had swirl flaps fitted at the time of production, this does not guarantee their current presence. A previous owner may have already carried out the swirl flap delete, or even replaced the entire inlet manifold with one that either has the flaps removed or is from a model that never had them. There is no reliable way of knowing this prior to a physical inspection by a qualified mechanic. Always seek advice from reputable BMW specialists who understand the intricacies of these engines.

Frequently Asked Questions (FAQs)

Q: Will removing swirl flaps affect my MOT?

A: Generally, no. Removing swirl flaps does not typically cause a BMW diesel to fail its MOT, including the emissions test. The engine's emissions are primarily controlled by other systems, and the absence of swirl flaps usually has a negligible impact on the MOT test results.

Q: Will I notice a difference in performance or fuel economy after removal?

A: Most owners report no noticeable difference in performance or fuel economy. Some even claim a slight improvement in throttle response. The engine's ECU will compensate for their absence, especially with a proper remap on newer models.

Q: Is it safe to remove them?

A: Yes, it is widely considered a safe and beneficial modification. The main risk associated with swirl flaps is leaving them in place to potentially fail. Removing them eliminates this risk entirely.

Q: Do all BMW diesel engines have swirl flaps?

A: No. As discussed, some specific models, such as certain iterations of the 318d M47 engine, never had swirl flaps fitted from the factory. A physical inspection is the most reliable way to confirm their presence.

Q: What is the cost of a swirl flap delete?

A: While specific costs vary depending on the model, garage, and whether a remap is required, a swirl flap delete is an investment that pales in comparison to the potential costs of repairing an engine damaged by a failed swirl flap. It's often viewed as preventative maintenance that pays for itself many times over.

Q: Why did BMW install swirl flaps if they cause so many problems?

A: BMW installed swirl flaps to meet increasingly stringent emissions regulations and to optimise engine performance at lower RPMs by improving air-fuel mixing. While the intention was good, the design proved to be a significant weak point in terms of long-term reliability.

Conclusion

The question of whether your inlet manifold should have swirl flaps fitted is one that weighs heavily on many BMW diesel owners. While they were introduced with valid intentions – to reduce emissions and enhance low-end power – their propensity for catastrophic failure has made them a liability rather than an asset. The evidence overwhelmingly suggests that the risks associated with leaving swirl flaps in place far outweigh any perceived benefits. For the vast majority of BMW diesel owners, the swirl flap delete offers a straightforward, effective, and widely accepted solution that provides invaluable peace of mind. By removing these problematic components and, where necessary, remapping the ECU, you can significantly enhance the reliability and longevity of your beloved BMW, ensuring it continues to perform optimally without the looming threat of an unexpected and expensive engine disaster. It's a proactive step towards securing the long-term reliability of your vehicle.
