MOT Bay Height: Your Essential UK Guide

Establishing a new MOT testing facility or upgrading an existing one in the UK involves navigating a complex web of regulations, and perhaps one of the most critical – and often misunderstood – aspects is the precise dimension requirements for your MOT bay, particularly concerning height. The Driver and Vehicle Standards Agency (DVSA) sets stringent guidelines to ensure the safety of technicians and the accuracy of vehicle tests. Failing to meet these specific measurements can lead to costly delays, rejected applications, and significant reworks. This comprehensive guide will demystify the height requirements for Class 4 MOT Bays, covering both ramp and inspection pit setups, to help you ensure your facility is fully compliant from the outset.

Understanding MOT Bay Dimensions and Vehicle Classes

MOT bays are not a one-size-fits-all solution; their design, size, and layout are intrinsically linked to the specific class of vehicles they are certified to test. While there are various classes, ranging from motorcycles to heavy goods vehicles, a significant portion of the UK's road fleet falls under Class 4. Understanding what this class entails is the first step in planning your bay's dimensions.

What are Class 4 MOT Bays?

Class 4 MOT Bays are designed to accommodate a broad spectrum of standard vehicles commonly found on UK roads. This includes:

• Cars (up to 8 passenger seats)
• Motor Caravans
• Private Hire Vehicles
• Taxis
• Ambulances
• 3-wheeled vehicles (over 450kg unladen weight)

Given the sheer volume of vehicles in this category, setting up a compliant Class 4 MOT Bay is a common endeavour for many garages. The critical element for DVSA approval lies in meticulous adherence to the required dimensions, especially the overhead clearance.

Height Requirements for Class 4 MOT Bays with a Ramp: The 'Glass Box' Principle

When planning a Class 4 MOT bay that utilises an inspection ramp, the concept of a 'glass box' is the simplest and most effective way to visualise the required clearance. Imagine your MOT ramp enclosed within an invisible, perfectly rectangular glass box. This conceptual box represents the absolute minimum clear space that must be maintained around your ramp, free from any obstructions.

The 'Glass Box' Defined

For a Class 4 MOT bay equipped with a ramp, the dimensions of this crucial glass box are as follows:

• It must extend 500mm from the outer edges of each platform (left and right) of the ramp.
• It must extend 500mm to the rear of the ramp.
• It must extend 1000mm out from the drive-on end of the ramp.
• Crucially, the glass box must be a minimum of 3800mm (3.8 metres) high.

If any part of your building structure, equipment, or any other obstruction encroaches upon this imaginary glass box, it presents a significant problem. The DVSA will likely reject your application for an MOT testing station. While there might be potential solutions involving a different layout configuration, this is highly dependent on the available space within your premises and often requires expert consultation to navigate successfully.

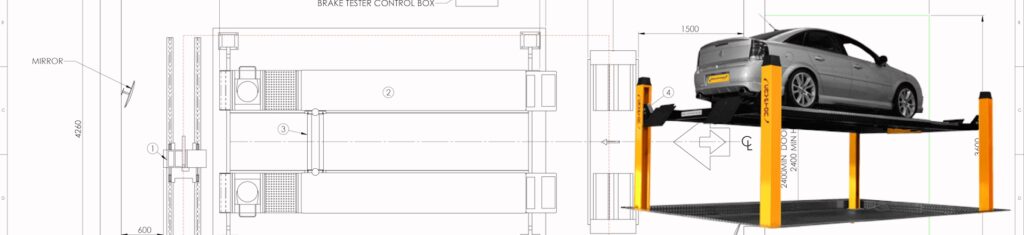

Essential Class 4 MOT Bay Dimensions with Ramp

Beyond the 'glass box' height, several other dimensions are vital for a Class 4 MOT bay using a ramp. These ensure sufficient space for vehicle manoeuvring, testing equipment, and technician safety.

Height Requirements for Class 4 MOT Bays with an Inspection Pit

For premises with limited overhead space, such as those with lower ceilings or overhead obstructions that cannot be removed, an inspection pit often presents a viable alternative to an MOT ramp. The significant advantage of an inspection pit lies in its considerably reduced height requirement, making it a popular choice for many garages.

Reduced Height with a Pit

When using an inspection pit instead of a ramp, the overall height requirement for the MOT bay drops substantially from 3800mm down to a more manageable 2400mm (2.4 metres). This reduction can be a game-changer for workshop suitability.

Similar to the ramp setup, the 'glass box' analogy still applies. For a pit, you need to imagine a continuous glass box that is 3600mm in width and 2400mm high, extending for the entire length of your MOT bay. If this conceptual box fits within your premises without obstruction, then using a pit for your MOT bay is a feasible option regarding height.

Class 4 Inspection Pit Specific Dimensions

While the overall headroom is reduced, the pit itself has strict internal dimensions to ensure technician safety and effective inspection. These are critical for the functionality and compliance of your MOT bay.

Essential Class 4 MOT Bay Dimensions with Inspection Pit

Many of the general bay dimensions remain consistent whether you opt for a ramp or a pit, particularly those related to vehicle access and the brake testing area.

Ramp vs. Pit: A Height-Focused Comparison

The choice between a ramp and a pit for your Class 4 MOT bay often boils down to the existing structure of your premises and the available headroom. Each has distinct implications for the required height and overall bay design.

Why These Dimensions Matter: Ensuring DVSA Compliance and Safety

The stringent dimension requirements are not arbitrary; they are fundamental to the safety and operational integrity of an MOT testing station. The DVSA enforces these rules to:

• Ensure Technician Safety: Adequate headroom prevents technicians from striking their heads or being confined in unsafe spaces while working under vehicles. Sufficient width allows for safe movement around the vehicle and equipment.
• Facilitate Accurate Testing: Specific clearances ensure that all parts of the vehicle are accessible for inspection and that testing equipment, such as brake rollers or headlamp aimers, can function correctly and provide accurate readings.
• Maintain Operational Efficiency: Correct dimensions allow vehicles to be driven on and off the ramp or over the pit smoothly and safely, reducing the risk of damage and improving throughput.
• Prevent Application Rejection: Non-compliance is a primary reason for MOT testing station applications to be rejected. This can lead to significant financial losses due to delays, re-planning, and potential structural modifications.

Ignoring these requirements, or attempting to cut corners, will ultimately lead to more significant problems and costs down the line. It's an investment in the long-term viability and success of your MOT business.

Planning Your MOT Bay: Expert Guidance is Key

As you can see, the planning of an MOT bay, particularly concerning its dimensions and height requirements, is a complex undertaking. The choice of equipment, the specific layout of your premises, and the intricacies of DVSA regulations all play a critical role. For this reason, it is highly recommended to seek professional advice.

Experienced MOT bay designers and installers can conduct site visits to measure and plan your potential MOT bay correctly. They can provide tailored advice and guidance on the specific MOT equipment you will need for your Class 4 MOT Bay, along with any additional requirements you might wish to include. Their expertise ensures that your proposed layout will meet all necessary DVSA standards, paving the way for a smooth application and successful operation of your new facility.

Frequently Asked Questions About MOT Bay Height Requirements

What exactly is the 'glass box' rule?

The 'glass box' rule is a simple analogy used by the DVSA to illustrate the minimum clear space required around an MOT ramp. It's an imaginary box, 3800mm high, extending 500mm from the sides and rear of the ramp, and 1000mm from the drive-on end. Nothing in your premises should intrude into this space.

Can I use an inspection pit if my premises have low ceilings?

Yes, an inspection pit is often the ideal solution for premises with lower ceilings. The minimum required headroom for an MOT bay with an inspection pit is significantly lower at 2400mm, compared to 3800mm for a ramp setup.

What happens if my bay doesn't meet the height requirements?

If your proposed MOT bay does not meet the DVSA's height requirements, your application for an MOT testing station will likely be rejected. This can lead to significant delays, the need for costly structural modifications, or even the necessity to find an alternative premises.

Are the height requirements different for other MOT classes?

Yes, the height requirements, along with other dimensions, vary significantly depending on the MOT class. For instance, Class 7 (larger vans and commercial vehicles) and Class 5 (passenger vehicles with more than 16 seats) will have different, generally larger, dimension requirements to accommodate the size of the vehicles being tested.

Why are these specific dimensions so strict?

The DVSA's strict dimension requirements are in place to ensure the safety of MOT testers and the accuracy and integrity of the vehicle testing process. Adequate space prevents accidents, allows for proper inspection of all vehicle components, and ensures testing equipment can operate correctly.

In conclusion, establishing a compliant MOT bay, particularly regarding its height, is a non-negotiable step in setting up a successful testing station in the UK. Whether you opt for a ramp or an inspection pit, understanding and meticulously adhering to the DVSA's specific dimension requirements is paramount. By prioritising careful planning and, where necessary, seeking expert guidance, you can ensure your MOT bay not only meets all regulatory standards but also provides a safe, efficient, and future-proof environment for your testing operations.
