Anti-Roll Bar MOT Failure: What Next?

Understanding Anti-Roll Bar Failures and MOT Tests

The annual MOT (Ministry of Transport) test is a crucial part of vehicle ownership in the UK, ensuring that your car meets minimum safety and environmental standards. While many drivers are familiar with common failure points like worn tyres or faulty lights, issues with the suspension system, particularly the anti-roll bar, can also lead to a failed MOT. But what exactly does an anti-roll bar do, and do you absolutely need a mechanic if yours fails the test? This article will delve into the intricacies of anti-roll bar function, common failure modes, the implications of a failed MOT, and when professional intervention is essential.

What is an Anti-Roll Bar?

Also known as an anti-sway bar, sway bar, or stabilizer bar, the anti-roll bar is a vital component of your vehicle's suspension system. Its primary function is to reduce body roll (the leaning or tilting of the car's body) when cornering. It connects the left and right sides of the suspension, working to keep the vehicle more stable and level. Without an effective anti-roll bar, you'd experience excessive leaning during turns, which not only feels uncomfortable but can also compromise handling and tyre grip, leading to a potentially dangerous situation.

How it Works

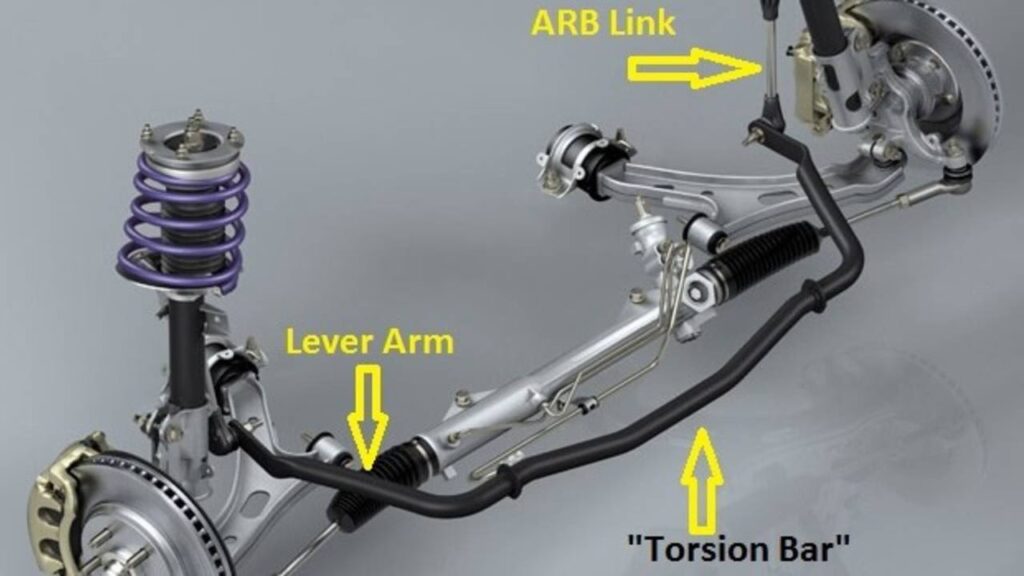

The anti-roll bar is essentially a torsion spring. When one side of the suspension compresses (like when you turn left, the right side compresses), the bar twists. This twisting action transfers some of the force to the opposite side of the suspension, counteracting the lean. It's a clever piece of engineering designed to improve both ride comfort and handling.

Common Anti-Roll Bar Failures in an MOT

During an MOT inspection, testers will specifically check the condition and security of your anti-roll bar and its associated components. The most common reasons for failure related to the anti-roll bar include:

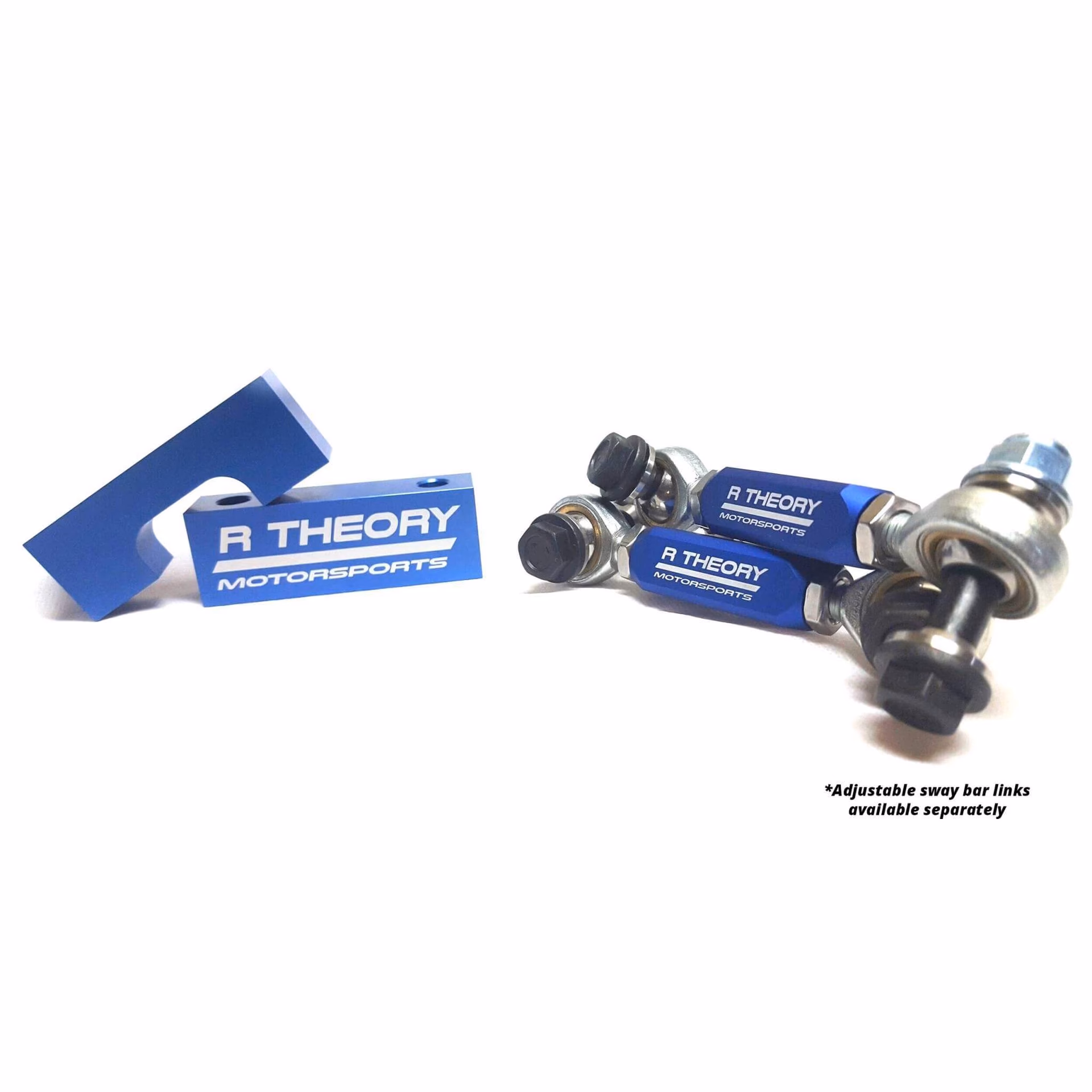

• Worn or Damaged Anti-Roll Bar Links (Drop Links): These are the small rods that connect the anti-roll bar to the suspension arms. They often have ball joints or bushes at each end, which can wear out over time. Symptoms of worn drop links include knocking or clunking noises when going over bumps or turning.
• Cracked or Corroded Anti-Roll Bar: The bar itself can suffer from corrosion, especially in areas prone to road salt. Significant corrosion can weaken the bar, and cracks can form, compromising its structural integrity.
• Loose or Damaged Anti-Roll Bar Mountings/Bushes: The anti-roll bar is secured to the vehicle's chassis by rubber bushes. These bushes can degrade, crack, or become loose, allowing the bar to move excessively. This can result in knocking sounds and poor handling.
• Broken or Missing Anti-Roll Bar: In extreme cases, the bar itself could snap or be completely missing, perhaps due to a previous accident or poor repair.

What the Tester Looks For

An MOT tester will visually inspect the anti-roll bar and its links for any signs of wear, damage, corrosion, or looseness. They will often try to move the components by hand to check for excessive play. Any significant defect that could affect the vehicle's stability or safety will result in a MOT failure.

Implications of a Failed MOT Due to Anti-Roll Bar Issues

Failing your MOT means your vehicle is not deemed roadworthy in its current condition. Driving a vehicle with a failed MOT is illegal and can result in a hefty fine, penalty points on your licence, and invalidated insurance. Therefore, addressing an anti-roll bar failure promptly is essential.

Safety Concerns

A failing anti-roll bar significantly impacts your car's handling. You might notice:

• Increased body roll when cornering.
• A feeling of instability, especially at higher speeds or on uneven surfaces.
• A tendency for the car to drift or pull to one side.
• Reduced steering response.

These symptoms can be particularly dangerous in emergency situations, such as needing to swerve to avoid an obstacle. Compromised handling means you have less control over the vehicle, increasing the risk of an accident. It's not just about passing the MOT; it's about ensuring your safety and the safety of others on the road.

Do You Need a Mechanic? The Verdict

Yes, absolutely. If your anti-roll bar fails an MOT, you will need a qualified mechanic to carry out the necessary repairs. While some minor issues might seem straightforward, suspension components are critical for safe vehicle operation. Attempting DIY repairs without the proper knowledge, tools, and equipment can lead to further damage or incorrect installation, potentially creating a more dangerous situation.

Why Professional Repair is Crucial

• Expert Diagnosis: A mechanic can accurately diagnose the specific problem with your anti-roll bar system, whether it's the bar itself, the links, or the bushes.
• Correct Parts: They will source and fit the correct, high-quality replacement parts for your specific vehicle make and model.
• Specialised Tools: Suspension work often requires specific tools, such as torque wrenches and spring compressors, to ensure components are fitted correctly and safely.
• Safety Assurance: A professional mechanic can ensure the repair is carried out to the highest standards, giving you peace of mind that your vehicle is safe to drive.
• Re-testing: After the repairs are completed, your vehicle will need to be re-tested to ensure it now passes the MOT. Your mechanic can often arrange this for you.

What to Expect During Repair

The repair process will depend on the nature of the failure. For example:

Replacing Anti-Roll Bar Links (Drop Links)

This is a relatively common repair. The mechanic will typically:

1. Safely lift the vehicle and secure it on axle stands.
2. Locate the anti-roll bar links.
3. Unbolt the old links, which may require holding the bolt head while turning the nut.
4. Clean the mounting points.
5. Fit the new links, ensuring they are properly seated and secured.
6. Tighten all fixings to the manufacturer's specified torque.

Replacing the Anti-Roll Bar and Bushes

This is a more involved process:

1. The vehicle is lifted and secured.
2. Various suspension components might need to be removed or loosened to gain access to the anti-roll bar.
3. The old mounting bushes are removed.
4. The new bushes are fitted, often with a lubricant to prevent seizing.
5. The new or cleaned anti-roll bar is positioned correctly.
6. The bar is secured in its new bushes, and fixings are tightened to the correct torque.
7. Any other removed components are reassembled.

It's common practice to replace anti-roll bar components on both sides of the vehicle simultaneously to ensure balanced suspension performance.

Cost of Repairs

The cost of repairing a failed anti-roll bar can vary significantly depending on the specific parts needed and the labour involved. Replacing drop links is generally less expensive than replacing the entire anti-roll bar. You can expect to pay anywhere from £100 to £300 or more for parts and labour, depending on the vehicle and the garage.

Factors influencing cost:

Preventative Measures and Maintenance

While you can't entirely prevent wear and tear, some practices can help prolong the life of your anti-roll bar system:

• Regular Inspections: Pay attention to any unusual noises from your suspension, especially when going over bumps or turning. Early detection can prevent minor issues from becoming major failures.
• Avoid Potholes: Driving through potholes or over speed bumps too fast can put significant stress on suspension components.
• Choose Quality Parts: If you're having suspension work done, opt for reputable brands for replacement parts.
• Wheel Alignment: Ensure your wheel alignment is checked periodically, as misalignment can sometimes put undue stress on suspension components.

Frequently Asked Questions (FAQs)

Q1: Can I drive my car if the anti-roll bar has failed the MOT?
No, it is illegal to drive a vehicle that has failed its MOT. You can only drive it to a pre-booked MOT test or to a place of repair. Driving it otherwise carries legal penalties.

Q2: How long does it take to replace anti-roll bar links?
Replacing anti-roll bar links is usually a relatively quick job, often taking an hour or two for both sides, depending on the vehicle and the mechanic's efficiency.

Q3: Will worn anti-roll bar links affect my steering?
Yes, worn links can lead to vague steering, knocking noises when turning, and a general feeling of instability, especially when cornering.

Q4: Should I replace both anti-roll bar links at the same time?
It is highly recommended to replace both front or both rear anti-roll bar links at the same time. This ensures that the suspension system works evenly on both sides, maintaining balanced handling and preventing premature wear on the new part.

Q5: What is the difference between an anti-roll bar and shock absorbers?
While both are part of the suspension, shock absorbers dampen the up-and-down movement of the springs, controlling the ride and preventing bouncing. The anti-roll bar specifically combats the side-to-side lean (body roll) during cornering.

Conclusion

A failed MOT for an anti-roll bar issue is a clear indication that your vehicle's suspension requires professional attention. While the specific components might vary, the underlying principle remains the same: these parts are crucial for safe handling and stability. Ignoring such a failure not only keeps your car off the road but also poses a significant risk. Therefore, if your MOT certificate flags an issue with the anti-roll bar, booking an appointment with a trusted mechanic is the most prudent course of action. They possess the expertise and tools to diagnose, repair, and ensure your vehicle is returned to a safe and roadworthy condition, ready for its re-test and for many miles of confident driving.
