Wheel Spacers: UK Legality & Practicalities

When customising or modifying a vehicle, particularly when fitting aftermarket wheels or upgrading brake components, owners often encounter clearance issues. This frequently leads to the consideration of wheel spacers. These seemingly simple devices can provide the necessary clearance and even alter a vehicle's stance, but they also bring forth a host of questions regarding legality, safety, and their impact on vehicle dynamics. In the United Kingdom, understanding the specific regulations and mechanical implications is paramount to avoid potential fines, insurance complications, or, more critically, safety hazards.

Many enthusiasts, like the Mini Clubman builder attempting to fit 7x13 wheels over MX5 hubs, face this very dilemma. The desire for a specific look or functional necessity often clashes with concerns about the MOT test and general roadworthiness. This article delves into the intricacies of wheel spacers in the UK, separating fact from opinion and providing a comprehensive guide for anyone considering their use.

Understanding Wheel Spacers: What Are They For?

Wheel spacers are disc-shaped components designed to be fitted between the vehicle's hub and the wheel. Their primary function is to push the wheel further outwards from the hub, effectively increasing the track width of the vehicle. This can serve several purposes:

• Clearance: The most common reason, especially when fitting larger brake calipers that foul the wheel spokes, or when wider tyres rub against suspension components or inner wheel arches.
• Aesthetics: Achieving a more aggressive or 'flusher' stance, where the wheels sit closer to the edge of the wheel arches.
• Handling Improvement: A wider track can theoretically improve a vehicle's stability and reduce body roll, although this is often a nuanced effect that depends heavily on other suspension parameters.

Types of Wheel Spacers

Not all wheel spacers are created equal. Understanding the different types and their appropriate applications is crucial for safety and performance.

1. Slip-On (Plate) Spacers

These are the simplest form, essentially flat discs that slip directly onto the existing wheel studs before the wheel is mounted. Because they add thickness between the hub and the wheel, they reduce the amount of thread engagement for the wheel nuts. For this reason, it is absolutely essential to use longer wheel studs when fitting slip-on spacers thicker than a few millimetres. Failure to do so can lead to insufficient thread engagement, making the wheel prone to loosening or even detaching, a catastrophic safety risk. Many experienced mechanics and enthusiasts, like those in our reference discussion, advocate for this type combined with longer studs due to their perceived reliability if installed correctly.

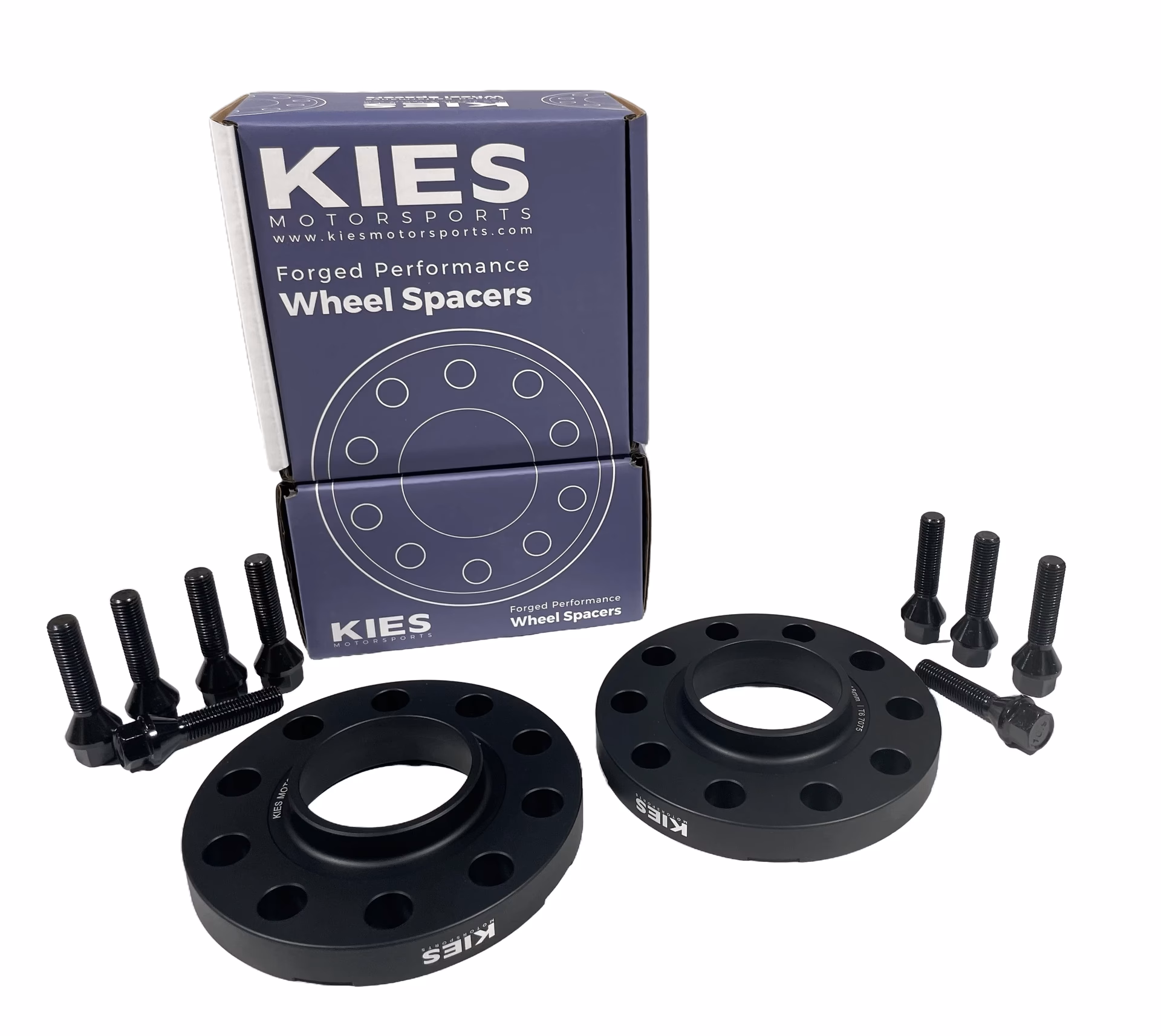

2. Bolt-On Spacers (Adapter Type)

These are generally thicker spacers (typically 20mm or more) that bolt directly onto the vehicle's existing wheel studs using their own set of nuts. The spacer itself then has a new set of studs onto which the wheel is mounted. This design ensures full thread engagement for both the spacer and the wheel. Bolt-on spacers are further categorised as:

• Hub-Centric: These spacers feature a lip that perfectly matches the vehicle's hub bore and the wheel's centre bore. This design ensures that the wheel is centred precisely on the hub, preventing vibrations and ensuring proper load distribution. This is the preferred type for safety and performance.
• Lug-Centric: These spacers rely solely on the clamping force of the wheel nuts to centre the wheel. While cheaper, they are more prone to imbalance and vibrations, and are generally not recommended for road use.

Wheel Spacers and UK Law: The Legality Question

This is often the most pressing concern for drivers. The good news is that there is no specific UK law that explicitly bans the use of wheel spacers themselves. However, their use must not result in the vehicle failing to comply with other regulations, particularly those concerning the vehicle's overall width and the protrusion of its wheels.

The crucial legal point revolves around whether the wheels (and tyres) extend beyond the vehicle's wheel arches or wings. The Road Vehicles (Construction and Use) Regulations 1986 do not specifically mention wheel spacers, but they do cover aspects that spacers can influence. The consensus among MOT testers and police is clear:

If any part of the tyre tread is visible when looking vertically down from above the wheel arch, the vehicle is considered illegal for road use. This is a police matter, not a direct MOT test point. While your vehicle might pass an MOT with spacers fitted, if the wheels protrude, you could be stopped by the police and face a fine or even have points added to your licence. This visual test is a simple but effective way for authorities to determine compliance.

Therefore, while spacers themselves are not illegal, using them in a way that causes the wheels to protrude beyond the bodywork is.

Impact on Vehicle Components and Driving Dynamics

Beyond legality, it's vital to understand the mechanical implications of using wheel spacers, particularly thicker ones.

1. Accelerated Wheel Bearing Wear

This is by far the most commonly cited concern, and for good reason. When you push the wheel further out from the hub, you increase the leverage exerted on the wheel bearing. The load on the bearing is no longer distributed as it was originally designed. This increased leverage leads to higher stress and accelerated wear on the wheel bearings, potentially leading to premature failure. The larger the spacer, and the further the wheel is pushed out, the greater the strain.

2. Altered Scrub Radius

The scrub radius is the distance at the road surface between the steering axis inclination (where the steering axis intersects the road) and the centre of the tyre contact patch. Wheel spacers effectively increase the scrub radius. A larger scrub radius can lead to:

• Increased steering effort.
• Greater sensitivity to road irregularities (e.g., tramlining).
• More pronounced torque steer in front-wheel-drive vehicles.
• Increased load on suspension components like ball joints, tie rod ends, and control arm bushes, potentially leading to their accelerated wear.

3. Potential for Vibration and Imbalance

If spacers are not hub-centric, or if they are not installed perfectly flat and torqued correctly, they can introduce imbalances that lead to steering wheel wobble and general vibrations, especially at higher speeds.

4. Stress on Wheel Studs/Bolts

While larger studs (like the 12mm MX5 studs mentioned by our Clubman builder) offer more strength, any spacer application places additional stress on the studs or bolts due to the increased leverage. Using high-quality, high-tensile strength studs and ensuring correct torque is paramount.

MOT Test and Wheel Spacers

As clarified in our forum discussion, the MOT test does not have a specific 'pass' or 'fail' criterion for the presence of wheel spacers. An MOT tester will not fail a car simply because it has spacers fitted. However, they will assess the vehicle's overall condition, and any issues *caused* by the spacers could lead to a failure:

• Excessive Wheel Bearing Play: If the spacers have caused premature bearing wear, leading to excessive play in the wheel, this will be an MOT failure.
• Loose Wheel Nuts/Bolts: Any looseness in the wheel attachment will result in an immediate failure.
• Tyre Rubbing: If the tyres rub against any part of the bodywork or suspension under articulation, this could be deemed unsafe and lead to a failure.
• General Instability/Safety: While less common, if the spacers have severely compromised the vehicle's handling to an unsafe degree, this could be grounds for failure under general safety clauses.

Crucially, the legality of wheels protruding beyond the arches is a police matter, not an MOT one. So, while your car might technically pass an MOT, it could still be illegal to drive on the road if the wheels stick out too far.

Choosing and Installing Spacers Safely

If you genuinely need spacers for clearance and are confident your wheels won't protrude, follow these guidelines:

• Quality Matters: Always opt for high-quality, reputable brands made from durable materials like billet aluminium. Cheap, poorly manufactured spacers are a significant safety risk.
• Hub-Centric is Best: For bolt-on spacers, ensure they are hub-centric for correct wheel alignment and to prevent vibrations.
• Longer Studs for Slip-On: If using slip-on spacers, invest in high-quality, extended wheel studs to ensure adequate thread engagement for the wheel nuts.
• Correct Fitment: Ensure the spacer's bolt pattern (PCD) and centre bore match your vehicle and wheels perfectly.
• Proper Torque: Always torque wheel nuts or bolts to the manufacturer's specified settings using a torque wrench. Re-torque after the first 50-100 miles of driving.
• Professional Installation: If unsure, have a qualified mechanic install them.

Alternatives to Wheel Spacers

Before resorting to spacers, consider if there are other solutions:

• Wheels with Different Offset: The offset of a wheel dictates how far in or out it sits. Choosing wheels with a lower (more negative) offset can achieve a similar effect to spacers without adding an extra component.
• Narrower Tyres: If tyre rubbing is the issue, a slightly narrower tyre might provide sufficient clearance.
• Brake Caliper Modifications: In some cases, very minor grinding of a non-critical part of the brake caliper (if safe to do so, and only by a professional) might provide the necessary clearance without spacers. This is generally a last resort and requires expert assessment.

Pros and Cons of Wheel Spacers

To summarise the discussion, here's a comparative look at the advantages and disadvantages:

Frequently Asked Questions (FAQs)

Q: Are 25mm wheel spacers legal in the UK?

A: The legality isn't about the thickness of the spacer itself, but whether its use causes the wheels to protrude beyond the vehicle's wheel arches. If your 25mm spacers result in the tyre tread being visible from looking vertically down from the arch, then they are illegal for road use.

Q: Do wheel spacers affect insurance?

A: Yes, any modification to your vehicle, including the fitment of wheel spacers, should ideally be declared to your insurance company. Failure to declare modifications could invalidate your policy in the event of a claim. Insurers may view them as an increased risk, especially if they compromise safety or legality.

Q: How quickly will wheel bearings fail with spacers?

A: There's no fixed timeline, as it depends on the thickness of the spacer, driving style, road conditions, and the quality of the bearings themselves. However, you can expect a noticeable reduction in their lifespan compared to a vehicle without spacers. Regular inspection for play is recommended.

Q: What is 'scrub radius' and why does it matter with spacers?

A: Scrub radius is the distance at which the steering axis intersects the road surface relative to the centre of the tyre's contact patch. Spacers push the tyre contact patch further out, increasing the scrub radius. This can lead to increased steering effort, greater sensitivity to road imperfections (like tramlining), and put more stress on steering and suspension components.

Q: Will my car pass an MOT with wheel spacers?

A: The presence of spacers alone isn't an MOT fail. However, if the spacers cause any issues like excessive wheel bearing play, loose wheel fitment, or the tyres rubbing on the bodywork, then your vehicle will fail the MOT. Remember, if the wheels protrude beyond the arches, it's a legal issue for the police, not directly an MOT test point.

Conclusion

Wheel spacers can be a functional solution for achieving necessary clearance or a desired aesthetic for your vehicle. However, their use is not without significant considerations. In the UK, while the spacers themselves are not explicitly illegal, their application must not result in the wheels protruding beyond the bodywork. More importantly, understanding the mechanical stresses they impart on components like wheel bearings and suspension is crucial for long-term reliability and safety. Always prioritise quality components, ensure correct installation with appropriate stud length and torque, and remain within the bounds of legal wheel protrusion. When in doubt, consulting with a professional mechanic or tyre specialist is always the wisest course of action to ensure your modified vehicle remains safe and compliant on British roads.
