In the world of construction and landscaping, what lies beneath the surface is often as important, if not more important, than what is visible. The integrity and longevity of any paved area, be it a bustling highway, a quiet driveway, or a vast car park, depend heavily on its foundational layers. Among these crucial components, one aggregate stands out as a true workhorse across the United Kingdom: MOT Type 1. But what exactly is MOT Type 1, and why is it so indispensable for trade professionals and DIY enthusiasts alike?
MOT Type 1 is a primary sub-base material renowned for its exceptional load-bearing capabilities and ease of compaction. Its name, 'MOT,' signifies that it complies with the Department of Transport Specification for Highway Works, specifically Clause 803 (SHW 803). This compliance is a stamp of quality and performance, ensuring that the material meets stringent standards required for public roads and other heavily trafficked areas. Typically, this sub-base is composed of crushed limestone, granite, or a similar hard, inert material, processed to a specific grading.
- The Unique Characteristics of MOT Type 1
- Where is MOT Type 1 Most Commonly Used?
- MOT Type 1 vs. MOT Type 3: Understanding the Key Differences
- Installation Considerations for MOT Type 1
- Frequently Asked Questions about MOT Type 1
- Q: Can I use MOT Type 1 for a garden path or patio?
- Q: How deep should my MOT Type 1 sub-base be?
- Q: Is MOT Type 1 permeable? Will water drain through it?
- Q: What's the difference between MOT Type 1 made from limestone and that made from crushed concrete?
- Q: How do I calculate how much MOT Type 1 I need?
- Q: Can I lay paving directly onto MOT Type 1?
- Conclusion
The Unique Characteristics of MOT Type 1

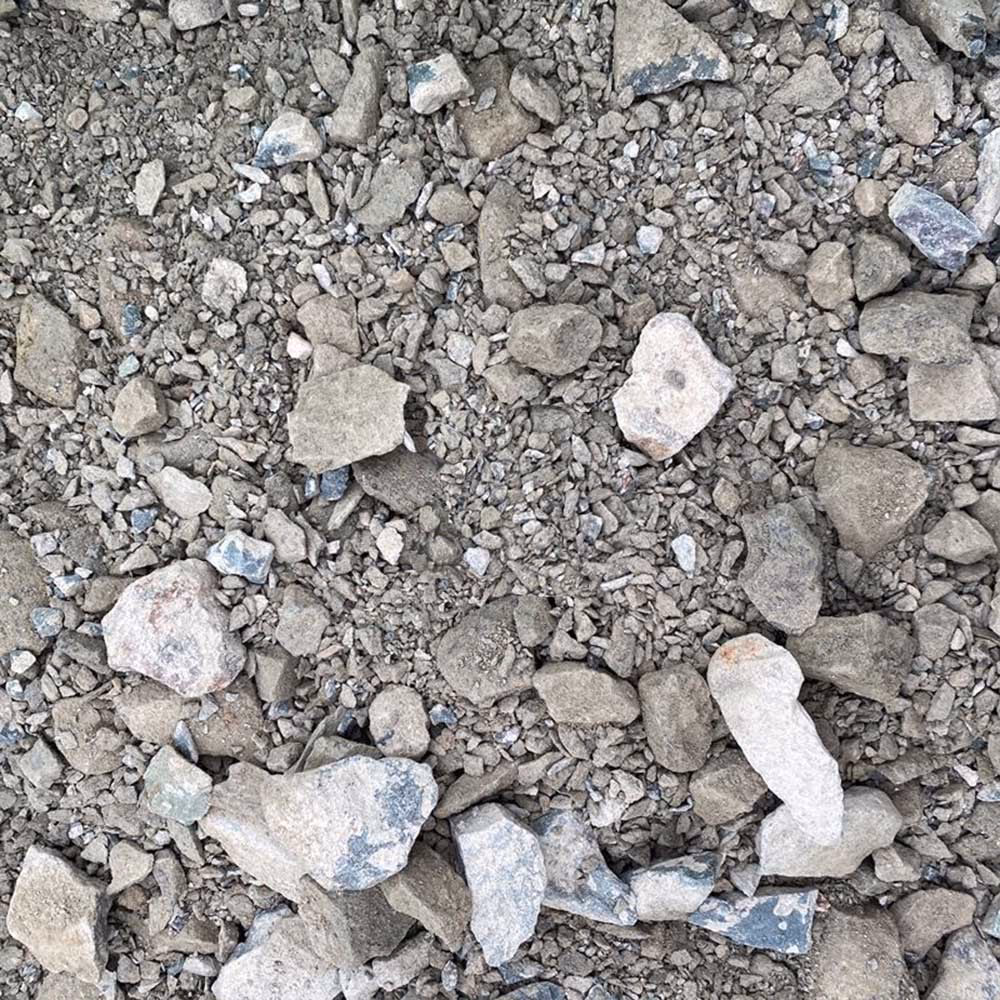

What sets MOT Type 1 apart is its precise composition. It is crushed to a specific grading of 40mm down to dust. This means the aggregate contains a wide range of particle sizes, from larger 40mm stones all the way down to fine dust particles. This varied grading is not accidental; it is the secret to MOT Type 1's superior performance. When compacted, the smaller particles fill the voids between the larger stones, creating a dense, interlocking matrix. This characteristic allows for excellent inter-particle friction and a high degree of compaction, resulting in a very stable and robust layer.
- Exceptional Compaction: The '40mm down to dust' grading facilitates superb compaction, allowing the material to bind together tightly. This density is vital for creating a firm and unyielding base.
- Superior Load-Bearing: Thanks to its dense compaction, MOT Type 1 can effectively distribute heavy loads over a wider area, preventing subsidence and ensuring the long-term stability of the surface above.
- Versatility: Its robust nature makes it suitable for a vast array of applications, from minor domestic projects to major infrastructure developments.
- Compliance: Adherence to SHW 803 ensures a consistent, high-quality product that meets national standards for highway construction.
Where is MOT Type 1 Most Commonly Used?
The excellent load-bearing qualities and compactability of MOT Type 1 make it the ideal choice for any area requiring a strong, stable foundation, especially where vehicular access is a primary concern. Its applications are broad and varied, underpinning countless surfaces across the UK.
Highways and Roads
As its name implies, MOT Type 1 is a cornerstone of road construction. It forms the crucial sub-base layer directly beneath the binder and surface courses. Its ability to withstand constant heavy traffic and distribute weight evenly is paramount for the longevity and safety of our road networks.
Car Parks
Whether for commercial centres, residential blocks, or public facilities, car parks endure significant daily wear from vehicles. A robust MOT Type 1 sub-base ensures these areas remain stable, preventing rutting and potholes, and maintaining a smooth, durable surface for years to come.
Driveways
For residential and commercial driveways, MOT Type 1 provides the essential foundation. It supports the weight of vehicles, prevents ground movement, and ensures that the final surface—be it block paving, asphalt, or gravel—remains level and robust, even with frequent use by cars, vans, or heavier delivery vehicles.
Emergency Access Routes
Routes designated for emergency services require foundations that are absolutely reliable under pressure. MOT Type 1's proven performance in high-stress applications makes it a logical choice for these critical access points, ensuring they remain passable and stable in all conditions.
Other Applications
Beyond these primary uses, MOT Type 1 is also commonly employed in:
- Sub-bases for concrete slabs and industrial flooring.
- Foundations for artificial grass pitches (where drainage isn't the primary concern).
- As a capping layer for groundworks before laying other aggregates.
- Pathways and hardstanding areas where heavy foot traffic or occasional vehicle access is expected.
MOT Type 1 vs. MOT Type 3: Understanding the Key Differences
While often mentioned in the same breath, MOT Type 1 and MOT Type 3 are distinct materials with different ideal applications. Both comply with Department of Transport specifications, but their grading and intended uses differ significantly. The provided text highlights that Suregreen supplies both, underscoring their importance in the trade.
MOT Type 3: The Permeable Alternative
MOT Type 3, complying with SHW 805, is specifically designed for situations where water drainage is a critical factor. While visually similar to Type 1, its technical composition is quite different. Type 3 has a lower fine content compared to Type 1. This means it has fewer small particles that would typically fill voids, resulting in a more open, permeable structure. This characteristic makes it the preferred sub-base where Sustainable Urban Drainage Systems (SuDS) legislation is imposed.
SuDS are designed to manage surface water runoff in a more natural way, mimicking natural drainage processes to reduce flood risk, improve water quality, and enhance amenity and biodiversity. For permeable surfaces such as permeable paving, porous asphalt, or certain types of artificial grass, a sub-base that allows water to drain through it effectively is essential. This is where MOT Type 3 excels.
Comparison Table: MOT Type 1 vs. MOT Type 3
| Feature | MOT Type 1 | MOT Type 3 |
|---|---|---|
| Compliance | SHW Clause 803 | SHW Clause 805 |
| Grading | 40mm down to dust (high fine content) | 40mm down (lower fine content, more open) |
| Primary Function | High load-bearing, dense, stable sub-base | Permeable, free-draining sub-base |
| Compaction | Achieves high density and strength | Good compaction, but less dense to allow water flow |
| Drainage | Limited (due to fines) | Excellent (designed for SuDS) |
| Typical Uses | Highways, car parks, driveways, heavy-duty foundations | Sports pitches, equestrian centres, permeable patios, artificial grass (SuDS compliant), hard standing where drainage is key |
Choosing between Type 1 and Type 3 depends entirely on the project's specific requirements, particularly concerning load-bearing capacity versus drainage needs. For a driveway where water management isn't a primary concern and maximum strength is needed, Type 1 is ideal. For a permeable patio or a sports pitch requiring excellent drainage, Type 3 is the superior choice.
Installation Considerations for MOT Type 1
The effectiveness of MOT Type 1 relies heavily on proper installation techniques. While the material itself is robust, how it's prepared and compacted determines its ultimate performance.
Site Preparation
Before laying any sub-base, the ground must be properly prepared. This typically involves excavating to the required depth, ensuring the ground is level and free from organic matter or debris. In some cases, a geotextile membrane may be laid beneath the MOT Type 1. This membrane acts as a separator, preventing the sub-base from mixing with the underlying soil, which could compromise its stability and drainage, while also inhibiting weed growth.
Layering and Compaction
MOT Type 1 should be laid in layers, typically no more than 100-150mm thick per layer, especially for deeper sub-bases. Each layer must be thoroughly compacted using appropriate machinery, such as a vibrating plate compactor for smaller areas or a roller for larger projects. Proper compaction is crucial to achieve the desired density and load-bearing capacity. Insufficient compaction can lead to settlement, instability, and premature failure of the surface above.
Moisture content also plays a role in compaction. The material should be damp but not saturated, as this facilitates the interlocking of particles. Too dry, and it won't compact effectively; too wet, and it can become unstable.
Frequently Asked Questions about MOT Type 1
Q: Can I use MOT Type 1 for a garden path or patio?
A: Yes, you can. For a garden path or patio where heavy vehicle traffic isn't expected, MOT Type 1 provides a very stable and durable base. However, if you are planning a permeable patio or if drainage is a significant concern for your garden, MOT Type 3 might be a more suitable choice due to its better drainage properties.
Q: How deep should my MOT Type 1 sub-base be?
A: The required depth of your sub-base depends on the intended load and the existing ground conditions. For light pedestrian traffic, 100-150mm might suffice. For driveways supporting cars, 150-200mm is common. For areas with heavier vehicles or poor ground conditions, depths of 300mm or more might be necessary. Always consult project specifications or a professional for specific requirements.
Q: Is MOT Type 1 permeable? Will water drain through it?
A: Due to its 'down to dust' grading and high fine content, MOT Type 1 is considered to have very limited permeability. When properly compacted, it forms a dense, relatively impermeable layer. If you require a sub-base that allows water to drain through it, you should opt for MOT Type 3, which is specifically designed for permeable applications.
Q: What's the difference between MOT Type 1 made from limestone and that made from crushed concrete?
A: Both limestone and crushed concrete can be processed to meet the SHW 803 specification for MOT Type 1. The primary difference lies in the source material. Limestone is a naturally occurring aggregate, while crushed concrete is a recycled material. Both, when meeting the specification, will offer similar performance characteristics in terms of compaction and load-bearing. The choice often comes down to local availability, cost, and environmental considerations (recycled materials are often preferred for sustainability).
Q: How do I calculate how much MOT Type 1 I need?
A: To calculate the volume needed, measure the length, width, and desired depth of the area in metres. Multiply these three figures together (length x width x depth = cubic metres). Then, multiply the cubic metres by the bulk density of MOT Type 1, which is typically around 1.8 to 2.0 tonnes per cubic metre (use 2.0 to be safe and account for compaction). This will give you the approximate tonnage required. Always add a little extra for wastage and settlement.
Q: Can I lay paving directly onto MOT Type 1?
A: No, you should not lay paving directly onto MOT Type 1. The sub-base provides the structural foundation, but you will need a bedding layer, typically of sharp sand or a specialist bedding mortar, on top of the MOT Type 1. This bedding layer allows for precise levelling of the paving units and provides a stable, uniform bed for them to sit on.
Conclusion
MOT Type 1 is undoubtedly a cornerstone of modern UK construction, providing the robust and reliable foundation upon which countless structures and surfaces are built. Its unique grading, exceptional compaction properties, and formidable load-bearing capabilities make it the go-to choice for projects demanding strength and stability, particularly those involving vehicular traffic. Understanding its characteristics and knowing when to choose it over alternatives like MOT Type 3 is crucial for ensuring the success and longevity of any construction or landscaping endeavour. When you see a smoothly paved road or a durable driveway, remember the unseen hero beneath: the meticulously engineered and compacted layer of MOT Type 1, silently upholding the integrity of our built environment.
