Understanding the TKG 2510 Fan Cable

Building a new computer can be an exciting, yet sometimes perplexing, endeavour. Among the various components and their intricate connections, the humble TKG 2510 cable often leaves builders scratching their heads. This essential cable plays a crucial role in managing your computer's internal temperature by powering and controlling your case fans. But where exactly does it plug in, and what are the nuances of its connection? Today, we'll delve into the world of the TKG 2510 cable, illuminating its purpose, the correct method of motherboard connection, and exploring other similar fan connectors you might encounter.

What Exactly is the TKG 2510 Cable?

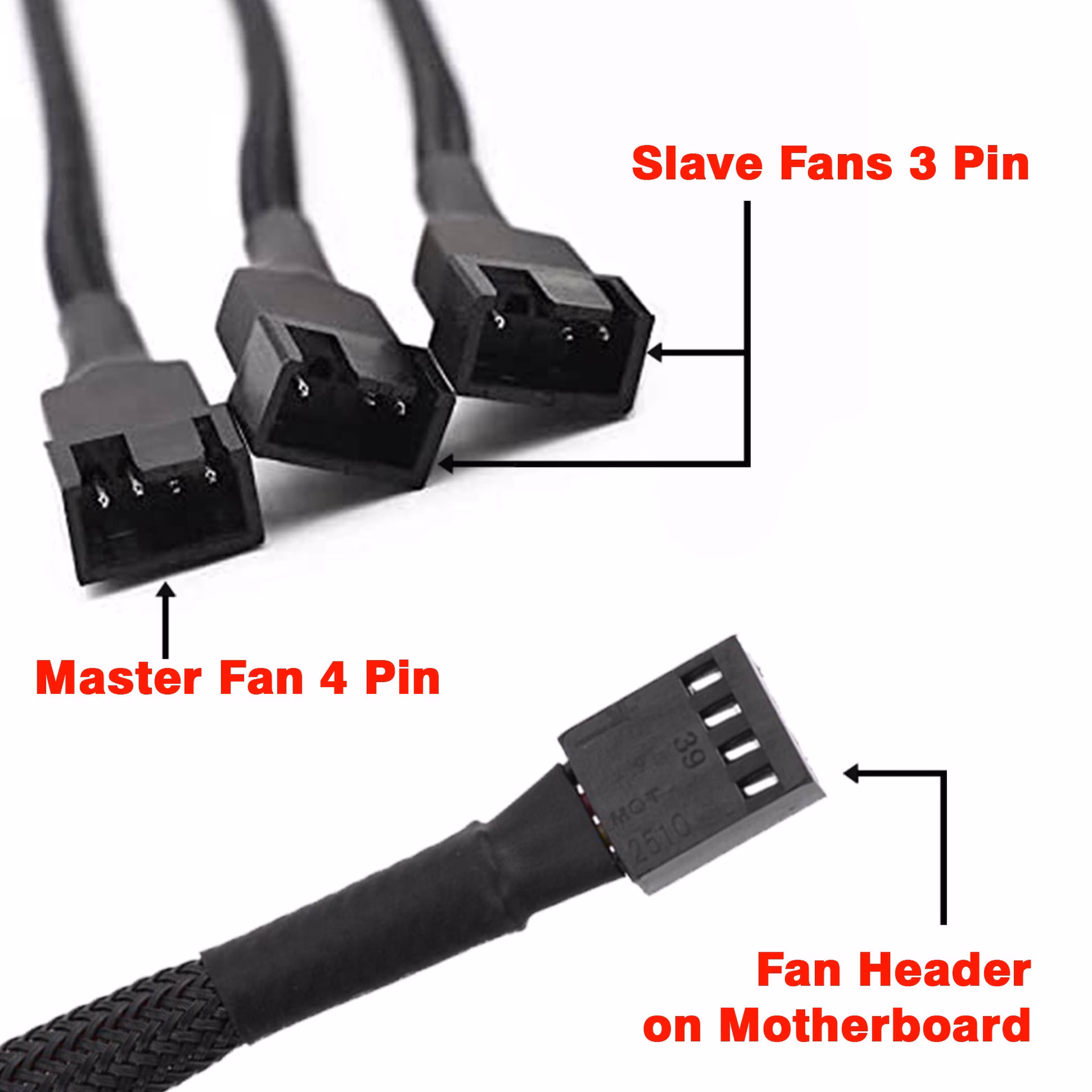

The TKG 2510 cable, also frequently referred to as a PWM cable, a 2510 cable, or simply a case fan cable, is the vital link between your computer's case fans and its motherboard. Its primary function is to deliver power to the fan and, in the case of 4-pin variants, to relay information about the fan's speed (RPM) back to the motherboard. Furthermore, the 4-pin version allows for sophisticated control over the fan's rotational speed, enabling it to ramp up or down based on system load and temperature. These cables typically feature either 3 or 4 pins on the connector that interfaces with the motherboard.

Connecting the TKG 2510 Cable to Your Motherboard

The correct placement of the TKG 2510 cable is critical for ensuring your case fans operate as intended. The connector from the case fan should be plugged into a dedicated header on your motherboard. These headers are commonly labelled as CHA_FAN, but you might also see them denoted as SYS_FAN or CASE_FAN. Modern motherboards typically sport 4-pin headers, designed to accommodate the advanced control capabilities of 4-pin fans. Older motherboards, however, may only feature 3-pin headers, which are compatible with 3-pin fans.

Locating the Correct Motherboard Header

If you're struggling to identify the appropriate connector on your motherboard, the most reliable resource is your motherboard's manual. This comprehensive guide will clearly illustrate the location and purpose of all headers, including those for case fans. For those who might not have a physical manual readily available, a quick digital search can often provide the solution. Simply download free system information software like "Speccy" to identify your motherboard's exact model. Once you know the model, a quick search on Google for "[Your Motherboard Model] manual" should yield the necessary documentation. For example, if you have an ASUS PRIME Z370-P, you would search for "ASUS PRIME Z370-P motherboard manual".

Understanding Fan Speed Control in BIOS

Occasionally, you might find that your case fans are running at a constant, high speed, regardless of your computer's workload. This behaviour can often be rectified by accessing your motherboard's BIOS (Basic Input/Output System) or UEFI (Unified Extensible Firmware Interface). Within the BIOS settings, you'll usually find options to control fan speed. Look for settings related to fan control or monitoring. If your fans are running at a fixed speed, you may need to switch the fan control mode from "Auto" or "PWM" to "DC mode" or adjust the fan curve manually. This setting allows the motherboard to regulate the voltage supplied to the fan, thereby controlling its speed.

The TKG 2510 4-Pin Fan Connector Explained

The 4-pin fan connector represents a more modern approach to fan cooling, incorporating Pulse Width Modulation (PWM) technology. This allows for variable speed operation, meaning the fan can intelligently adjust its speed based on real-time temperature readings and system demands. This dynamic control not only enhances cooling efficiency but also contributes to a quieter computing experience during periods of low load.

The pinout for a standard 4-pin TKG 2510 fan connector is as follows:

The presence of the 4th pin (PWM Control) is what enables the motherboard to precisely dictate the fan's speed. By sending a series of rapid on/off pulses, the motherboard can effectively vary the average voltage supplied to the fan motor, thus controlling its revolutions per minute (RPM).

The TKG 2510 3-Pin Fan Connector Explained

The 3-pin fan connector is a simpler, older standard. While it still provides power to the fan and can report its speed (RPM), it lacks the PWM control pin. Consequently, 3-pin fans typically operate at a constant speed, usually their maximum rated speed, unless directly controlled by a voltage regulator on the motherboard (which is less common and less precise than PWM).

The pinout for a standard 3-pin TKG 2510 fan connector is as follows:

It's important to note that even though a 3-pin fan connector has fewer pins, it can still be physically connected to a 4-pin motherboard header. The motherboard header is designed to accommodate both types of connectors.

Can You Connect a 3-Pin Fan Connector to a 4-Pin Header?

Yes, you can indeed connect a 3-pin fan connector into a 4-pin motherboard header. The physical design of the connectors is such that a 3-pin plug will fit into the 4-pin socket, aligning with the first three pins. However, there's a crucial consequence to this connection: the case fan will likely run at its maximum speed and will not be dynamically controlled by the motherboard. This is because the vital 4th pin, the PWM Control pin, is absent on the 3-pin fan connector. Without this signal, the motherboard cannot send commands to vary the fan's speed.

While this might be acceptable for some users who prefer a consistently high airflow, it means you lose the benefits of intelligent, temperature-based fan speed adjustment, which can lead to unnecessary noise when the system is idle or under light load.

Similar Cables and Connectors

Beyond the TKG 2510 designation, you'll encounter various other fan connectors and cables in the PC building world. Understanding these can prevent confusion:

• Standard 3-Pin Fan Connectors: As discussed, these provide power and RPM feedback but lack PWM control.
• Standard 4-Pin PWM Fan Connectors: These are the most common for modern CPU coolers and high-quality case fans, offering full PWM speed control.
• Proprietary Connectors: Some manufacturers use their own proprietary fan connectors, particularly for integrated fan hubs or specific RGB controllers. These often require specific adapters or can only be used with the manufacturer's ecosystem.
• Molex Connectors: Older fans, or fans designed for maximum airflow, sometimes use a 4-pin Molex connector, which directly interfaces with the power supply unit (PSU). These fans typically run at a fixed, high speed as they bypass motherboard control entirely.

Table: 3-Pin vs. 4-Pin Fan Connectors

Troubleshooting Common Fan Issues

If your fans aren't spinning or are behaving erratically after connecting your TKG 2510 cables, consider these common troubleshooting steps:

• Check Connections: Ensure the cable is firmly seated in both the fan and the motherboard header. A loose connection is the most frequent culprit.
• Verify Header Usage: Make sure you're using a designated fan header (CHA_FAN, SYS_FAN, CASE_FAN) and not a USB or audio header, which look similar but serve different purposes.
• Consult Motherboard Manual: Double-check the manual to confirm the correct header for case fans.
• BIOS Settings: As mentioned, review your BIOS settings for fan control options. Ensure fans aren't accidentally disabled or set to an inappropriate mode.
• Test Fan Individually: If possible, test the fan with a different header or a dedicated fan controller to rule out a faulty fan.
• Check Fan Orientation: Ensure the fan is oriented correctly to draw air into or exhaust air out of the case as intended.

The TKG 2510 cable, whether 3-pin or 4-pin, is a fundamental component for maintaining optimal thermal performance within your PC. By understanding its purpose and correct connection, you can ensure your system stays cool and runs efficiently. If you encounter any further questions about case fan connectors or other PC building queries, feel free to leave them in the comments section below!
