Understanding 2510 Connectors

In the realm of electronics, connectors are the unsung heroes, facilitating the flow of data and power between various components. Among the myriad of connector types, the 2510 connector family holds a significant place, particularly the 2510 4-pin male to female cable. This versatile cable, often found in hobbyist and professional electronic projects, offers a straightforward solution for linking devices. Let's delve into what makes these connectors and cables so useful and explore their applications.

What is a 2510 Connector?

The term "2510" in connector nomenclature typically refers to the pitch of the pins, which is 2.54mm (or 0.1 inches). This pitch is a standard in the electronics industry, making 2510 connectors compatible with a wide range of breadboards, prototyping boards, and other electronic modules. The "4-pin" designation specifies that the connector has four individual pins designed to carry electrical signals or power.

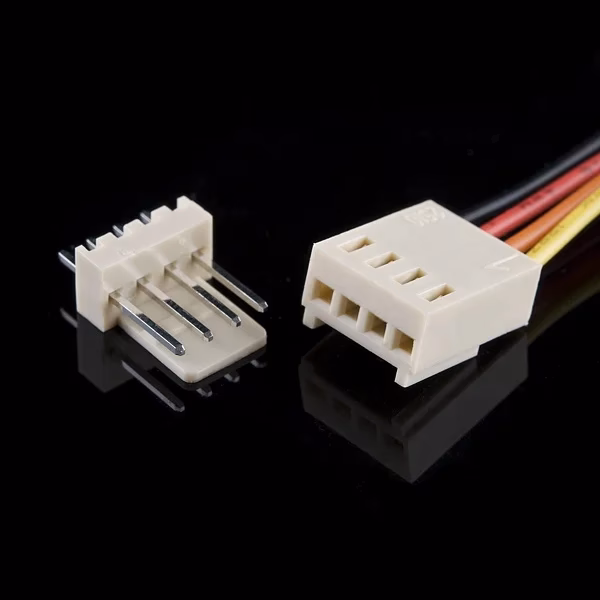

The 2510 4-Pin Male to Female Cable Explained

A 2510 4-pin male to female cable is a specific type of interconnect cable designed for devices utilising the 2.54mm pitch connector system. As described, this cable measures approximately 10 inches in length and features a male connector on one end and a female connector on the other. This male-to-female configuration is crucial for extending existing connections or linking two separate components that both have female ports.

Key Features and Benefits

The utility of the 2510 4-pin male to female cable stems from its design and the materials used in its construction. Here are some of its key features:

• Male to Female Connector: This is the primary characteristic, allowing for a direct extension or connection between two female ports. The male end has pins that insert into the sockets of the female end.
• 10-inch Length: The 10-inch (approximately 25.4 cm) length provides a practical distance between connected devices, offering flexibility in component placement within an electronic setup.
• 2.54mm Pitch: This standard pitch ensures compatibility with a vast array of electronic components, including prototyping boards, development boards like Arduino and Raspberry Pi, and many pre-built electronic modules.
• Multiple Positions (2 to 15): While the specific cable discussed is 4-pin, the 2510 connector family itself is available in various configurations, from 2 to 15 positions. This allows for tailored solutions depending on the number of signals or power lines required.
• Secure Connection: Many 2510 connectors, including those used in the MSC-2510-4P part number, incorporate a locking mechanism. This feature is vital for preventing accidental disconnections, ensuring a reliable and stable link, especially in applications where vibrations or movement are present.
• High-Quality Materials: The use of high-quality materials in both the wire and the connector housing contributes to the cable's durability and longevity. This means the connectors can withstand numerous plug and unplug cycles without degradation, a crucial factor for prototyping and frequent reconfiguration.
• Durable Construction: The overall construction is designed to be robust, making it suitable for a range of environments and applications, from hobbyist projects in a home lab to more demanding industrial settings.

Applications of 2510 Connectors

The versatility of the 2510 connector, and specifically the 4-pin male to female cable, makes it suitable for a multitude of applications:

Prototyping and Breadboarding

Perhaps the most common use is in prototyping. Electronic hobbyists and engineers often use these cables to connect different modules or components on a breadboard or perfboard. The 2.54mm pitch makes them ideal for plugging directly into the standard rows of pins found on breadboards and many development boards.

Connecting Electronic Modules

Many electronic modules, such as sensors, motor drivers, and display units, utilise 2.54mm pitch headers. A 2510 4-pin cable can be used to bridge the connection between a microcontroller (like an Arduino or Raspberry Pi) and these peripheral modules, extending the reach and simplifying wiring.

Internal Wiring of Devices

Within electronic enclosures, these cables can be used for internal wiring. For instance, connecting a power supply unit to a motherboard, or linking internal components like fans or LED lighting strips, especially where a specific, secure connection is needed.

Custom Cable Assemblies

For those building custom electronic projects, creating custom cable assemblies with 2510 connectors is a common practice. The male-to-female configuration allows for the creation of extension cables or custom wiring harnesses.

Robotics and IoT Projects

In the fields of robotics and the Internet of Things (IoT), where microcontrollers are connected to numerous sensors and actuators, 2510 connectors offer a standard and reliable way to manage these connections.

Compatibility Considerations

When working with 2510 connectors, it's important to be aware of compatibility. The 2.54mm pitch is a widely adopted standard, but it's worth noting how it relates to other common connector types.

KF2510 and Molex KK 254 Series

The question of compatibility between KF2510 and Molex KK 254 Series connectors is quite relevant. Both series utilise the 2.54mm pitch. Generally, connectors from different manufacturers that adhere to the same standard pitch and pin configuration (like 4-pin) are often physically compatible. This means a KF2510 female connector might accept a Molex KK 254 male connector, and vice versa, provided the pin layout and locking mechanisms (if present) do not interfere. However, it's always best to verify specifications or test for compatibility, as minor variations in housing design or locking clips can sometimes affect a perfect fit.

As the table shows, the 2.54mm pitch is a common thread, enabling interoperability between various connector systems designed for this standard. The 2510, often associated with specific brands or product lines like Micro SATA Cables, fits within this broader ecosystem.

Choosing the Right Connector Cable

When selecting a 2510 cable for your project, consider the following:

• Pin Count: Ensure the cable has the correct number of pins for your application (e.g., 4 pins).
• Length: Choose a length that is appropriate for your layout, avoiding excessively long cables that can introduce signal degradation or clutter.
• Connector Type: Confirm you need a male-to-female configuration.
• Locking Mechanism: For applications requiring a secure connection, opt for cables with locking features.
• Wire Gauge: The gauge of the wire (e.g., 22 AWG, 24 AWG) should be suitable for the current requirements of your application. Thicker wires (lower AWG number) can handle more current.
• Quality: Invest in cables from reputable suppliers to ensure durability and reliable performance.

Frequently Asked Questions

Q1: What does "2510" refer to in a connector?

A1: "2510" typically refers to the pin pitch of the connector, which is 2.54mm or 0.1 inches. This is a standard spacing widely used in electronics.

Q2: Can I use a 2510 4-pin cable with a device that has 3 pins?

A2: While the pitch is the same, you generally cannot use a 4-pin cable with a 3-pin header if the pinout doesn't match. The extra pin on the cable might not have a corresponding socket on the device, or if it does, it might be intended for a different signal. It's crucial to match the pin count and pinout.

Q3: Are all 2.54mm pitch connectors interchangeable?

A3: While they share the same pitch, physical interchangeability can depend on the specific housing design, locking mechanisms, and pin arrangements. Connectors from different series (like 2510 and Molex KK 254) may be compatible, but it's always best to check specifications or test.

Q4: What is the purpose of the locking mechanism on some 2510 connectors?

A4: The locking mechanism ensures that the male and female connectors are securely fastened together, preventing them from accidentally disconnecting due to movement, vibration, or tension on the cable. This enhances the reliability of the connection.

Q5: Where can I purchase 2510 4-pin male to female cables?

A5: These cables are widely available from electronic component distributors, online electronics retailers, and hobbyist electronics shops. Examples include suppliers like Micro SATA Cables (PN # MSC-2510-4P), Adafruit, SparkFun, and many others.

Conclusion

The 2510 4-pin male to female cable, with its 2.54mm pitch and convenient 10-inch length, is a fundamental component for anyone involved in electronics prototyping, building, or repair. Its straightforward design, coupled with features like secure locking mechanisms and durable construction, makes it a reliable choice for connecting a wide array of electronic modules and devices. Understanding its specifications and common applications ensures you can effectively integrate it into your projects, facilitating seamless data and power transfer.
