DVSA Approved Test Lanes Explained

Understanding the DVSA Approved Test Lane

For any garage undertaking the mandatory MOT testing in the United Kingdom, understanding the equipment used is paramount. Central to this is the concept of a DVSA approved test lane. But what exactly constitutes a DVSA approved test lane, and why is this approval so significant? In essence, a DVSA approved test lane is a carefully configured and calibrated suite of automotive testing equipment that meets the stringent standards set by the Driver and Vehicle Standards Agency (DVSA). These lanes are designed to facilitate accurate, efficient, and compliant testing of vehicles, particularly for the Class IV and Class VII categories, which encompass most cars and light commercial vehicles.

The primary objective of a DVSA approved test lane is to streamline the MOT testing process, often enabling a single technician to conduct a full inspection with enhanced productivity and reduced manual effort. This is achieved through the integration of various pieces of specialised equipment, all working in harmony and adhering to strict protocols. The benefits extend beyond mere efficiency; they encompass improved accuracy, enhanced safety for the tester and the vehicle, and ultimately, customer satisfaction through quicker turnaround times.

Key Components of an Automated Test Lane

Modern DVSA approved test lanes are often referred to as Automated Test Lanes (ATLs) due to their sophisticated integration and semi-autonomous operation. A typical ATL for Class IV and Class VII vehicles will include several critical components. Let's delve into some of the most important:

Geogas 6000 Link Emissions Analyser

At the heart of many modern test lanes is the emissions analyser. The Geogas 6000 Link, as mentioned, is a prime example. Its standout features include a large, user-friendly 27-inch monitor and intuitive Windows-based software. This significantly lowers the learning curve for technicians, allowing them to become proficient quickly. The analyser can operate in either manual or fully automatic modes, offering flexibility. Crucially, it boasts wireless capabilities for smoke head, RPM, and oil temperature measurements. For diesel vehicles, a wireless EOBD RPM and oil temperature trigger device is a vital innovation. This device wirelessly transmits crucial data directly from the vehicle's EOBD port, a method officially approved for triggering the smoke head, thereby ensuring the accuracy of smoke readings. The precision and ease of use offered by such analysers are fundamental to compliant and efficient testing.

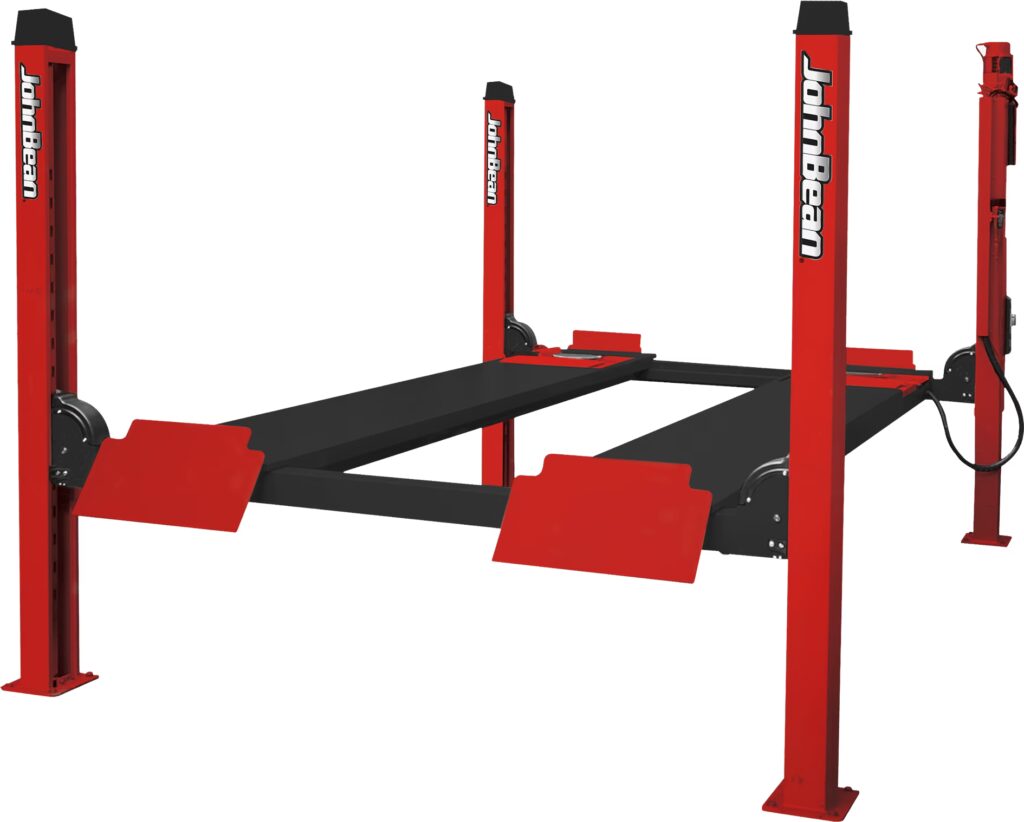

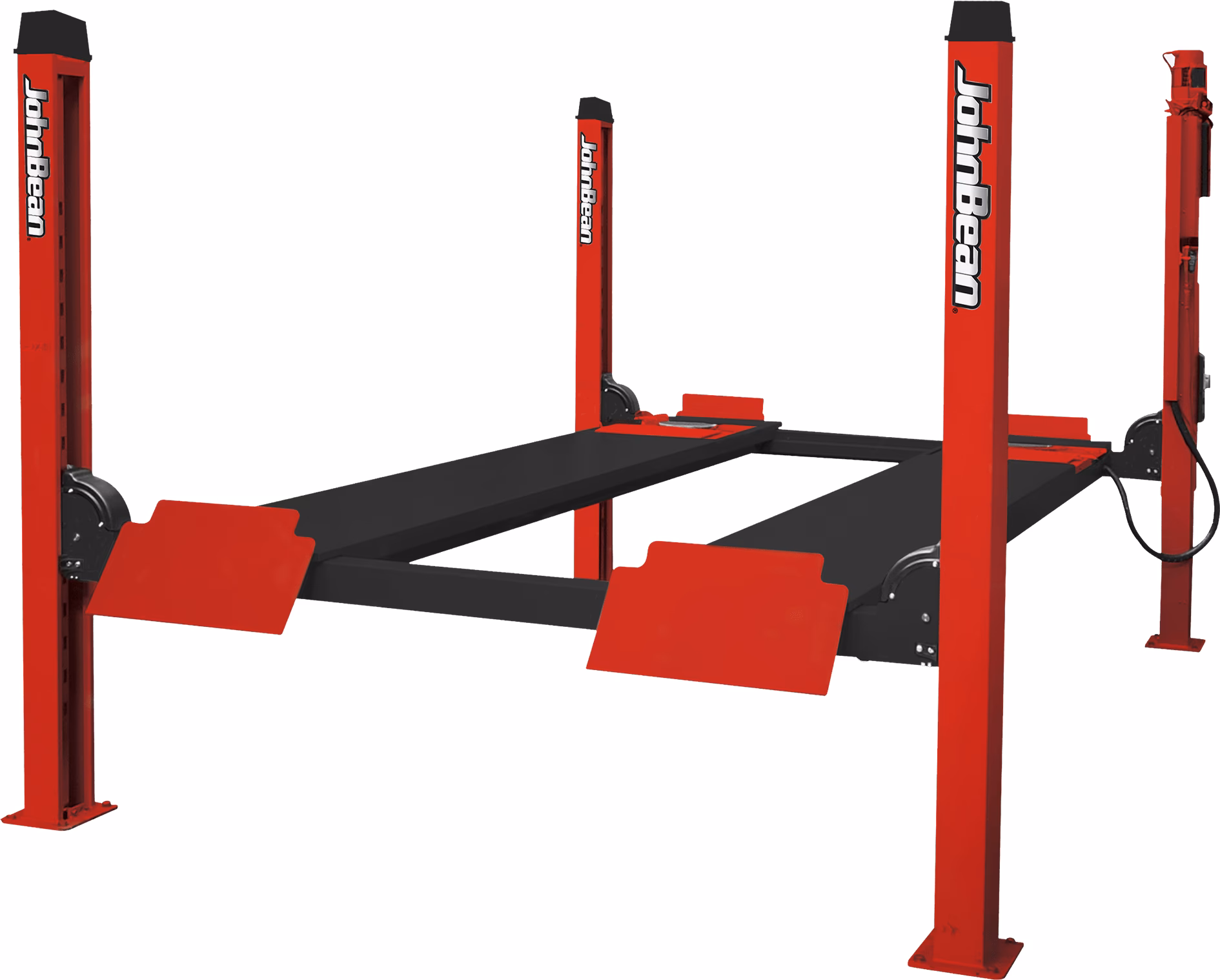

Lift with Integral Play Detector

Vehicle lifts are essential for providing access to the underside of vehicles. However, in a DVSA approved test lane, these lifts often come with an integrated play detector. This is a vital safety and diagnostic feature. The play detector is designed to identify any excessive looseness or movement within critical vehicle components, such as the steering and suspension systems. By highlighting these issues, it ensures a much more thorough examination, going beyond a visual check to guarantee the vehicle meets stringent safety and performance standards required for its MOT.

Bearing Radius Plates

Precision is key in MOT testing, and bearing radius plates contribute significantly to this. These plates are incorporated into the testing equipment to enhance the accuracy of vehicle testing and diagnostics. They provide a stable and precise surface for assessing the vehicle's braking, suspension, and overall performance. By ensuring accurate assessments, they help technicians identify even subtle issues that could compromise safety.

Jacking Beam

A versatile jacking beam is another indispensable tool within an ATL. Its primary function is to safely and efficiently lift vehicles, providing technicians with the necessary access to the underside for various tests and inspections. Modern jacking beams are designed for adaptability to a range of vehicle types and prioritising safety is paramount. Features to prevent accidental lowering are standard, making it an essential component for secure and efficient vehicle assessments.

Roller Brake Tester

The roller brake tester is a cornerstone of any MOT lane, responsible for evaluating the effectiveness of a vehicle's braking system. Integrated with user-friendly PC software, these testers streamline the entire process. The software minimises the potential for human error, facilitates efficient data recording, and generates comprehensive reports. This not only aids in accurate diagnosis but also in maintaining clear records for compliance and customer information. The rollers themselves are often corrosion-resistant and feature dimpled surfaces for improved wet tyre grip, ensuring consistent and reliable results even in challenging conditions.

Brake Roller Cover Plates

Complementing the roller brake tester are the brake roller cover plates. These are designed to provide a stable and uniform surface upon which the vehicle's tyres rest during brake testing. This consistency is crucial for achieving accurate and repeatable results. Furthermore, they enhance safety by reducing the risk of tyre slippage during the testing procedure, which could otherwise lead to erroneous readings or potential damage.

Rail-Mounted Headlight Beam Setter

Effective illumination is critical for road safety, and the headlight beam setter ensures that a vehicle's headlights are correctly aligned. A rail-mounted design, as seen in advanced systems, is crucial for stability and precise adjustments. User-friendly controls and real-time feedback capabilities allow technicians to accurately adjust headlights, improving nighttime visibility for the driver and reducing glare for other road users. This is a vital check for vehicle safety.

Flexibility and Future-Proofing: Easy Upgrade Options

The automotive industry is constantly evolving, and so are testing requirements. DVSA approved test lanes are increasingly designed with future-proofing in mind. The ability to easily upgrade systems, such as adding Class I and II testing capabilities to an existing setup, offers significant advantages. This flexibility allows garages to adapt to changing regulations and new vehicle types without requiring a complete overhaul of their equipment, saving considerable time and resources while ensuring ongoing operational efficiency and compliance.

Why is DVSA Approval So Important?

The DVSA approval signifies that a particular piece of equipment or a complete test lane system has undergone rigorous evaluation and has been found to meet the exacting standards set by the governing body. This approval is not merely a badge of honour; it is a guarantee for garages and their customers that the testing performed is:

• Accurate: The equipment is calibrated and designed to provide precise measurements and readings.
• Compliant: The testing methods and equipment adhere to all legal requirements and standards set by the DVSA.
• Efficient: The integrated nature of the equipment, particularly in an ATL, is designed to maximise testing speed and minimise technician effort.
• Safe: The equipment is built with safety features for both the operator and the vehicle being tested.

Without DVSA approval, a garage cannot legally conduct MOT tests. Therefore, investing in DVSA approved equipment is not an option but a necessity for any business operating in this sector.

The Hofmann® Automated Test Lane: A Case Study

The Hofmann® automated test lane serves as an excellent example of a DVSA-approved system designed to revolutionise MOT testing efficiency. As highlighted, it is engineered for one-person operation, significantly boosting productivity. Its comprehensive coverage of Class IV and VII vehicles, with the potential for expansion to Class I, II, III, and VL testing, demonstrates its versatility. The integration of the Geogas 6000 Link, with its advanced features like wireless data transmission and user-friendly interface, simplifies the complex process of emissions analysis. The inclusion of features like the lift with an integral play detector, bearing radius plates, a jacking beam, and a robust roller brake tester, all designed with precision and safety in mind, further underscores the quality of such a system. The commitment to a rigorous 66-point check procedure before dispatch by manufacturers like Hofmann® ensures that garages receive equipment that is ready to perform from day one.

Table: Key Features and Benefits of a DVSA Approved ATL

Frequently Asked Questions

What is the main advantage of an Automated Test Lane (ATL)?

The primary advantage of an ATL is the significant increase in efficiency and productivity, often allowing for one-person operation. The integration of various testing components and user-friendly software reduces testing time and the potential for errors.

Can any equipment be used for MOT testing?

No, only equipment that is DVSA approved and calibrated can be used for official MOT testing. This ensures that all tests are conducted to the required standards.

What vehicle classes can a typical DVSA approved test lane handle?

Most standard DVSA approved test lanes are designed for Class IV (cars and light vans) and Class VII (larger vans and goods vehicles up to 3.5 tonnes) vehicles. However, many systems offer optional upgrades for other classes such as motorcycles (Class I & II) or heavy goods vehicles.

Is a wireless EOBD trigger device mandatory for diesel emissions testing?

While not strictly mandatory in all scenarios, the use of an officially approved wireless EOBD trigger device for RPM and oil temperature is highly recommended and increasingly becoming the standard for accurate and compliant diesel emissions testing, as it ensures the smoke head is triggered correctly.

How often does MOT testing equipment need to be calibrated?

MOT testing equipment must be calibrated annually by an accredited calibration service provider to ensure its accuracy and continued DVSA approval.

In conclusion, a DVSA approved test lane, particularly in its automated form, represents the modern standard for MOT testing garages. It is an investment in efficiency, accuracy, safety, and compliance, ensuring that workshops can provide a high-quality service that meets all regulatory requirements. By understanding the components and the importance of DVSA approval, garages can make informed decisions about their equipment, ultimately benefiting both their business operations and the safety of the vehicles on our roads.
