21/10/2011
Receiving an advisory notice on your vehicle's MOT can often be a source of confusion and concern for many motorists across the UK. Among the myriad of potential advisories, a 'brake imbalance' is one that frequently appears, prompting questions about its severity, its causes, and what steps need to be taken next. This advisory indicates that during the brake test, the braking force on one side of an axle (front or rear) was significantly different from the other side. While an advisory isn't an outright failure, it highlights an issue that requires attention and, if left unaddressed, could compromise your vehicle's safety and lead to a more serious problem – or even a test failure – down the line. Understanding the intricacies of your braking system and the implications of an imbalance is crucial for maintaining vehicle safety and compliance.
Your car's braking system is a complex network designed to bring your vehicle to a safe, controlled stop. For optimal performance and safety, it's absolutely vital that the braking force is applied evenly across each axle. When an imbalance occurs, it means that one wheel or side of the vehicle is doing more (or less) work during braking than its counterpart. This can lead to a range of issues, from reduced stopping power and premature tyre wear to dangerous pulling to one side under braking. Let's delve deeper into what causes this common MOT advisory and how you can address it.
- What Exactly is Brake Imbalance and Why is it an MOT Concern?
- Common Culprits Behind Brake Imbalance
- Advisory vs. Failure: Understanding the MOT Outcome
- Troubleshooting and Rectifying Brake Imbalance
- Preventative Maintenance to Avoid Future Advisories
- Frequently Asked Questions About Brake Imbalance
What Exactly is Brake Imbalance and Why is it an MOT Concern?
Brake imbalance, in simple terms, is when the braking efficiency on one side of an axle deviates too much from the other side. During an MOT test, your vehicle undergoes a rigorous brake performance test using a roller brake tester. This machine measures the braking force generated by each wheel independently and compares them. If the difference in braking force between wheels on the same axle exceeds a certain percentage (typically around 25-30% for service brakes and 50% for parking brakes, though specific regulations apply), an advisory will be issued. The primary concern is safety; an imbalanced braking system can cause the vehicle to pull sharply to one side when braking, especially during emergency stops, potentially leading to a loss of control. Furthermore, it can lead to uneven wear on brake components and tyres, increasing maintenance costs over time.
Common Culprits Behind Brake Imbalance
Identifying the root cause of a brake imbalance advisory requires a systematic approach, as several components can contribute to the issue. Here are some of the most common reasons your vehicle might be experiencing uneven braking:
1. Sticking or Seized Brake Calipers
This is arguably one of the most frequent causes. A brake caliper is designed to clamp the brake pads onto the disc when you apply the brakes. If a caliper piston or its guide pins become corroded, seized, or sticky, it can prevent the pads from engaging fully, retracting properly, or applying even pressure. This results in reduced braking force on that wheel or, conversely, excessive dragging which generates heat and wear. This can be caused by dirt, rust, or simply lack of lubrication over time.
2. Worn or Contaminated Brake Pads
Brake pads are designed to wear down over time. However, if one pad wears significantly faster than its counterpart on the same axle, it can indicate an underlying issue with the caliper or rotor, leading to imbalance. Additionally, brake pads can become contaminated with oil, grease, or brake fluid. Contaminated pads lose their friction properties, leading to reduced braking efficiency on the affected wheel and a noticeable imbalance.

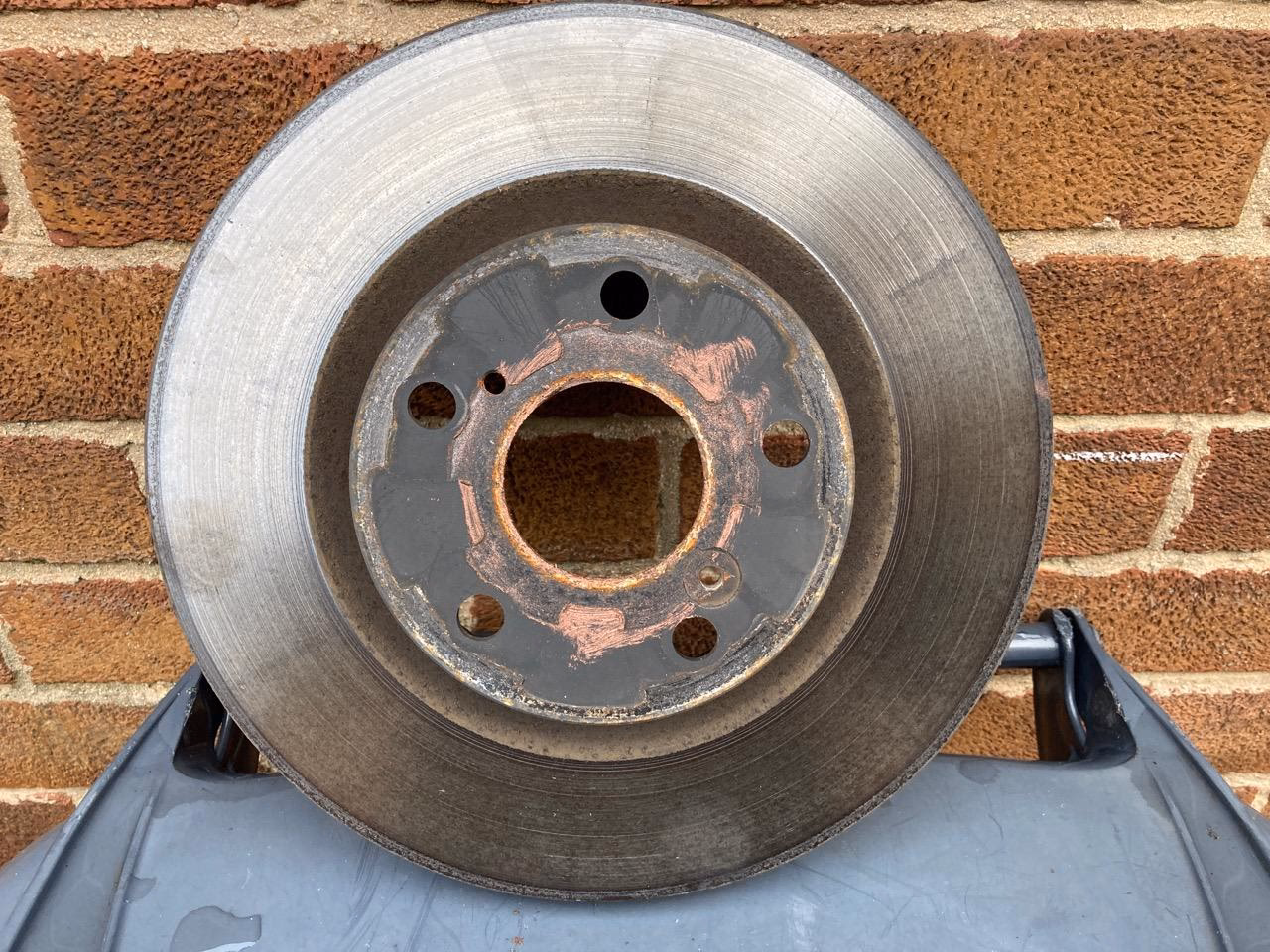

3. Warped or Damaged Brake Discs (Rotors)
Brake discs, also known as rotors, can become warped due to excessive heat, repeated hard braking, or even improper installation. A warped disc will not allow the brake pads to make full, even contact, leading to pulsation through the pedal and reduced braking force. Damage such as deep scoring or cracking can also compromise the disc's ability to provide consistent friction.
4. Air or Moisture in the Brake Fluid
Brake fluid is hydraulic, meaning it is incompressible. If there's air or moisture within the brake lines, it can compress, leading to a spongy brake pedal and inconsistent pressure delivery to one or more calipers. This can result in one caliper applying less force than another, creating an imbalance. Brake fluid is hygroscopic, meaning it absorbs moisture over time, which reduces its boiling point and can lead to rust within the system.
5. Faulty Brake Hoses or Lines
A damaged or degraded brake hose can expand under pressure, much like a balloon, reducing the hydraulic pressure reaching the caliper. If one hose is failing while others are intact, it will lead to reduced braking force on the wheel it serves, causing an imbalance. Internal blockages or collapses within a hose can also restrict fluid flow.
6. Unevenly Adjusted Parking Brake (Handbrake)
While the MOT advisory is typically for the service brakes, an imbalance in the parking brake can also be noted. If the handbrake cables or mechanisms are not adjusted evenly, one wheel may hold more strongly than the other, resulting in an imbalance advisory on the parking brake test.
7. Problems with ABS or ESP Systems
Modern vehicles are equipped with Anti-lock Braking System (ABS) and Electronic Stability Programme (ESP). While less common, issues within these complex electronic systems, such as faulty wheel speed sensors or a malfunctioning ABS modulator, can sometimes interfere with braking force distribution and lead to an imbalance, though this is often accompanied by warning lights on the dashboard.
Advisory vs. Failure: Understanding the MOT Outcome
It's crucial to distinguish between an MOT advisory and a major or dangerous defect. An advisory indicates that a defect has been identified that is not severe enough to warrant a fail at the time of the test, but it is something that needs to be monitored or rectified soon. In the case of brake imbalance, it means the discrepancy was within the advisory limits. However, if the imbalance exceeds the specified limits, it will result in an outright MOT failure, meaning your vehicle cannot be driven legally until the issue is repaired and retested. An advisory is a warning; a failure is a prohibition.
Troubleshooting and Rectifying Brake Imbalance
Upon receiving a brake imbalance advisory, it's important to investigate and address the issue promptly. Here’s a general approach:
- Visual Inspection: Start by visually inspecting all brake components on the affected axle. Look for obvious signs of wear, damage, or leaks. Check the brake pads for uneven wear or contamination. Examine the brake discs for warping, scoring, or cracking.
- Check Caliper Operation: With the wheel off, carefully inspect the brake caliper. Are the guide pins moving freely? Does the piston retract smoothly? Sometimes, simply cleaning and lubricating the guide pins can resolve a sticking caliper issue.
- Brake Fluid Check: Inspect the brake fluid reservoir. Is the fluid level correct? Does it look clean, or is it dark and murky? If the fluid is old or contaminated, a full brake fluid flush and bleed might be necessary. This will remove any air or moisture from the system.
- Hose and Line Inspection: Check the flexible brake hoses for any bulges, cracks, or signs of deterioration. Rigid brake lines should be free from corrosion or damage.
- Parking Brake Adjustment: If the advisory relates to the parking brake, check the adjustment of the cables and mechanisms. Ensure both sides are engaging and releasing evenly.
- Professional Diagnosis: If you're unsure or unable to identify the cause, it's always best to consult a qualified mechanic. They have specialist equipment, such as brake fluid testers and pressure gauges, and the expertise to accurately diagnose the problem. They can also conduct more thorough tests, including checking hydraulic pressure at each caliper.
Preventative Maintenance to Avoid Future Advisories
Proactive maintenance is key to preventing brake imbalance and ensuring your vehicle remains safe and roadworthy. Here are some tips:
- Regular Brake Inspections: Have your brakes inspected regularly, ideally as part of your annual service. This allows mechanics to spot potential issues before they escalate.
- Brake Fluid Changes: Follow your vehicle manufacturer's recommendations for brake fluid replacement, typically every 2-3 years. This ensures the fluid remains free of moisture and contaminants.
- Lubricate Caliper Pins: During pad or disc replacement, ensure that the caliper guide pins are cleaned and lubricated with appropriate high-temperature grease.
- Quality Components: When replacing brake pads or discs, always use high-quality, reputable parts. Cheaper components may not perform as consistently or last as long.
- Even Driving Habits: While not always possible, try to avoid excessively harsh or prolonged braking, which can lead to overheating and premature wear.
By understanding the common causes and taking proactive steps, you can significantly reduce the likelihood of encountering a brake imbalance advisory on your next MOT. Remember, a safe braking system is paramount for your safety and the safety of others on the road.
Frequently Asked Questions About Brake Imbalance
| Question | Answer |
|---|---|
| Is a brake imbalance advisory a major problem? | While not an immediate MOT failure, it indicates a significant safety concern. It means your brakes aren't performing optimally and could lead to uneven stopping, pulling to one side, or increased stopping distances, especially in an emergency. It should be addressed promptly. |
| Can I drive with a brake imbalance advisory? | Legally, yes, as it's an advisory and not a failure. However, it's strongly advised not to ignore it. The uneven braking can compromise your vehicle's stability and safety, particularly under hard braking or in wet conditions. It's best to have it checked and repaired as soon as possible. |
| How much does it cost to fix a brake imbalance? | The cost varies significantly depending on the underlying cause. Simple fixes like cleaning and lubricating caliper pins might be relatively inexpensive. However, if it requires new calipers, discs, pads, or a full brake fluid flush, costs will be higher. Always get a quote from a reputable garage. |
| Can brake imbalance cause ABS light to come on? | Typically, a brake imbalance alone doesn't directly trigger the ABS light. However, if the imbalance is caused by a faulty wheel speed sensor or a major issue within the ABS modulator, then the ABS warning light would illuminate. It's worth having the ABS system scanned if the light is on. |
| How is brake imbalance measured during an MOT? | During the MOT, a roller brake tester is used. Each wheel on an axle is tested independently to measure its braking force. The machine then calculates the percentage difference in braking force between the left and right wheels on that axle. If this difference exceeds the allowed tolerance, an advisory or failure is issued. |
| Do I need to retest my car after fixing an advisory? | No, you are not legally required to have your car retested after fixing an advisory. An advisory is a recommendation for repair, not a legal requirement for immediate action or re-inspection. However, for peace of mind and safety, it's good practice to ensure the repair has genuinely resolved the issue. If the advisory had been a failure, then a retest would be mandatory. |
In conclusion, a brake imbalance advisory on your MOT is a clear signal that your braking system requires attention. It's not merely a bureaucratic formality but a crucial indicator of a potential safety hazard. By understanding its causes, recognising the symptoms, and taking appropriate action, you can ensure your vehicle remains safe, reliable, and capable of stopping effectively when it matters most. Don't delay addressing these issues; your safety, and that of others on the road, depends on it.
