DIY Engine Oil & Filter Change: Mondeo Mk5 Hatchback

Regular engine oil and filter changes are arguably the most crucial maintenance tasks you can perform to ensure the longevity and optimal performance of your Ford Mondeo Mk5 Hatchback. While modern vehicles boast longer service intervals, understanding the process and the benefits of proactive maintenance can save you significant repair costs down the line. This comprehensive guide will walk you through everything you need to know about changing the engine oil and filter on your Mondeo Mk5, ensuring your cherished vehicle remains a reliable companion on the UK's roads.

Why Is Engine Oil So Crucial for Your Mondeo?

Engine oil is the lifeblood of your vehicle's engine, performing multiple vital functions that extend far beyond simple lubrication. Over time, oil degrades, accumulates contaminants, and loses its effectiveness, making regular replacement absolutely essential. Here's a breakdown of its key roles:

• Lubrication: The primary function. Engine oil creates a thin film between moving metal parts, such as pistons, crankshafts, and camshafts, preventing direct metal-on-metal contact. This drastically reduces friction and wear, ensuring components glide smoothly and efficiently. Without adequate lubrication, parts would rapidly grind against each other, leading to catastrophic engine failure.
• Cooling: As parts move, they generate immense heat due to friction. Engine oil absorbs and dissipates this heat, carrying it away from critical components and transferring it to the oil pan or oil cooler, where it can dissipate. This prevents overheating, which can warp engine parts and compromise seals.
• Cleaning: Engine oil contains detergents and dispersants that help suspend and carry away contaminants like soot, carbon deposits, and metallic particles generated during combustion and wear. These impurities are then trapped by the oil filter, preventing them from circulating and causing damage.
• Sealing: Oil helps create a seal between the piston rings and cylinder walls. This seal prevents combustion gases from escaping past the pistons into the crankcase, ensuring maximum compression and power output.
• Corrosion Protection: Engine oil forms a protective barrier on metal surfaces, preventing rust and corrosion, especially during periods when the engine is not running.

When Should You Change Your Mondeo Mk5's Engine Oil?

This is a frequently debated topic among car enthusiasts and owners. For the Ford Mondeo Mk5 2.0 TDCi, the official service book often recommends an interval of every 2 years or 18,000 miles, whichever comes first. While this is the manufacturer's guideline, many experienced mechanics and car owners, including yourself, prefer a much shorter interval. Changing the oil and filter every 6,000 miles, or even more frequently if your driving habits are demanding, is considered a superior practice for engine longevity.

Manufacturer vs. Enthusiast Intervals: A Comparison

Let's look at the pros and cons of each approach:

Ultimately, your car and your choice, of course. For those who want to ensure their engine is running in pristine condition, especially if you do a lot of short journeys, stop-start city driving, or towing, more frequent changes are highly advisable. The cost of oil and a filter is minimal compared to the cost of major engine repairs.

Gathering Your Toolkit and Supplies

Before you begin, ensure you have all the necessary tools and materials. Having everything ready will make the job smoother and safer.

Essential Tools:

• Vehicle Jack: A sturdy hydraulic or trolley jack.
• Axle Stands: Crucial for safety. Never rely solely on a jack when working under a vehicle.
• Wheel Chocks: To prevent the car from rolling.
• Oil Drain Pan: Large enough to hold all the old engine oil (typically 5-6 litres for a Mondeo Mk5).
• Socket Wrench Set: You'll need the correct size socket for your drain plug (often 13mm or 15mm, but check your specific model).
• Oil Filter Wrench: A cap-style or strap-style wrench that fits your Mondeo's oil filter.
• Funnel: To neatly pour in the new oil.
• Clean Rags or Shop Towels: For spills and clean-up.
• Disposable Gloves: To protect your hands from oil and grime.
• Torque Wrench: Recommended for correctly tightening the drain plug and oil filter.

Required Materials:

• New Engine Oil: For a Ford Mondeo Mk5 2.0 TDCi, you'll typically need around 5.5 to 6 litres of oil. As you've noted, Castrol Magnatec 0W-30 is a popular choice, but ensure it meets Ford's specification WSS-M2C950-A for diesel engines. Always refer to your owner's manual for the precise oil specification. Using the correct oil is paramount for engine health and warranty compliance.
• New Oil Filter: Ensure it's the correct filter for your Mondeo Mk5.
• New Drain Plug Washer (Crush Washer): This is a one-time use item and essential for preventing leaks from the drain plug.

Step-by-Step Guide: Changing Your Mondeo Mk5's Engine Oil

This process should be performed with the engine stopped. Autodoc experts recommend the vehicle must be on an even keel, and if it is at an angle, the drain plug must be at the lowest point. This ensures all old oil drains out efficiently.

1. Preparation and Safety First

• Warm Up the Engine (Slightly): Drive the car for 5-10 minutes to bring the oil to operating temperature. Warm oil flows more easily, allowing more contaminants to drain out. However, be careful as components will be hot.
• Park on Level Ground: Ensure your Mondeo is on a firm, level surface. Engage the handbrake and place wheel chocks behind the rear wheels for added security.
• Locate Components: Identify the oil filler cap (usually on top of the engine), the oil drain plug (at the bottom of the oil pan), and the oil filter (location varies but often accessible from underneath).
• Unscrew the Oil Filler Plug: This is a crucial first step, as it allows air to enter the engine, creating a vacuum break and ensuring the oil drains smoothly and completely.

2. Lifting the Vehicle Safely

You'll need to gain access to the underside of the car.

• Using a Jack and Axle Stands: Position your jack at the designated jacking points (refer to your owner's manual). Lift the front of the car high enough to comfortably work underneath. Immediately place sturdy axle stands under the vehicle's frame at secure points, then gently lower the car onto the stands. Give the car a gentle shake to ensure it's stable. Never work under a car supported only by a jack.
• Using an Inspection Pit or Ramps: If you have access to an inspection pit or car ramps, these are safer alternatives as they eliminate the need for jacking and stands. Drive your Mondeo carefully onto the ramps or over the pit.

3. Draining the Old Oil

This is where things get messy, so have your drain pan ready.

• Position the Drain Pan: Place your oil drain pan directly beneath the engine's oil drain plug. Ensure it's large enough to catch all the oil.
• Remove the Drain Plug: Using your socket wrench, carefully loosen and remove the oil drain plug. Be prepared for the oil to come out quickly and at an angle once the plug is fully unscrewed. The oil will be hot, so wear gloves.
• Allow to Drain Fully: Let the oil drain completely. This can take 10-20 minutes. While it's draining, inspect the old drain plug and ensure you have your new crush washer ready.
• Clean and Replace Drain Plug: Once the oil flow slows to a drip, clean the drain plug thoroughly. Install the new crush washer onto the drain plug. Reinstall the drain plug into the oil pan. Tighten it firmly, ideally with a torque wrench to the manufacturer's specified torque (check your manual – typically around 20-30 Nm or 15-22 lb-ft). Do not overtighten, as this can strip the threads of the oil pan.

4. Replacing the Oil Filter

The oil filter is just as important as the oil itself.

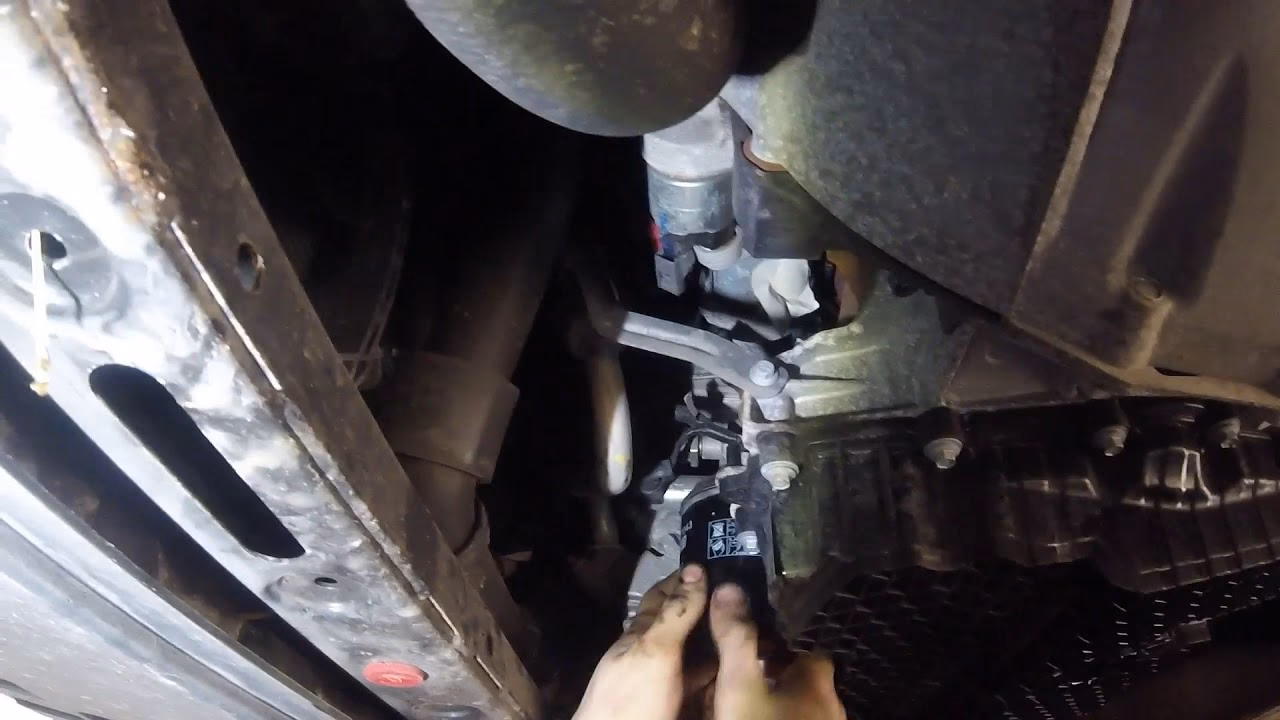

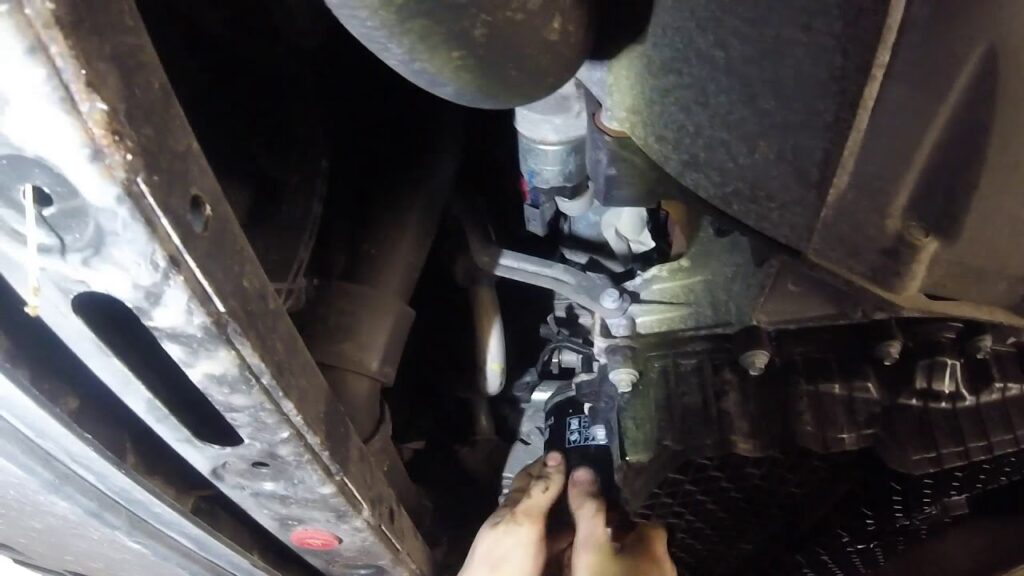

• Locate the Filter: The oil filter on a Mondeo Mk5 is typically a canister type. Its exact location can vary slightly depending on the engine variant (petrol/diesel) but is usually accessible from underneath.
• Prepare for Spills: Place a small secondary drain pan or some rags underneath the filter, as some oil will spill when it's removed.
• Remove the Old Filter: Use your oil filter wrench to loosen the filter. Once it's loose, you can usually unscrew it by hand. Be careful, as it will be full of old oil.
• Prepare the New Filter: Before installing the new filter, take a small amount of new engine oil and apply a thin film to the rubber gasket of the new filter. This ensures a good seal and prevents the gasket from tearing during installation. Some mechanics also pre-fill the new filter with clean oil, though this can be messy and isn't strictly necessary for all filters.
• Install the New Filter: Screw the new filter on by hand. Once the gasket makes contact with the engine, tighten it an additional three-quarters to one full turn. Do not overtighten with a wrench, as this can damage the filter or its housing, making it difficult to remove next time. Hand-tightening plus a small turn with the wrench is usually sufficient.

5. Refilling with New Oil

Now it's time to put the fresh oil in.

• Lower the Vehicle: Carefully lower your Mondeo off the axle stands (or ramps) onto level ground. This ensures an accurate oil level reading.
• Add New Oil: Place a funnel into the oil filler opening. Begin pouring in the new engine oil gradually. Start with about 5 litres, then check the dipstick.
• Check the Oil Level: After pouring, wait a few minutes for the oil to settle in the pan. Pull out the dipstick, wipe it clean, reinsert it fully, then pull it out again. The oil level should be between the 'MIN' and 'MAX' marks. Add more oil in small increments (e.g., 0.25 litres at a time), checking the dipstick after each addition, until the level is just below the 'MAX' mark. Do not overfill.
• Replace Filler Cap: Once the level is correct, screw the oil filler cap back on securely.

6. Final Checks

• Run the Engine: Start the engine and let it run for a few minutes. This allows the new oil to circulate throughout the engine and fill the new oil filter. The oil pressure warning light on your dashboard should go out within a few seconds.
• Check for Leaks: While the engine is running, carefully inspect underneath the car for any signs of oil leaks around the drain plug and the new oil filter.
• Re-check Oil Level: Turn off the engine and wait 5-10 minutes for the oil to settle. Re-check the oil level on the dipstick. It may have dropped slightly as the filter filled up. Top up if necessary, ensuring it's still below the 'MAX' mark.
• Reset Service Light (If Applicable): Some Mondeo models will require you to manually reset the service indicator light on the dashboard. Refer to your owner's manual for the specific procedure for your model year.

7. Proper Disposal of Used Oil and Filter

Used engine oil is a hazardous waste and must be disposed of responsibly. Never pour it down drains or onto the ground.

• Recycling Centres: Most local authority recycling centres in the UK have facilities for collecting used engine oil.
• Garages: Some garages may accept used oil, often for a small fee.
• Drain the Filter: Allow the old oil filter to drain for some time into the used oil pan before placing it in a sealed bag for disposal.

Choosing the Right Engine Oil for Your Mondeo Mk5

While you've mentioned Castrol Magnatec 0W-30, it's vital to understand why this specific oil (or an equivalent) is recommended. Modern engines, like those in the Mondeo Mk5, are designed with very tight tolerances and require specific oil formulations.

• Viscosity (e.g., 0W-30): The '0W' indicates its performance in cold weather (W for Winter), meaning it's very thin and flows easily at low temperatures, ensuring quick lubrication at start-up. The '30' indicates its viscosity at operating temperature. Using the correct viscosity is essential for optimal engine performance and protection across various temperatures.
• Ford Specifications (e.g., WSS-M2C950-A): This is the most crucial aspect. Ford develops specific oil standards for its engines. For your 2.0 TDCi, the WSS-M2C950-A specification is vital. This specification ensures the oil has the correct additives, detergents, and base oils to protect components like the Diesel Particulate Filter (DPF) and meet emission standards, as well as providing the required lubrication. Always check the oil bottle for this specific Ford approval.
• Synthetic vs. Conventional: Most modern oils meeting these specifications will be fully synthetic or synthetic blend. Synthetic oils offer superior performance, stability, and longevity compared to conventional mineral oils, especially in extreme temperatures and high-stress conditions.

Common Mistakes to Avoid During an Oil Change

• Not Using Axle Stands: Never work under a car supported only by a jack. This is incredibly dangerous.
• Overtightening the Drain Plug or Filter: This can strip threads or crack housings, leading to costly repairs. Use a torque wrench where possible.
• Using the Wrong Oil: Always use oil that meets the manufacturer's specific viscosity and specification (e.g., Ford WSS-M2C950-A).
• Not Replacing the Crush Washer: Reusing the old washer almost guarantees a leak.
• Overfilling the Engine Oil: Too much oil can cause aeration (foaming), leading to reduced lubrication and potential damage to seals or even catalytic converter issues.
• Not Checking for Leaks Afterwards: A quick visual check after running the engine can save you from significant oil loss and potential damage.

Frequently Asked Questions (FAQ)

Q1: How long does an engine oil and filter change typically take for a Mondeo Mk5?

If you have all the tools and materials ready and are familiar with the process, a DIY oil and filter change can typically be completed in 30 to 60 minutes. If it's your first time, allow for a bit more time, perhaps 1-2 hours, to ensure you take your time and follow all safety precautions.

Q2: Can I use a different brand of oil than Castrol, as long as it's 0W-30?

Yes, absolutely. The brand of oil is less important than its specifications. As long as the oil meets the Ford WSS-M2C950-A specification (for diesel engines) and has the correct viscosity (0W-30 or as specified in your owner's manual), it will be suitable for your Mondeo Mk5. Many reputable oil brands produce oils that meet these stringent Ford standards.

Q3: What happens if I don't change my engine oil regularly?

Neglecting regular oil changes can lead to severe and costly engine damage. Over time, engine oil breaks down, loses its lubricating properties, and becomes contaminated with dirt, carbon, and metallic particles. This leads to increased friction, excessive wear on internal components, sludge buildup, reduced engine efficiency, and eventually, premature engine failure. Components like turbochargers, which are critical in your Mondeo Mk5 TDCi, are particularly susceptible to damage from old or insufficient oil.

Q4: Do I need to reset the service light after changing the oil?

For many modern Ford Mondeo Mk5 models, yes, you will need to manually reset the service indicator light on the dashboard. This light is often tied to a mileage or time interval and won't turn off automatically after an oil change. The exact procedure varies slightly by model year and trim level, so it's best to consult your Mondeo's owner's manual for precise instructions. Typically, it involves a sequence of button presses on the steering wheel or instrument cluster.

Q5: What are the signs that my engine oil is low or needs changing?

Beyond the service light, several signs indicate your oil might be low or degraded. These include the oil pressure warning light illuminating on your dashboard, a noticeable increase in engine noise (ticking, knocking), a drop in engine performance, a burning oil smell, excessive exhaust smoke (especially blue smoke), or a dark, thick, gritty appearance when you check the oil on the dipstick. Regular visual checks of your dipstick are the best proactive measure.

Performing your own engine oil and filter change on your Ford Mondeo Mk5 Hatchback is a rewarding and cost-effective maintenance task. By following these steps carefully and adhering to proper safety procedures, you can ensure your engine remains in excellent condition, providing you with many more miles of reliable driving on the roads of the United Kingdom.
